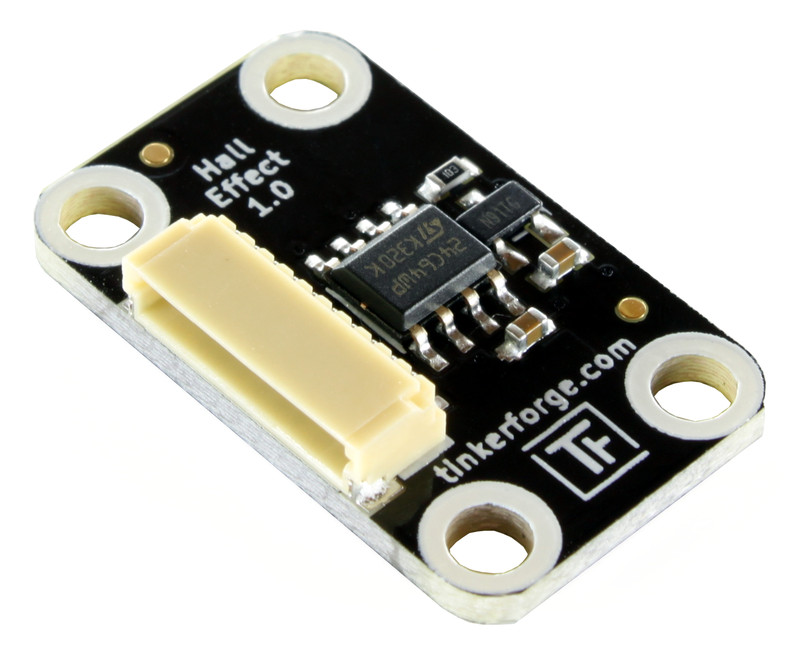

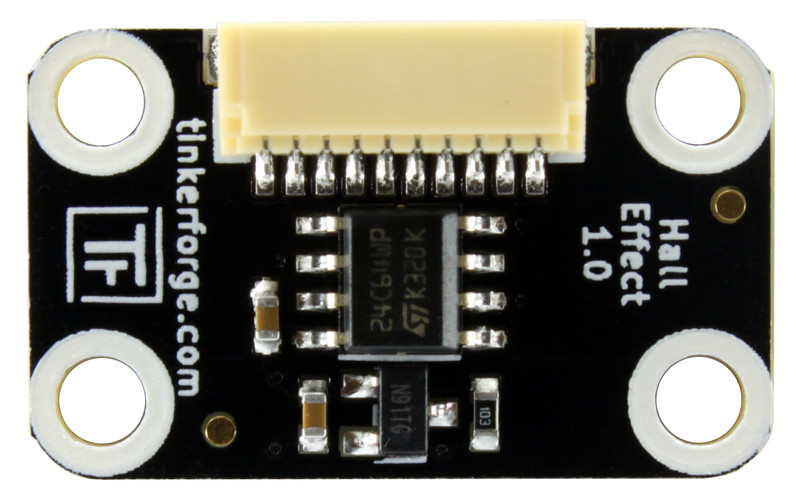

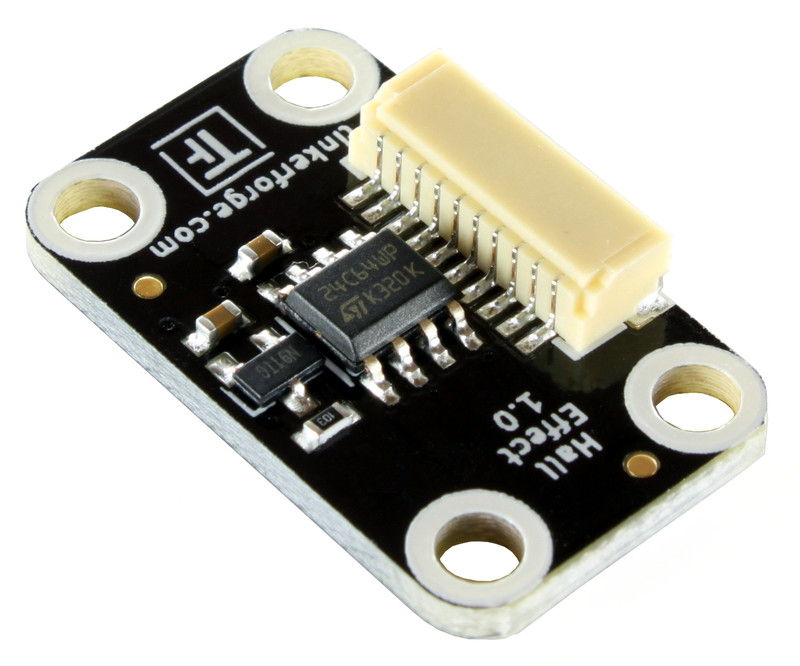

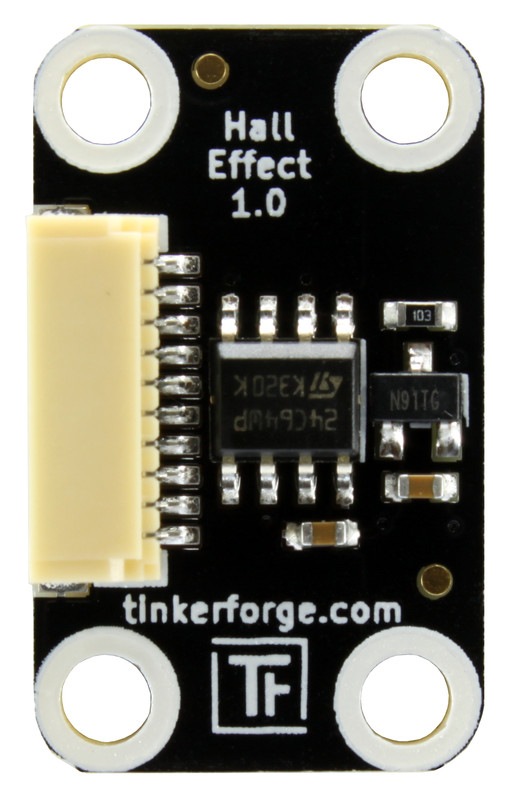

Hall Effect Bricklet

Note

The Hall Effect Bricklet is discontinued. We are selling our remaining stock. The Hall Effect Bricklet 2.0 is the recommended replacement.

Features

  • Detects presence of magnetic field
  • Counts (dis-)appearances of magnetic fields
  • Can be used to read out water/electricity meter

Description

The Hall Effect Bricklet extends Bricks and can detect the presence of magnetic fields. It counts the (dis-)appearances of magnetic fields and can for example be used to measure the speed of a wheel with attached magnet with up to 13Hz.

Example applications are:

  • Detect if a door is open or closed
  • Reading out water/electricity meters

Technical Specifications

Property Value
Sensor AH180N
Current Consumption 1mA

Operation Omnipolar (North and South pole is detected)
Trigger Point -35/35 Gauss
Release Point -25/25 Gauss
Sampling Rate 8Hz

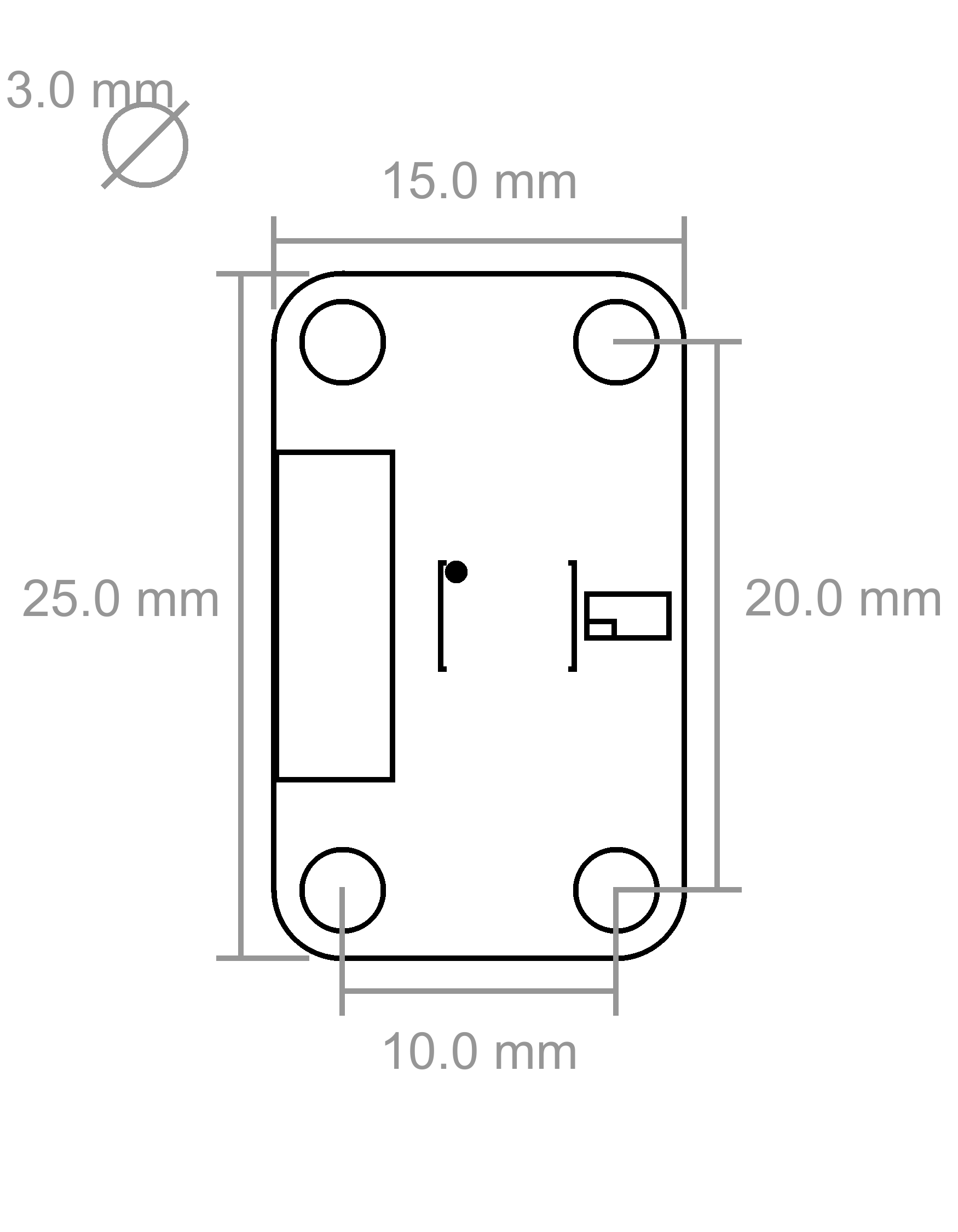

Dimensions (W x D x H) 25 x 15 x 5mm (0.98 x 0.59 x 0.19")
Weight 2g

Resources

Test your Hall Effect Bricklet

To test a Hall Effect Bricklet you need to have Brick Daemon and Brick Viewer installed. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon. It helps to figure out basic information about the connected Bricks and Bricklets and allows to test them.

Connect the Hall Effect Bricklet to a Brick with a Bricklet Cable.

If you connect the Brick to the PC over USB, you should see a new tab named "Hall Effect Bricklet" in the Brick Viewer after a moment. Select this tab. If everything went as expected you can now see the detection of a magnetic field. A magnet can be used to test the Bricklet by moving it near the Bricklet.

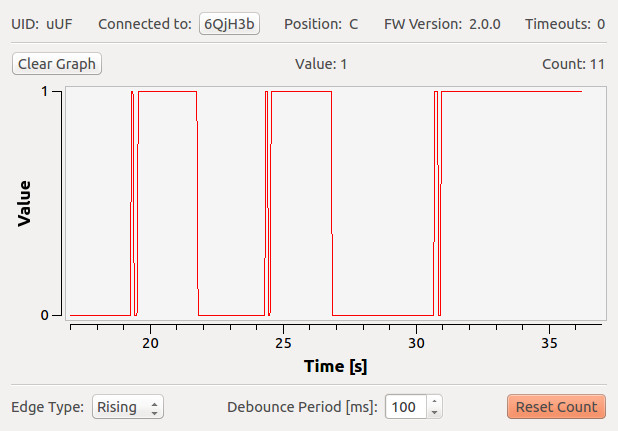

Hall Effect Bricklet in Brick Viewer

After this test you can go on with writing your own application. See the Programming Interface section for the API of the Hall Effect Bricklet and examples in different programming languages.

Programming Interface

See Programming Interface for a detailed description.

Language API Examples Installation
C/C++ API Examples Installation
C# API Examples Installation
Delphi/Lazarus API Examples Installation
Go API Examples Installation
Java API Examples Installation
JavaScript API Examples Installation
LabVIEW API Examples Installation
Mathematica API Examples Installation
MATLAB/Octave API Examples Installation
MQTT API Examples Installation
openHAB API Examples Installation
Perl API Examples Installation
PHP API Examples Installation
Python API Examples Installation
Ruby API Examples Installation
Rust API Examples Installation
Shell API Examples Installation
Visual Basic .NET API Examples Installation
TCP/IP API
Modbus API
