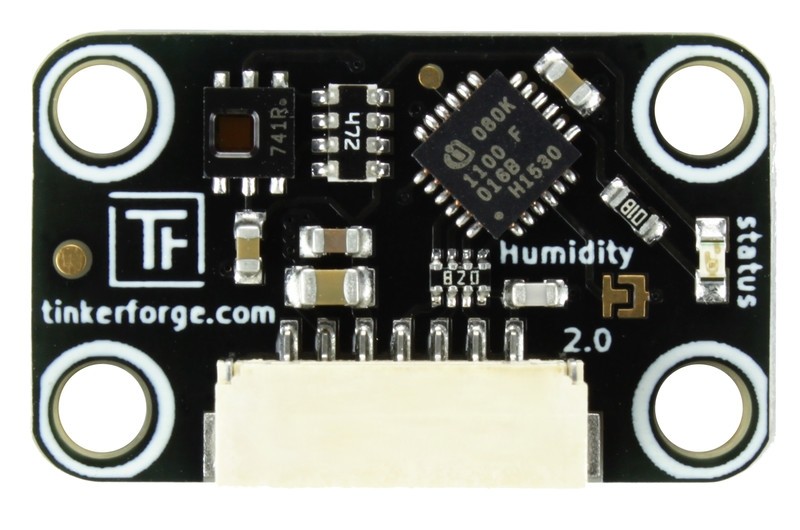

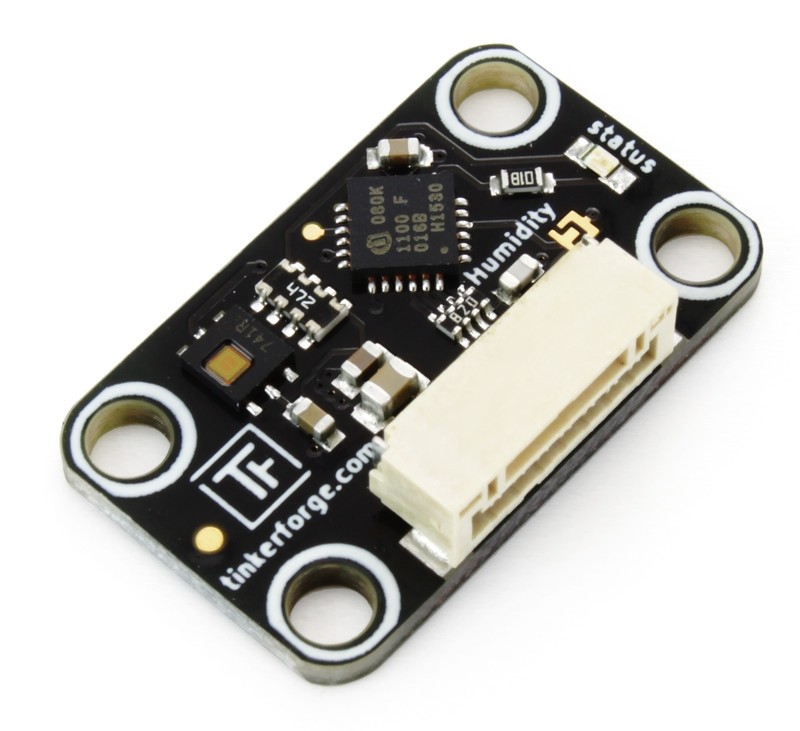

Humidity Bricklet 2.0

More Views

Humidity Bricklet 2.0

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: Out of stock

  • Measures relative humidity and temperature
  • Output in 0.01%RH / 0.01°C steps (14 bit resolution)
  • Internal heater and internal compensation
Humidity Bricklet 2.0   +€16.99

* Required Fields

Description

Details

The Humidity Bricklet is currently not in stock. We expect it to be in stock again at the end of January or beginning of February.

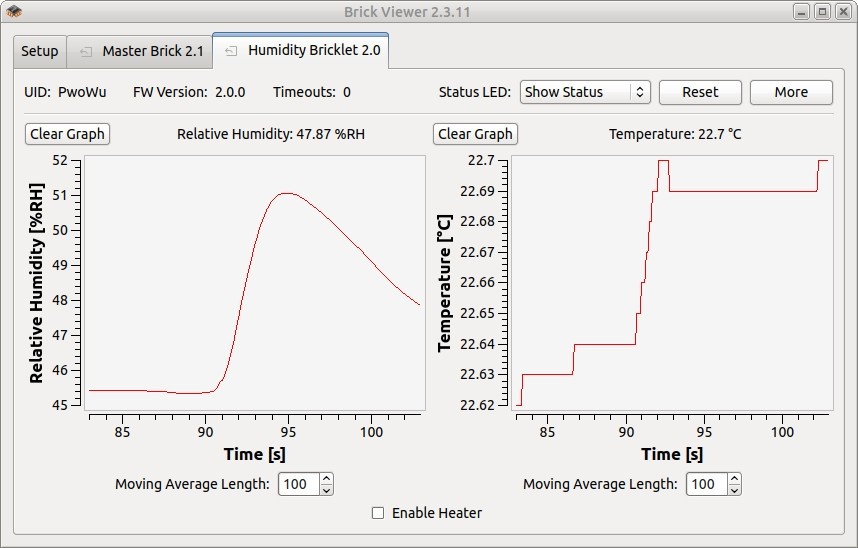

The Humidity Bricklet 2.0 can be used to extend the features of Bricks by the capability to measure relative humidity and temperature. The measured humidity can be read out directly in percent and the temperature directly in °C. With configurable events it is possible to react on changing humidity or temperature without polling.

The sensor compensates the measured humidity internaly with the current temperature. A heater is integrated into the sensor and it can be turned on through the API. It can be used to dry the sensor in extremly wet environments.

A weather station is a typical application for this sensor. It can also be used in drying applications, environment monitoring etc.

The Humidity Bricklet 2.0 has a 7 pole Bricklet connector and is connected to a Brick with a 7p-10p Bricklet cable.

Technical Specifications

PropertyValue
Sensor HDC1080
Current Consumption 28.5mW (5.7mA at 5V, without heater)

Relative Humidity (RH) 0%RH to 100%RH in 0.01%RH steps, 14 bit resolution
Temperature -20°C to 85°C in 0.01°C steps, 14 bit resolution
Accuracy ±2% (typical) for humidity, ±0.2°C (typical) for temperature

Dimensions (W x D x H) 25 x 15 x 5mm (0.98 x 0.59 x 0.19")
Weight 3g

Comes Packaged With
