Industrial Analog Out Bricklet 2.0

More Views

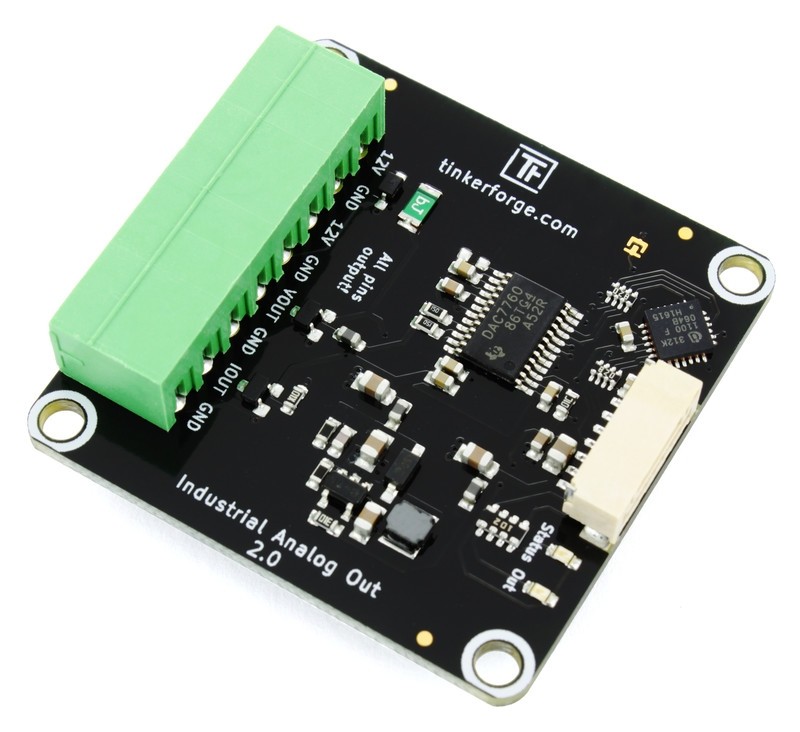

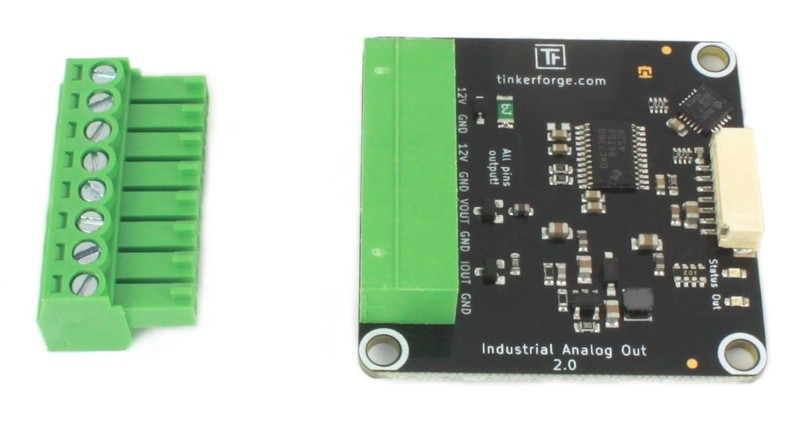

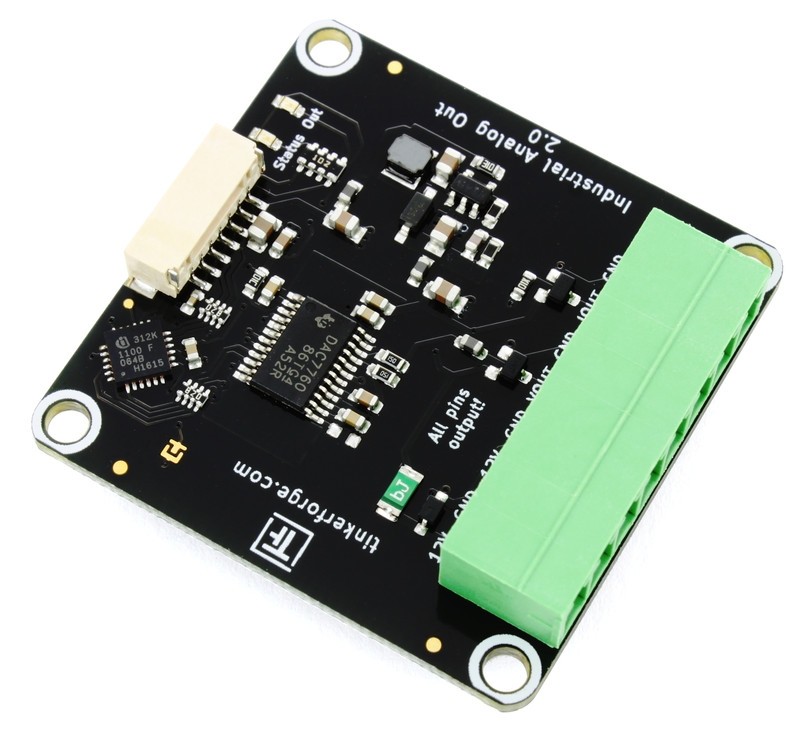

Industrial Analog Out Bricklet 2.0


Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Simultaneous programmable voltage and current output
  • Outputs voltage between 0V and 10V (IEC 60381-1)
  • Outputs current between 0mA and 24mA (IEC 60381-2)
  • No external power supply necessary
Industrial Analog Out Bricklet 2.0   +€34.99

* Required Fields



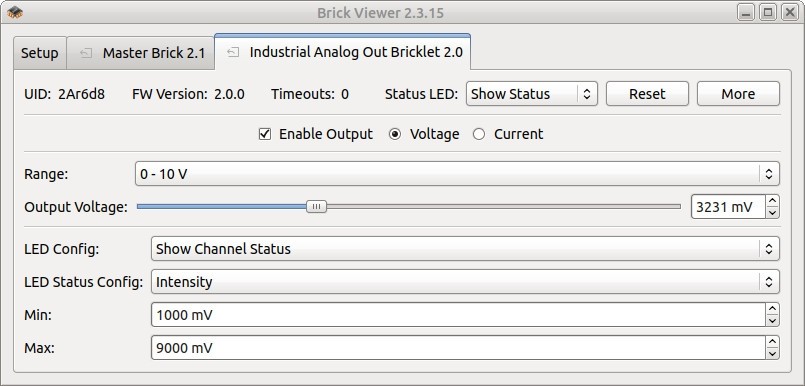

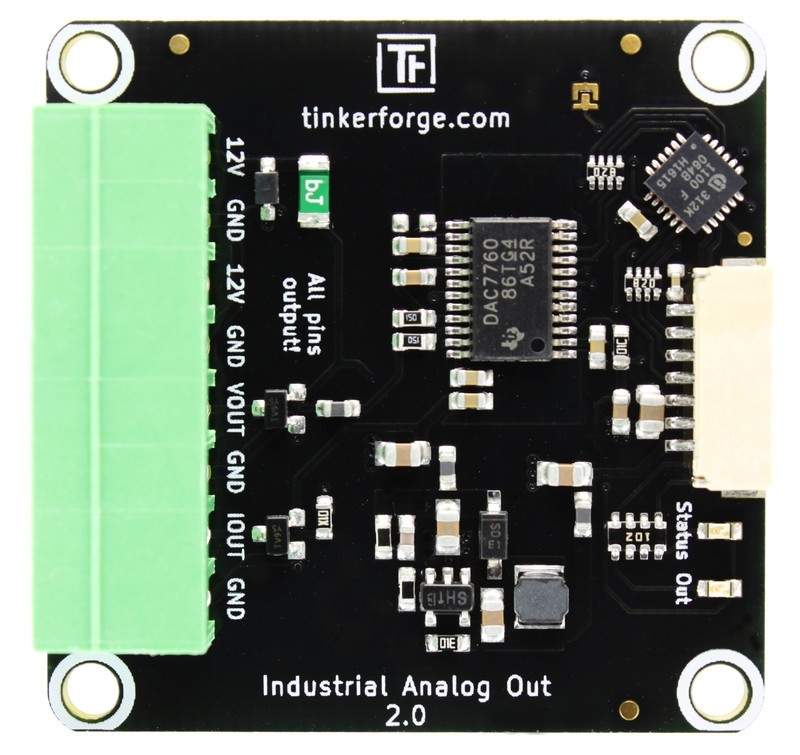

The Industrial Analog Out Bricklet 2.0 can be used to extend the features of Bricks by the capability to output voltage and current simultaneous. The voltage can be given in mV and the current in µA. The device is equipped with a 12-bit Digital-to-Analog Converter (DAC).

This Bricklet ist not galvanically isolated to the Tinkerforge system. This means that there is a direct electrical connection between the terminals of the Bricklet and the rest of the system. Dependent of the application this can lead to undesired connections, ground loops or short circuits. These problems can be prevented by using the Bricklet together with a Isolator Bricklet.

Technical Specifications

Current Consumption 90mW (18mA at 5V, without load)
Resolution up to 1.2mV / 4.8µA

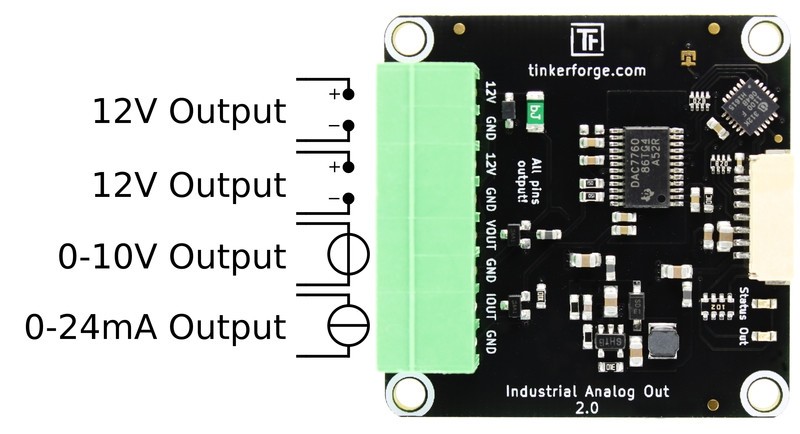

Voltage Ranges
  • 0V - 5V
  • 0V - 10V
Current Ranges
  • 4mA - 20mA
  • 0mA - 20mA
  • 0mA - 24mA
VOUT Output up to 30mA
12V Supply Output up to 100mA

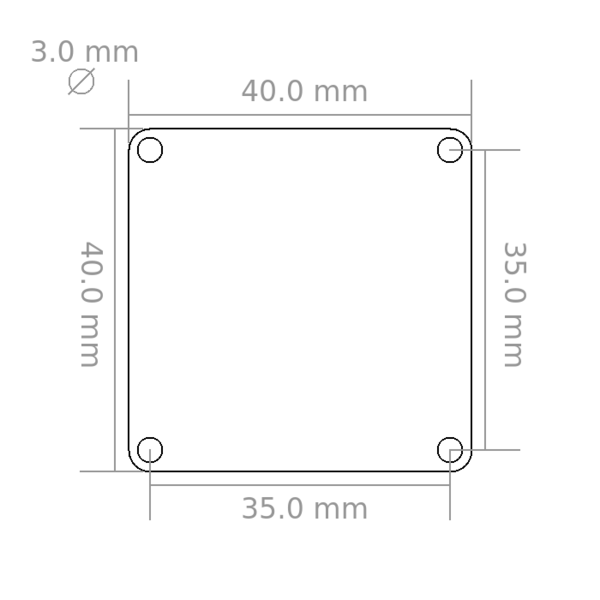

Dimensions (W x D x H) 40 x 40 x 11mm (1.57 x 1.57 x 0.43")
Weight 9g
