Industrial PTC Bricklet

More Views

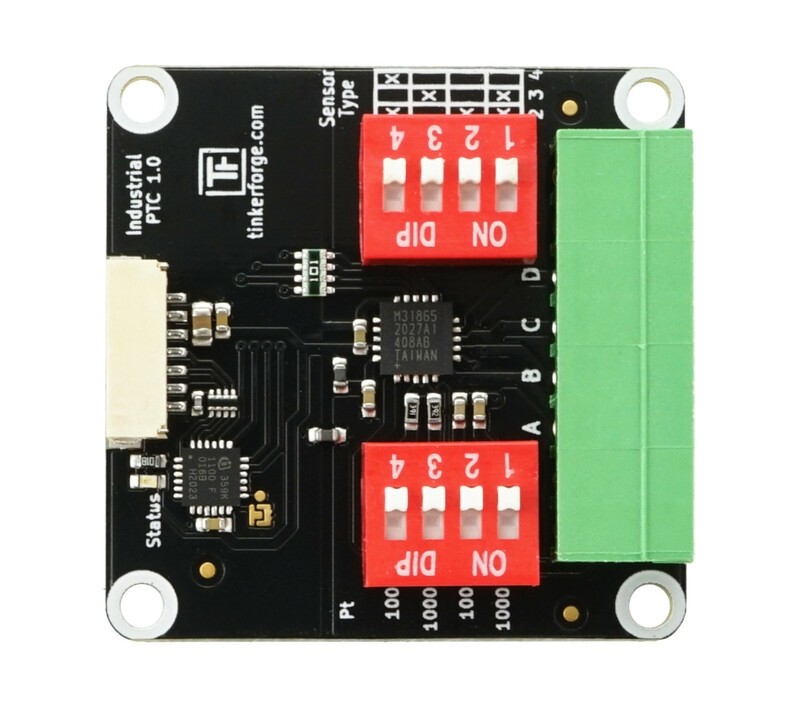

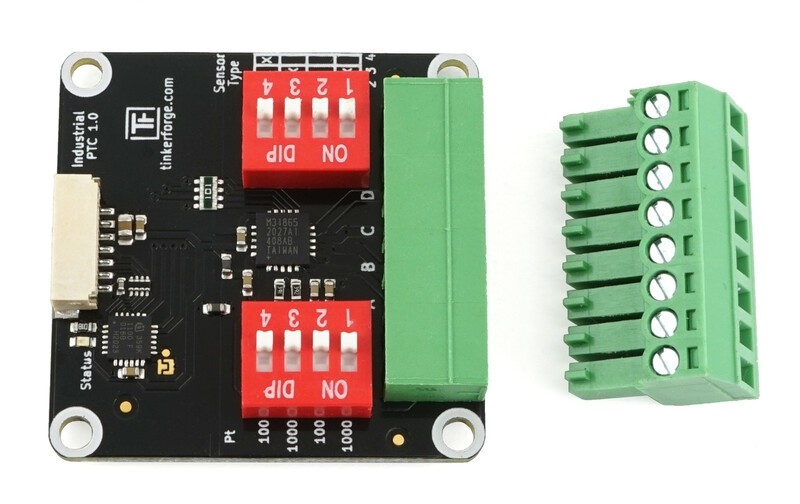

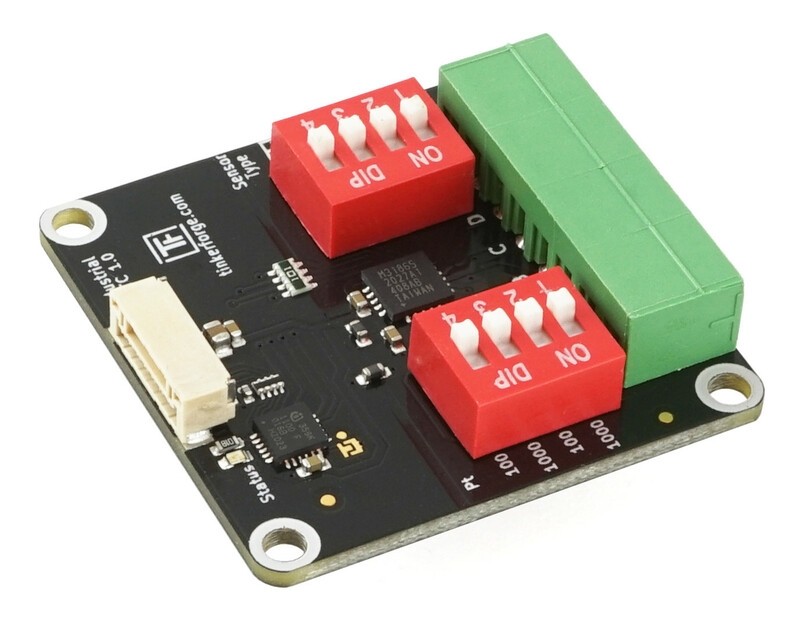

Industrial PTC Bricklet


Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Supports Pt100 and Pt1000 sensors
  • Supports 2-wire, 3-wire and 4-wire type
  • Measures temperature with 0.05% accuracy at the full scale of -246 to 849°C
  • Resolution of 0.03125°C (15bit), output in 0.01°C steps
Industrial PTC Bricklet   +€27.99

* Required Fields



The Industrial PTC Bricklet can be used to extend the features of Bricks by the capability to measure temperature with Pt100 and Pt1000 sensors.

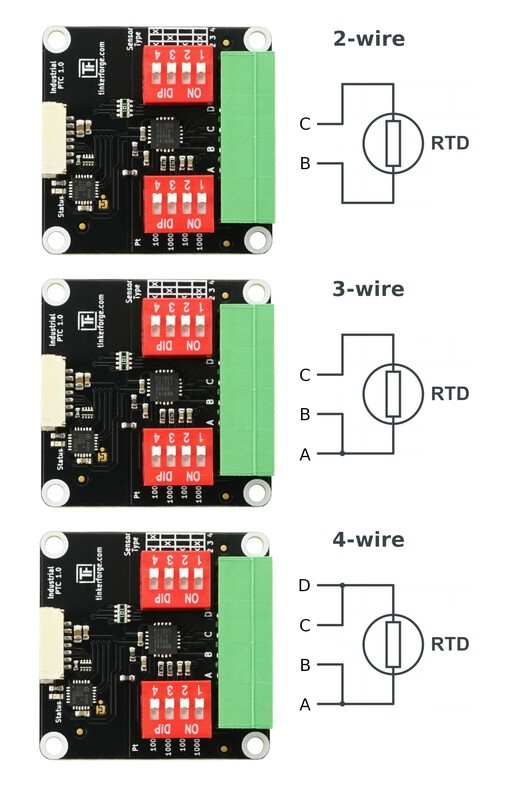

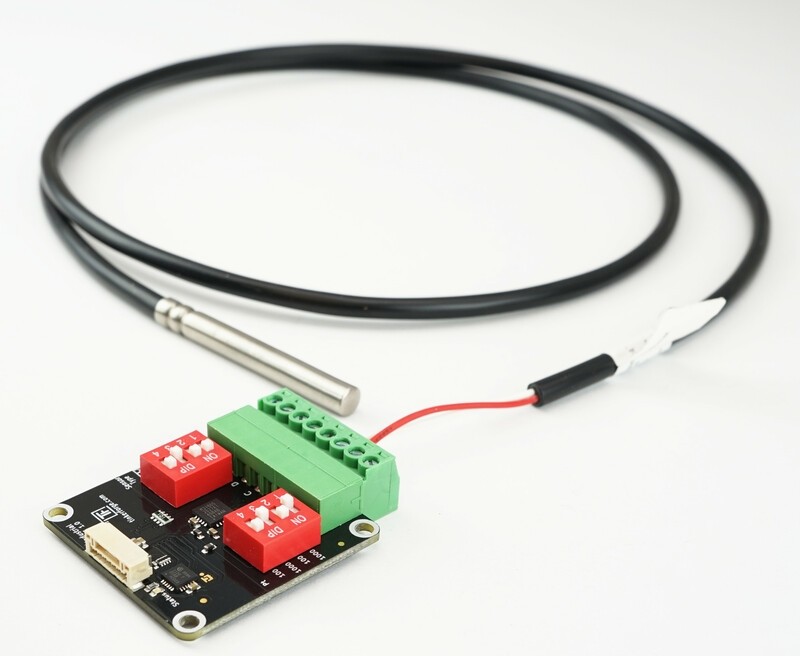

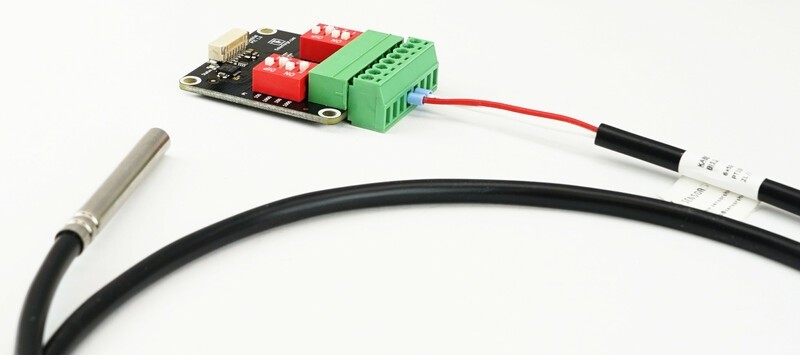

Pt100 and Pt1000 sensors of 2-wire, 3-wire or 4-wire type can be used.

The measured temperature can be read out in °C. With configurable events it is possible to react on changing temperatures without polling.

This Bricklet ist not galvanically isolated to the Tinkerforge system. This means that there is a direct electrical connection between the terminals of the Bricklet and the rest of the system. Dependent of the application this can lead to undesired connections, ground loops or short circuits. These problems can be prevented by using the Bricklet together with a Isolator Bricklet.

Technical Specifications

RTD-to-Digital Converter MAX31865
Current Consumption 50mW (10mA at 5V)
Supported Pt-Sensor Types Pt100 and Pt1000 with 2-wire, 3-wire or 4-wire
Accuracy min 0.05% full scale
Input Protection +-50V
Temperature Resolution 0.03125°C (15bit)
Conversion Time 21ms
Fault Detection Open RTD element, RTD value out-of-range, short across RTD
Dimensions (W x D x H) 40 x 40 x 12mm (1,57 x 1,57 x 0,47")
Weight 11g
