Motorized Linear Poti Bricklet

More Views

Motorized Linear Poti Bricklet

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Linear Potentiometer with 100mm fader travel
  • Fader position can be controlled by user and with a motor
  • No additional power supply necessary
  • Automatic calibration
Motorized Linear Poti Bricklet   +€39.99

* Required Fields

Description

Details

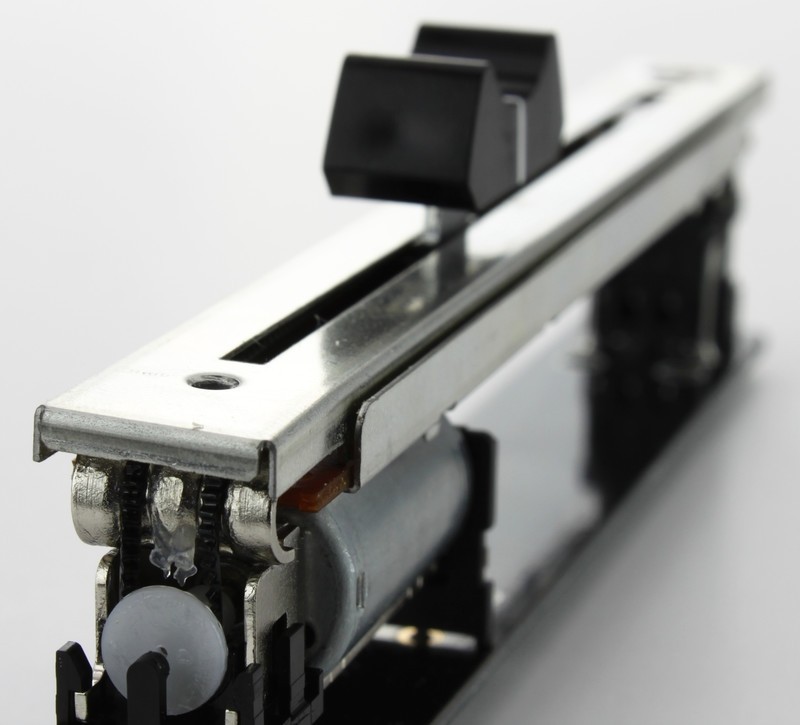

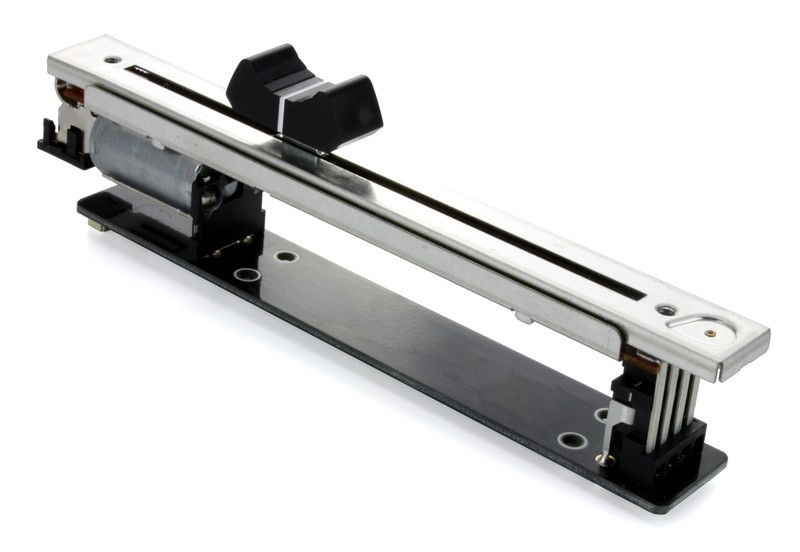

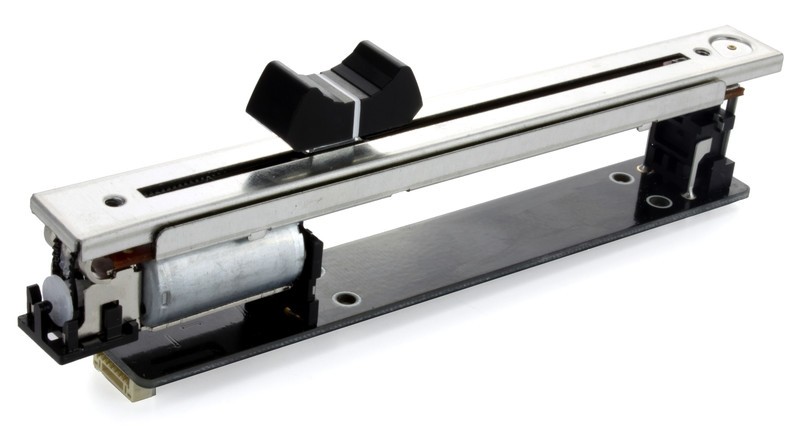

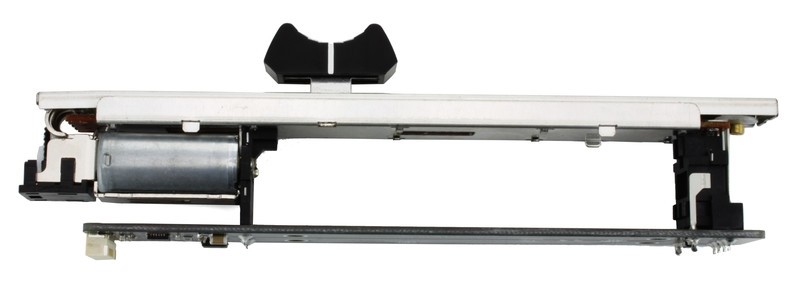

The Motorized Linear Poti Bricklet is equipped with a motor controllable 100mm linear potentiometer. It can be connected to a Brick.

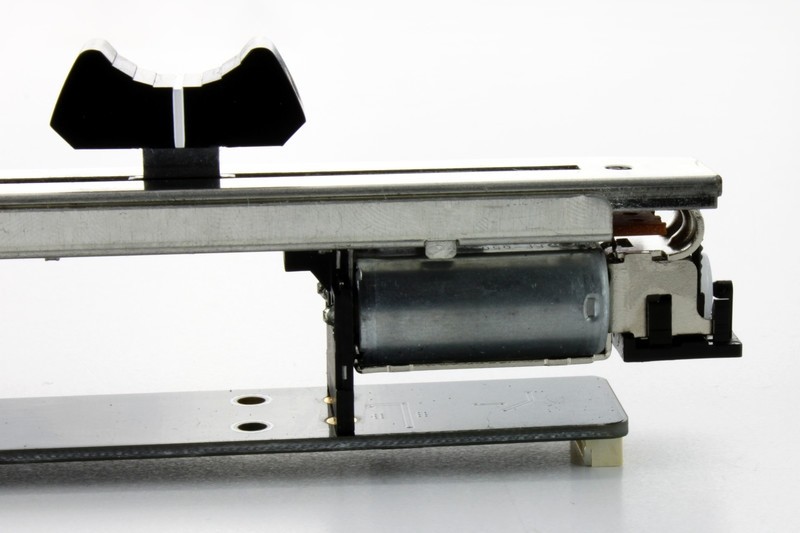

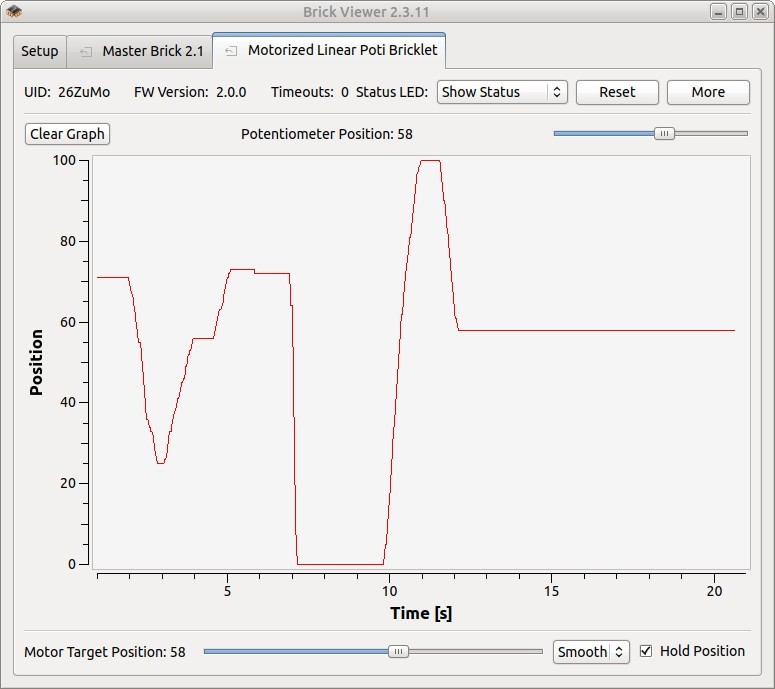

The position of the potentiometer ranges from 0 (slider down) to 100 (slider up). A user can change the position of the potentiometer and it is possible to drive the potentiometer to any position with an integrated motor.

You can configure the potentiometer to hold the position. In this case it automatically drives back to the set-point when a user changes the position. If it is not configured to hold a position, the Bricklet will only drive to the set-point once and after that the user can control the position again.

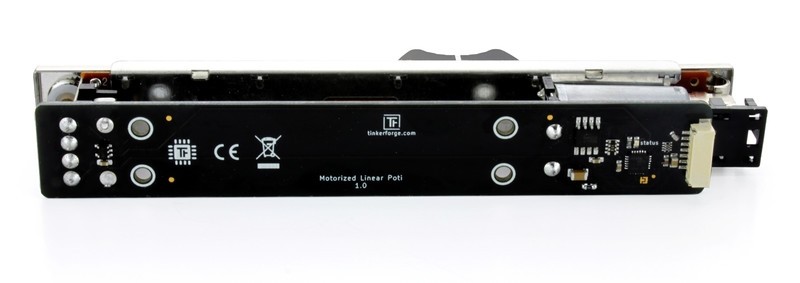

The Motorized Linear Poti Bricklet has a 7 pole Bricklet connector and is connected to a Brick with a 7p-10p Bricklet cable.

For more information click here.

Technical Specifications

PropertyValue
Current Consumption (motor off) 48.5mW (9.7mA at 5V)
Current Consumption (motor on) 465mW (93mA at 5V)

Fader Travel 100mm
Mounting hole size M3
Distance between mounting holes 120mm

Dimensions (W x D x H) 145 x 20 x 28mm (5.70 x 0.79 x 1.10")
Weight 67g

Comes Packaged With

  • Motorized Linear Poti Bricklet
  • Chosen Bricklet Cable
  • Chosen Mounting Kit / Case
