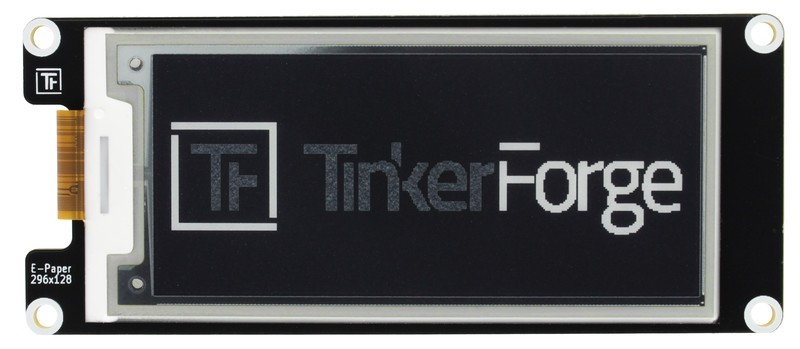

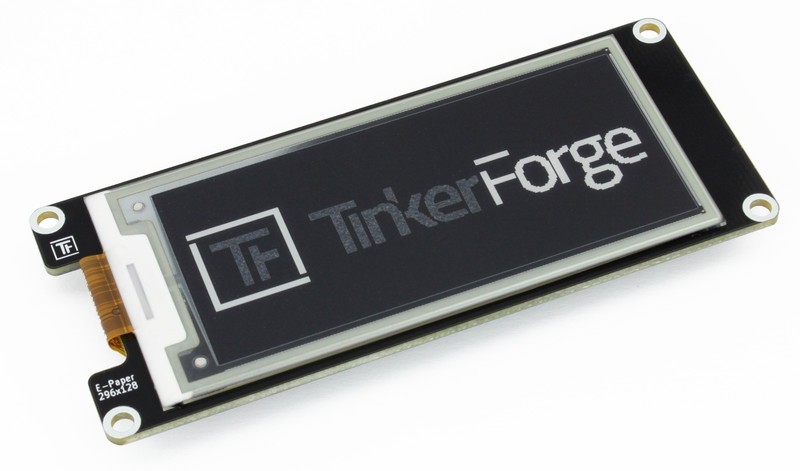

The E-Paper 296x128 Bricklet is an e-paper display with a resolution of 296x128 pixel.
Each pixel can be set individually, so the display can show graphics. The content of the display will stay after the Bricklet is powered off.
The E-Paper 296x128 Bricklet is available with two different three-color display options: Black/white/red and black/white/gray.
A three-color refresh of the display takes about 7.5 seconds. With different update modes it is possible to reach update rates of up 1Hz if only black and white are used.
Property Value Current Consumption45mW (9mA at 5V) idle95mW (19mA at 5V) during draw Display Resolution 296x128 pixel Display Size 7.4cm (2.9") Display Colors black/white/red or black/white/gray Dimensions (W x D x H) 100 x 40 x 6mm (3.93 x 1.57 x 0.24") Weight 20g
Comes Packaged With
- E-Paper 296x128 Bricklet (black/white/gray)
- Chosen Bricklet Cable
- Chosen Mounting Kit / Case
