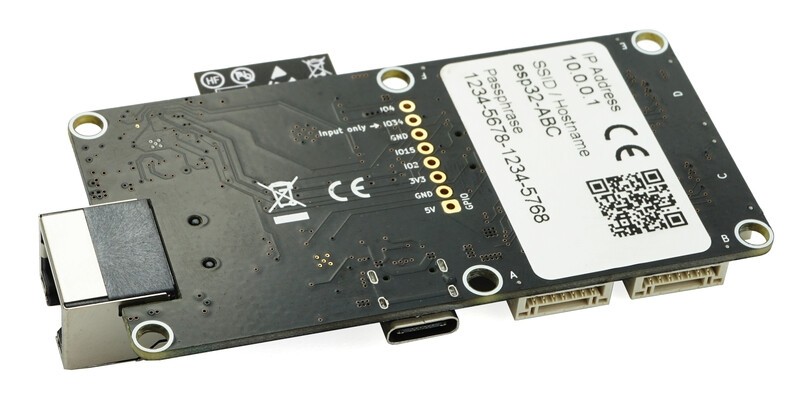

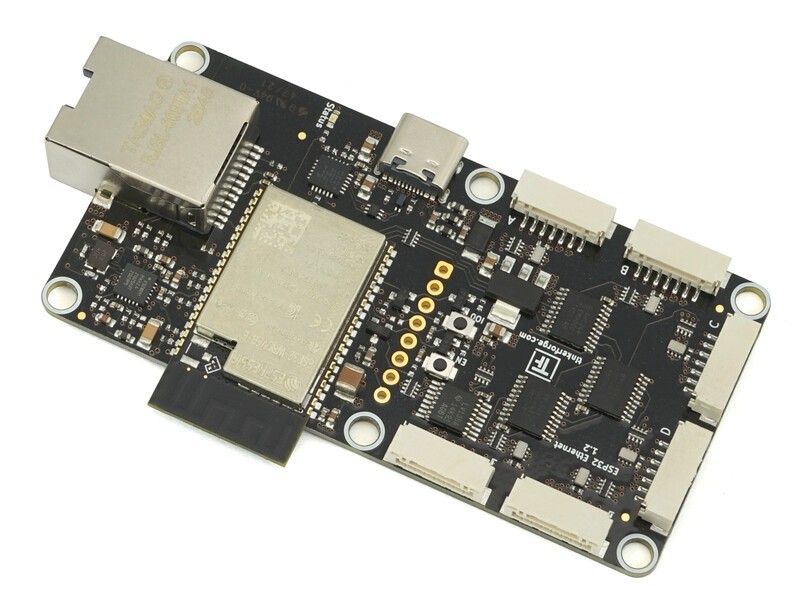

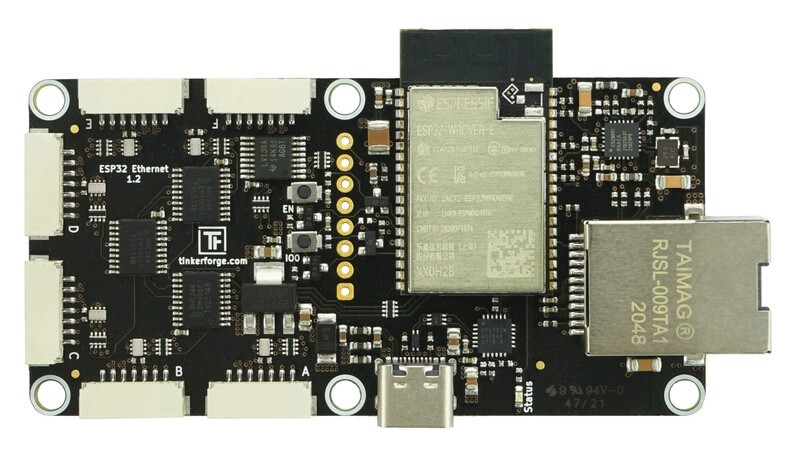

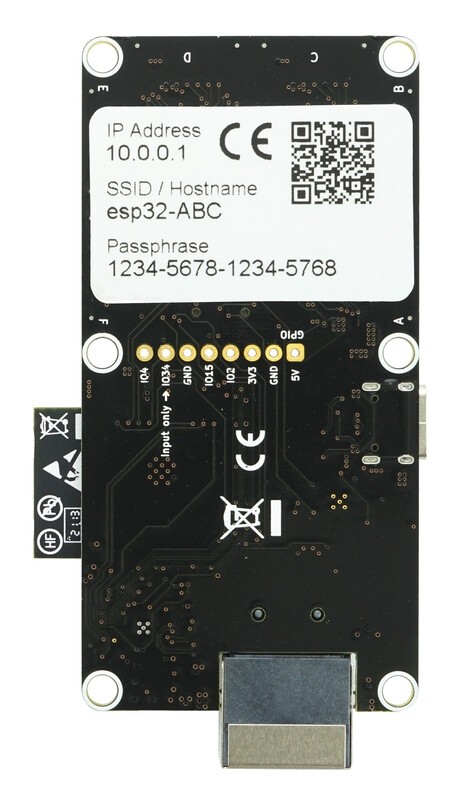

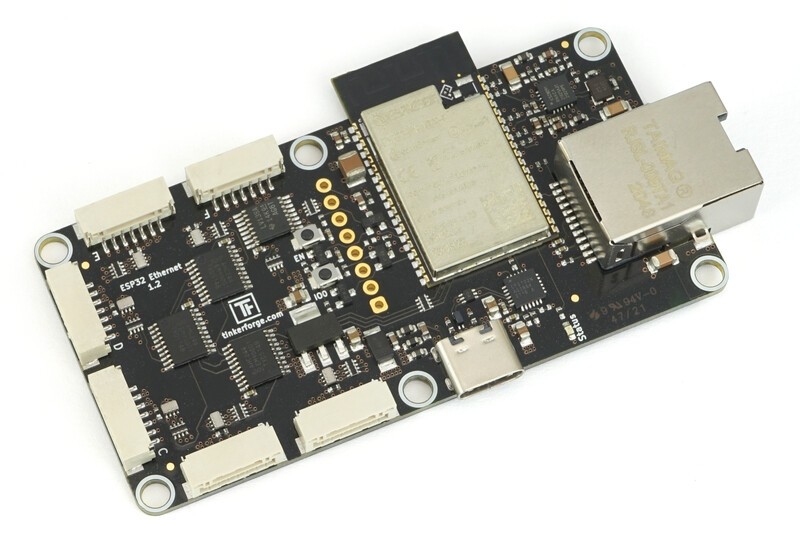

The ESP32 Ethernet Brick offers six Bricklet ports and is equipped with a powerful ESP32 microcontroller. The ESP32 is equipped with two CPU cores (up to 240MHz), 16MB SPI Flash, WIFI (802.11b/g/n) and Bluetooth (V4.2 BR/EDR, BLE).
You can use this Brick for two use cases:
The Brick can be used for stand-alone applications where you want to flash and execute your own code on the device. By integrating the C/C++ API Bindings for Microcontrollers libraries in your code, you can easily access the connected Bricklets. Support for LAN/WIFI, Bluetooth and other ESP32 features is available by the official Espressif ESP32 platform libraries. Your software can be flashed to the Brick by an onboard USB to UART converter directly connected to the ESP32 or by WIFI when using an appropriate firmware.
If you want to control the Brick with the high-level APIs from Tinkerforge you can use the pre-programmed standard firmware that is flashed by default. With this firmware you can access the connected Bricklets through the LAN/WIFI connection of the Brick. The standard firmware offers a web interface to manage the LAN and WIFI settings. For the initial setup a WIFI access point is opened through the ESP32. After the setup process this access point can be disabled.
A simultaneous use of stand-alone applications and an additional external control through the high-level API is possible. As a consequence you can react on specific events immediately (closed loop) while having other parts of the system controlled externally (open loop).
The Brick can either be powered over its USB-C connector, by the ESP32 Power Supply through the GPIO connector of the Brick.
Property Value Power Supply By USB-C jack, optional ESP32 Power Supply module Current Consumption (WIFI enabled) 925mW (185mA at 5V) Current Consumption (WIFI disabled) 520mW (104mA at 5V) Bricklet Ports 6 (7-pole) ESP32 Variant ESP32WROOM32E with 16MB Flash (ESP32WRM32E128PH) LAN 10BASE-T, 100BASE-TX (KSZ8091 Ethernet PHY) WIFI 802.11b/g/n (with up to 150 Mbps) Bluetooth V4.2 BR/EDR and Bluetooth LE Dimensions (W x D x H) 88 x 45 x 12mm (3.46 x 1.77 x 0.47") Weight 20g
Comes Packaged With
- ESP32 Ethernet Brick
- Chosen USB-C Cable
- Chosen Mounting Kit
