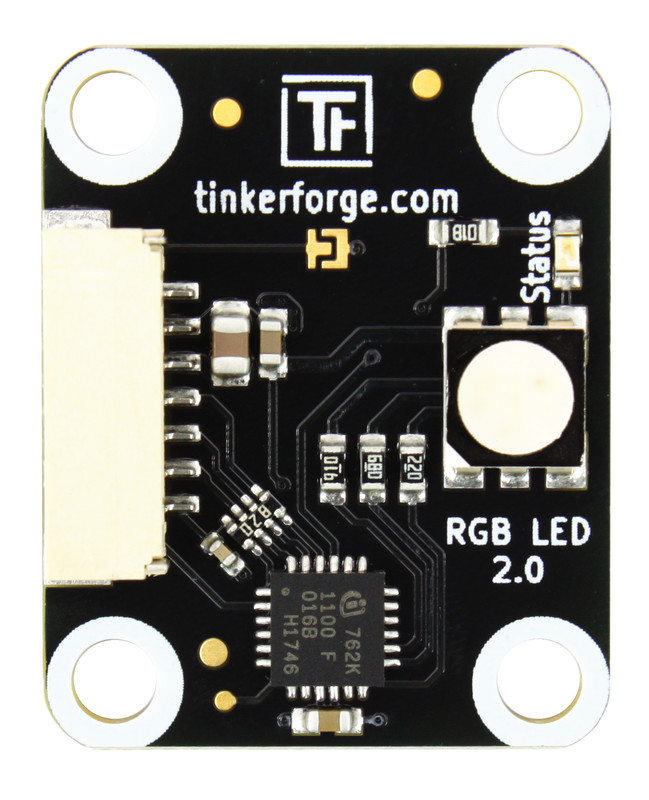

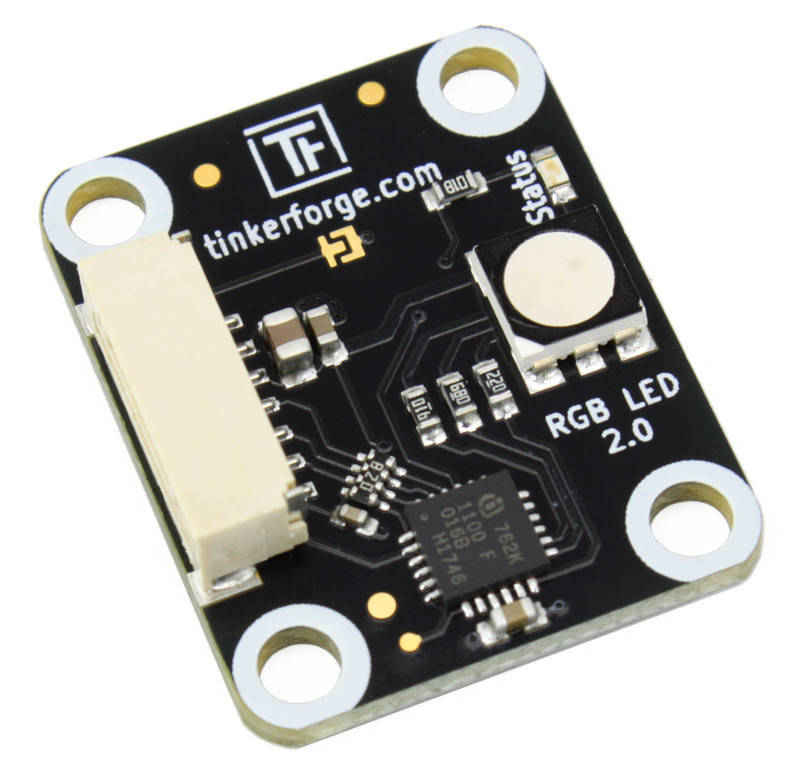

RGB LED Bricklet 2.0

Features

  • 1x RGB LED
  • 24 bit color resolution
  • Luminance output is corrected for human light perception (CIE 1931)

Description

The RGB LED Bricklet 2.0 can be used to extend the features of Bricks with the capability to control a RGB LED. Each of the three channels (red, green, blue) can be controlled individually with 8 bit resolution.

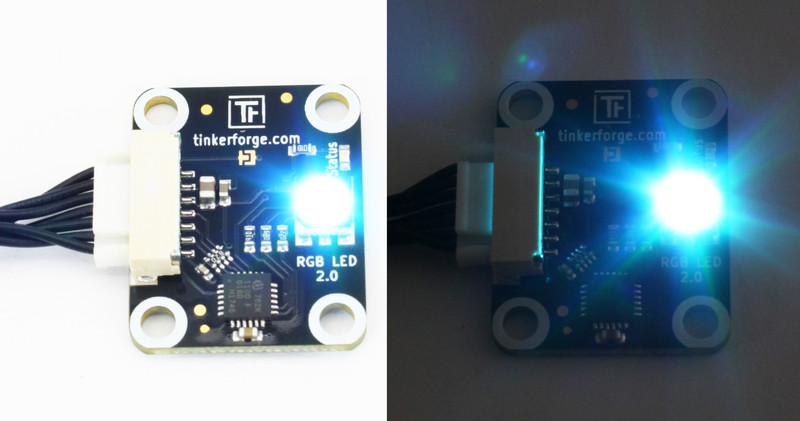

The luminance output of the LED is corrected for human light perception with accordance to CIE 1931. This means that for every color a fade from off to full brightness (value 0 to 255) will appear to be a smooth color gradient to the human eye.

The RGB LED Bricklet 2.0 has a 7 pole Bricklet connector and is connected to a Brick with a 7p-10p Bricklet cable.

Technical Specifications

Property Value
LED QBLP679E-RGB
Current Consumption
Off: 35mW (7mA at 5V)
White: 180mW (36mA at 5V)

Luminous intensity (R, G, B) 400-630mcd, 1000-1500mcd, 200-285mcd

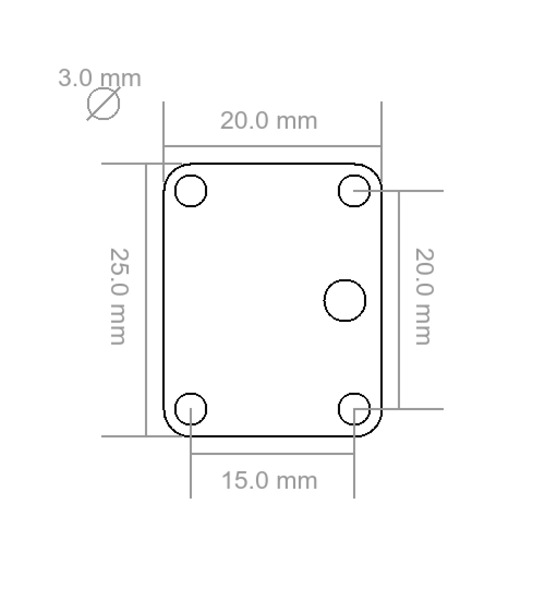

Dimensions (W x D x H) 25 x 20 x 5mm (0.98 x 0.79 x 0.19")
Weight 3g

Resources

Test your RGB LED Bricklet 2.0

To test a RGB LED Bricklet 2.0 you need to have Brick Daemon and Brick Viewer installed. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon. It helps to figure out basic information about the connected Bricks and Bricklets and allows to test them.

Connect the RGB LED Bricklet 2.0 to a Brick with a Bricklet Cable.

If you connect the Brick to the PC over USB, you should see a new tab named "RGB LED Bricklet 2.0" in the Brick Viewer after a moment. Select this tab. If everything went as expected you can now control the RGB LED color with different sliders:

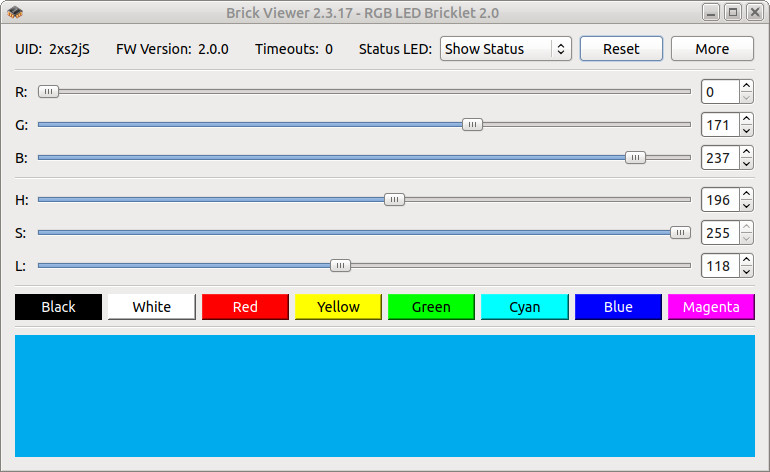

RGB LED Bricklet 2.0 in Brick Viewer

After this test you can go on with writing your own application. See the Programming Interface section for the API of the RGB LED Bricklet 2.0 and examples in different programming languages.

Programming Interface

See Programming Interface for a detailed description.

Language API Examples Installation
C/C++ API Examples Installation
C# API Examples Installation
Delphi/Lazarus API Examples Installation
Go API Examples Installation
Java API Examples Installation
JavaScript API Examples Installation
LabVIEW API Examples Installation
Mathematica API Examples Installation
MATLAB/Octave API Examples Installation
MQTT API Examples Installation
Perl API Examples Installation
PHP API Examples Installation
Python API Examples Installation
Ruby API Examples Installation
Rust API Examples Installation
Shell API Examples Installation
Visual Basic .NET API Examples Installation
TCP/IP API
Modbus API
