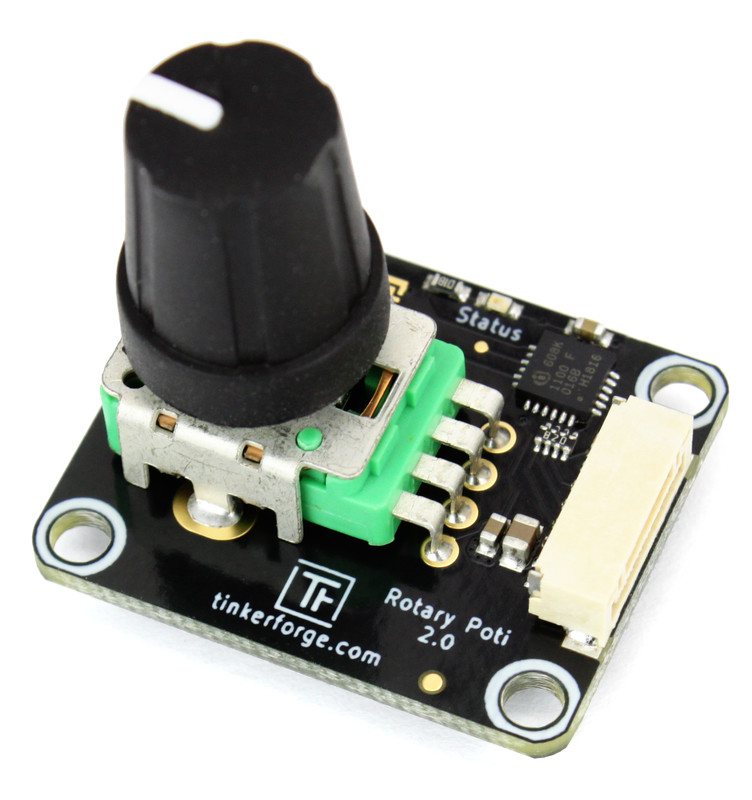

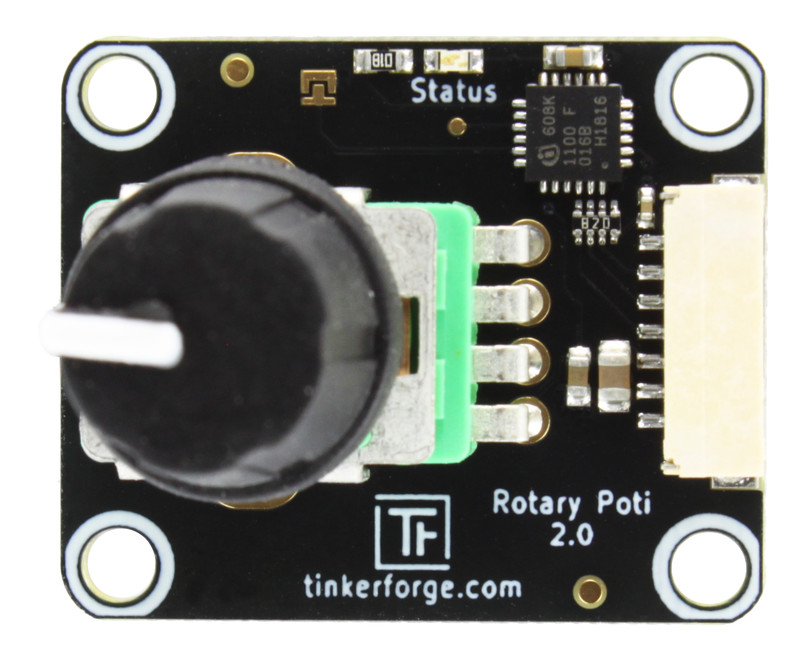

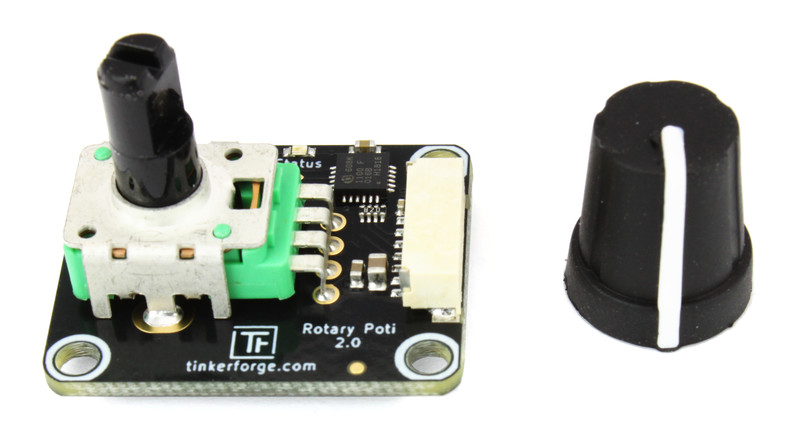

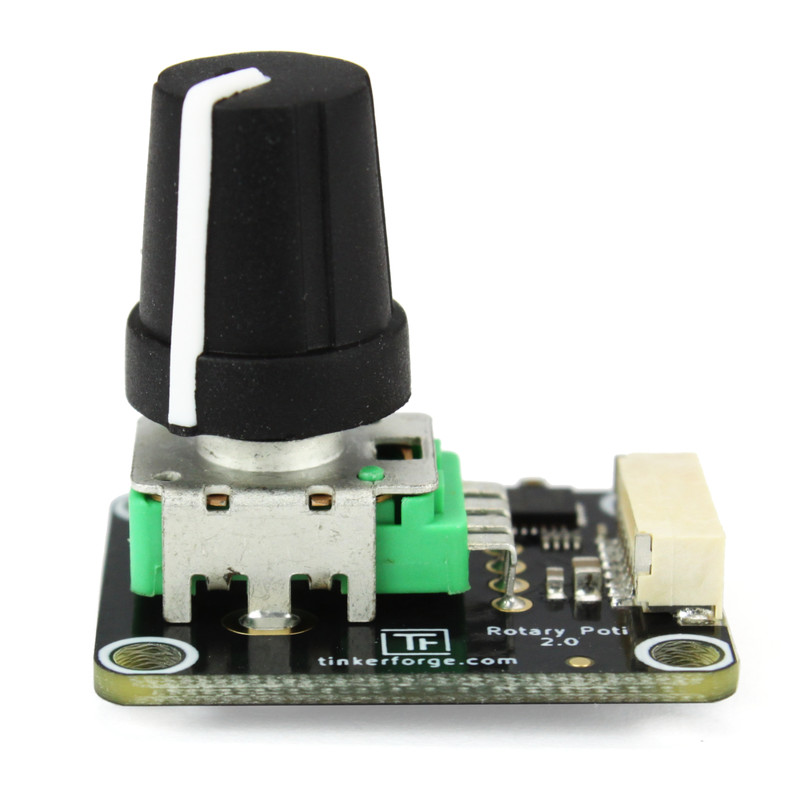

Rotary Poti Bricklet 2.0

Features

  • 300° rotary potentiometer
  • Outputs position from -150° to 150° in 1° steps

Description

The Rotary Poti Bricklet 2.0 is equipped with a 1-turn rotary potentiometer. It can be connected to a Brick, with which the position of the slider can be read out.

With configurable events it is possible to react on changing positions without polling.

Technical Specifications

Property Value
Rotary Potentiometer 1-turn, 300°
Current Consumption 40mW (8mA at 5V)

Position -150° to 150° (left to right) in 1° steps

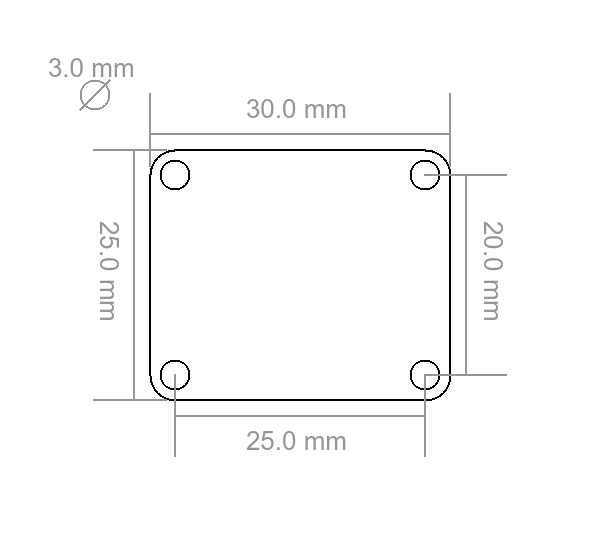

Dimensions (W x D x H) 30 x 25 x 23mm (1.18 x 0.98 x 0.9")*
Weight 7g

Resources

Test your Rotary Poti Bricklet 2.0

To test a Rotary Poti Bricklet 2.0 you need to have Brick Daemon and Brick Viewer installed. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon. It helps to figure out basic information about the connected Bricks and Bricklets and allows to test them.

Connect the Rotary Poti Bricklet 2.0 to a Brick with a Bricklet Cable.

If you connect the Brick to the PC over USB, you should see a new tab named "Rotary Poti Bricklet 2.0" in the Brick Viewer after a moment. Select this tab. If everything went as expected the Brick Viewer should look as depicted below.

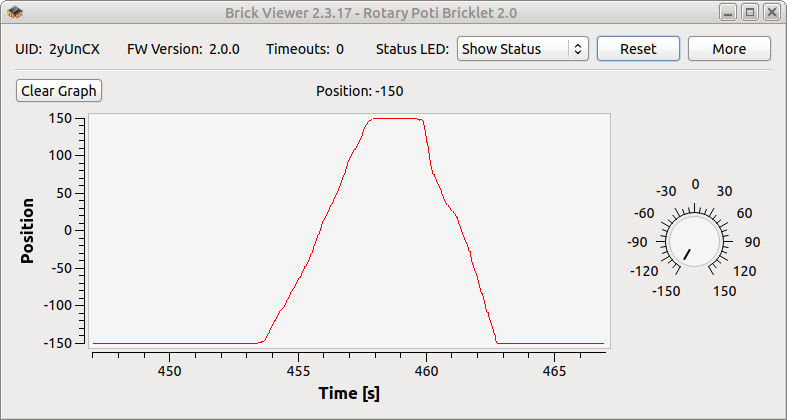

Rotary Poti Bricklet 2.0 in Brick Viewer

Turn the potentiometer. You should be able to create a similar graph by turning the potentiometer from left left to right and back to left.

After this test you can go on with writing your own application. See the Programming Interface section for the API of the Rotary Poti Bricklet 2.0 and examples in different programming languages.

Case

A laser-cut case for the Rotary Poti Bricklet 2.0 is available.

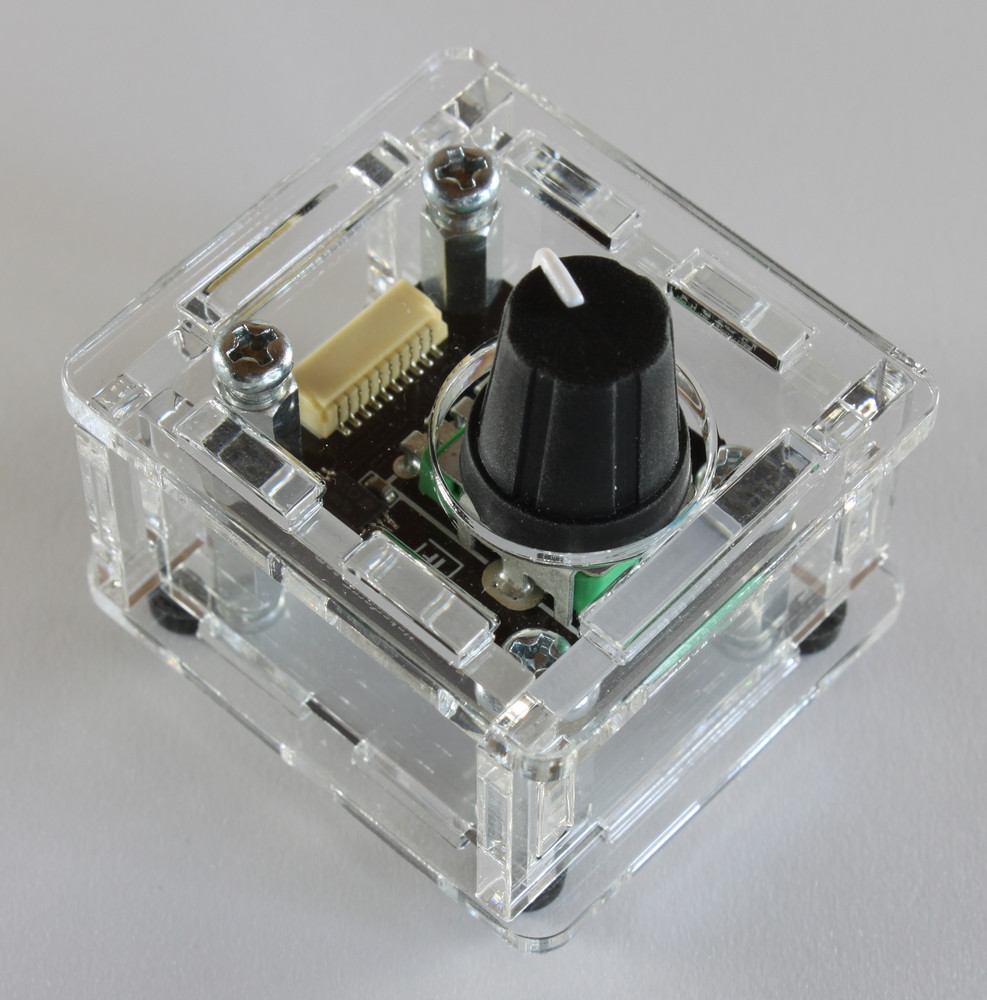

Case for Rotary Poti Bricklet 2.0

The assembly is easiest if you follow the following steps:

  • Screw spacers to the Bricklet,
  • screw bottom plate to bottom spacers,
  • build up side plates,
  • plug side plates into bottom plate and
  • screw top plate to top spacers.

Below you can see an exploded assembly drawing of the Rotary Poti Bricklet 2.0 case:

Exploded assembly drawing for Rotary Poti Bricklet 2.0

Hint: There is a protective film on both sides of the plates, you have to remove it before assembly.

Programming Interface

See Programming Interface for a detailed description.

Language API Examples Installation
C/C++ API Examples Installation
C/C++ for Microcontrollers API Examples Installation
C# API Examples Installation
Delphi/Lazarus API Examples Installation
Go API Examples Installation
Java API Examples Installation
JavaScript API Examples Installation
LabVIEW API Examples Installation
Mathematica API Examples Installation
MATLAB/Octave API Examples Installation
MQTT API Examples Installation
openHAB API Examples Installation
Perl API Examples Installation
PHP API Examples Installation
Python API Examples Installation
Ruby API Examples Installation
Rust API Examples Installation
Shell API Examples Installation
Visual Basic .NET API Examples Installation
TCP/IP API
Modbus API
