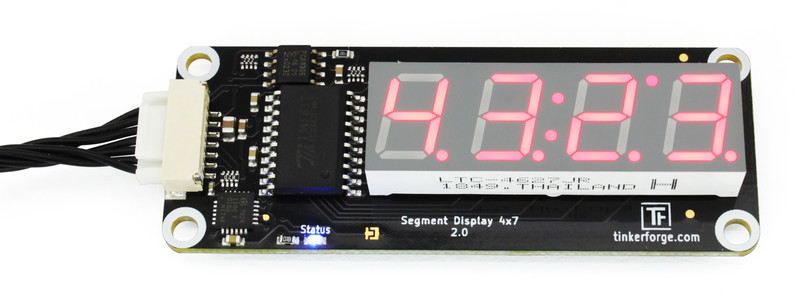

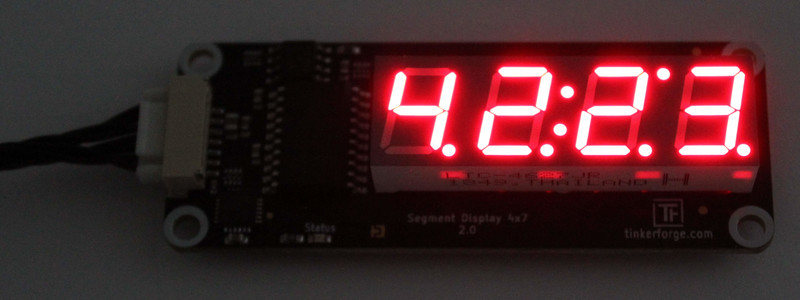

It is also possible to configure the brightness of the segments. Besides the possibility of controlling each segment independently, the API offers a user configurable counter.

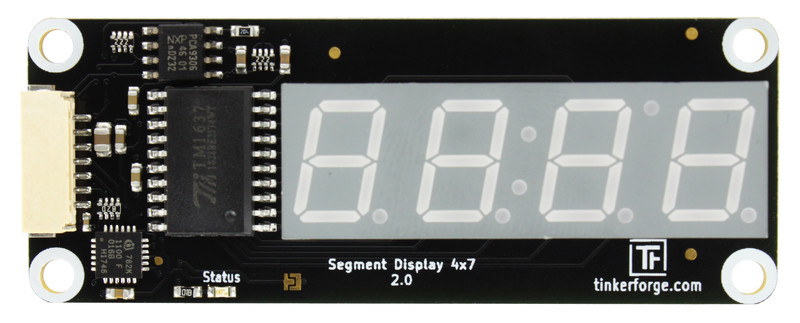

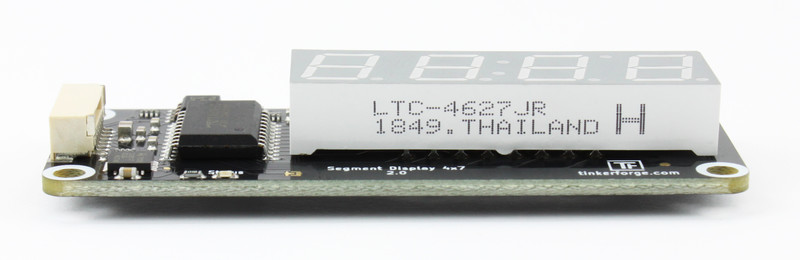

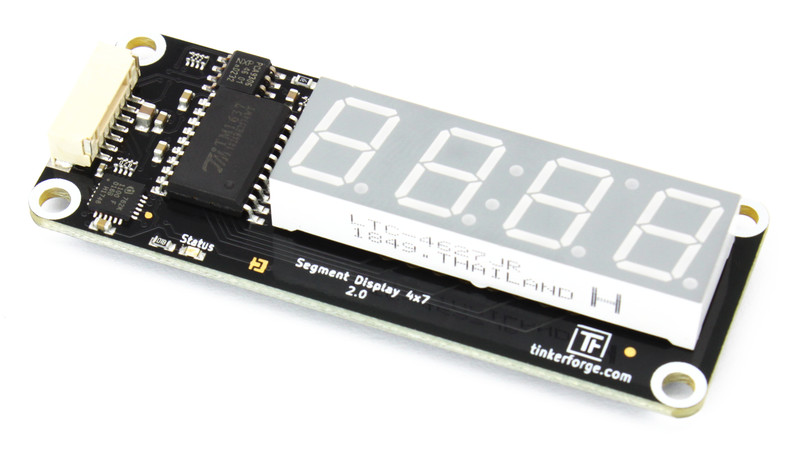

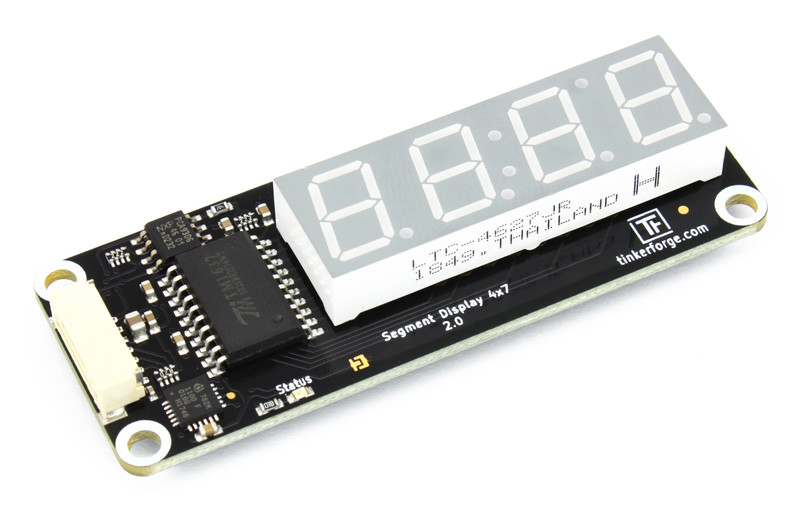

The Segment Display 4x7 Bricklet 2.0 has a 7 pole Bricklet connector and is connected to a
Brick with a
7p-10p Bricklet cable.
30mW (6mA at 5V) all segments off
60mW (12mA at 5V) all segments on at minimum brightness
400mW (80mA at 5V) all segments on at maximum brightness
|Brightness of Segments||Configurable in 8 steps|

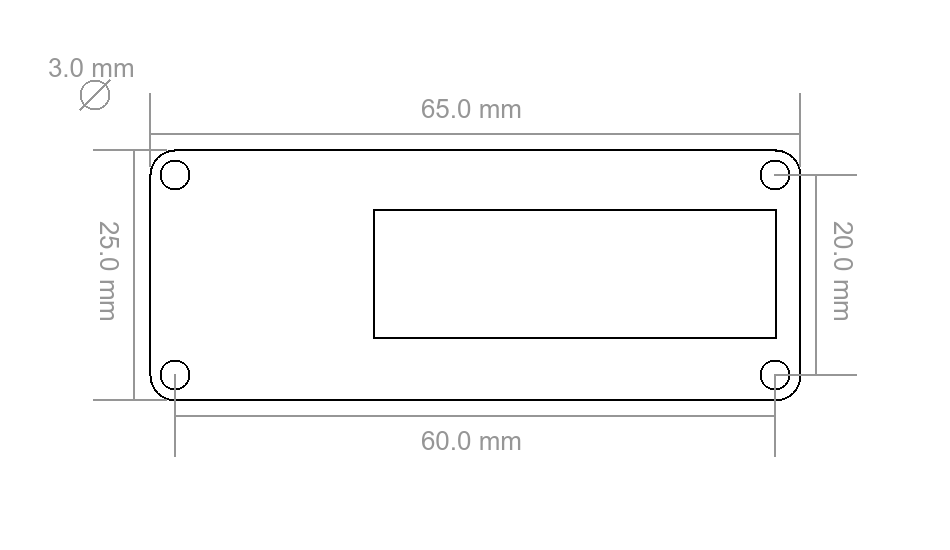

|Dimensions (W x D x H)||25 x 65 x 9mm (0.98 x 2.56 x 0.35")|
To test a Segment Display 4x7 Bricklet 2.0 you need to have Brick Daemon and Brick Viewer installed. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon. It helps to figure out basic information about the connected Bricks and Bricklets and allows to test them.
Connect the Segment Display 4x7 Bricklet 2.0 to a Brick with a Bricklet Cable.

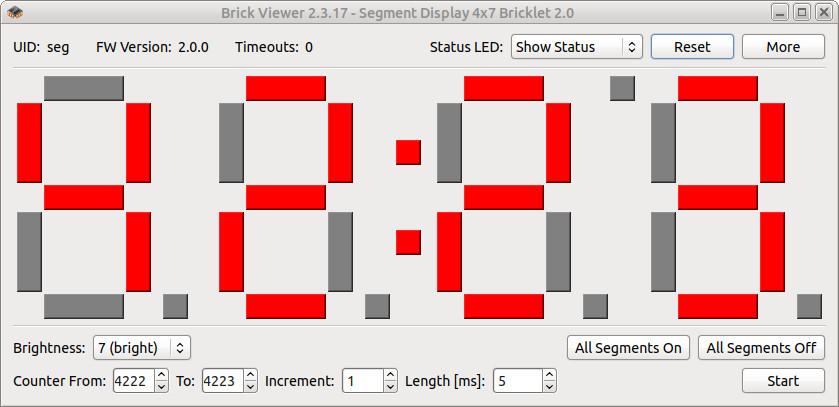

If you connect the Brick to the PC over USB, you should see a new tab named "Segment Display 4x7 Bricklet 2.0" in the Brick Viewer after a moment. Select this tab. If everything went as expected you can now activate/deactivate the individual segments.
After this test you can go on with writing your own application. See the Programming Interface section for the API of the Segment Display 4x7 Bricklet 2.0 and examples in different programming languages.
A laser-cut case for the Segment Display 4x7 Bricklet 2.0 is available.
The assembly is easiest if you follow the following steps:
Below you can see an exploded assembly drawing of the Segment Display 4x7 Bricklet 2.0 case:
Hint: There is a protective film on both sides of the plates, you have to remove it before assembly.
See Programming Interface for a detailed description.
