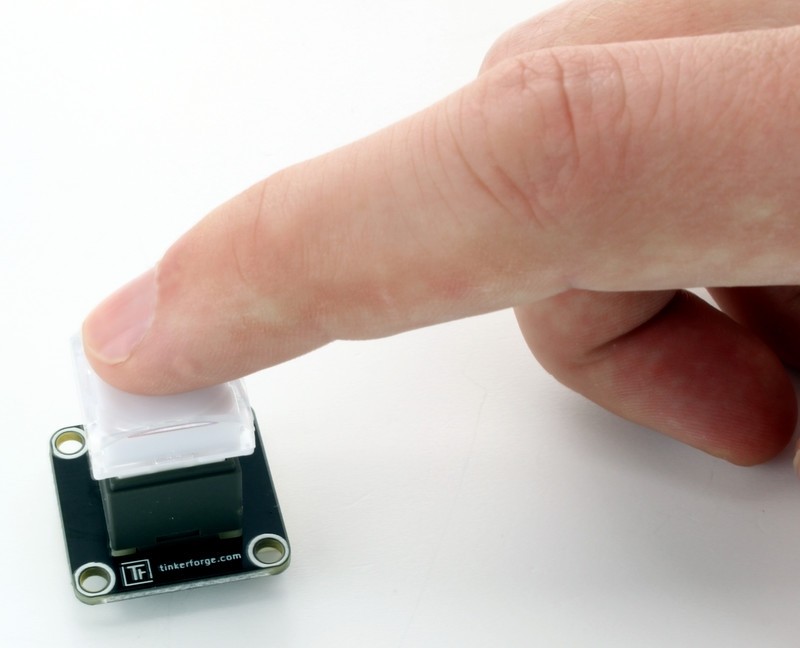

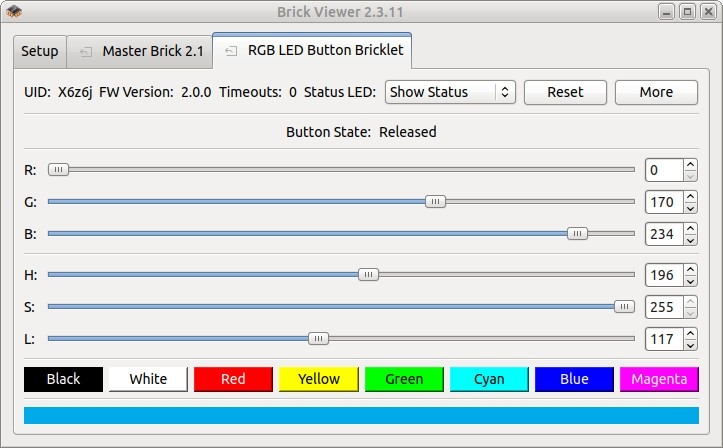

You can read the current state of the button (pressed/released) and adjust the color of the LED. The red, green and blue part of the LED can be controlled with 8 bit resolution each.

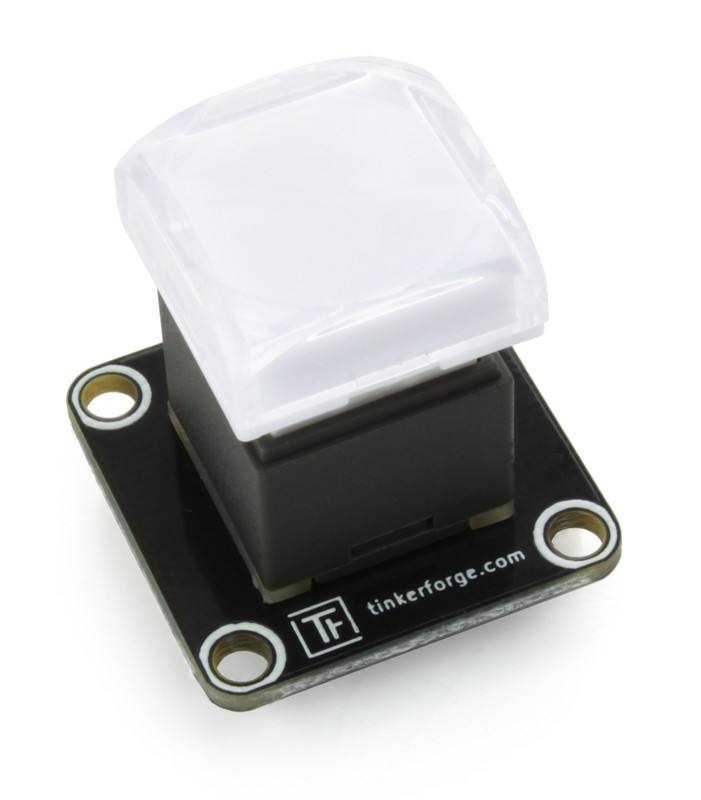

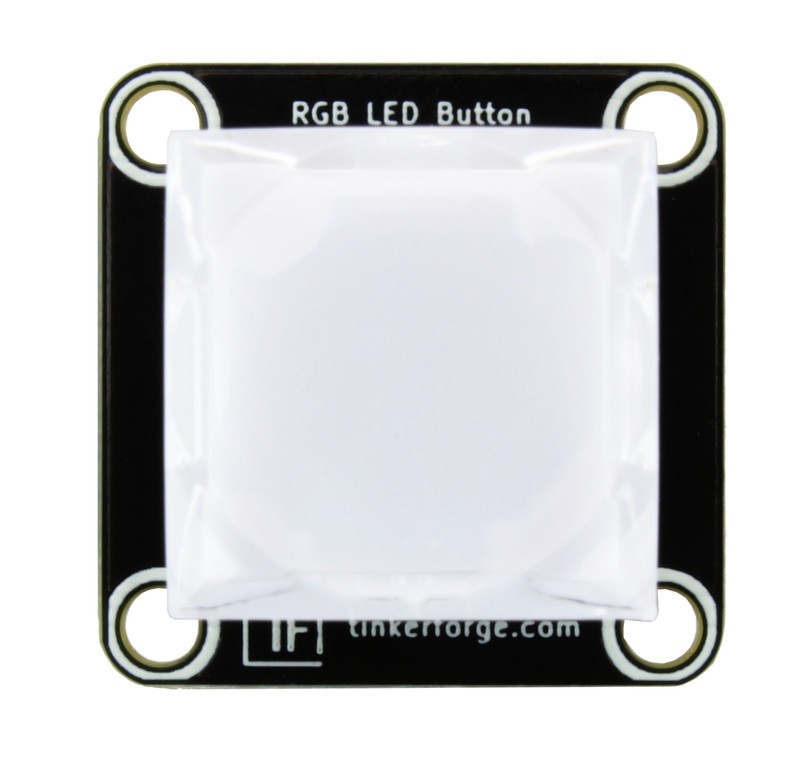

A white inlay is attached below the cap. This paper inlay can be replaced by a custom printed inlay (for example a power sign or an arrow or similar).
It is also possible to use events. This allows to react to button presses without polling.
Property Value Current Consumption (LEDs off) 31mW (6.2mA at 5V) Current Consumption (LEDs on) 207mW (41.4mA at 5V) LED Resolution 8 bit per channel Inlay size 14 x 14mm Button size 15 x 15mm Cap size 17.4 x 17.4mm Dimensions (W x D x H) 25 x 25 x 30mm (0.98 x 0.98 x 1.18") Weight 7g
Comes Packaged With
