Industrial Dual Relay Bricklet

Industrial Dual Relay Bricklet

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Two relays for switching AC/DC devices
  • Switches up to 240VAC/10A and 30VDC/7A
Industrial Dual Relay Bricklet   +€16.99

* Required Fields

Description

Details

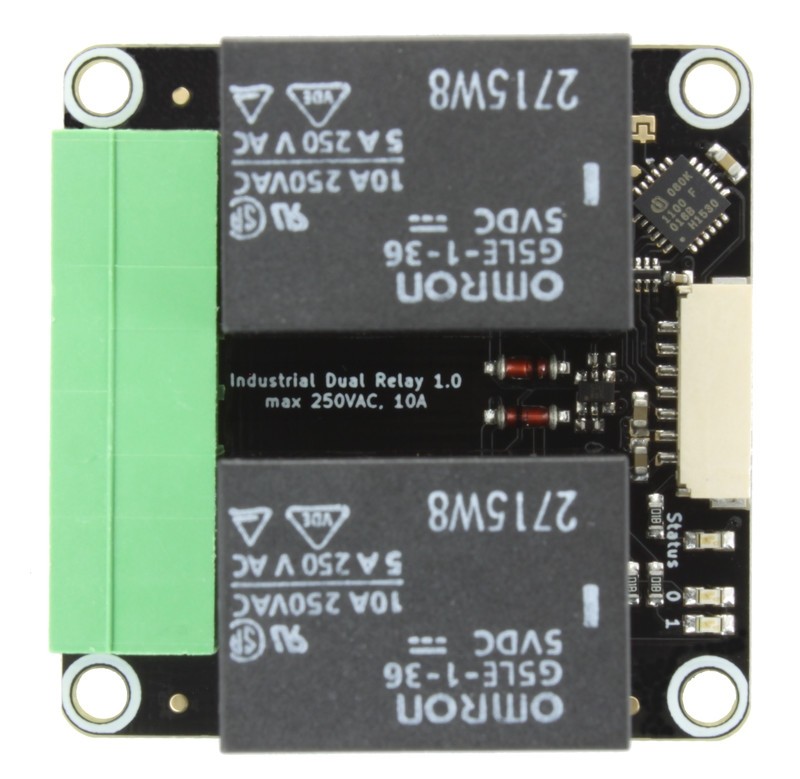

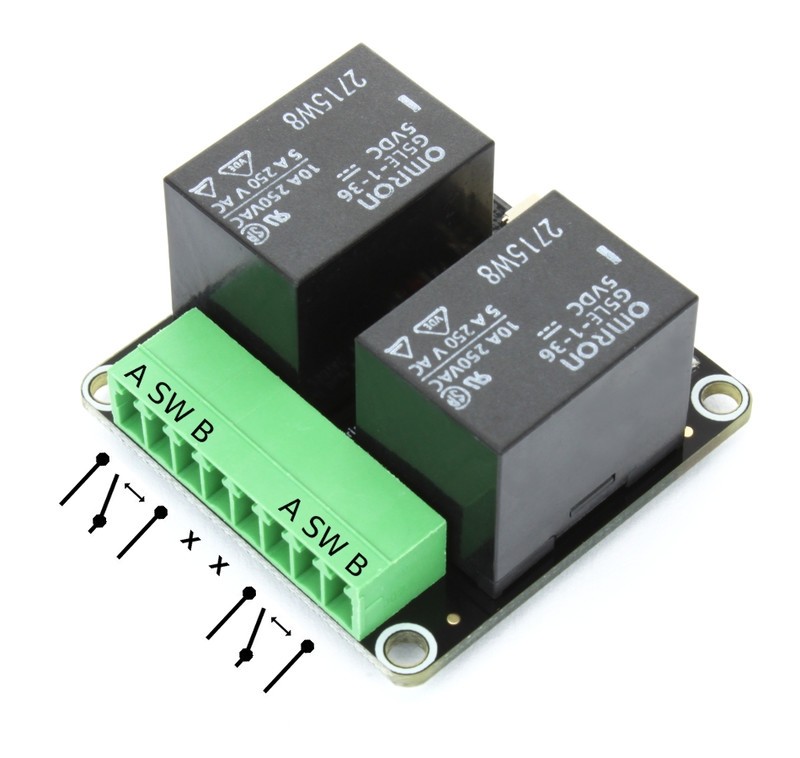

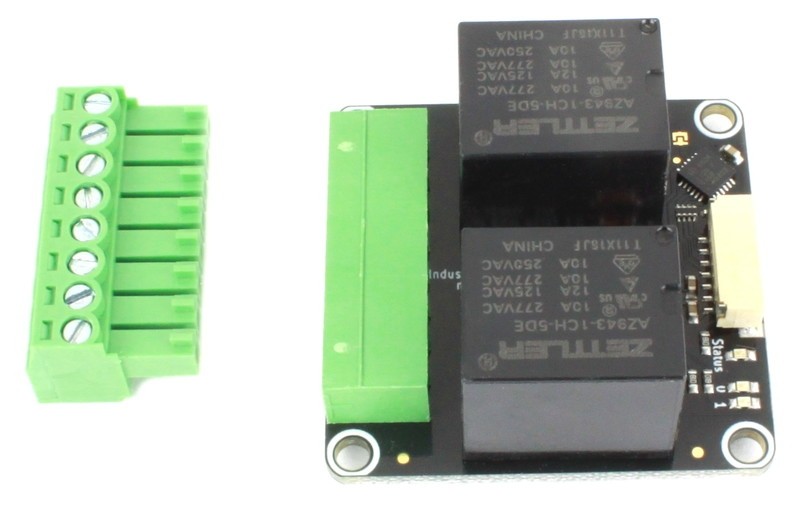

The Industrial Dual Relay Bricklet can be used to extend the features of Bricks by two relays. Each relay has three terminals such that the terminal in the middle is electrically connected to the terminal left or right depending on the state. The state is visualized by a LED. The Bricklet is equipped with

You can use this Bricklet to switch power supplies, motors, lamps, etc. Consider the maximum voltage and current.

If you want to switch inductive loads, please see: Inductive Load Switching.

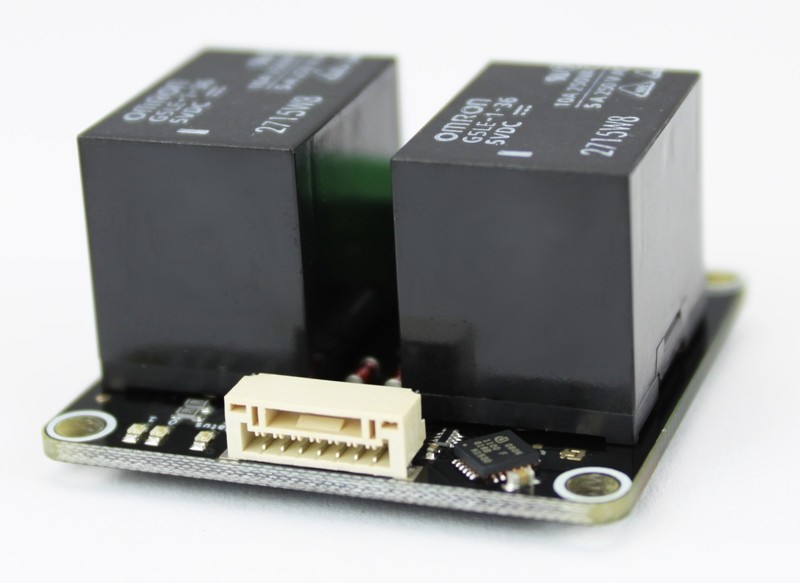

The Industrial Dual Relay Bricklet has a 7 pole Bricklet connector and is connected to a Brick with a 7p-10p Bricklet cable.

Technical Specifications

PropertyValue
Relay Omron G5LE-1-36
Current Consumption
27mw (5.4mA at 5V)
+ 350mw (70mA at 5V) per activated relay

Maximum Voltage/Current
AC: 240V/10A
DC: 30V/7A

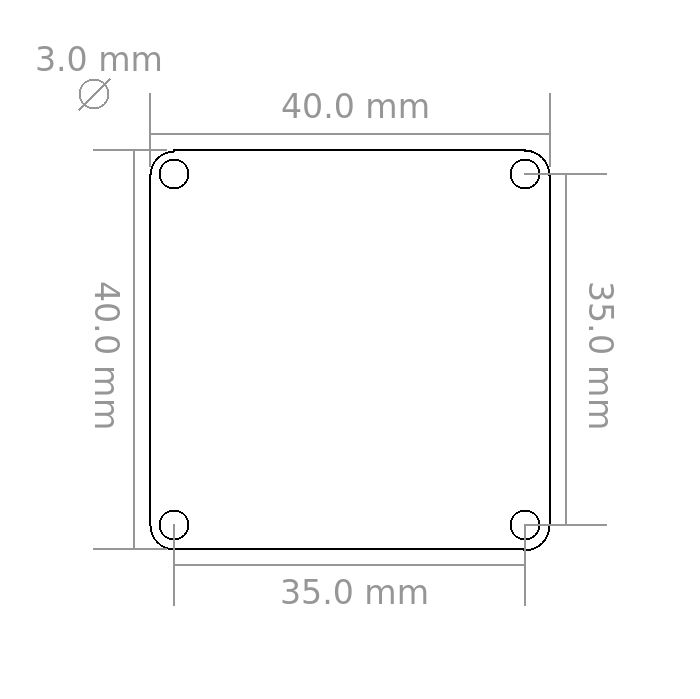

Dimensions (W x D x H) 40 x 40 x 25mm (1.57 x 1.57 x 0.98")
Weight 29.4g

Comes Packaged With
