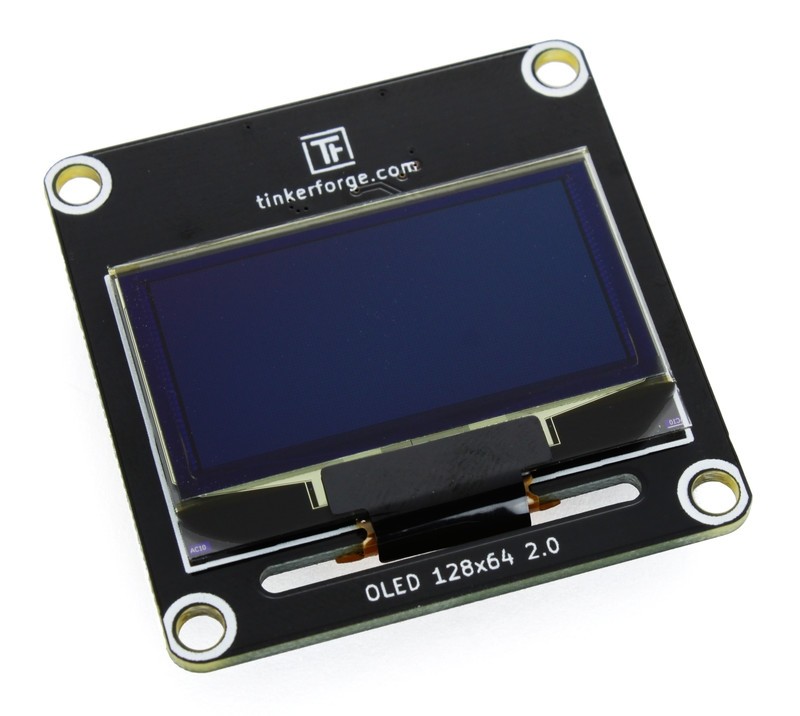

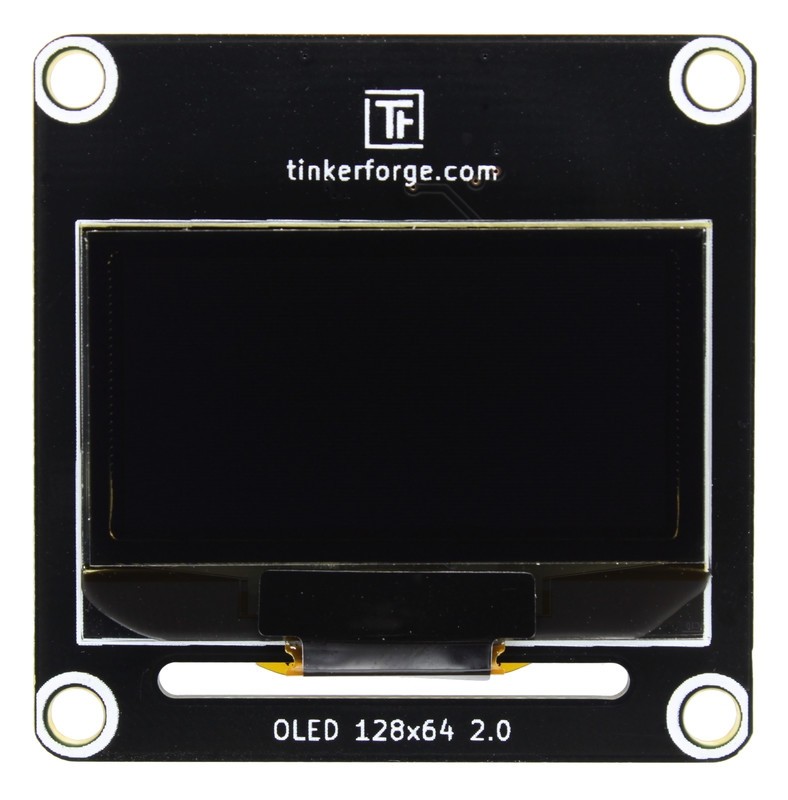

The OLED 128x64 Bricklet 2.0 can be used to extend the features of Bricks with the capability to display information on a small 128x64 OLED display.
Because each pixel can be set individually, the display can do graphics. This allows for more versatile and detailed drawings on the display, compared to the LCD 20x4 Bricklet with its fixed character display.

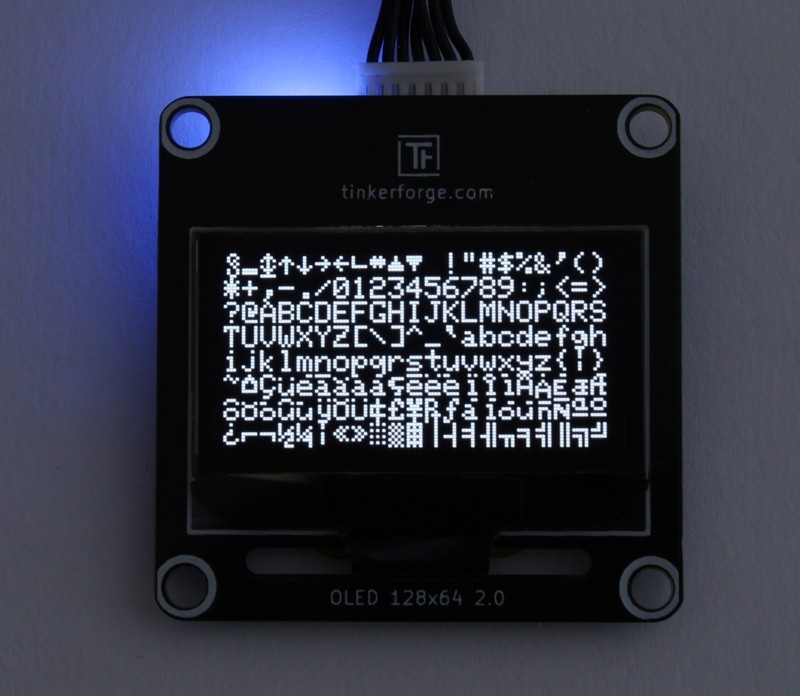

Additionally, text can easily be drawn onto the display with the embedded font of the Bricklet.
High update rates of up to 60Hz are possible.

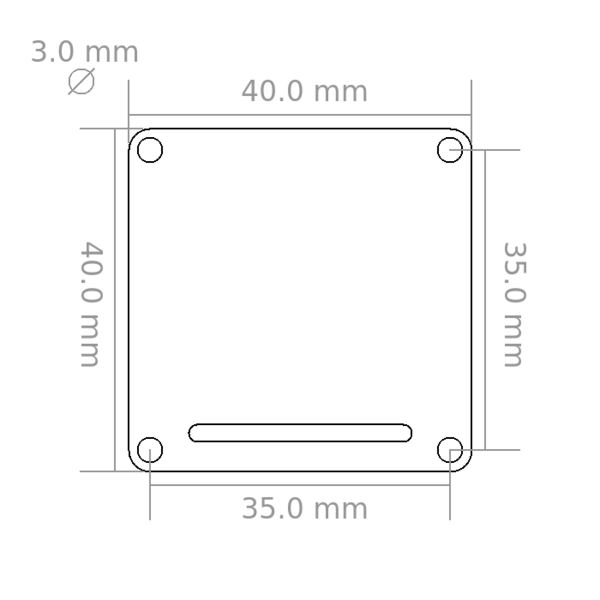

The Bricklet is 40 x 40 mm in size and can be mounted directly on top of any Brick.
A demo with a Servo Brick and a Rotary Poti Bricklet is available on Youtube:
Property Value Current Consumption35mW (7mA at 5V, all pixels black)160mW (32mA at 5V, all pixels white) Resolution 128x64 pixel, 26x8 characters Size 3.3cm (1.3") Colors Black/White Dimensions (W x D x H) 40 x 40 x 7mm (1.58 x 1.58 x 0.28") Weight 8.2g
Comes Packaged With
- OLED 128x64 Bricklet 2.0
- Chosen Bricklet Cable

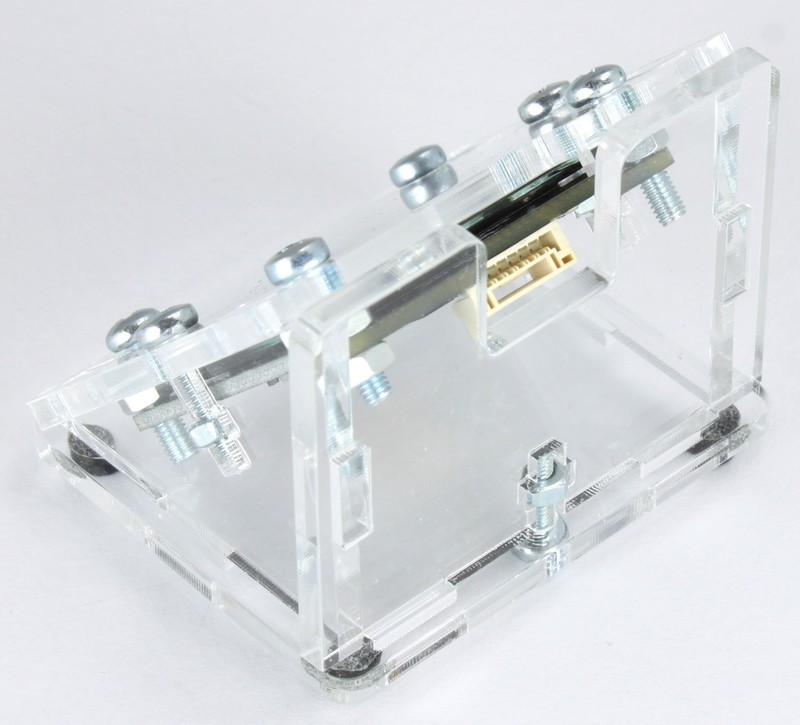

- Chosen Mounting Kit / Case
