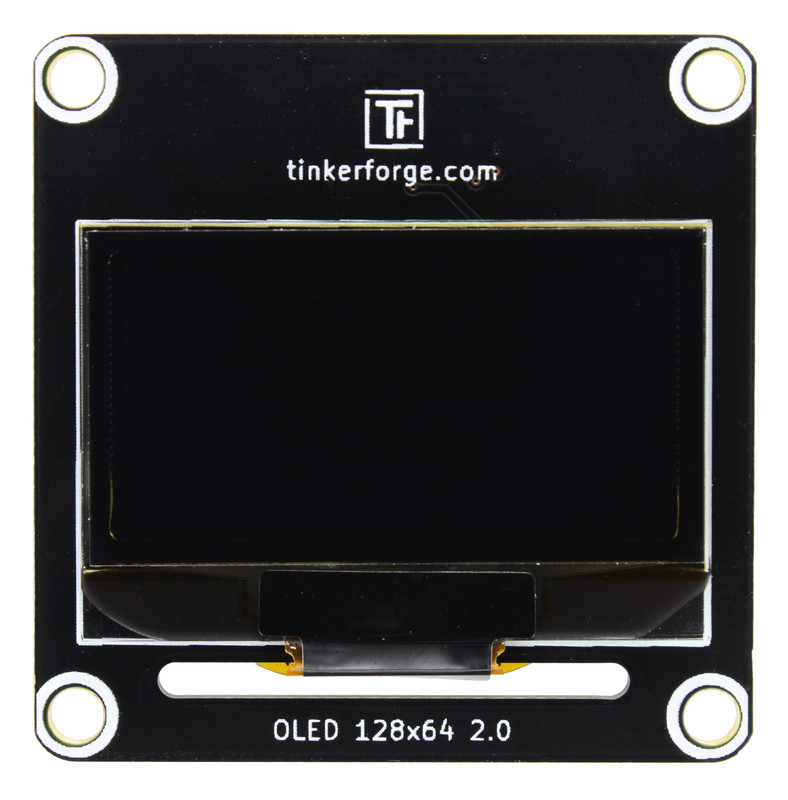

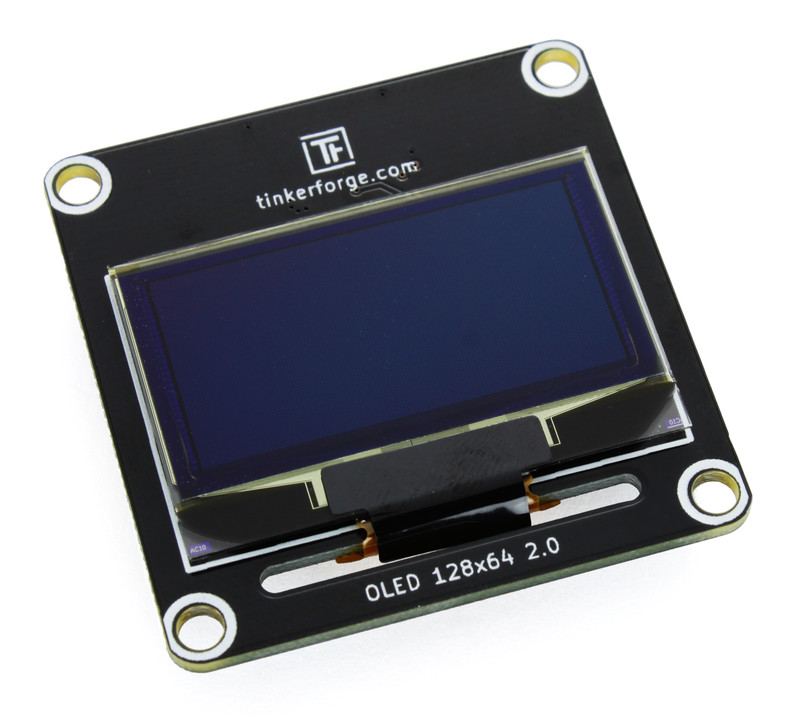

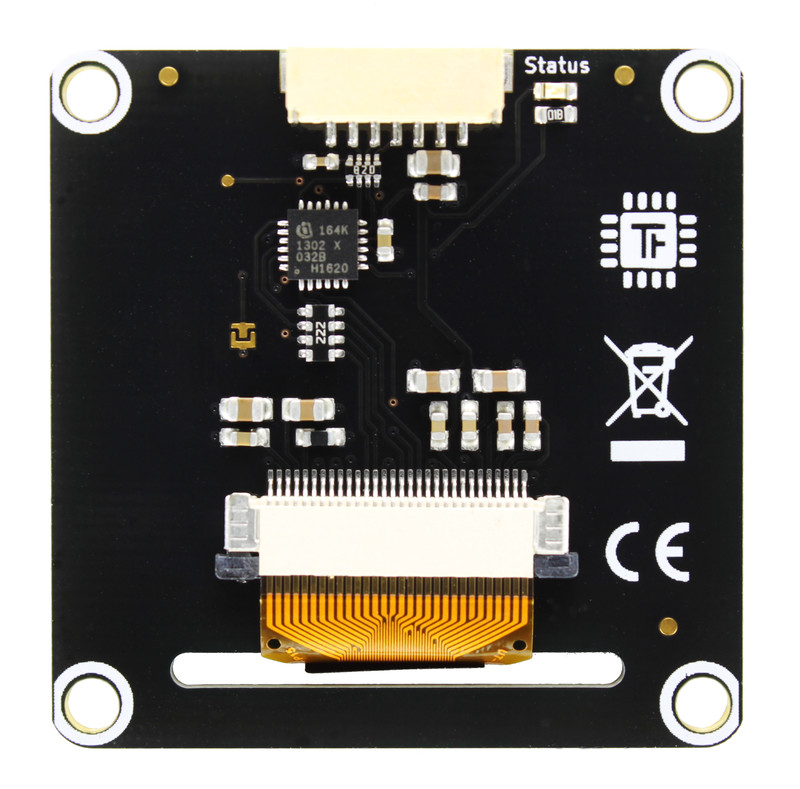

OLED 128x64 Bricklet 2.0

Features

  • Black/white OLED
  • Size of 3.3cm (1.3") with a resolution of 128x64

Description

The OLED 128x64 Bricklet 2.0 can be used to extend the features of Bricks with the capability to display information on a small 128x64 OLED display.

Because each pixel can be set individually, the display can do graphics. This allows for more versatile and detailed drawings on the display, compared to the LCD 20x4 Bricklet with its fixed character display.

Additionally, text can easily be drawn onto the display with the embedded font of the Bricklet.

High update rates of up to 60Hz are possible.

The Bricklet is 40 x 40 mm in size and can be mounted directly on top of any Brick.

A demo with a Servo Brick and a Rotary Poti Bricklet is available on Youtube:

Technical Specifications

Property Value
Current Consumption
35mW (7mA at 5V, all pixels black)
160mW (32mA at 5V, all pixels white)

Resolution 128x64 pixel, 26x8 characters
Size 3.3cm (1.3")
Colors Black/White

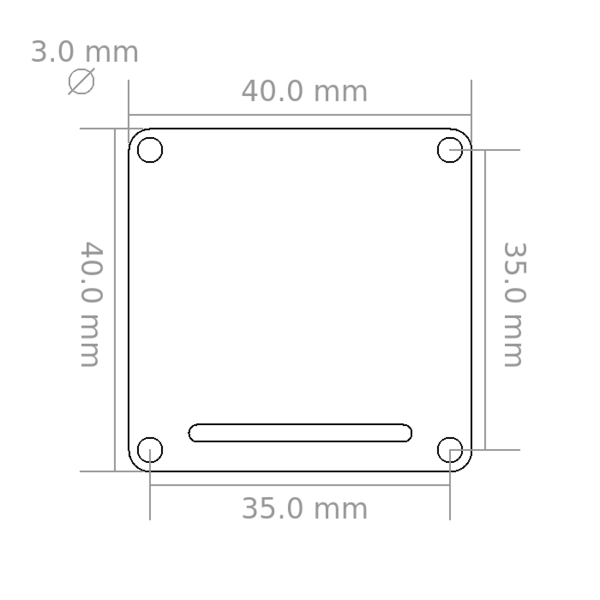

Dimensions (W x D x H) 40 x 40 x 7mm (1.58 x 1.58 x 0.28")
Weight 8.2g

Resources

Test your OLED 128x64 Bricklet 2.0

To test a OLED 128x64 Bricklet 2.0 you need to have Brick Daemon and Brick Viewer installed. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon. It helps to figure out basic information about the connected Bricks and Bricklets and allows to test them.

Connect the OLED 128x64 Bricklet 2.0 to a Brick with a Bricklet Cable.

If you connect the Brick to the PC over USB, you should see a new tab named "OLED 128x64 Bricklet 2.0" in the Brick Viewer after a moment. Select this tab. If everything went as expected the Brick Viewer should look as depicted below.

You can draw and write text to the display. With the slider it is also possible to show the available character set on the OLED.

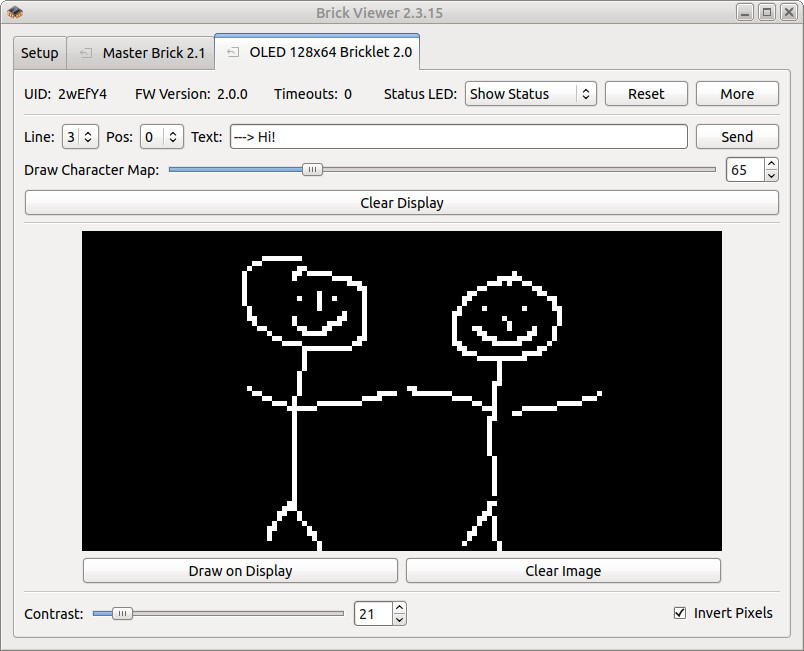

OLED 128x64 Bricklet 2.0 in Brick Viewer

After this test you can go on with writing your own application. See the Programming Interface section for the API of the OLED 128x64 Bricklet 2.0 and examples in different programming languages.

Usage

To draw to the display we recommend that you use an image library that is native to your programming language (for example PIL for Python). This way you can use all of the available drawing primitives and fonts of the library and then copy the image buffer to the Bricklet.

We provide examples for:

Font

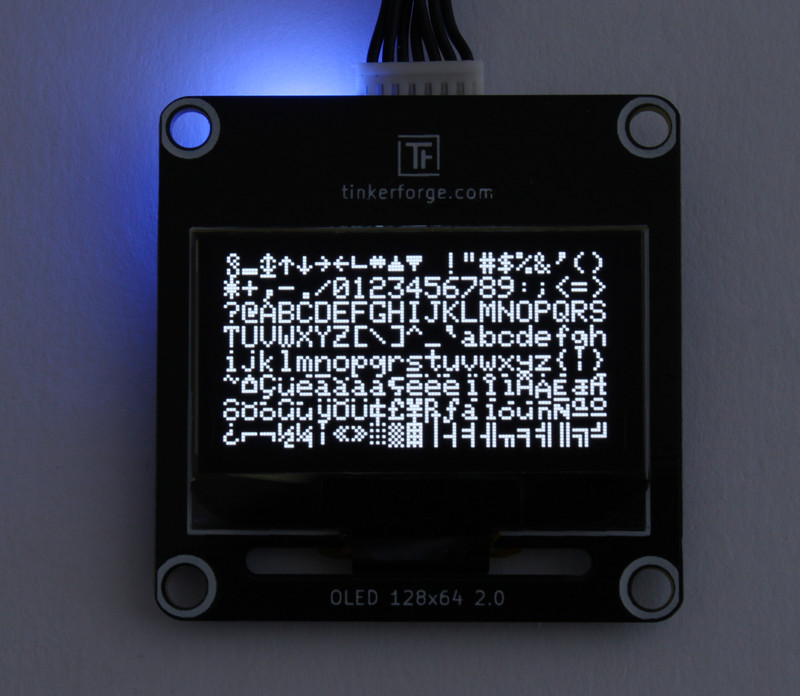

The Bricklet has an embedded font (code page 437, ASCII subset in green) that allows fast and easy text rendering (up to 26x8 characters):

OLED 128x64 Bricklet font

Case

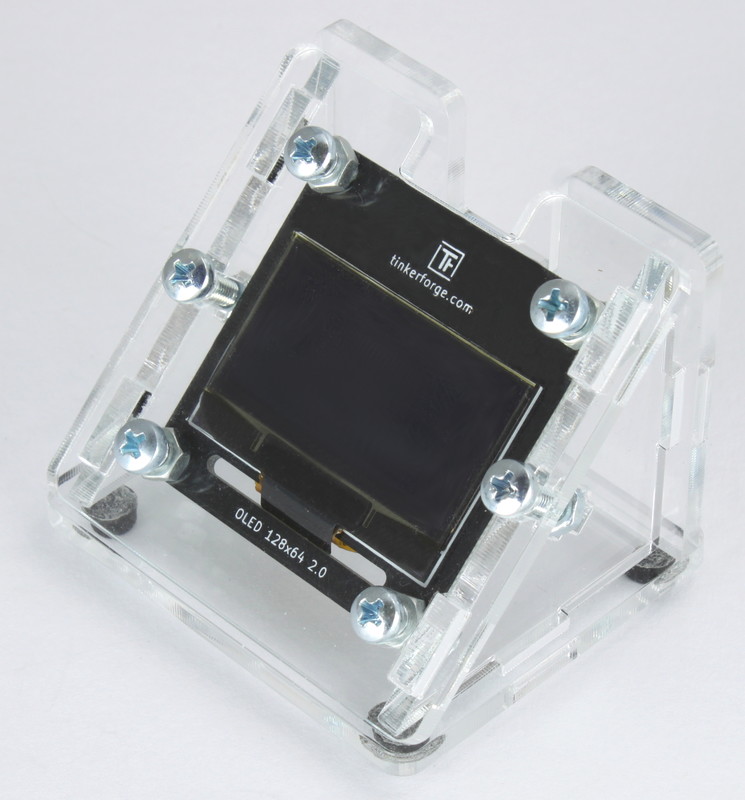

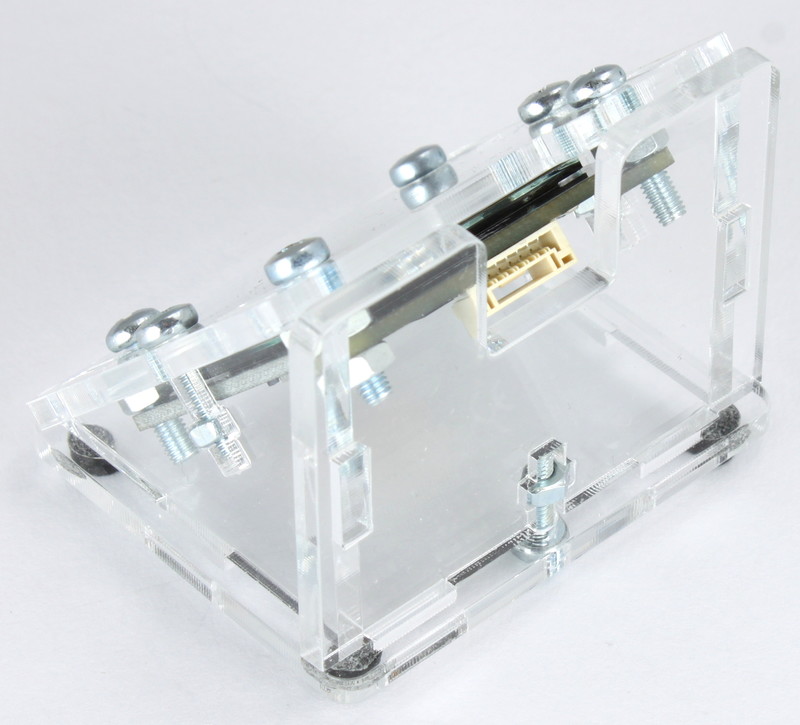

A laser-cut case for the OLED 128x64 Bricklet 2.0 is available.

Case for OLED 128x64 Bricklet 2.0

The assembly is easiest if you follow the following steps:

  • Screw front plate to Bricklet,
  • build up side plates and bottom/back plate,
  • screw front plate to side plates.

Below you can see an exploded assembly drawing of the OLED 128x64 Bricklet case:

Exploded assembly drawing for OLED 128x64 Bricklet 2.0

Hint: There is a protective film on both sides of the plates, you have to remove it before assembly.

Programming Interface

See Programming Interface for a detailed description.

Language API Examples Installation
C/C++ API Examples Installation
C/C++ for Microcontrollers API Examples Installation
C# API Examples Installation
Delphi/Lazarus API Examples Installation
Go API Examples Installation
Java API Examples Installation
JavaScript API Examples Installation
LabVIEW API Examples Installation
Mathematica API Examples Installation
MATLAB/Octave API Examples Installation
MQTT API Examples Installation
openHAB API Examples Installation
Perl API Examples Installation
PHP API Examples Installation
Python API Examples Installation
Ruby API Examples Installation
Rust API Examples Installation
Shell API Examples Installation
Visual Basic .NET API Examples Installation
TCP/IP API
Modbus API
