Rotary Encoder Bricklet 2.0

More Views

Rotary Encoder Bricklet 2.0

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • 360° rotary encoder
  • Counts 24 steps per rotation (step angle 15°)
  • Integrated push-button
Rotary Encoder Bricklet 2.0   +€8.99

* Required Fields

Description

Details

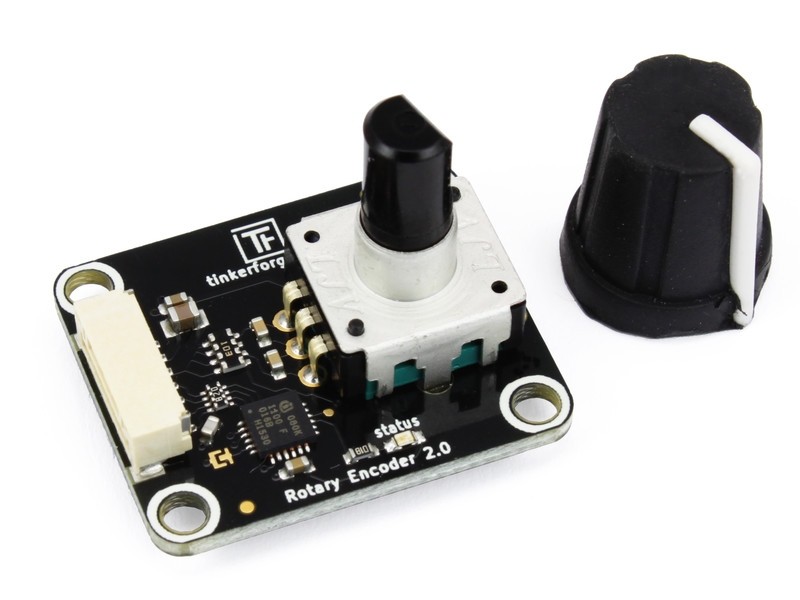

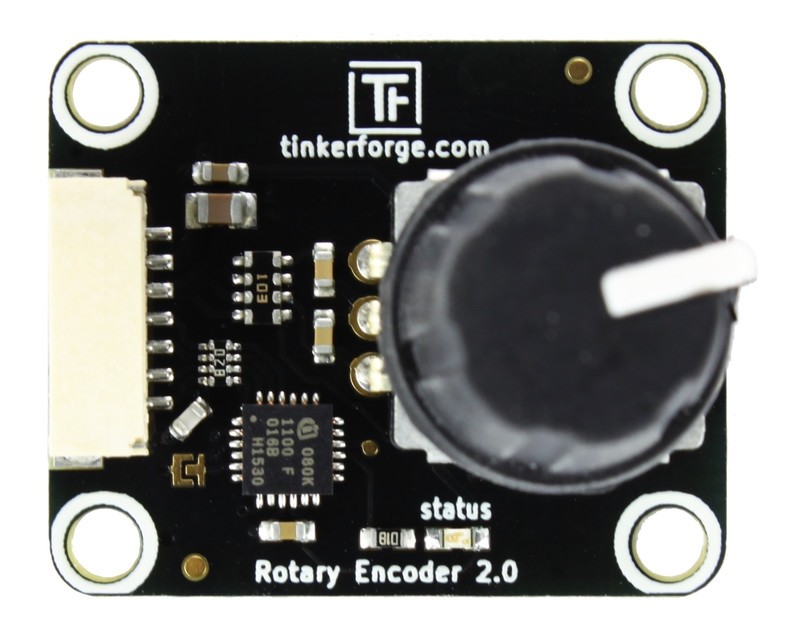

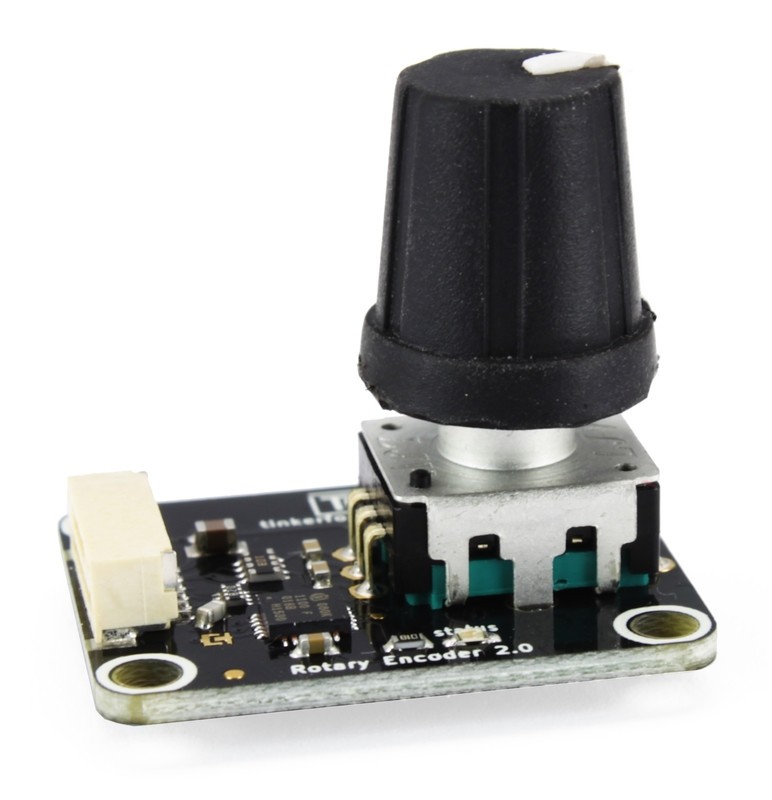

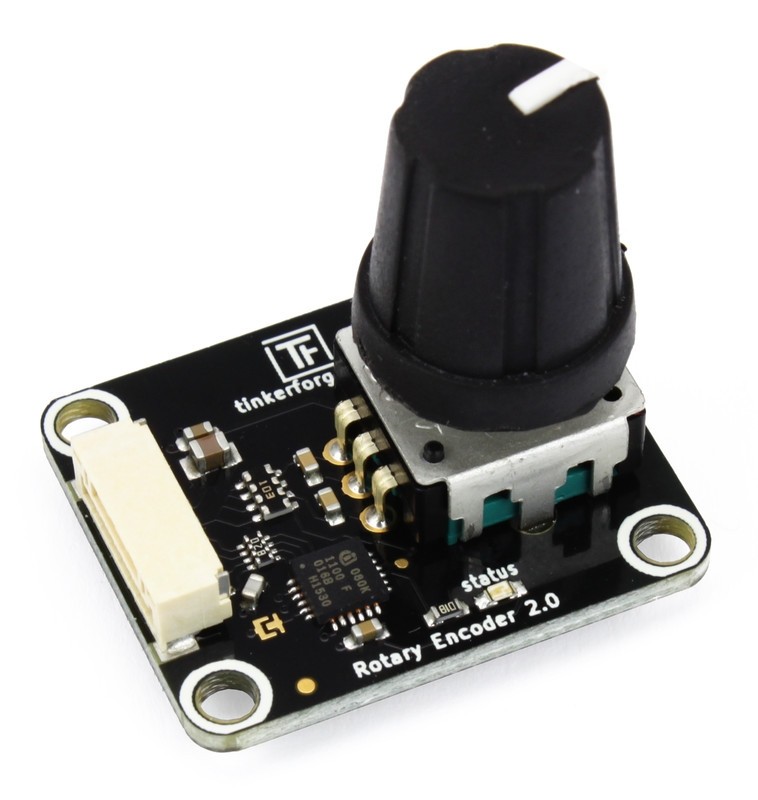

The Rotary Encoder Bricklet extends Bricks and is equipped with a 360° rotary encoder. It has 24 steps per rotation with a nice clicking feel. The encoder has an integrated push-button (by pressing on the knob) that can be used to select a menu item or similar.

The difference between the Rotary Poti Bricklet 2.0 and the Rotary Encoder Bricklet 2.0 is that the encoder has full rotation without limits.

The Rotary Encoder Bricklet 2.0 has a 7 pole Bricklet connector and is connected to a Brick with a 7p-10p Bricklet cable.

Technical Specifications

PropertyValue
Current Consumption 34mW

Number of Steps per Rotation 24 (step angle 15°)
Maximum Number of Steps detectable up to 250 steps / second
Button Operating Force 200gf
Button Travel Distance 0.5mm

Dimensions (W x D x H) 30 x 25 x 23mm (1.18 x 0.98 x 0.9")*
Weight 6g*

* without knob
