Rotary Encoder Bricklet 2.0

Features

  • 360° rotary encoder
  • Counts 24 steps per rotation (step angle 15°)
  • Integrated push-button

Description

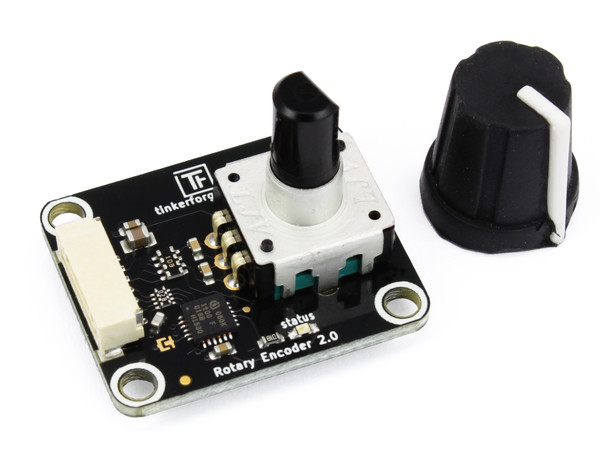

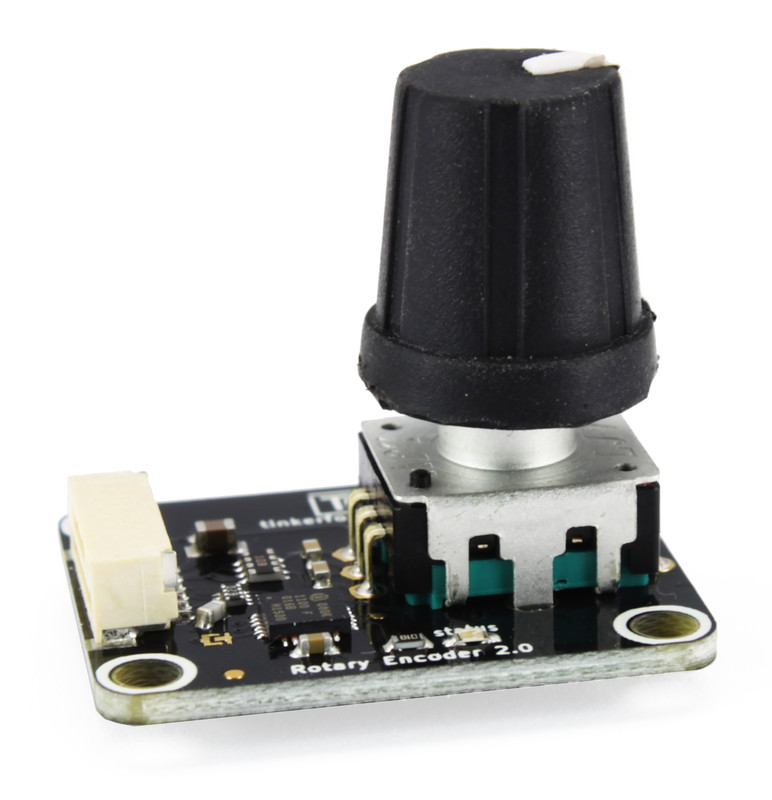

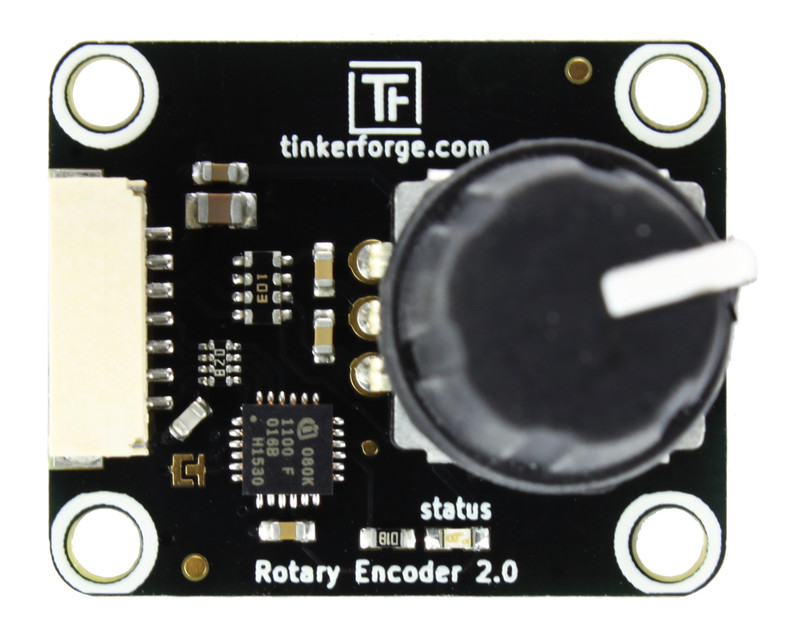

The Rotary Encoder Bricklet extends Bricks and is equipped with a 360° rotary encoder. It has 24 steps per rotation with a nice clicking feel. The encoder has an integrated push-button (by pressing on the knob) that can be used to select a menu item or similar.

The difference between the Rotary Poti Bricklet and the Rotary Encoder Bricklet 2.0 is that the encoder has full rotation without limits.

Technical Specifications

Property Value
Current Consumption 34mW

Number of Steps per Rotation 24 (step angle 15°)
Maximum Number of Steps detectable up to 250 steps / second
Button Operating Force 200gf
Button Travel Distance 0.5mm

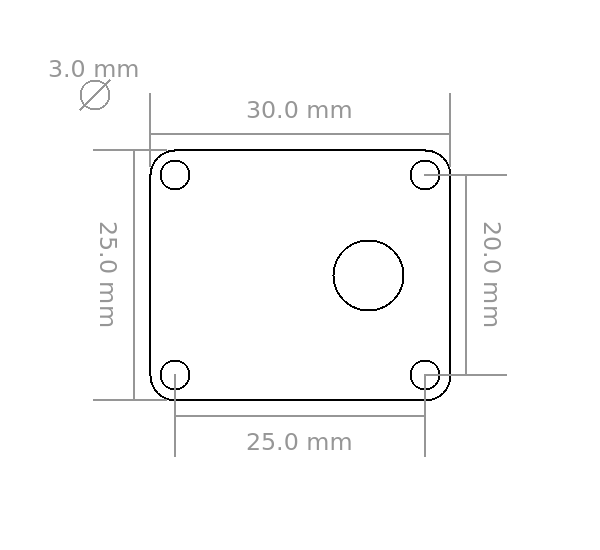

Dimensions (W x D x H) 30 x 25 x 23mm (1.18 x 0.98 x 0.9")*
Weight 6g*

* without knob

Resources

Test your Rotary Encoder Bricklet 2.0

To test a Rotary Encoder Bricklet 2.0 you need to have Brick Daemon and Brick Viewer installed. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon. It helps to figure out basic information about the connected Bricks and Bricklets and allows to test them.

Connect the Rotary Encoder Bricklet 2.0 to a Brick with a Bricklet Cable.

If you connect the Brick to the PC over USB, you should see a new tab named "Rotary Encoder Bricklet 2.0" in the Brick Viewer after a moment. Select this tab. If everything went as expected you can now turn the encoder and see the corresponding count.

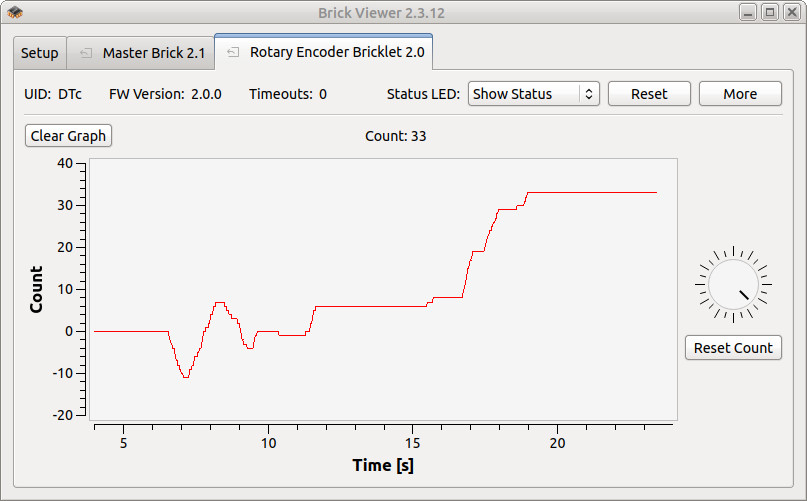

Rotary Encoder Bricklet 2.0 in Brick Viewer

After this test you can go on with writing your own application. See the Programming Interface section for the API of the Rotary Encoder Bricklet 2.0 and examples in different programming languages.

Case

A laser-cut case for the Rotary Encoder Bricklet 2.0 is available.

Case for Rotary Encoder Bricklet 2.0

The assembly is easiest if you follow the following steps:

  • Screw spacers to the Bricklet,
  • screw bottom plate to bottom spacers,
  • build up side plates,
  • plug side plates into bottom plate and
  • screw top plate to top spacers.

Below you can see an exploded assembly drawing of the Rotary Encoder Bricklet 2.0 case:

Exploded assembly drawing for Rotary Encoder Bricklet 2.0

Hint: There is a protective film on both sides of the plates, you have to remove it before assembly.

Programming Interface

See Programming Interface for a detailed description.

Language API Examples Installation
C/C++ API Examples Installation
C/C++ for Microcontrollers API Examples Installation
C# API Examples Installation
Delphi/Lazarus API Examples Installation
Go API Examples Installation
Java API Examples Installation
JavaScript API Examples Installation
LabVIEW API Examples Installation
Mathematica API Examples Installation
MATLAB/Octave API Examples Installation
MQTT API Examples Installation
openHAB API Examples Installation
Perl API Examples Installation
PHP API Examples Installation
Python API Examples Installation
Ruby API Examples Installation
Rust API Examples Installation
Shell API Examples Installation
Visual Basic .NET API Examples Installation
TCP/IP API
Modbus API
