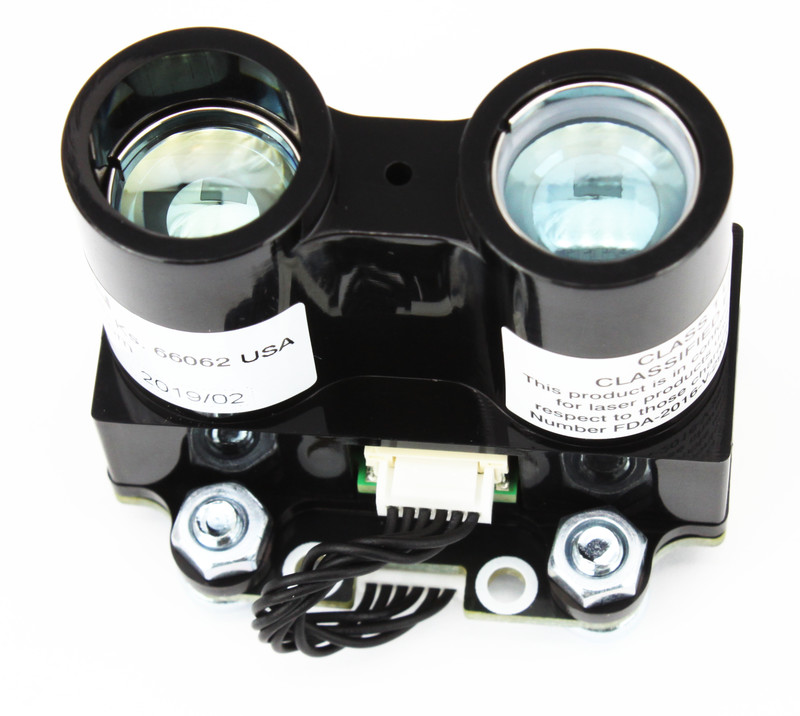

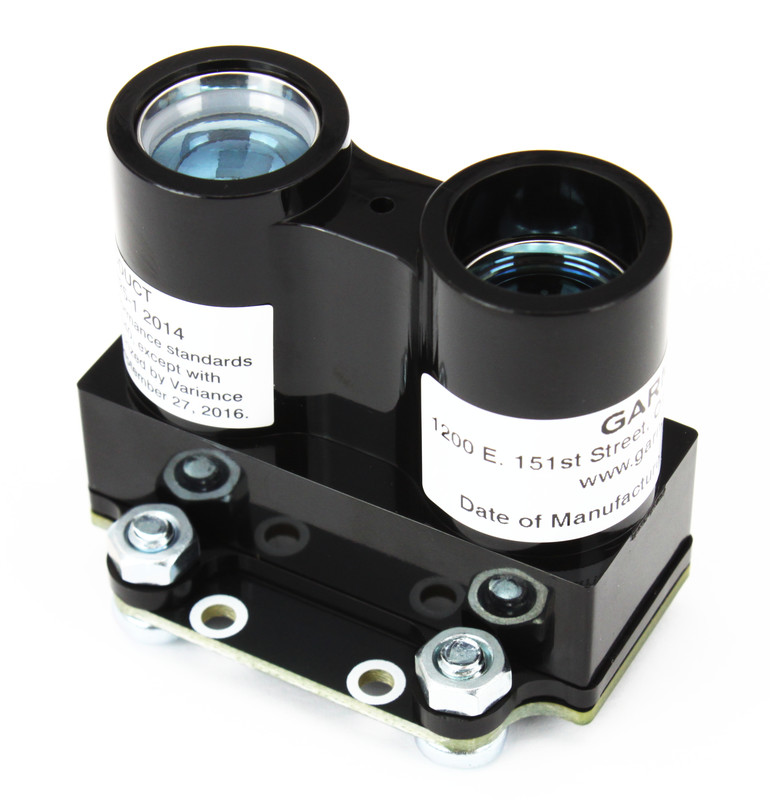

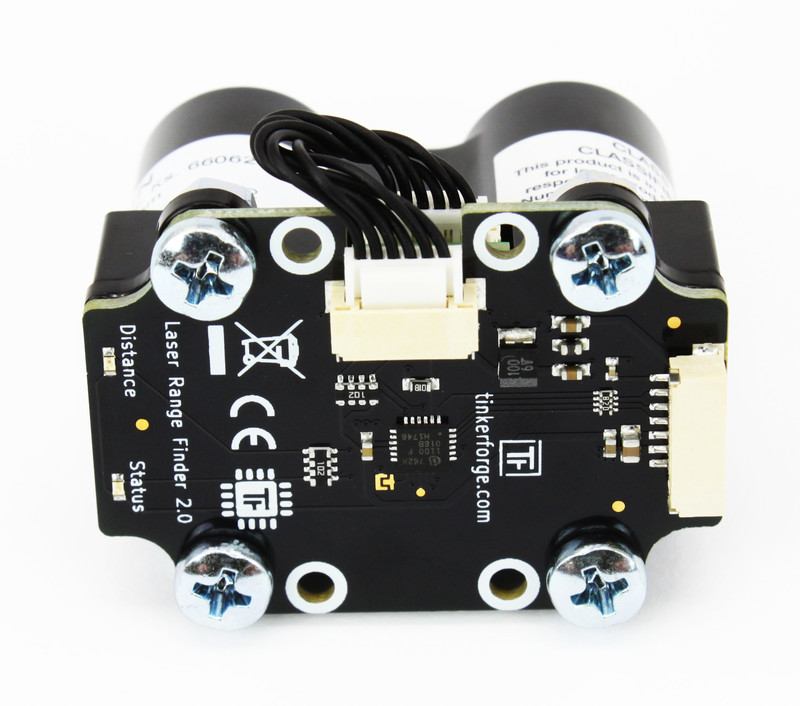

Laser Range Finder Bricklet 2.0

Features

  • Measures distance and velocity with laser pulses
  • Distance range 0-40m, resolution 1cm
  • Measurement frequency up to 500Hz

Description

The Laser Range Finder Bricklet 2.0 can be used to extend the features of Bricks by the capability to measure distances and velocity. The distance is measured with the help of a laser pulse and the time-of-flight principle.

Technical Specifications

Property Value
Sensor LIDAR-Lite (V3)
Current Consumption
230mW (46mA at 5V, Laser off)
455mW (91mA at 5V, Laser on)

Distance (Range, Resolution) 0-40m, 1cm
Sample Rate up to 500Hz (depends on measured range)
Accuracy <5m ±2.5cm (nonlinearity present below 1m)
Accuracy ≥5m ±10cm
Ripple ±1% of distance

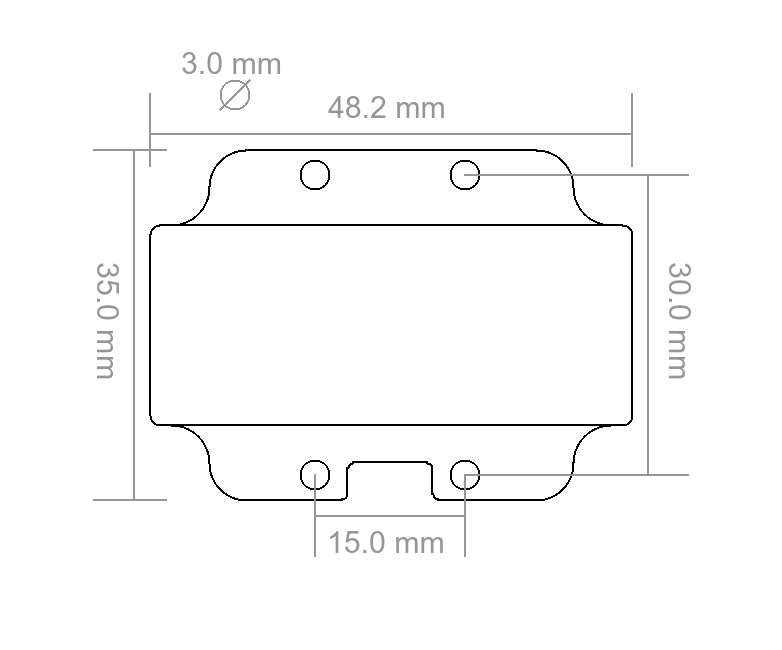

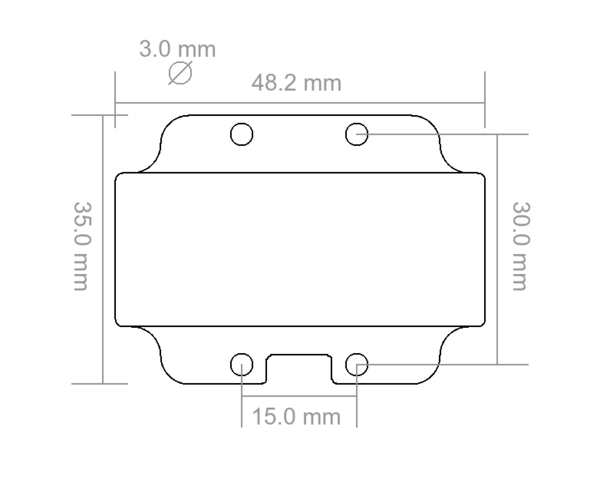

Dimensions (W x D x H) 49 x 45 x 36mm (1.93 x 1.77 x 1.42")
Weight 30g

Resources

Test your Laser Range Finder Bricklet 2.0

To test a Laser Range Finder Bricklet 2.0 you need to have Brick Daemon and Brick Viewer installed. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon. It helps to figure out basic information about the connected Bricks and Bricklets and allows to test them.

Connect the Laser Range Finder Bricklet 2.0 to a Brick with a Bricklet Cable.

If you connect the Brick to the PC over USB, you should see a new tab named "Laser Range Finder Bricklet 2.0" in the Brick Viewer after a moment. Select this tab. Click the "Enable Laser" checkbox to enable the laser. If everything went as expected you can now see the measured distance of the sensor and a graph that shows the distance over time. In the image below we slowly moved a hand away from the sensor and to the sensor again.

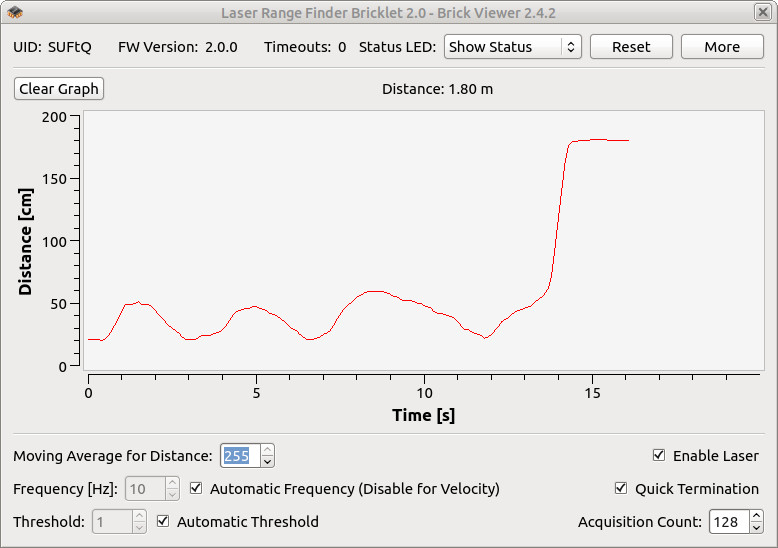

Laser Range Finder Bricklet 2.0 in Brick Viewer

After this test you can go on with writing your own application. See the Programming Interface section for the API of the Laser Range Finder Bricklet 2.0 and examples in different programming languages.

Programming Interface

See Programming Interface for a detailed description.

Language API Examples Installation
C/C++ API Examples Installation
C/C++ for Microcontrollers API Examples Installation
C# API Examples Installation
Delphi/Lazarus API Examples Installation
Go API Examples Installation
Java API Examples Installation
JavaScript API Examples Installation
LabVIEW API   Installation
Mathematica API Examples Installation
MATLAB/Octave API Examples Installation
MQTT API Examples Installation
openHAB API Examples Installation
Perl API Examples Installation
PHP API Examples Installation
Python API Examples Installation
Ruby API Examples Installation
Rust API Examples Installation
Shell API Examples Installation
Visual Basic .NET API Examples Installation
TCP/IP API
Modbus API
