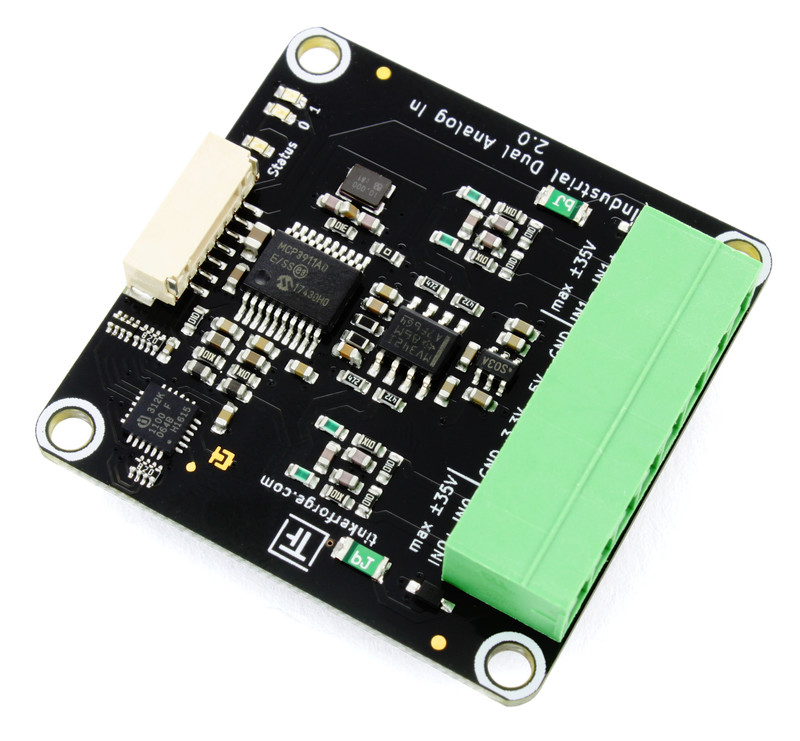

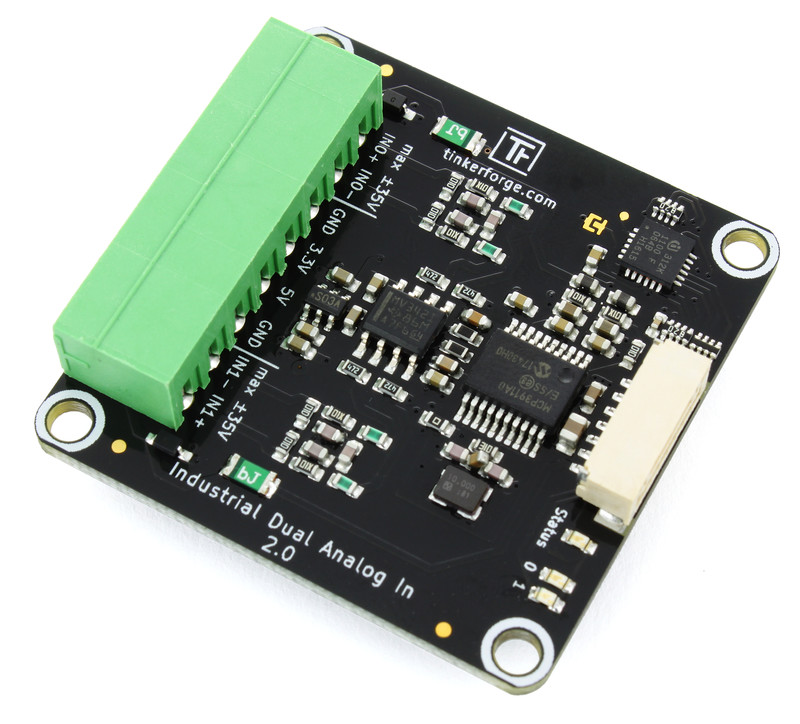

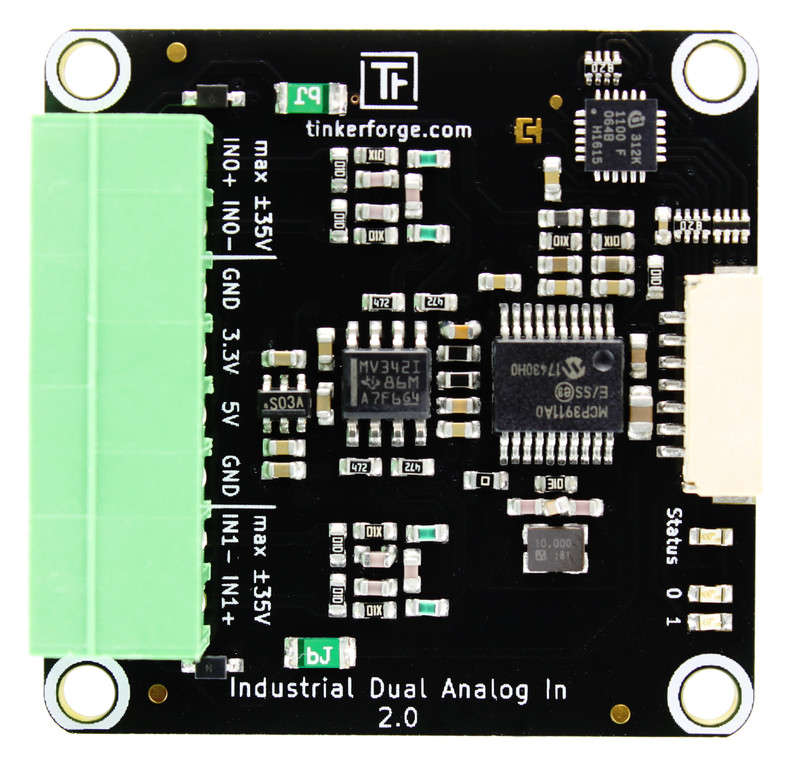

Industrial Dual Analog In Bricklet 2.0


  • Independently measures two voltages between -35V and +35V (DC)
  • 24bit ADC for high resolution
  • Individually calibrated
  • Full-scale accuracy of 0.1% / ±4mV
  • Up to 976 samples per second


The Industrial Dual Analog In Bricklet 2.0 can be used to extend the features of Bricks by the capability to precisely measure voltages. Both channels of the Bricklet are calibrated. The voltage measurement can used with an extremely high level of confidence.

With configurable events it is possible to react on changing voltages without polling.

This Bricklet ist not galvanically isolated to the Tinkerforge system. This means that there is a direct electrical connection between the terminals of the Bricklet and the rest of the system. Dependent of the application this can lead to undesired connections, ground loops or short circuits. These problems can be prevented by using the Bricklet together with a Isolator Bricklet.

Technical Specifications

Property Value
Current Consumption 50mW (10mA at 5V)
Channels 2
Measurement Range -35V to +35V (DC)
Resolution 24bit
Accuracy 0.1% / ±4mV full scale
Maximum Output Current 150mA (3.3V), 150mA (5V)

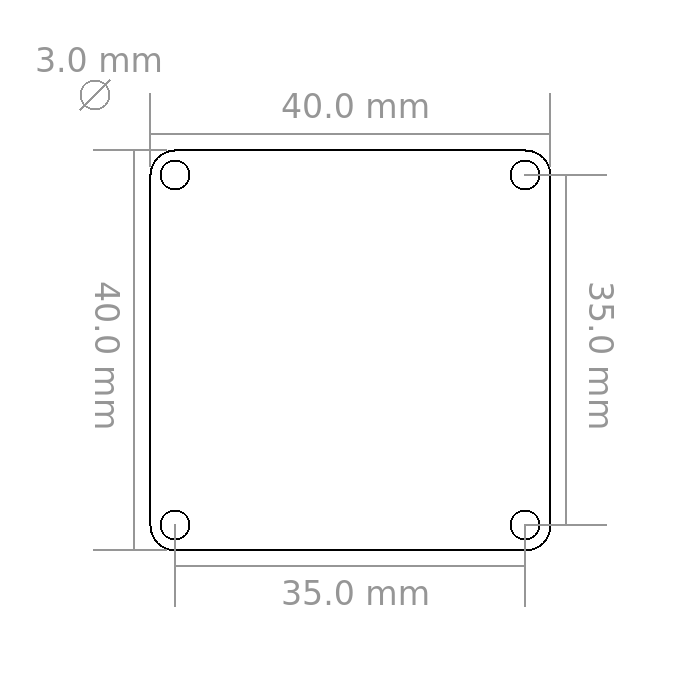

Dimensions (W x D x H) 40 x 40 x 11mm (1.57 x 1.57 x 0.43")
Weight 9g



The Industrial Dual Analog In Bricklet 2.0 has an 8 pole terminal. Please see the picture below for the pinout.

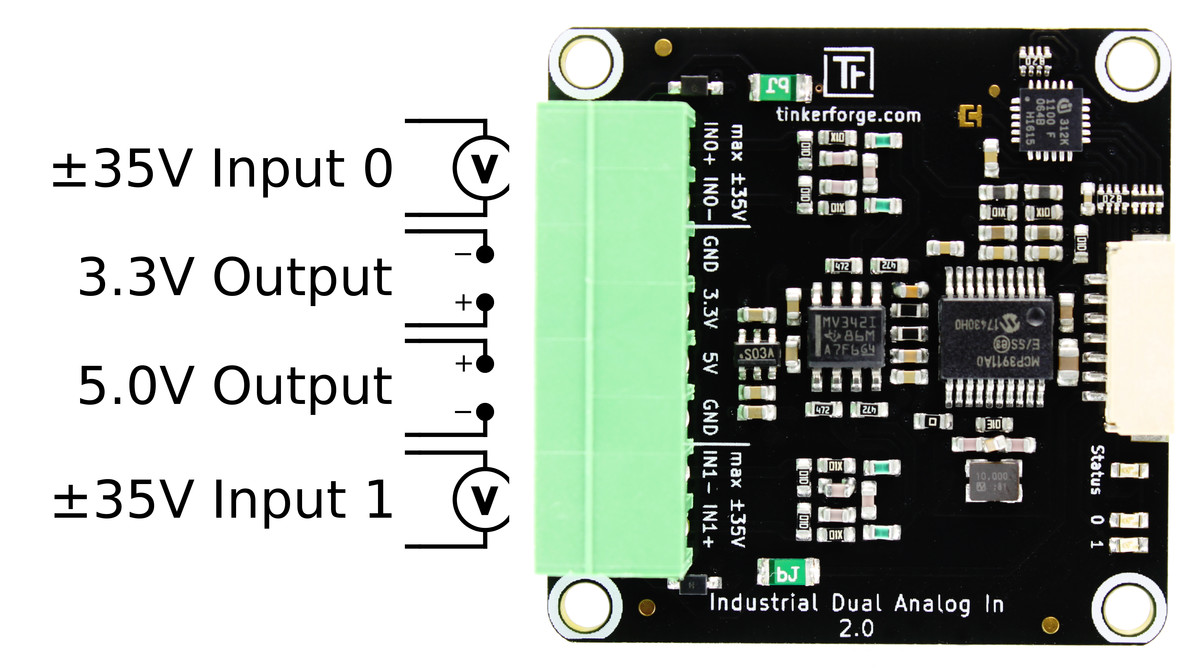

Industrial Dual Analog In Bricklet 2.0 pinout

Test your Industrial Dual Analog In Bricklet 2.0

To test a Industrial Dual Analog In Bricklet 2.0 you need to have Brick Daemon and Brick Viewer installed. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon. It helps to figure out basic information about the connected Bricks and Bricklets and allows to test them.

Connect the Industrial Dual Analog In Bricklet 2.0 to a Brick with a Bricklet Cable. Additionally connect a DC voltage you want to measure to the Bricklet. For testing purposes connect the 3.3V output pin to the IN0- pin and connect the GND pin to the IN0+ pin.

If you connect the Brick to the PC over USB, you should see a new tab named "Industrial Dual Analog In Bricklet 2.0" in the Brick Viewer after a moment. Select this tab. If everything went as expected you can now see the voltage in Volt and a graph that shows the voltage over time.

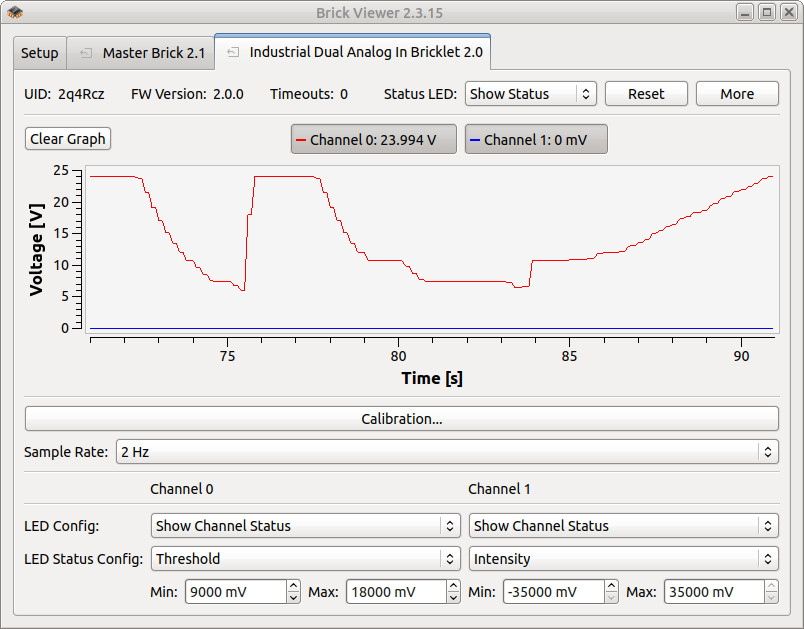

Industrial Dual Analog In Bricklet 2.0 in Brick Viewer

After this test you can go on with writing your own application. See the Programming Interface section for the API of the Industrial Dual Analog In Bricklet 2.0 and examples in different programming languages.


A laser-cut case for the Industrial Dual Analog In Bricklet 2.0 is available.

Case for Industrial Dual Analog In Bricklet 2.0

The assembly is easiest if you follow the following steps:

  • Screw spacers to the Bricklet,
  • screw bottom plate to bottom spacers,
  • build up side plates,
  • plug side plates into bottom plate and
  • screw top plate to top spacers.

Below you can see an exploded assembly drawing of the Industrial Dual Analog In Bricklet 2.0 case:

Exploded assembly drawing for Industrial Dual Analog In Bricklet 2.0

Hint: There is a protective film on both sides of the plates, you have to remove it before assembly.

Programming Interface

See Programming Interface for a detailed description.

Language API Examples Installation
C/C++ API Examples Installation
C/C++ for Microcontrollers API Examples Installation
C# API Examples Installation
Delphi/Lazarus API Examples Installation
Go API Examples Installation
Java API Examples Installation
JavaScript API Examples Installation
LabVIEW API Examples Installation
Mathematica API Examples Installation
MATLAB/Octave API Examples Installation
MQTT API Examples Installation
openHAB API Examples Installation
Perl API Examples Installation
PHP API Examples Installation
Python API Examples Installation
Ruby API Examples Installation
Rust API Examples Installation
Shell API Examples Installation
Visual Basic .NET API Examples Installation
Modbus API
