Wireshark Dissector

Wireshark is a free and open-source packet analyzer. It is used for network troubleshooting, analysis, software and communications protocol development, and education.

A Wireshark dissector is a plugin for a specific protocol. With the TFP (Tinkerforge Protocol) dissector it is possible to analyze the protocol that is used between Bindings and Brick Daemon (TCP/IP) as well as the protocol that is used between Brick Daemon and Bricks (USB).

The dissector can assist in debugging bugs in the bindings and brickd. It is also very helpful while creating new Bindings.

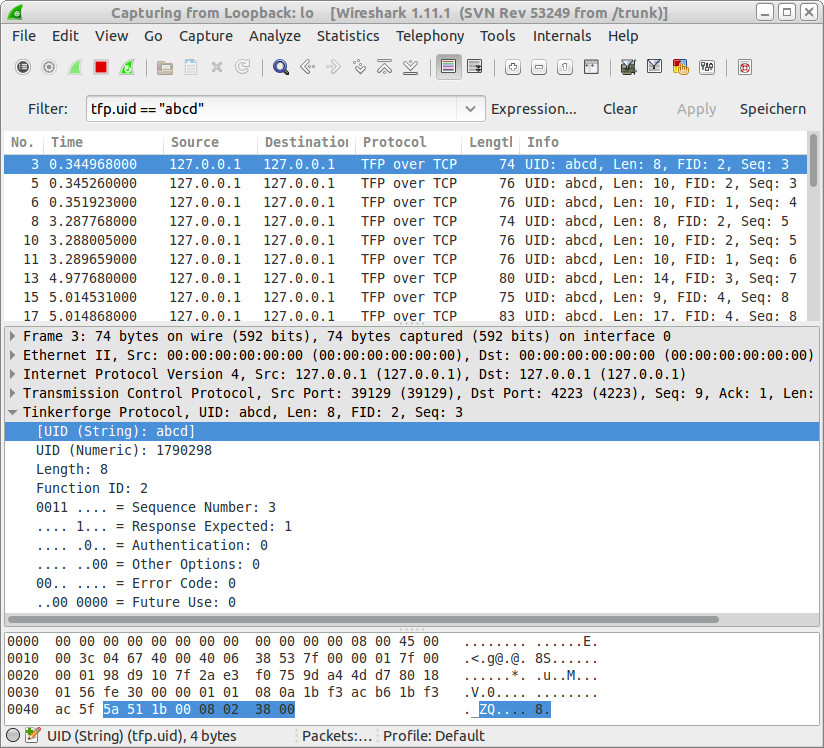

Wireshark Dissector

Installation

The TFP dissector is in the Wireshark SVN trunk since November 2013. It is not yet available in the latest stable release. The following steps are necessary to build Wireshark trunk from source:

svn co https://anonsvn.wireshark.org/wireshark/trunk/ wireshark
cd wireshark/
./autogen.sh
./configure
make

You can now start Wireshark directly with:

./wireshark

Or you can install it with:

make install

Wireshark has lots of dependencies, the configure script will tell you which ones are missing. On Debian based system you can install all necessary dependencies via:

apt-get build-dep wireshark

The dissector itself is also available on GitHub.

Display Filter

Display filter for all of the fields in the TFP packet are available.

Useful examples:

Only show TFP packets:

tfp

Only show packets that are from or to UID "XYZ":

tfp.uid == "XYZ"

Only show packets with an error:

tfp.e != 0

Only show specific function calls (in this case function ID 4):

tfp.fid == 4
