Transitioning from Protocol 1.0 to Protocol 2.0

Update Tools and Firmwares

Updating to Protocol 2.0 is quite easy. Start by installing the newest version of the Brick Daemon and the Brick Viewer.

After that you should start by updating all of your Bricks, you can update them one by one as described here.

To update the Bricklets, there is an automated process. You can fill up one of your updated Bricks with Bricklets. Click on "Updates" in the Brick Viewer and use the first tab. There you should see all of your connected Bricks with the corresponding connected Bricklets. Bricklets that are out of date are marked red. You can update all Bricklets at once by clicking on "Auto-Update All Bricklets".

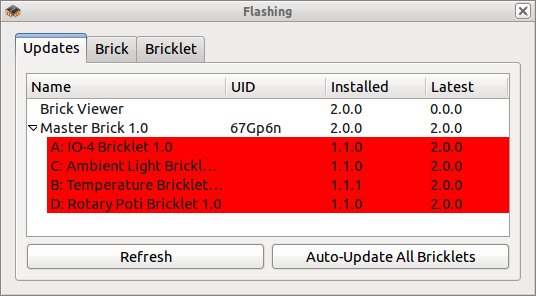

Bricklet auto update feature of the Brick Viewer

If the auto update does not work, you can of course still update the Bricklets individually by using the normal Bricklet updating process.

In the end, everything should have a version that starts with "2".

There should also have been a guide on how to update Bricks and Bricklets with your shipment. If you didn't receive one or only have the old version for the old protocol, you can download it here.

General

As a first step you need to update all of your Bricklet firmwares and Brick plugins. See above for information about the updating procedure.

The IP Connection has several new functions that are implemented for all languages, they include:

  • connect
  • disconnect
  • register_callback (for enumeration)
  • get_connection_state
  • set_auto_reconnect
  • get_auto_reconnect
  • set_timeout
  • get_timeout
  • wait (replacement for join_thread)
  • unwait

Additionally, the enumeration callback has now a different signature. With the returned data it should now be possible to reconstruct the complete topology of the network of Bricks and Bricklets.

The registration and triggering of the enumeration callback is now split into two steps.

Documentation for these functions can be found in the IP Connection documentation for each language, see here.

Every Brick and Bricklet has the following new functions:

  • get_response_expected
  • set_response_expected
  • set_response_expected_all

Documentation for these functions can be found in the normal programming language documentation for each Brick and Bricklet.

In the following we will compare relevant code snippets from Protocol 1.0 to equivalents from Protocol 2.0. Keep in mind that you need to use the newest version of the bindings for your programming languages to be able to utilize the new Protocol 2.0 features.

C/C++

Initialization:

// 1.0
IPConnection ipcon;
if(ipcon_create(&ipcon, HOST, PORT) < 0) {
    fprintf(stderr, "Could not create connection\n");
    exit(1);
}

AmbientLight al;
ambient_light_create(&al, UID);

if(ipcon_add_device(&ipcon, &al) < 0) {
    fprintf(stderr, "Could not connect to Bricklet\n");
    exit(1);
}

...

ipcon_destroy(&ipcon);

// 2.0
IPConnection ipcon;
ipcon_create(&ipcon);

AmbientLight al;
ambient_light_create(&al, UID, &ipcon);

if(ipcon_connect(&ipcon, HOST, PORT) < 0) {
    fprintf(stderr, "Could not connect\n");
    exit(1);
}

...

ipcon_destroy(&ipcon); // Calls ipcon_disconnect internally

Callbacks:

// 1.0
void cb_illuminance(uint16_t illuminance) {
    printf("Illuminance: %f Lux.\n", illuminance/10.0);
}

ambient_light_register_callback(&al,
                                AMBIENT_LIGHT_CALLBACK_ILLUMINANCE,
                                (void *)cb_illuminance);

// 2.0 (now with user data)
void cb_illuminance(uint16_t illuminance, void *user_data) {
    printf("Illuminance: %f Lux.\n", illuminance/10.0);
}

ambient_light_register_callback(&al,
                                AMBIENT_LIGHT_CALLBACK_ILLUMINANCE,
                                (void *)cb_illuminance,
                                NULL);

New enumeration signature and registration:

// 1.0
void cb_enumerate(char *uid,
                  char *name,
                  uint8_t stack_id,
                  bool is_new);

ipcon_enumerate(&ipcon, cb_enumerate);

// 2.0
void cb_enumerate(const char *uid,
                  const char *connected_uid,
                  char position,
                  uint8_t hardware_version[3],
                  uint8_t firmware_version[3],
                  uint16_t device_identifier,
                  uint8_t enumeration_type,
                  void *user_data);

ipcon_register_callback(&ipcon,
                        IPCON_CALLBACK_ENUMERATE,
                        (void *)cb_enumerate,
                        NULL);

ipcon_enumerate(&ipcon);

C#

General:

There are no unsigned data types used anymore. This was necessary to make the C# bindings CLS compliant (i.e. they can be easily used from other .NET languages). All unsigned data types have been replaced by the next higher signed data type.

Data type 1.0 Data type 2.0
uint16 int32
uint32 int64
uint64 int64

Initialization:

// 1.0
IPConnection ipcon = new IPConnection(HOST, PORT);
BrickletAmbientLight al = new BrickletAmbientLight(UID);
ipcon.AddDevice(al);
...
ipcon.Destroy();

// 2.0
IPConnection ipcon = new IPConnection();
BrickletAmbientLight al = new BrickletAmbientLight(UID, ipcon);
ipcon.Connect(HOST, PORT);
...
ipcon.Disconnect();

Callbacks:

// 1.0
static void IlluminanceCB(ushort illuminance)
{
    System.Console.WriteLine("Illuminance: " + illuminance/10.0 + " Lux");
}
al.RegisterCallback(new BrickletAmbientLight.Illuminance(IlluminanceCB));

// 2.0: Now with sender object in callback and "+=" syntax to add callback
static void IlluminanceCB(BrickletAmbientLight sender, int illuminance)
{
    System.Console.WriteLine("Illuminance: " + illuminance/10.0 + " Lux");
}
al.Illuminance += IlluminanceCB;

New enumeration signature and registration:

// 1.0
static void EnumerateCB(string uid,
                        string name,
                        byte stackID,
                        bool isNew);

ipcon.Enumerate(new IPConnection.EnumerateCallback(EnumerateCB));

// 2.0
static void EnumerateCB(IPConnection sender,
                        string uid,
                        string connectedUid,
                        char position,
                        short[] hardwareVersion,
                        short[] firmwareVersion,
                        int deviceIdentifier,
                        short enumerationType);

ipcon.EnumerateCallback += EnumerateCB;

ipcon.Enumerate();

Delphi

Initialization:

{ 1.0 }
ipcon := TIPConnection.Create(HOST, PORT);
al := TBrickletAmbientLight.Create(UID);
ipcon.AddDevice(al);
...
ipcon.Destroy;

{ 2.0 }
ipcon := TIPConnection.Create;
al := TBrickletAmbientLight.Create(UID, ipcon);
ipcon.Connect(HOST, PORT);
...
ipcon.Destroy; { Calls ipcon.Disconnect internally }

Callback:

{ 1.0 }
procedure TExample.IlluminanceCB(const illuminance: word);
begin
  WriteLn(Format('Illuminance: %f Lux', [illuminance/10.0]));
end;

al.OnIlluminance := {$ifdef FPC}@{$endif}IlluminanceCB;

{ 2.0: Now with sender object in callback }
procedure TExample.IlluminanceCB(sender: TBrickletAmbientLight; const illuminance: word);
begin
  WriteLn(Format('Illuminance: %f Lux', [illuminance/10.0]));
end;

al.OnIlluminance := {$ifdef FPC}@{$endif}IlluminanceCB;

New enumeration signature and registration:

{ 1.0 }
procedure TExample.EnumerateCB(const uid: string;
                               const name: string;
                               const stackID: byte;
                               const isNew: boolean);

ipcon.Enumerate({$ifdef FPC}@{$endif}EnumerateCB);

{ 2.0 }
procedure TExample.EnumerateCB(sender: TIPConnection;
                               const uid: string;
                               const connectedUid: string;
                               const position: char;
                               const hardwareVersion: TVersionNumber;
                               const firmwareVersion: TVersionNumber;
                               const deviceIdentifier: word;
                               const enumerationType: byte);

ipcon.OnEnumerate := {$ifdef FPC}@{$endif}EnumerateCB;

ipcon.Enumerate();

Java

Initialization:

// 1.0
IPConnection ipcon = new IPConnection(host, port);
BrickletAmbientLight al = new BrickletAmbientLight(UID);
ipcon.addDevice(al);
...
ipcon.destroy();

// 2.0
IPConnection ipcon = new IPConnection();
BrickletAmbientLight al = new BrickletAmbientLight(UID, ipcon);
ipcon.connect(host, port);
...
ipcon.disconnect();

New enumeration signature and registration:

// 1.0
ipcon.enumerate(new IPConnection.EnumerateListener() {
    public void enumerate(String uid,
                          String name,
                          short stackID,
                          boolean isNew);
});

// 2.0
ipcon.addListener(new IPConnection.EnumerateListener() {
    public void enumerate(String uid,
                          String connectedUid,
                          char position,
                          short[] hardwareVersion,
                          short[] firmwareVersion,
                          int deviceIdentifier,
                          short enumerationType);
});

ipcon.enumerate();

The TimeoutException was moved from com.tinkerforge.IPConnection.TimeoutException to com.tinkerforge.TimeoutException.

New Listener Approach:

// 1.0
brickletTemperature.addListener(new BrickletTemperature.TemperatureListener() {
    public void temperature(short temperature) {
        System.out.println("Temperature: " + temperature/100.0 + " °C");
    }
});
// No removeListener in 1.0

// 2.0
brickletTemperature.addTemperatureListener(new BrickletTemperature.TemperatureListener() {
    public void temperature(short temperature) {
        System.out.println("Temperature: " + temperature/100.0 + " °C");
    }
});

// Removing listener possible in 2.0
brickletTemperature.removeTemperatureListener(temperatureListener);

PHP

Initialization:

// 1.0
$ipcon = new IPConnection($host, $port);
$al = new BrickletAmbientLight($uid);
$ipcon->addDevice($al);
...
$ipcon->destroy();

// 2.0
$ipcon = new IPConnection();
$al = new BrickletAmbientLight($uid, $ipcon);
$ipcon->connect($host, $port);
...
$ipcon->disconnect();

New enumeration signature and registration:

// 1.0
function enumerateCB($uid,
                     $name,
                     $stackID,
                     $isNew);

$ipcon->enumerate('enumerateCB');

// 2.0
function enumerateCB($uid,
                     $connectedUid,
                     $position,
                     $hardwareVersion,
                     $firmwareVersion,
                     $deviceIdentifier,
                     $enumerationType,
                     $userData);

$ipcon->registerCallback(IPConnection::CALLBACK_ENUMERATE, 'enumerateCB');

$ipcon->enumerate();

Python

Initialization:

# 1.0
ipcon = IPConnection(HOST, PORT)
al = AmbientLight(UID)
ipcon.add_device(al)
...
ipcon.destroy()

# 2.0
ipcon = IPConnection()
al = AmbientLight(UID, ipcon)
ipcon.connect(HOST, PORT)
...
ipcon.disconnect()

New enumeration signature and registration:

# 1.0
def cb_enumerate(uid,
                 name,
                 stack_id,
                 is_new)

ipcon.enumerate(cb_enumerate)

# 2.0
def cb_enumerate(uid,
                 connected_uid,
                 position,
                 hardware_version,
                 firmware_version,
                 device_identifier,
                 enumeration_type)

ipcon.register_callback(IPConnection.CALLBACK_ENUMERATE, cb_enumerate)

ipcon.enumerate()

Ruby

Initialization:

# 1.0
ipcon = IPConnection.new HOST, PORT
al = BrickletAmbientLight.new UID
ipcon.add_device al
...
ipcon.destroy

# 2.0
ipcon = IPConnection.new
al = BrickletAmbientLight.new UID, ipcon
ipcon.connect HOST, PORT
...
ipcon.disconnect

New enumeration signature and registration:

# 1.0
ipcon.enumerate do |uid,
                    name,
                    stack_id,
                    is_new|

# 2.0
ipcon.register_callback(IPConnection::CALLBACK_ENUMERATE) do |uid,
                                                              connected_uid,
                                                              position,
                                                              hardware_version,
                                                              firmware_version,
                                                              device_identifier,
                                                              enumeration_type|

ipcon.enumerate
