Bricklets

• Bricklet development board
• Usable for development of own Bricklets

• Measure power, voltage and current up to 720W/36V/20A
• 1mW, 1mV, 1mA resolution over the whole range
• Bidirectional current measurement (e.g. charge/discharge)
• Configurable averaging and ADC conversion time

Measures UV-A, UV-B and UV index

• Measures temperature with a thermocouple
• Supports B, E, J, K, N, R and T type

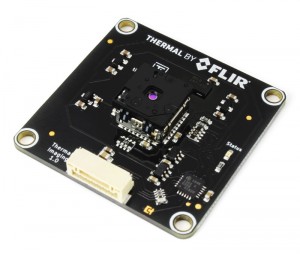

• 80x60 pixel thermal imaging camera
• Measurement range -10°C to 450°C
• Uses FLIR Lepton with radiometry and shutter
• High Contrast Image with 8.6Hz and 8 bit resolution (for display)
• Temperature Image with 4.5Hz and 16 bit resolution (for scientific calculations)
• Definable spotmeter with min, max, mean temperature measurement
• Automatic shutter control

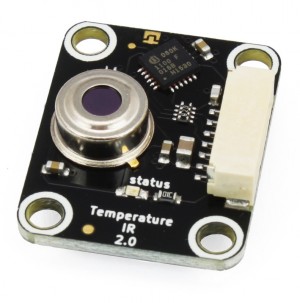

• Measures contactless object temperature from -70°C to 380°C
• Configurable emissivity
• Measures ambient temperature from -40°C to 85°C
• Output in 0.1°C steps (16bit resolution)

• Measures ambient temperature with 0.2°C accuracy

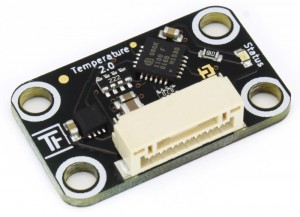

• Temperature range from -40°C to 125°C
• Output in 0.01°C steps

• Measures sound pressure level in dB(A/B/C/D/Z) and ITU-R 468
• Measures spectrum with up to 512 bins and up to 80 samples per second
• Frequency range 40Hz to 40960Hz
• Noise floor 30dB, maximum 120dB

• Galvanically isolated switching of large AC or DC loads
  • For example: motors, pumps and lamps
• Bricklet controls Solid State Relays (SSR)
  • The offered SSRs can switch up to 380V/25A AC or 50V/80A DC
• PWM possible (dimming of lamps, control speed of motors)

• Drives one bipolar stepper motor over USB (max. 46V, 1.6A per phase)
• Noiseless operation of stepper motors
• Position, velocity and acceleration controllable
• Stepper resolution from full-step to 1/256-step
• Two configurable GPIOs for end-stops or similar

• Controls up to 10 RC Servos
• Brushless motors with external ESC also controllable
• Adjustable Period and pulse width
• Uses motion planning to reach position with smooth motion
• Velocity and acceleration/deceleration can be configured
• Current measurement for each individual channel

• Four 7-segment digits
• Switchable dots per digit, colon and tick mark
• Brightness of segments configurable
• Configurable counter functionality

• Supports low-level RS485 as well as Modbus RTU master/slave
• Modbus RTU implementation is fully compliant for reading and writing of coils and registers
• Supports full- and half-duplex
• Configurable baudrate, parity, stop bits and word length
• Switchable 120 Ohm termination

• Sends and receives serial data
• Provides RS-232 and UART-TTL interface
• Configurable baudrate, parity, stop bits, word length and flow control

• 300° rotary potentiometer
• Outputs position from -150° to 150° in 1° steps

• 360° rotary encoder
• Counts 24 steps per rotation (step angle 15°)
• Integrated push-button

• High quality 15mm x 15mm button
• Adjustable RGB LED backlight
• Replacable/user-printable cap inlay

• 1x RGB LED
• 24 bit color resolution
• Luminance output is corrected for human light perception (CIE 1931)

• Wireless house automation
• Controls remote mains switches (supported devices)
• Can control remote mains switches with dimming function
• Can read out the remotes of remote mains switches

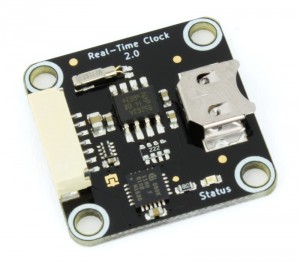

• Battery-backed real-time clock
• Hundredth of a second time resolution
• Low power consumption in battery mode

• Can beep with configurable frequency of 50Hz to 15000Hz
• Can output fully configurable alarm/siren sound
• Loudness configurable between 85dB(A) and 110dB(A)

• Controls one brushed DC motor with max. 36V and 10A (continuously)
• Direction, velocity and acceleration controllable
• Two configurable opto-coupled GPIOs for end-stops or similar
• Status, error, direction and GPIO LEDs
• Configurable overtemperature and overcurrent callbacks

• Measures Particulate Matter concentration
• Measures in µg/m³ for differenz sizes
• Distinguishable particle sizes: PM1.0, PM2.5 and PM10
• Integrated fan for air flow

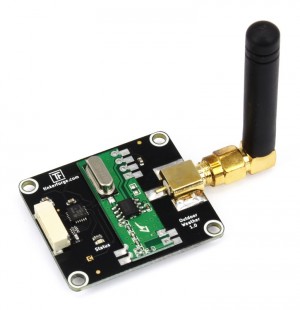

• Receives data from outdoor weather station and indoor sensors
• Measures Temperature, Humidity, Wind/Gust speed, Wind direction and Rainfall
• Can use up to 255 weather stations/sensors simultaneously

• 1-wire communication with any 1-wire capable device
• Offers high-level commands (bus search, reset, write, read, write command)
• Supports 3.3V, 5V and external supply voltage
• Supports up to 64 1-wire devices simultaneously

• Black/white OLED
• Size of 3.3cm (1.3") with a resolution of 128x64

• Can read and write NFC Forum Type 1, 2, 3, 4 and Mifare Classic tags.
• NDEF definitions can be directly read/written with API.
• Supports NFC P2P mode
• Supports card emulation mode
• Range is restricted to 10cm (3.94")

• Capacitive touch sensor
• Can handle up to 12 electrodes used as touch locations
• Touch can be detected through a thin layer of glass/plastic/paper
• Size and placement of touch area can be user defined
• Can be used to build custom touch panels

• Linear Potentiometer with 100mm fader travel
• Fader position can be controlled by user and with a motor
• No additional power supply necessary
• Automatic calibration

• Passive Infrared Motion Sensor
• Detects motion in distances of up to 12m (sensitivity configurable)
• High sensing angle (120°)
• Fresnel lens has controllable backlight

• Measures output of load cells
• 24bit ADC for high resolution
• Up to 80 weight measurements per second

• 59mm linear potentiometer
• Outputs position from 0% to 100% in 1% steps

• Controls up to 2048 RGB or 1536 RGBW LEDs
• All LEDs can be switched independently
• Update rate of up to 100Hz for each LED possible

• 7.1cm (2.8") LCD with a resolution of 128x64 pixel
• Embedded font and GUI for easy drawing of text and GUI elements
• Touchscreen with x/y-coordinate and touch pressure callback
• Automatic swipe gesture recognition (left, right, up and down)

• Measures distance and velocity with laser pulses
• Distance range 0-40m, resolution 1cm
• Measurement frequency up to 500Hz

• 2-axis joystick with push-button

• Galvanically isolates the power and data lines
• Can be used between any Brick and any Bricklet with a 7 pole connector

• 4-channel digital input/output
• Fixed 3.3V logic voltage
• Configurable pull-ups and interrupts
• PWM output with frequency up to 32MHz

• 16-channel digital input/output
• Switchable logic voltage 3.3V or 5V*
• Configurable pull-ups and interrupts

• 4 Channel Solid State Relay
• Switch up to 30V with 0.6A
• Galvanically isolated

• Supports Pt100 and Pt1000 sensors
• Supports 2-wire, 3-wire and 4-wire type
• Measures temperature with 0.05% accuracy at the full scale of -246 to 849°C
• Resolution of 0.03125°C (15bit), output in 0.01°C steps

• Two relays for switching AC/DC devices
• Switches up to 240VAC/10A and 30VDC/7A

• Independently measures two voltages between -35V and +35V (DC)
• 24bit ADC for high resolution
• Individually calibrated
• Full-scale accuracy of 0.1% / ±4mV
• Up to 976 samples per second

• Two solid state relays for switching AC devices
• Switches up to 240VAC/1.2A (with max 12A surge current)
• Switching done during zero-crossing

• Two inputs that can detect the presence of 230VAC mains voltage
• State LED per input

• Precision current sensor, measures currents between 0 and 22.5mA
• Can read out any IEC 60381-1 type 2 and type 3 sensor
• High accuracy (0.15%), resolution (up to 0.172µA) and sample rate (up to 240 SPS)
• It is possible to detect if a sensor is connected/faulty

• 4 channel digital output
• Output voltages up to 36V
• Galvanically isolated
• Status LED per channel
• PWM output with frequency up to 40kHz

• 4 channel digital input
• Input voltages up to 36V (DC)
• Galvanically isolated

• 4 channel galvanically isolated frequency counter
• Configurable edge count per channel
• Measures duty cycle, period and frequency per channel
• Frequency range from 0.03Hz to 4MHz
• Time resolution up to 10.4ns and frequency resolution up to 0.03Hz
