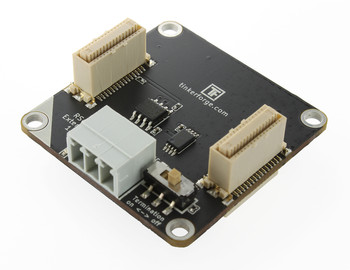

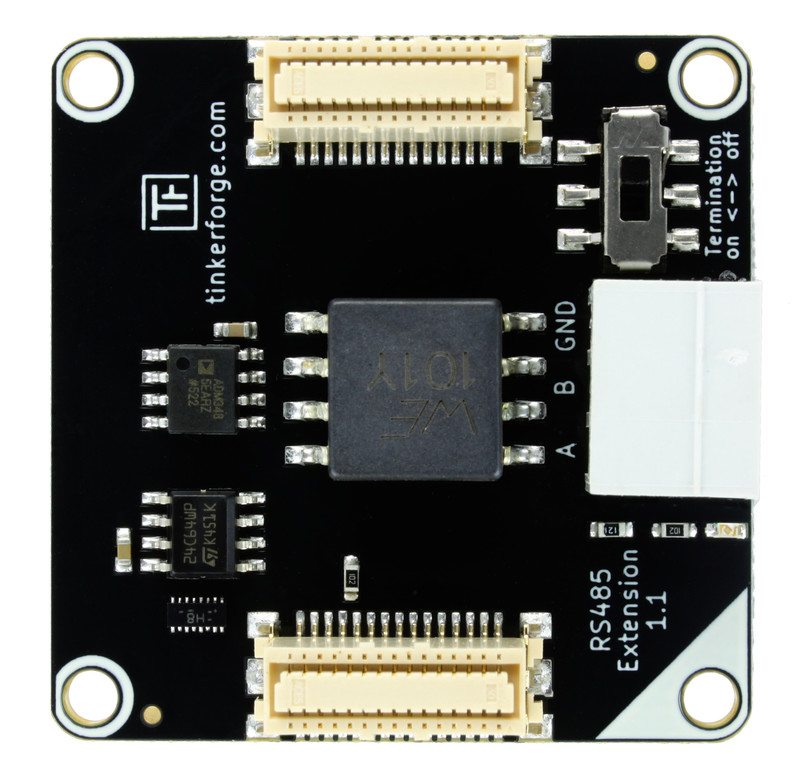

RS485 Master Extension

Features

  • Allows cable based interconnection between stacks of Bricks
  • Long distance connections (up to 1200m)
  • Configurable baud rate, parity and stop bits
  • Can be used in existing RS485 networks (Modbus RTU)

Description

The RS485 Extension can be used for long range cable based inter-stack communication. It uses the RS485 differential interface standard to achieve ranges of up to 1200m.

To establish a RS485 bus with Bricks, two RS485 Extensions and two Master Bricks are needed. Both Master Bricks can be connected to a full stack of Bricks and Bricklets, whereas one Master Brick is battery powered and one is connected with USB, Ethernet or WIFI to a PC. From a programming perspective the RS485 bus is completely transparent, i.e. the two stacks can be used exactly the same way as if they were both connected via USB.

It is also possible to create a bus with several RS485 Extension where only one is connected via USB, Ethernet or WIFI to a PC (many-to-one routing).

Modbus RTU is used as the protocol on the RS485 interface. This allows to use a stack of Bricks and Bricklets with an RS485 Extension to be integrated in existing Modbus networks. It is also possible to communicate with a stack directly via Modbus from an embedded device or over a Modbus gateway.

The following combinations with other Extensions in a stack are possible (regardless of order):

  • RS485 Master / Chibi Slave
  • RS485 Master / Ethernet
  • RS485 Master / WIFI
  • RS485 Master / WIFI 2.0
  • RS485 Slave / Chibi Master

Technical Specifications

Property Value
Current Consumption 8mA

Maximum Distance 1200m
Maximum Baud Rate 2Mbit/s

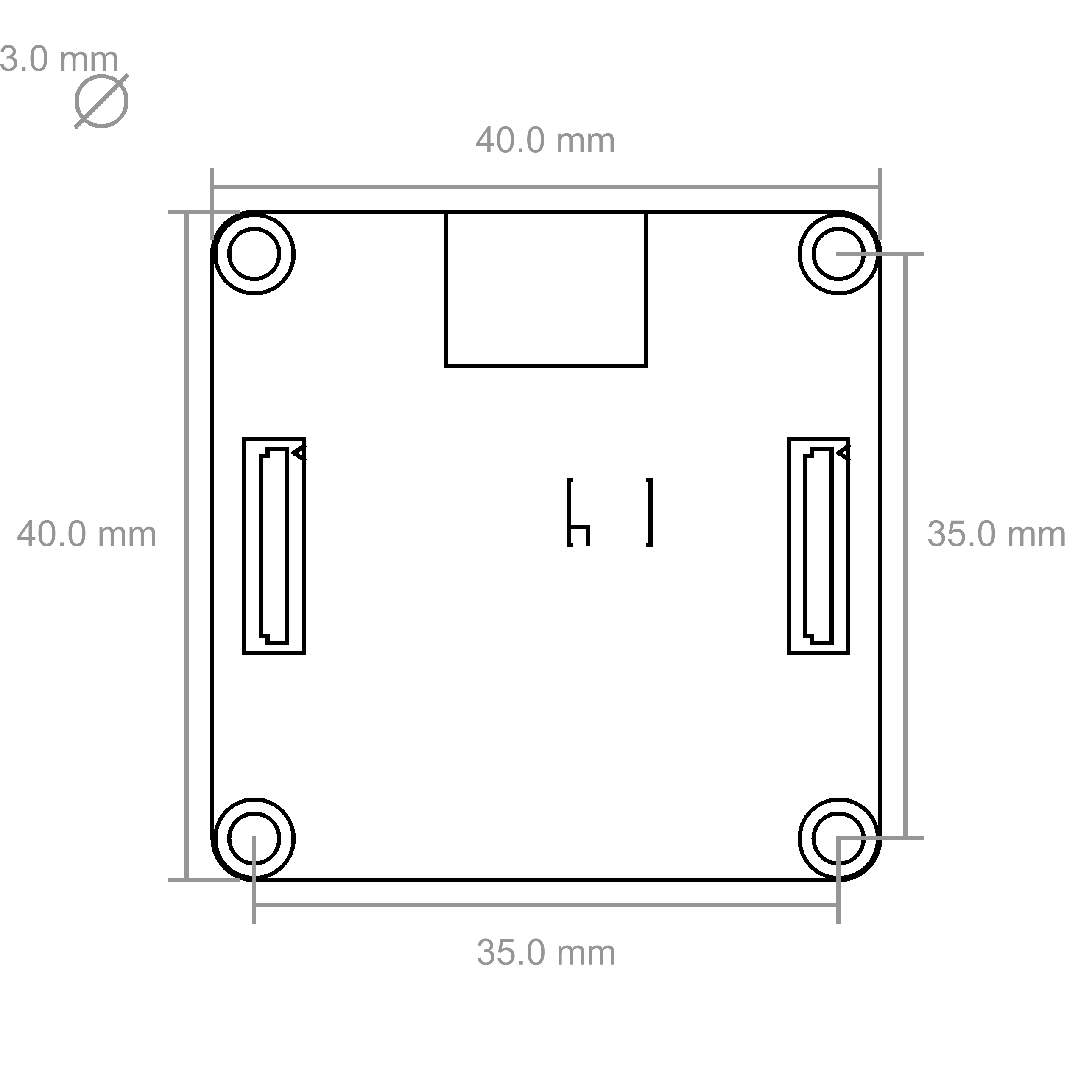

Dimensions (W x D x H) 40 x 40 x 16mm (1.57 x 1.57 x 0.63")
Weight 13g

Resources

Connectivity

The following picture shows the connection possibilities of the RS485-Extension.

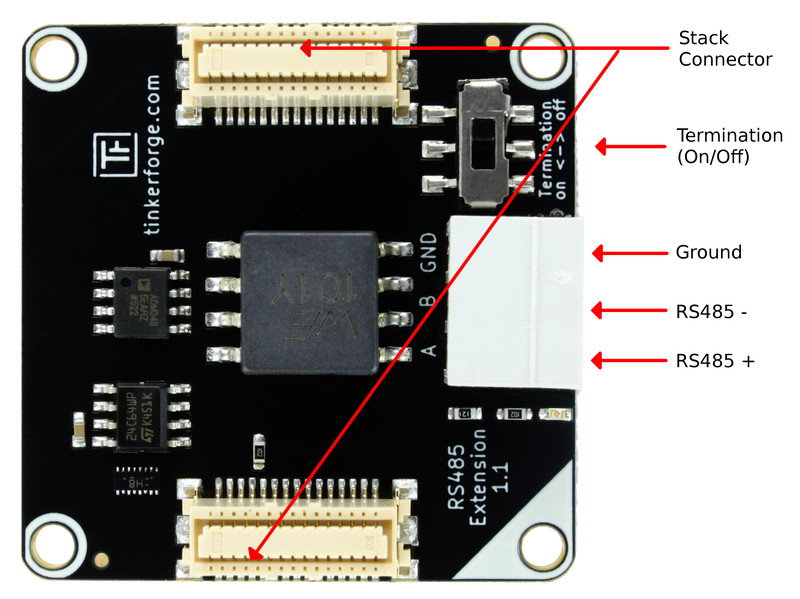

RS485 Extension connectivity

RS485 Bus Assembly

A RS485 bus consists of one master and multiple slaves. RS485 master is the Master Brick which has a USB, Ethernet or WIFI connection to the PC running brickd. All the other Master Bricks with RS485 Extension must not have a USB, Ethernet or WIFI connection (they can use a USB Power Supply). Each RS485 slave is identified with its own ID. The IDs have to be unique on the bus.

To create a RS485 bus, stack the RS485 Extension on top of a Master Brick. Connect the Master Brick via USB, Ethernet or WIFI with your PC and start the Brick Viewer software. You should see the Master Brick view with the identified RS485 Extension (see images below). Configure the extension as slave or master (as described here).

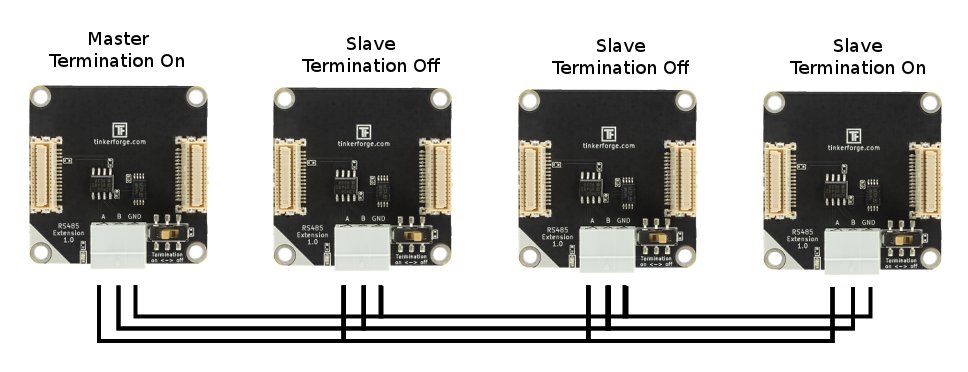

If you have configured all extensions you can build your system. Connect Bricks and Bricklets as you like. The Master Brick of each stack has to be the lowermost Brick (except if you are using a Power Supply). The RS485 Extension can be positioned in the stack as you wish. Wire up the RS485 stacks and set the termination switch on the first and last RS485 Extension in the bus to "on", as shown below.

Assembly of RS485 Extension

If the bus is only a few meters long then the cable you use should not matter. If the bus is longer than a few meters then some kind of twisted pair cable is recommended. Common telephone cable is often twisted. Even better is Ethernet cable, because it is twisted and often shielded. If you use a twisted pair cable, make sure to use the same twisted pair for A and B, but use another twisted pair for GND.

You have to power up the slaves before the master, since the RS485 master searches for slaves only at startup. You should now be able to see all connected stacks in the Brick Viewer.

RS485 Configuration

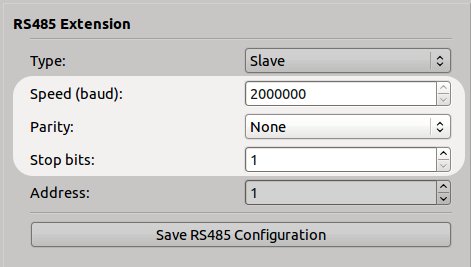

To configure a RS485 Extension you first have to choose the baud rate, parity and stop bits.

Configuration of RS485 Extension

If your bus isn't absolutely huge you should probably choose "speed: 2000000 (2Mbit/s), parity: None, Stop bits: 1". If you start to get timeouts and the CRC error counter is rising rapidly, you might want to lower the baud rate. If you want to use a stack with RS485 Extension in your existing Modbus network, you have to match the values with the other bus participants.

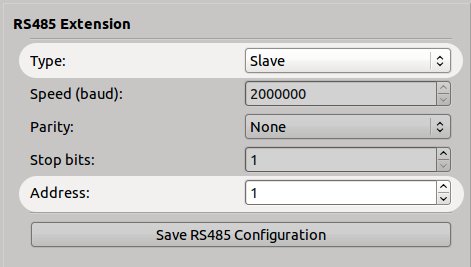

For slave configuration choose "Slave" as type and set an address for the slave (1-255).

Configuration of RS485 in slave mode

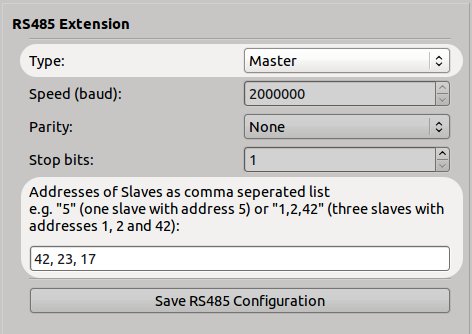

For master configuration choose "Master" as type and input the addresses of the slaves in the RS485 bus as a comma separated list.

Configuration of RS485 in master mode

At the end, press "Save RS485 Configuration" to save the configuration permanently on the RS485 Extension. The Master Brick has to be restarted to apply the new configuration.

RS485 Bus Modification

If you want to change something in your bus, e.g. add new Bricks or Bricklets, you have to power down the stack you would like to change. Change it and repower it. If the stack was slave in the RS485 bus, you also have to reset the RS485 master (it only searches for new Bricks and Bricklets on startup). This can be achieved by a power cycle or pressing the reset button on the Master Brick.

Programming Interface

See Master Brick documentation.
