Visual Basic .NET - OLED 128x64 Bricklet¶

Hello World¶

Download (ExampleHelloWorld.vb)

 1Imports System
 2Imports Tinkerforge
 3
 4Module ExampleHelloWorld
 5    Const HOST As String = "localhost"
 6    Const PORT As Integer = 4223
 7    Const UID As String = "XYZ" ' Change XYZ to the UID of your OLED 128x64 Bricklet
 8
 9    Sub Main()
10        Dim ipcon As New IPConnection() ' Create IP connection
11        Dim oled As New BrickletOLED128x64(UID, ipcon) ' Create device object
12
13        ipcon.Connect(HOST, PORT) ' Connect to brickd
14        ' Don't use device before ipcon is connected
15
16        ' Clear display
17        oled.ClearDisplay()
18
19        ' Write "Hello World" starting from upper left corner of the screen
20        oled.WriteLine(0, 0, "Hello World")
21
22        Console.WriteLine("Press key to exit")
23        Console.ReadLine()
24        ipcon.Disconnect()
25    End Sub
26End Module

Pixel Matrix¶

Download (ExamplePixelMatrix.vb)

 1Imports System
 2Imports System.Math
 3Imports Tinkerforge
 4
 5Module ExamplePixelMatrix
 6    Const HOST As String = "localhost"
 7    Const PORT As Integer = 4223
 8    Const UID As String = "XYZ" ' Change XYZ to the UID of your OLED 128x64 Bricklet
 9    Const WIDTH As Integer = 128
10    Const HEIGHT As Integer = 64
11
12    Sub DrawMatrix(ByRef oled As BrickletOLED128x64, ByVal pixels()() As Boolean)
13        Dim pages()() As Byte = New Byte(HEIGHT \ 8)() {}
14
15        For row As Integer = 0 To HEIGHT \ 8 - 1
16            pages(row) = New Byte(WIDTH) {}
17
18            For column As Integer = 0 To WIDTH - 1
19                pages(row)(column) = 0
20
21                For bit As Integer = 0 To 7
22                    If pixels((row * 8) + bit)(column) Then
23                        pages(row)(column) = pages(row)(column) Or Convert.ToByte(1 << bit)
24                    End If
25                Next bit
26            Next column
27        Next row
28
29        oled.NewWindow(0, WIDTH - 1, 0, HEIGHT \ 8 - 1)
30
31        Dim section() As Byte = New Byte(64) {}
32
33        For row As Integer = 0 To HEIGHT \ 8 - 1
34            For column As Integer = 0 To WIDTH - 1 Step 64
35                Array.Copy(pages(row), column, section, 0, 64)
36                oled.Write(section)
37            Next column
38        Next row
39    End Sub
40
41    Sub Main()
42        Dim ipcon As New IPConnection() ' Create IP connection
43        Dim oled As New BrickletOLED128x64(UID, ipcon) ' Create device object
44
45        ipcon.Connect(HOST, PORT) ' Connect to brickd
46        ' Don't use device before ipcon is connected
47
48        ' Clear display
49        oled.ClearDisplay()
50
51        ' Draw checkerboard pattern
52        Dim pixels()() As Boolean = New Boolean(HEIGHT)() {}
53
54        For row As Integer = 0 To HEIGHT - 1
55            pixels(row) = New Boolean(WIDTH) {}
56
57            For column As Integer = 0 To WIDTH - 1
58                pixels(row)(column) = (row \ 8) Mod 2 = (column \ 8) Mod 2
59            Next column
60        Next row
61
62        DrawMatrix(oled, pixels)
63
64        Console.WriteLine("Press key to exit")
65        Console.ReadLine()
66        ipcon.Disconnect()
67    End Sub
68End Module

Scribble¶

Download (ExampleScribble.vb)

 1Imports System
 2Imports System.Drawing
 3Imports System.Math
 4Imports System.Threading
 5Imports Tinkerforge
 6
 7Module ExampleScribble
 8    Const HOST As String = "localhost"
 9    Const PORT As Integer = 4223
10    Const UID As String = "XYZ" ' Change XYZ to the UID of your OLED 128x64 Bricklet
11    Const WIDTH As Integer = 128
12    Const HEIGHT As Integer = 64
13
14    Sub DrawImage(ByRef oled As BrickletOLED128x64, ByVal bitmap As Bitmap)
15        Dim pages()() As Byte = New Byte(HEIGHT \ 8)() {}
16
17        For row As Integer = 0 To HEIGHT \ 8 - 1
18            pages(row) = New Byte(WIDTH) {}
19
20            For column As Integer = 0 To WIDTH - 1
21                pages(row)(column) = 0
22
23                For bit As Integer = 0 To 7
24                    If bitmap.GetPixel(column, (row * 8) + bit).GetBrightness() > 0 Then
25                        pages(row)(column) = pages(row)(column) Or Convert.ToByte(1 << bit)
26                    End If
27                Next bit
28            Next column
29        Next row
30
31        oled.NewWindow(0, WIDTH - 1, 0, HEIGHT \ 8 - 1)
32
33        Dim section() As Byte = New Byte(64) {}
34
35        For row As Integer = 0 To HEIGHT \ 8 - 1
36            For column As Integer = 0 To WIDTH - 1 Step 64
37                Array.Copy(pages(row), column, section, 0, 64)
38                oled.Write(section)
39            Next column
40        Next row
41    End Sub
42
43    Sub Main()
44        Dim ipcon As New IPConnection() ' Create IP connection
45        Dim oled As New BrickletOLED128x64(UID, ipcon) ' Create device object
46
47        ipcon.Connect(HOST, PORT) ' Connect to brickd
48        ' Don't use device before ipcon is connected
49
50        ' Clear display
51        oled.ClearDisplay()
52
53        ' Draw rotating line
54        Dim bitmap As New Bitmap(WIDTH, HEIGHT)
55        Dim originX As Integer = WIDTH \ 2
56        Dim originY As Integer = HEIGHT \ 2
57        Dim length As Integer = HEIGHT \ 2 - 2
58        Dim angle As Integer = 0
59
60        Console.WriteLine("Press enter to exit")
61
62        While Not Console.KeyAvailable
63            Dim radians As Double = Math.PI * angle / 180.0
64            Dim x As Integer = Convert.ToInt32(Math.Floor(originX + length * Math.Cos(radians)))
65            Dim y As Integer = Convert.ToInt32(Math.Floor(originY + length * Math.Sin(radians)))
66
67            Using g As Graphics = Graphics.FromImage(bitmap)
68                g.FillRectangle(Brushes.Black, 0, 0, WIDTH, HEIGHT)
69                g.DrawLine(Pens.White, originX, originY, x, y)
70            End Using
71
72            DrawImage(oled, bitmap)
73            Thread.Sleep(25)
74
75            angle += 1
76        End While
77
78        Console.WriteLine("Press key to exit")
79        Console.ReadLine()
80        ipcon.Disconnect()
81    End Sub
82End Module

Basic Functions¶

Class BrickletOLED128x64(ByVal uid As String, ByVal ipcon As IPConnection)¶

Creates an object with the unique device ID uid:

Dim oled128x64 As New BrickletOLED128x64("YOUR_DEVICE_UID", ipcon)

This object can then be used after the IP Connection is connected.

Sub BrickletOLED128x64.Write(ByVal data() As Byte)¶

Parameters:	data – Type: Byte Array, Length: 64, Range: [0 to 255]

Appends 64 byte of data to the window as set by NewWindow().

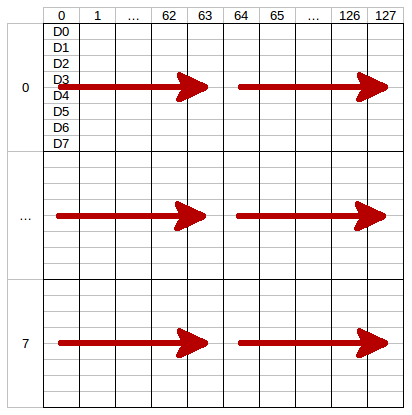

Each row has a height of 8 pixels which corresponds to one byte of data.

Example: if you call NewWindow() with column from 0 to 127 and row from 0 to 7 (the whole display) each call of Write() (red arrow) will write half of a row.

The LSB (D0) of each data byte is at the top and the MSB (D7) is at the bottom of the row.

The next call of Write() will write the second half of the row and the next two the second row and so on. To fill the whole display you need to call Write() 16 times.

Sub BrickletOLED128x64.NewWindow(ByVal columnFrom As Byte, ByVal columnTo As Byte, ByVal rowFrom As Byte, ByVal rowTo As Byte)¶

Parameters:	columnFrom – Type: Byte, Range: [0 to 127] columnTo – Type: Byte, Range: [0 to 127] rowFrom – Type: Byte, Range: [0 to 7] rowTo – Type: Byte, Range: [0 to 7]

Sets the window in which you can write with Write(). One row has a height of 8 pixels.

Sub BrickletOLED128x64.ClearDisplay()¶

Clears the current content of the window as set by NewWindow().

Sub BrickletOLED128x64.WriteLine(ByVal line As Byte, ByVal position As Byte, ByVal text As String)¶

Parameters:	line – Type: Byte, Range: [0 to 7] position – Type: Byte, Range: [0 to 25] text – Type: String, Length: up to 26

Writes text to a specific line with a specific position. The text can have a maximum of 26 characters.

For example: (1, 10, "Hello") will write Hello in the middle of the second line of the display.

You can draw to the display with Write() and then add text to it afterwards.

The display uses a special 5x7 pixel charset. You can view the characters of the charset in Brick Viewer.

The font conforms to code page 437.

Advanced Functions¶

Sub BrickletOLED128x64.SetDisplayConfiguration(ByVal contrast As Byte, ByVal invert As Boolean)¶

Parameters:	contrast – Type: Byte, Range: [0 to 255], Default: 143 invert – Type: Boolean, Default: false

Sets the configuration of the display.

You can set a contrast value from 0 to 255 and you can invert the color (black/white) of the display.

Sub BrickletOLED128x64.GetDisplayConfiguration(ByRef contrast As Byte, ByRef invert As Boolean)¶

Output Parameters:	contrast – Type: Byte, Range: [0 to 255], Default: 143 invert – Type: Boolean, Default: false

Returns the configuration as set by SetDisplayConfiguration().

Sub BrickletOLED128x64.GetIdentity(ByRef uid As String, ByRef connectedUid As String, ByRef position As Char, ByRef hardwareVersion() As Byte, ByRef firmwareVersion() As Byte, ByRef deviceIdentifier As Integer)¶

Output Parameters:

uid – Type: String, Length: up to 8 connectedUid – Type: String, Length: up to 8 position – Type: Char, Range: ["a"C to "h"C, "z"C] hardwareVersion – Type: Byte Array, Length: 3 0: major – Type: Byte, Range: [0 to 255] 1: minor – Type: Byte, Range: [0 to 255] 2: revision – Type: Byte, Range: [0 to 255] firmwareVersion – Type: Byte Array, Length: 3 0: major – Type: Byte, Range: [0 to 255] 1: minor – Type: Byte, Range: [0 to 255] 2: revision – Type: Byte, Range: [0 to 255] deviceIdentifier – Type: Integer, Range: [0 to 216 - 1]

Returns the UID, the UID where the Bricklet is connected to, the position, the hardware and firmware version as well as the device identifier.

The position can be 'a', 'b', 'c', 'd', 'e', 'f', 'g' or 'h' (Bricklet Port). A Bricklet connected to an Isolator Bricklet is always at position 'z'.

The device identifier numbers can be found here. There is also a constant for the device identifier of this Bricklet.

Virtual Functions¶

Virtual functions don't communicate with the device itself, but operate only on the API bindings device object. They can be called without the corresponding IP Connection object being connected.

Function BrickletOLED128x64.GetAPIVersion() As Byte()¶

Output Parameters:	apiVersion – Type: Byte Array, Length: 3 0: major – Type: Byte, Range: [0 to 255] 1: minor – Type: Byte, Range: [0 to 255] 2: revision – Type: Byte, Range: [0 to 255]

Returns the version of the API definition implemented by this API bindings. This is neither the release version of this API bindings nor does it tell you anything about the represented Brick or Bricklet.

Function BrickletOLED128x64.GetResponseExpected(ByVal functionId As Byte) As Boolean¶

Parameters:	functionId – Type: Byte, Range: See constants
Returns:	responseExpected – Type: Boolean

Returns the response expected flag for the function specified by the function ID parameter. It is true if the function is expected to send a response, false otherwise.

For getter functions this is enabled by default and cannot be disabled, because those functions will always send a response. For callback configuration functions it is enabled by default too, but can be disabled by SetResponseExpected(). For setter functions it is disabled by default and can be enabled.

Enabling the response expected flag for a setter function allows to detect timeouts and other error conditions calls of this setter as well. The device will then send a response for this purpose. If this flag is disabled for a setter function then no response is sent and errors are silently ignored, because they cannot be detected.

The following constants are available for this function:

For functionId:

• BrickletOLED128x64.FUNCTION_WRITE = 1

• BrickletOLED128x64.FUNCTION_NEW_WINDOW = 2

• BrickletOLED128x64.FUNCTION_CLEAR_DISPLAY = 3

• BrickletOLED128x64.FUNCTION_SET_DISPLAY_CONFIGURATION = 4

• BrickletOLED128x64.FUNCTION_WRITE_LINE = 6

Sub BrickletOLED128x64.SetResponseExpected(ByVal functionId As Byte, ByVal responseExpected As Boolean)¶

Parameters:	functionId – Type: Byte, Range: See constants responseExpected – Type: Boolean

Changes the response expected flag of the function specified by the function ID parameter. This flag can only be changed for setter (default value: false) and callback configuration functions (default value: true). For getter functions it is always enabled.

Enabling the response expected flag for a setter function allows to detect timeouts and other error conditions calls of this setter as well. The device will then send a response for this purpose. If this flag is disabled for a setter function then no response is sent and errors are silently ignored, because they cannot be detected.

The following constants are available for this function:

For functionId:

• BrickletOLED128x64.FUNCTION_WRITE = 1

• BrickletOLED128x64.FUNCTION_NEW_WINDOW = 2

• BrickletOLED128x64.FUNCTION_CLEAR_DISPLAY = 3

• BrickletOLED128x64.FUNCTION_SET_DISPLAY_CONFIGURATION = 4

• BrickletOLED128x64.FUNCTION_WRITE_LINE = 6

Sub BrickletOLED128x64.SetResponseExpectedAll(ByVal responseExpected As Boolean)¶

Parameters:	responseExpected – Type: Boolean

Changes the response expected flag for all setter and callback configuration functions of this device at once.

Constants¶

Const BrickletOLED128x64.DEVICE_IDENTIFIER¶

This constant is used to identify a OLED 128x64 Bricklet.

The GetIdentity() function and the IPConnection.EnumerateCallback callback of the IP Connection have a deviceIdentifier parameter to specify the Brick's or Bricklet's type.

Const BrickletOLED128x64.DEVICE_DISPLAY_NAME¶

This constant represents the human readable name of a OLED 128x64 Bricklet.
