LabVIEW - API Bindings

The LabVIEW bindings allow you to control Bricks and Bricklets from your LabVIEW programs. The ZIP file for the bindings contains:

  • net20/Tinkerforge.dll, a precompiled .NET 2.0 library
  • net40/Tinkerforge.dll, a precompiled .NET 4.0 library
  • in source/ the source code of Tinkerforge.dll
  • in examples/ the examples for every Brick and Bricklet in LabVIEW 2010 and LabVIEW 2013 format

The LabVIEW bindings are based on the C# bindings. Since version 2.0.0 the C# bindings are CLS compliant. This allows to use them with all .NET compatible languages, such as LabVIEW's .NET support.


  • LabVIEW on Windows with .NET support


To make the bindings work LabVIEW has to be able to find the Tinkerforge.dll. The easiest option is to put the Tinkerforge.dll in the LabVIEW installation folder. For example, the default installation folder for LabVIEW 2015 is:

C:\Program Files\National Instruments\LabVIEW 2015\

The Tinkerforge.dll can also be put in the same folder as the .vi file that is going to use it. In both cases LabVIEW should automatically find the Tinkerforge.dll.

The ZIP file for the bindings contains two different versions of the Tinkerforge.dll:

  • For LabVIEW 2011 and older LabVIEW versions the Tinkerforge.dll from the net20 folder should be used.
  • For LabVIEW 2012 and newer LabVIEW versions the Tinkerforge.dll from the net40 folder should be used.


LabVIEW might warn that the Tinkerforge.dll was loaded from a different folder. This warning can be ignored.

LabVIEW might also warn that it found a Tinkerforge.dll with a different version. If the found version is newer than the one LabVIEW was locking for, then you can ignore this warning. Otherwise you should update the LabVIEW bindings.


If LabVIEW reports error code 1386 "The specified .NET class is not available in LabVIEW." then make sure that all ".NET Constructor" nodes in the .vi file are configured correctly. Double click on a ".NET Constructor" node and select "Tinkerforge" as the "Assembly".

If the "Select .NET Assembly" dialog says "An error occurred trying to load the assembly", then check in Windows Explorer if the Tinkerforge.dll is marked as coming from another computer. If this is the case LabVIEW will refuse to load it.

Open the properties dialog of the Tinkerforge.dll in Windows Explorer. If there is an "Unblock" button at the bottom of the "General" page, then the file is blocked. Click the "Unblock" button and restart LabVIEW. The problem should be fixed now.

Testing an Example

To test a LabVIEW example Brick Daemon and Brick Viewer have to be installed first. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon and helps to figure out basic information about the connected Bricks and Bricklets.

Stepper Brick

As an example let's run the configuration example for the Stepper Brick. For this we copy the Example file from the examples/Brick/Stepper/ folder into a new folder:

 -> Example

If you did not copy the Tinkerforge.dll to the installation folder of your LabVIEW installation then the Tinkerforge.dll file has to be copied to the example_project/ folder as well before the example can be opened in LabVIEW:

 -> Tinkerforge.dll
 -> Example

In the example host and port specify at which network address the Stepper Brick can be found. If it is connected locally to USB then localhost and 4223 is correct. The uid value has to be changed to the UID of the connected Stepper Brick, which you can figure out using Brick Viewer.

Now you're ready to test this example.

Barometer Bricklet

Here's an another example showing a graph of air pressure values measured by a Barometer Bricklet.

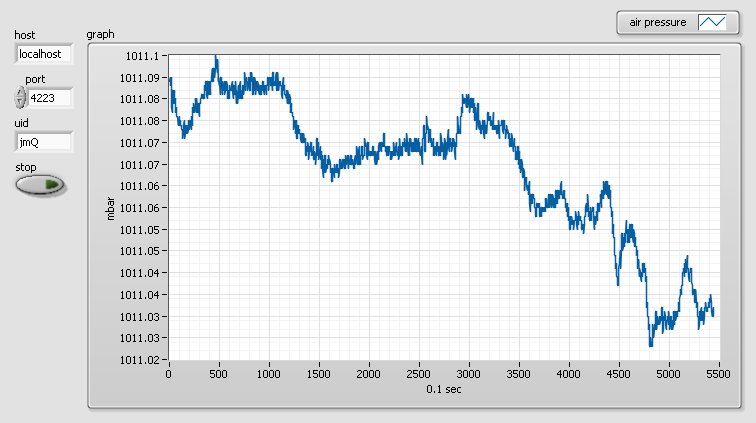

Front Panel Barometer Bricklet Graph Example

And here the corresponding block diagram:

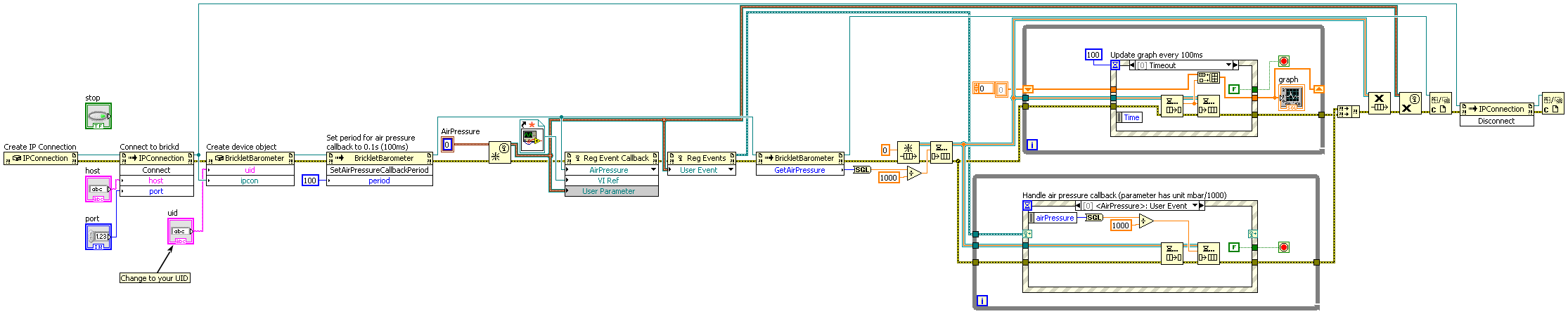

Block Diagram Barometer Bricklet Graph Example

API Reference and Examples

Links to the API reference for the IP Connection, Bricks and Bricklets as well as the examples from the ZIP file of the bindings are listed in the following table. Further project descriptions can be found in the Kits section.
