LabVIEW - UV Light Bricklet 2.0

This is the description of the LabVIEW API bindings for the UV Light Bricklet 2.0. General information and technical specifications for the UV Light Bricklet 2.0 are summarized in its hardware description.

An installation guide for the LabVIEW API bindings is part of their general description.

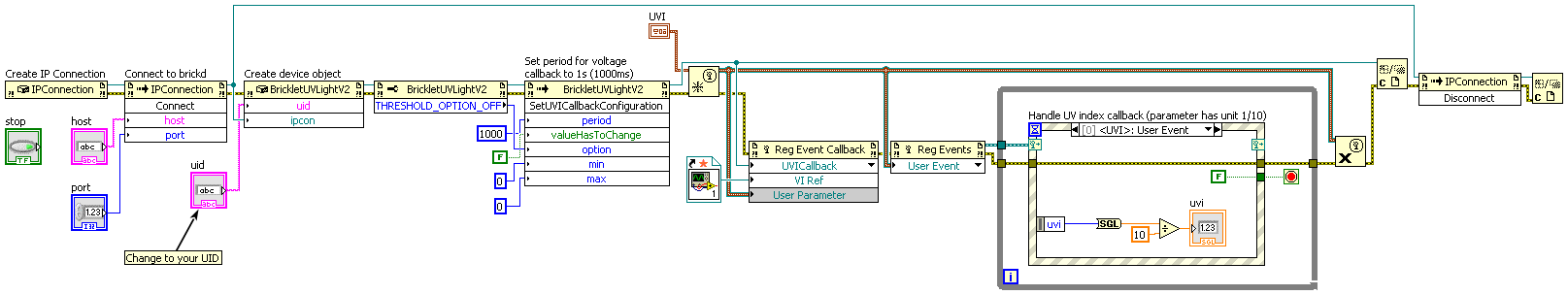

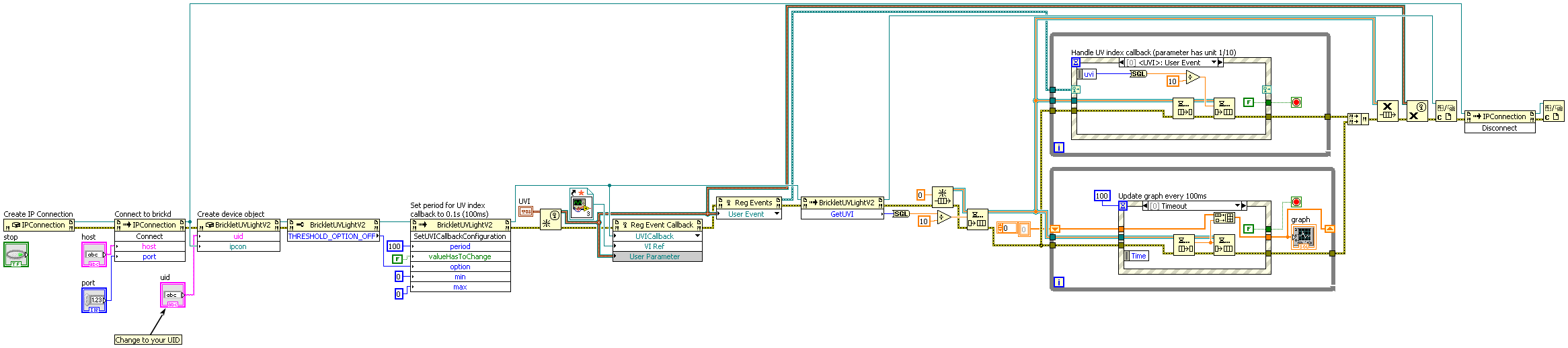

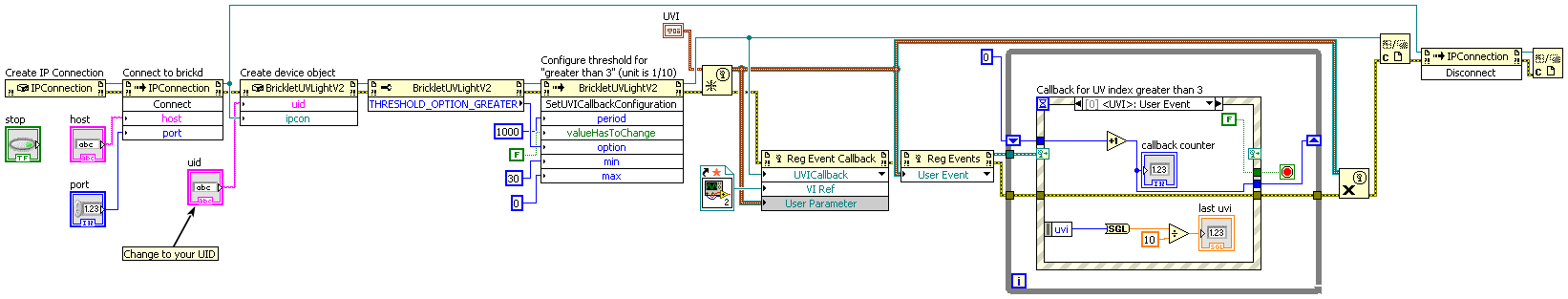

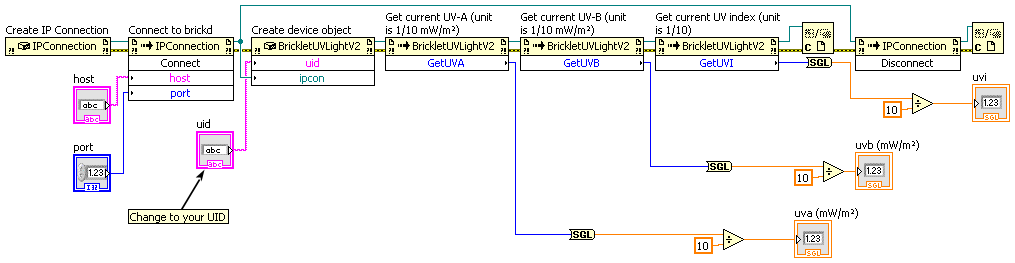

API

Generally, every method of the LabVIEW bindings that outputs a value can report a Tinkerforge.TimeoutException. This error gets reported if the device did not respond. If a cable based connection is used, it is unlikely that this exception gets thrown (assuming nobody plugs the device out). However, if a wireless connection is used, timeouts will occur if the distance to the device gets too big.

The namespace for all Brick/Bricklet bindings and the IPConnection is Tinkerforge.*.

Basic Functions

BrickletUVLightV2(uid, ipcon) → uvLightV2
Input:
  • uid -- String
  • ipcon -- .NET Refnum (IPConnection)
Output:
  • uvLightV2 -- .NET Refnum (BrickletUVLightV2)

Creates an object with the unique device ID uid. This object can then be used after the IP Connection is connected (see examples above).

BrickletUVLightV2.GetUVA() → uva
Output:
  • uva -- Int32

Returns the UVA intensity of the sensor, the intensity is given in 1/10 mW/m². The sensor has not weighted the intensity with the erythemal action spectrum to get the skin-affecting irradiation. Therefore, you cannot just divide the value by 250 to get the UVA index. To get the UV index use GetUVI().

If the sensor is saturated, then -1 is returned, see SetConfiguration().

If you want to get the intensity periodically, it is recommended to use the UVACallback callback and set the period with SetUVACallbackConfiguration().

If you want to get the value periodically, it is recommended to use the UVACallback callback. You can set the callback configuration with SetUVACallbackConfiguration().

BrickletUVLightV2.GetUVB() → uvb
Output:
  • uvb -- Int32

Returns the UVB intensity of the sensor, the intensity is given in 1/10 mW/m². The sensor has not weighted the intensity with the erythemal action spectrum to get the skin-affecting irradiation. Therefore, you cannot just divide the value by 250 to get the UVB index. To get the UV index use GetUVI().

If the sensor is saturated, then -1 is returned, see SetConfiguration().

If you want to get the intensity periodically, it is recommended to use the UVBCallback callback and set the period with SetUVBCallbackConfiguration().

If you want to get the value periodically, it is recommended to use the UVBCallback callback. You can set the callback configuration with SetUVBCallbackConfiguration().

BrickletUVLightV2.GetUVI() → uvi
Output:
  • uvi -- Int32

Returns the UV index of the sensor, the index is given in 1/10.

If the sensor is saturated, then -1 is returned, see SetConfiguration().

If you want to get the intensity periodically, it is recommended to use the UVICallback callback and set the period with SetUVICallbackConfiguration().

If you want to get the value periodically, it is recommended to use the UVICallback callback. You can set the callback configuration with SetUVICallbackConfiguration().

Advanced Functions

BrickletUVLightV2.SetConfiguration(integrationTime)
Input:
  • integrationTime -- Byte

Sets the configuration of the sensor. The integration time can be configured between 50 and 800 ms. With a shorter integration time the sensor reading updates more often but contains more noise. With a longer integration the sensor reading contains less noise but updates less often.

With a longer integration time (especially 800 ms) and a higher UV intensity the sensor can be saturated. If this happens the UVA/UVB/UVI readings are all -1. In this case you need to choose a shorter integration time.

Default value: 400 ms.

The following constants are available for this function:

  • BrickletUVLightV2.INTEGRATION_TIME_50MS = 0
  • BrickletUVLightV2.INTEGRATION_TIME_100MS = 1
  • BrickletUVLightV2.INTEGRATION_TIME_200MS = 2
  • BrickletUVLightV2.INTEGRATION_TIME_400MS = 3
  • BrickletUVLightV2.INTEGRATION_TIME_800MS = 4
BrickletUVLightV2.GetConfiguration() → integrationTime
Output:
  • integrationTime -- Byte

Returns the configuration as set by SetConfiguration().

The following constants are available for this function:

  • BrickletUVLightV2.INTEGRATION_TIME_50MS = 0
  • BrickletUVLightV2.INTEGRATION_TIME_100MS = 1
  • BrickletUVLightV2.INTEGRATION_TIME_200MS = 2
  • BrickletUVLightV2.INTEGRATION_TIME_400MS = 3
  • BrickletUVLightV2.INTEGRATION_TIME_800MS = 4
BrickletUVLightV2.GetAPIVersion() → apiVersion
Output:
  • apiVersion -- Byte[3]

Returns the version of the API definition (major, minor, revision) implemented by this API bindings. This is neither the release version of this API bindings nor does it tell you anything about the represented Brick or Bricklet.

BrickletUVLightV2.GetResponseExpected(functionId) → responseExpected
Input:
  • functionId -- Byte
Output:
  • responseExpected -- Boolean

Returns the response expected flag for the function specified by the function ID parameter. It is true if the function is expected to send a response, false otherwise.

For getter functions this is enabled by default and cannot be disabled, because those functions will always send a response. For callback configuration functions it is enabled by default too, but can be disabled by SetResponseExpected(). For setter functions it is disabled by default and can be enabled.

Enabling the response expected flag for a setter function allows to detect timeouts and other error conditions calls of this setter as well. The device will then send a response for this purpose. If this flag is disabled for a setter function then no response is send and errors are silently ignored, because they cannot be detected.

See SetResponseExpected() for the list of function ID constants available for this function.

BrickletUVLightV2.SetResponseExpected(functionId, responseExpected)
Input:
  • functionId -- Byte
  • responseExpected -- Boolean

Changes the response expected flag of the function specified by the function ID parameter. This flag can only be changed for setter (default value: false) and callback configuration functions (default value: true). For getter functions it is always enabled.

Enabling the response expected flag for a setter function allows to detect timeouts and other error conditions calls of this setter as well. The device will then send a response for this purpose. If this flag is disabled for a setter function then no response is send and errors are silently ignored, because they cannot be detected.

The following function ID constants are available for this function:

  • BrickletUVLightV2.FUNCTION_SET_UVA_CALLBACK_CONFIGURATION = 2
  • BrickletUVLightV2.FUNCTION_SET_UVB_CALLBACK_CONFIGURATION = 6
  • BrickletUVLightV2.FUNCTION_SET_UVI_CALLBACK_CONFIGURATION = 10
  • BrickletUVLightV2.FUNCTION_SET_CONFIGURATION = 13
  • BrickletUVLightV2.FUNCTION_SET_WRITE_FIRMWARE_POINTER = 237
  • BrickletUVLightV2.FUNCTION_SET_STATUS_LED_CONFIG = 239
  • BrickletUVLightV2.FUNCTION_RESET = 243
  • BrickletUVLightV2.FUNCTION_WRITE_UID = 248
BrickletUVLightV2.SetResponseExpectedAll(responseExpected)
Input:
  • responseExpected -- Boolean

Changes the response expected flag for all setter and callback configuration functions of this device at once.

BrickletUVLightV2.GetSPITFPErrorCount() → errorCountAckChecksum, errorCountMessageChecksum, errorCountFrame, errorCountOverflow
Output:
  • errorCountAckChecksum -- Int64
  • errorCountMessageChecksum -- Int64
  • errorCountFrame -- Int64
  • errorCountOverflow -- Int64

Returns the error count for the communication between Brick and Bricklet.

The errors are divided into

  • ACK checksum errors,
  • message checksum errors,
  • framing errors and
  • overflow errors.

The errors counts are for errors that occur on the Bricklet side. All Bricks have a similar function that returns the errors on the Brick side.

BrickletUVLightV2.SetBootloaderMode(mode) → status
Input:
  • mode -- Byte
Output:
  • status -- Byte

Sets the bootloader mode and returns the status after the requested mode change was instigated.

You can change from bootloader mode to firmware mode and vice versa. A change from bootloader mode to firmware mode will only take place if the entry function, device identifier and CRC are present and correct.

This function is used by Brick Viewer during flashing. It should not be necessary to call it in a normal user program.

The following constants are available for this function:

  • BrickletUVLightV2.BOOTLOADER_MODE_BOOTLOADER = 0
  • BrickletUVLightV2.BOOTLOADER_MODE_FIRMWARE = 1
  • BrickletUVLightV2.BOOTLOADER_MODE_BOOTLOADER_WAIT_FOR_REBOOT = 2
  • BrickletUVLightV2.BOOTLOADER_MODE_FIRMWARE_WAIT_FOR_REBOOT = 3
  • BrickletUVLightV2.BOOTLOADER_MODE_FIRMWARE_WAIT_FOR_ERASE_AND_REBOOT = 4
  • BrickletUVLightV2.BOOTLOADER_STATUS_OK = 0
  • BrickletUVLightV2.BOOTLOADER_STATUS_INVALID_MODE = 1
  • BrickletUVLightV2.BOOTLOADER_STATUS_NO_CHANGE = 2
  • BrickletUVLightV2.BOOTLOADER_STATUS_ENTRY_FUNCTION_NOT_PRESENT = 3
  • BrickletUVLightV2.BOOTLOADER_STATUS_DEVICE_IDENTIFIER_INCORRECT = 4
  • BrickletUVLightV2.BOOTLOADER_STATUS_CRC_MISMATCH = 5
BrickletUVLightV2.GetBootloaderMode() → mode
Output:
  • mode -- Byte

Returns the current bootloader mode, see SetBootloaderMode().

The following constants are available for this function:

  • BrickletUVLightV2.BOOTLOADER_MODE_BOOTLOADER = 0
  • BrickletUVLightV2.BOOTLOADER_MODE_FIRMWARE = 1
  • BrickletUVLightV2.BOOTLOADER_MODE_BOOTLOADER_WAIT_FOR_REBOOT = 2
  • BrickletUVLightV2.BOOTLOADER_MODE_FIRMWARE_WAIT_FOR_REBOOT = 3
  • BrickletUVLightV2.BOOTLOADER_MODE_FIRMWARE_WAIT_FOR_ERASE_AND_REBOOT = 4
BrickletUVLightV2.SetWriteFirmwarePointer(pointer)
Input:
  • pointer -- Int64

Sets the firmware pointer for WriteFirmware(). The pointer has to be increased by chunks of size 64. The data is written to flash every 4 chunks (which equals to one page of size 256).

This function is used by Brick Viewer during flashing. It should not be necessary to call it in a normal user program.

BrickletUVLightV2.WriteFirmware(data) → status
Input:
  • data -- Byte[64]
Output:
  • status -- Byte

Writes 64 Bytes of firmware at the position as written by SetWriteFirmwarePointer() before. The firmware is written to flash every 4 chunks.

You can only write firmware in bootloader mode.

This function is used by Brick Viewer during flashing. It should not be necessary to call it in a normal user program.

BrickletUVLightV2.SetStatusLEDConfig(config)
Input:
  • config -- Byte

Sets the status LED configuration. By default the LED shows communication traffic between Brick and Bricklet, it flickers once for every 10 received data packets.

You can also turn the LED permanently on/off or show a heartbeat.

If the Bricklet is in bootloader mode, the LED is will show heartbeat by default.

The following constants are available for this function:

  • BrickletUVLightV2.STATUS_LED_CONFIG_OFF = 0
  • BrickletUVLightV2.STATUS_LED_CONFIG_ON = 1
  • BrickletUVLightV2.STATUS_LED_CONFIG_SHOW_HEARTBEAT = 2
  • BrickletUVLightV2.STATUS_LED_CONFIG_SHOW_STATUS = 3
BrickletUVLightV2.GetStatusLEDConfig() → config
Output:
  • config -- Byte

Returns the configuration as set by SetStatusLEDConfig()

The following constants are available for this function:

  • BrickletUVLightV2.STATUS_LED_CONFIG_OFF = 0
  • BrickletUVLightV2.STATUS_LED_CONFIG_ON = 1
  • BrickletUVLightV2.STATUS_LED_CONFIG_SHOW_HEARTBEAT = 2
  • BrickletUVLightV2.STATUS_LED_CONFIG_SHOW_STATUS = 3
BrickletUVLightV2.GetChipTemperature() → temperature
Output:
  • temperature -- Int16

Returns the temperature in °C as measured inside the microcontroller. The value returned is not the ambient temperature!

The temperature is only proportional to the real temperature and it has bad accuracy. Practically it is only useful as an indicator for temperature changes.

BrickletUVLightV2.Reset()

Calling this function will reset the Bricklet. All configurations will be lost.

After a reset you have to create new device objects, calling functions on the existing ones will result in undefined behavior!

BrickletUVLightV2.WriteUID(uid)
Input:
  • uid -- Int64

Writes a new UID into flash. If you want to set a new UID you have to decode the Base58 encoded UID string into an integer first.

We recommend that you use Brick Viewer to change the UID.

BrickletUVLightV2.ReadUID() → uid
Output:
  • uid -- Int64

Returns the current UID as an integer. Encode as Base58 to get the usual string version.

BrickletUVLightV2.GetIdentity() → uid, connectedUid, position, hardwareVersion, firmwareVersion, deviceIdentifier
Output:
  • uid -- String
  • connectedUid -- String
  • position -- Char
  • hardwareVersion -- Byte[3]
  • firmwareVersion -- Byte[3]
  • deviceIdentifier -- Int32

Returns the UID, the UID where the Bricklet is connected to, the position, the hardware and firmware version as well as the device identifier.

The position can be 'a', 'b', 'c' or 'd'.

The device identifier numbers can be found here. There is also a constant for the device identifier of this Bricklet.
