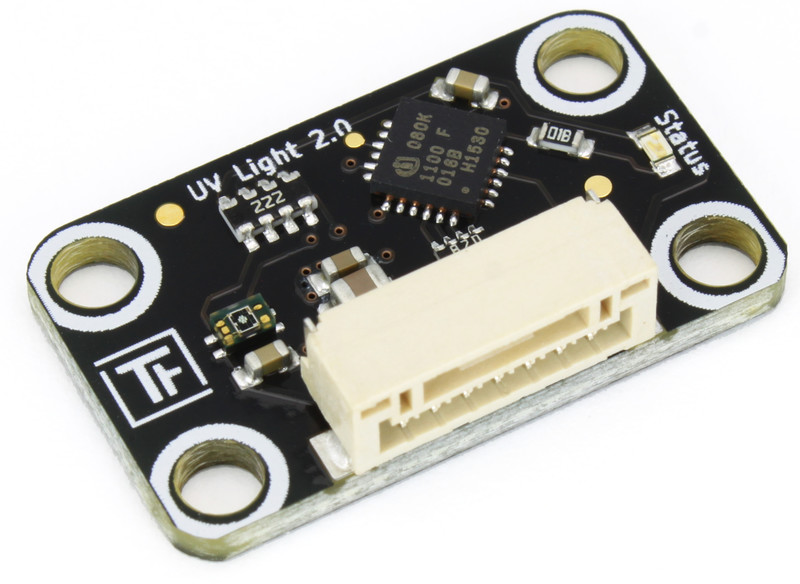

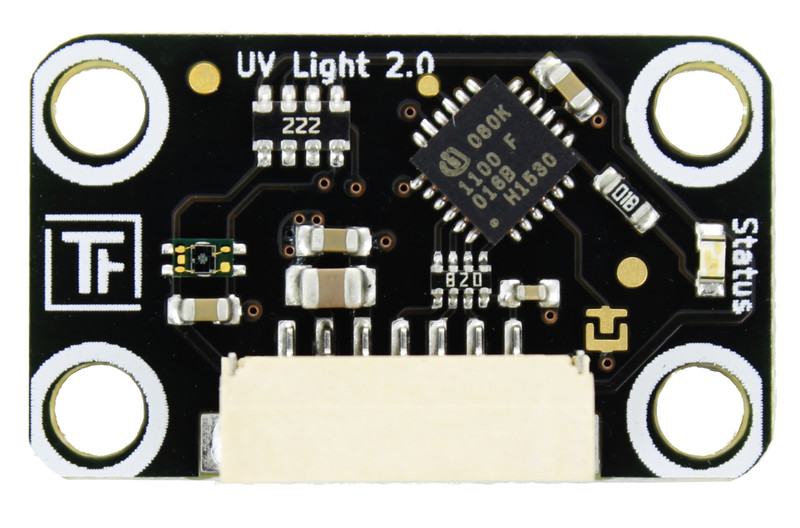

UV Light Bricklet 2.0

Features

  • Measures UV-A, UV-B and UV index

Description

The UV Light Bricklet 2.0 measures UV-A as well as UV-B and uses the measurements to calculate the UV index.

With configurable events it is possible to react on changing values without polling.

Typical applications are sunscreen warning and environmental data logging.

The UV Light Bricklet 2.0 has a 7 pole Bricklet connector and is connected to a Brick with a 7p-10p Bricklet cable.

Technical Specifications

Property Value
Sensor VEML6076
Current Consumption 35mW (7mA at 5V)

UV-A resolution 0.93 µW/cm²
UV-B resolution 2.1 µW/cm²

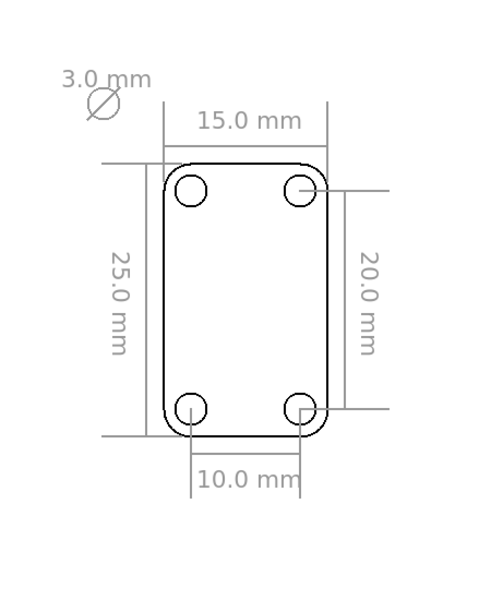

Dimensions (W x D x H) 25 x 15 x 5mm (0.98 x 0.59 x 0.19")
Weight 2.1g

Resources

Test your UV Light Bricklet 2.0

To test a UV Light Bricklet 2.0 you need to have Brick Daemon and Brick Viewer installed. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon. It helps to figure out basic information about the connected Bricks and Bricklets and allows to test them.

Connect the UV Light Bricklet 2.0 to a Brick with a Bricklet Cable.

If you connect the Brick to the PC over USB, you should see a new tab named "UV Light Bricklet 2.0" in the Brick Viewer after a moment. Select this tab. If everything went as expected the Brick Viewer should show UV-A and UV-B measurements as well as the UV index.

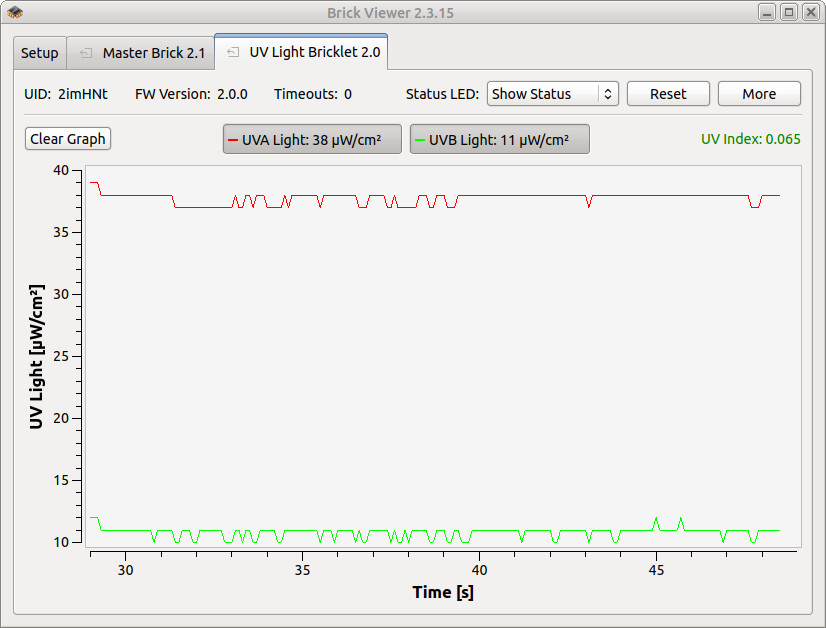

UV Light Bricklet 2.0 in Brick Viewer

After this test you can go on with writing your own application. See the Programming Interface section for the API of the UV Light Bricklet 2.0 and examples in different programming languages.

Programming Interface

See Programming Interface for a detailed description.

Language API Examples Installation
C/C++ API Examples Installation
C# API Examples Installation
Delphi/Lazarus API Examples Installation
Java API Examples Installation
JavaScript API Examples Installation
LabVIEW API Examples Installation
Mathematica API Examples Installation
MATLAB/Octave API Examples Installation
Perl API Examples Installation
PHP API Examples Installation
Python API Examples Installation
Ruby API Examples Installation
Shell API Examples Installation
Visual Basic .NET API Examples Installation
TCP/IP API
Modbus API
