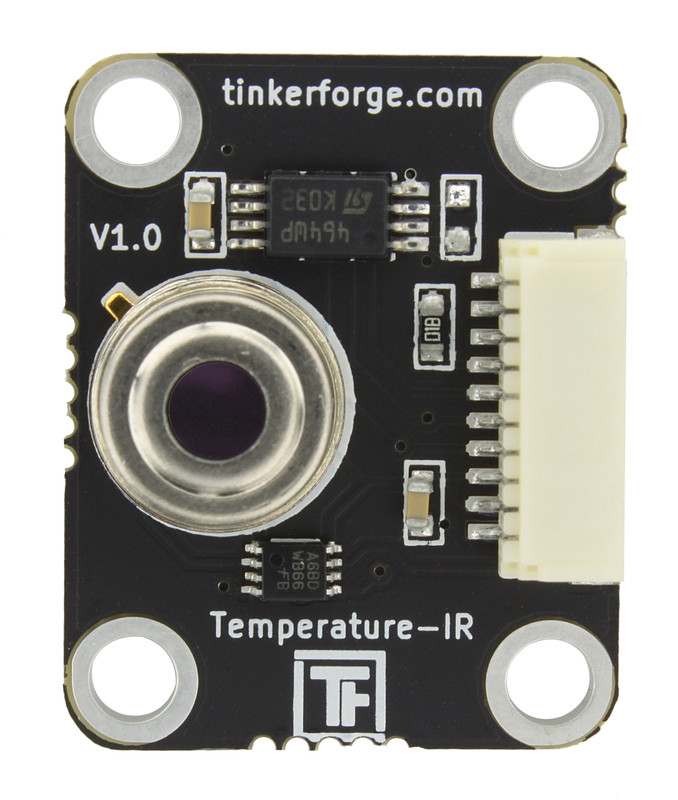

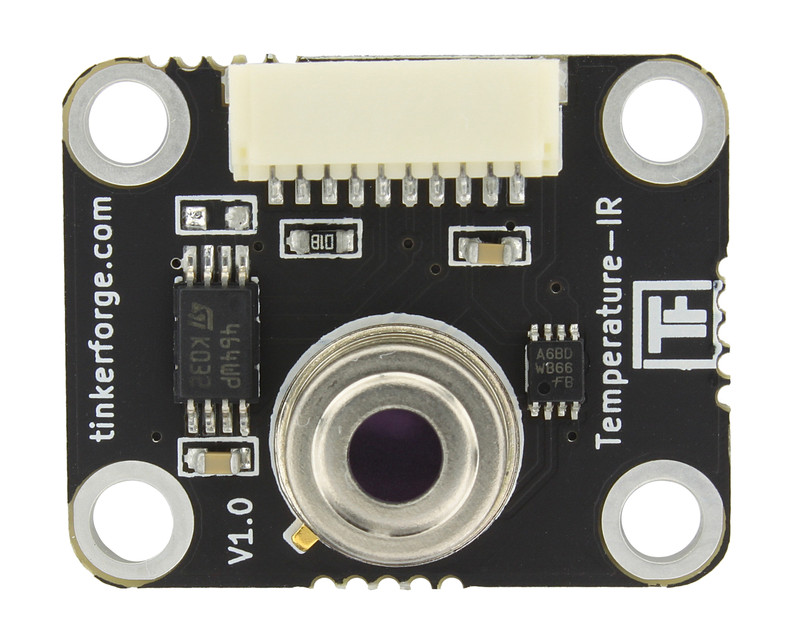

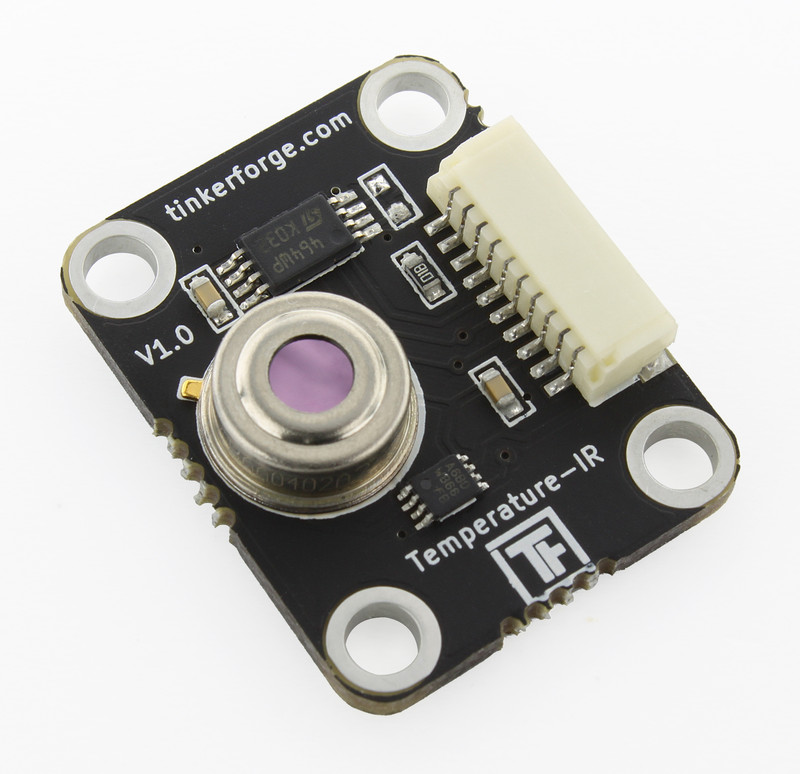

Temperature IR Bricklet

The Temperature IR Bricklet is discontinued and is no longer sold. The :ref:`Temperature IR Bricklet 2.0 ` is the recommended replacement.


  • Measures contactless object temperature from -70°C to 380°C
  • Configurable emissivity
  • Measures ambient temperature from -40°C to 85°C
  • Output in 0.1°C steps (16bit resolution)


The Temperature IR Bricklet is equipped with a infrared thermometer. It can extend the features of a Brick with the capability of contactless temperature measurement.

You can read out object temperature and ambient temperature in °C. It is possible to define the emissivity of the object you want to measure (most infrared thermometers can't do this) . With configurable events it is possible to react on changing temperatures without polling.

Technical Specifications

Property Value
Sensor MLX90614ESF-BAA
Current Consumption 2mA
Object Temperature -70°C to 380°C in 0.1°C steps (16bit resolution)
Ambient Temperature -40°C to 85°C in 0.1°C steps (16bit resolution)
Accuracy 0.5°C over wide temperature range

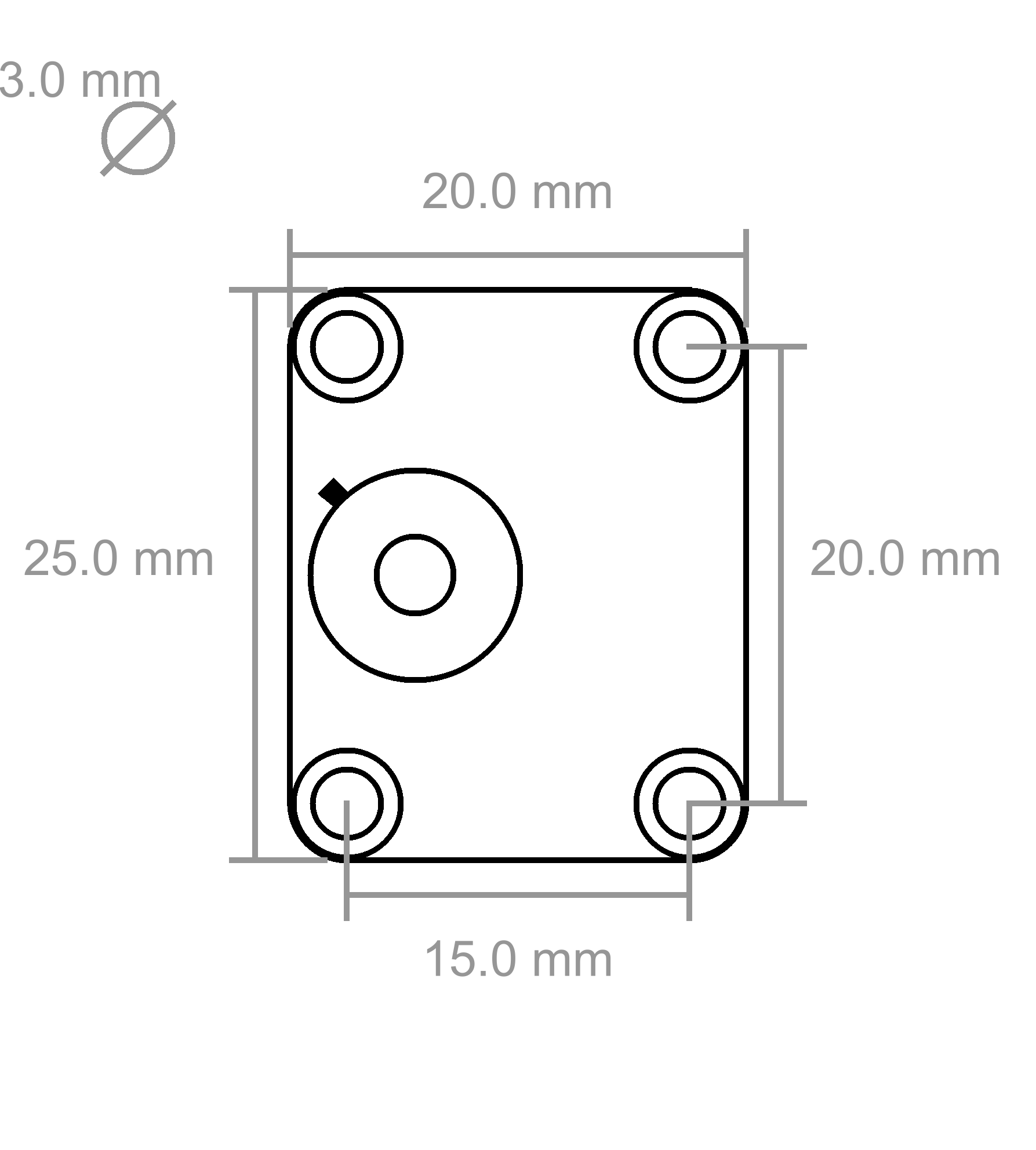

Dimensions (W x D x H) 25 x 20 x 7mm (0.98 x 0.79 x 0.27")
Weight 3g


Test your Temperature IR Bricklet

To test a Temperature IR Bricklet you need to have Brick Daemon and Brick Viewer installed. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon. It helps to figure out basic information about the connected Bricks and Bricklets and allows to test them.

Connect the Temperature IR Bricklet to a Brick with a Bricklet Cable (see picture below).

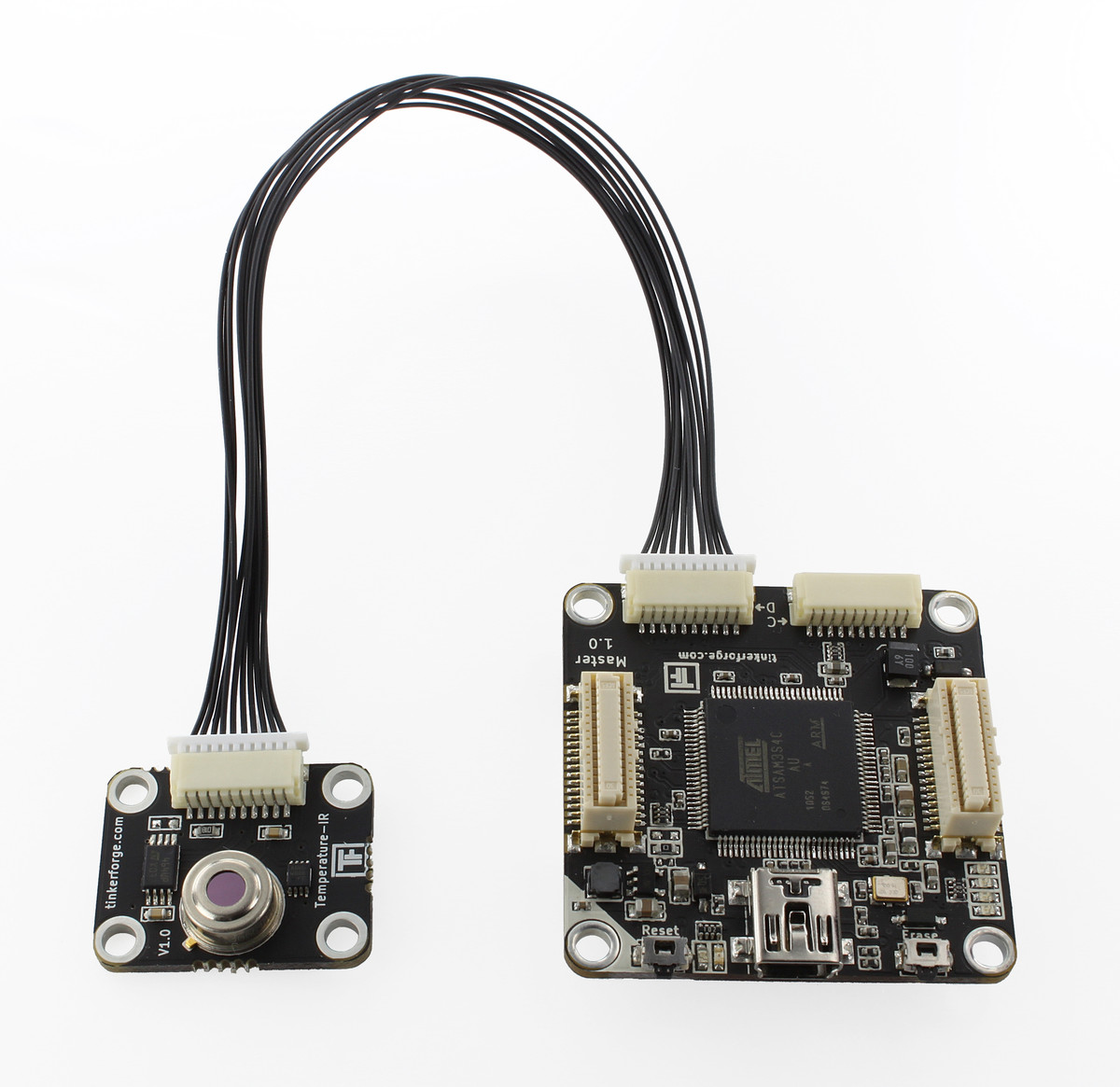

Temperature IR Bricklet connected to Master Brick

If you connect the Brick to the PC over USB, you should see a new tab named "Temperature IR Bricklet" in the Brick Viewer after a moment. Select this tab. If everything went as expected the Brick Viewer should look as depicted below.

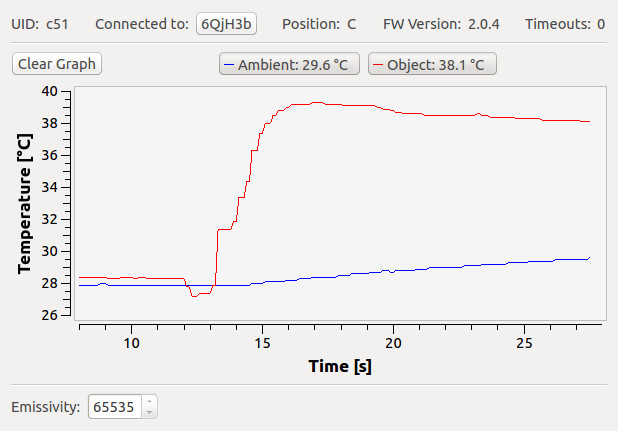

Temperature IR Bricklet in Brick Viewer

Point the Bricklet in different directions. The Brick Viewer will show the ambient temperature (the temperature of the room) and the object temperature of the object you point at.

For accurate object temperature measurements it is possible to configure the emissivity of the material you point at. Enter 0xFFFF = 65535 for an emissivity of 1.0.

After this test you can go on with writing your own application. See the Programming Interface section for the API of the Temperature IR Bricklet and examples in different programming languages.

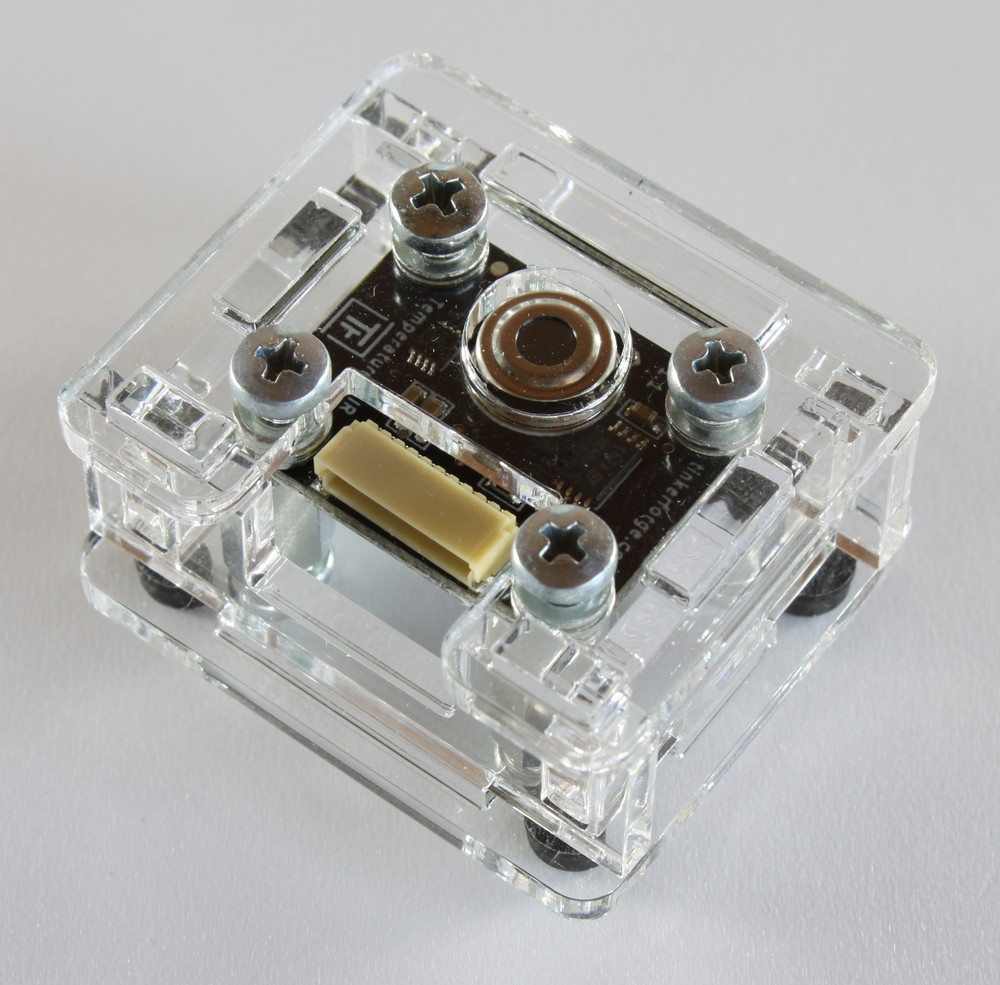

A laser-cut case for the Temperature IR Bricklet is available.

Case for Temperature IR Bricklet

The assembly is easiest if you follow the following steps:

  • Screw Bricklet to top plate with spacers at the bottom and long screws from the top,
  • build up side plates,
  • plug side plates into top plate and
  • screw bottom plate to bottom spacers.

Below you can see an exploded assembly drawing of the Temperature IR Bricklet case:

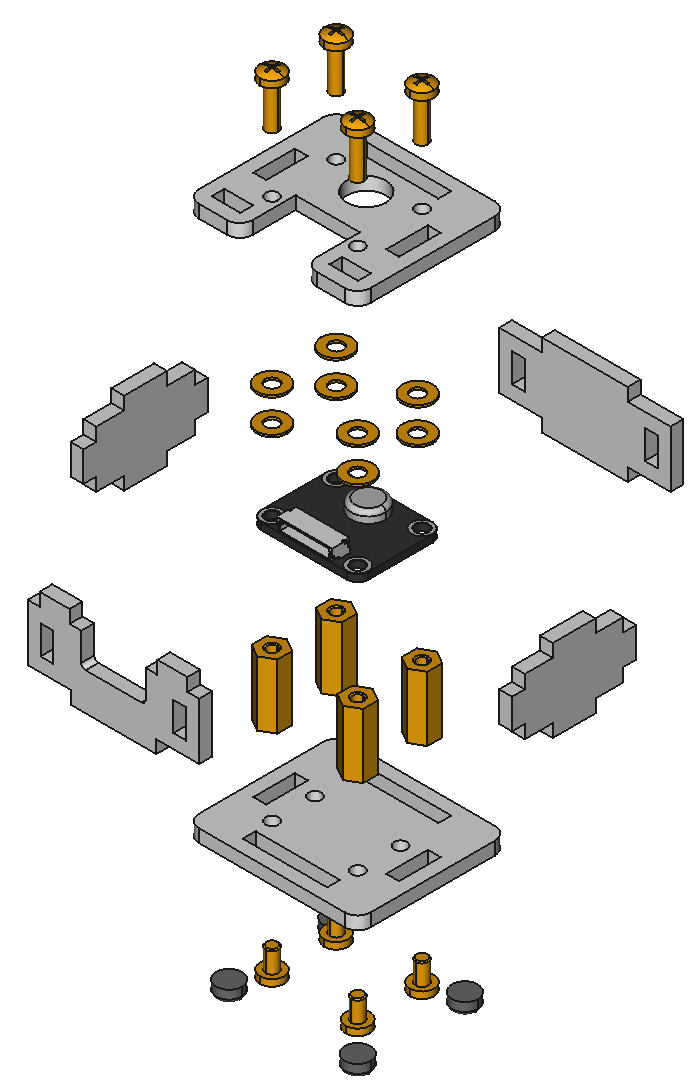

Exploded assembly drawing for Temperature IR Bricklet

Hint: There is a protective film on both sides of the plates, you have to remove it before assembly.

Programming Interface

See Programming Interface for a detailed description.

Language API Examples Installation
C/C++ API Examples Installation
C# API Examples Installation
Delphi/Lazarus API Examples Installation
Go API Examples Installation
Java API Examples Installation
JavaScript API Examples Installation
LabVIEW API Examples Installation
Mathematica API Examples Installation
MATLAB/Octave API Examples Installation
MQTT API Examples Installation
openHAB API Examples Installation
Perl API Examples Installation
PHP API Examples Installation
Python API Examples Installation
Ruby API Examples Installation
Rust API Examples Installation
Shell API Examples Installation
Visual Basic .NET API Examples Installation
Modbus API
