CO2 Bricklet

Features

  • Measures CO2 concentration from 0 to 10000ppm (parts per million)
  • High accuracy of ±30ppm (full-scale) and ±3% (of reading)

Description

The CO2 Bricklet can be used to extend the features of Bricks with the capability to measure CO2 concentration in the air. The measured CO2 concentration can be read out in ppm. With configurable events it is possible to react on changing CO2 concentration without polling.

Typical applications are automated ventilation and environmental data logging.

Technical Specifications

Property Value
Sensor SenseAir K30
Current Consumption
200mW (40mA at 5V, idle)
1750mW (350mA at 5V, measuring)

Measurement Range 0ppm to 10000ppm
Accuracy ±30ppm (full-scale), ±3% (of reading)

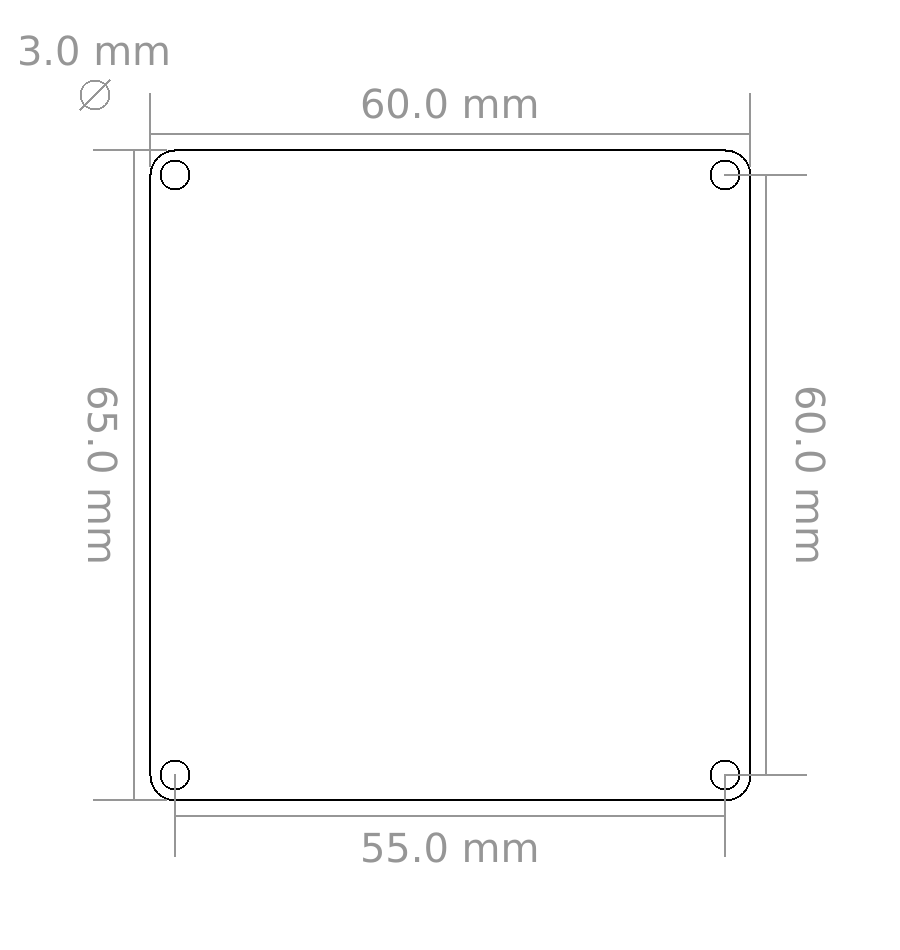

Dimensions (W x D x H) 60 x 65 x 15mm (2.36 x 2.56 x 0.59")
Weight 29g

Resources

Test your CO2 Bricklet

To test a CO2 Bricklet you need to have Brick Daemon and Brick Viewer installed. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon. It helps to figure out basic information about the connected Bricks and Bricklets and allows to test them.

Connect the CO2 Bricklet to a Brick with a Bricklet Cable.

If you connect the Brick to the PC over USB, you should see a new tab named "CO2 Bricklet" in the Brick Viewer after a moment. Select this tab. If everything went as expected the Brick Viewer should look as depicted below.

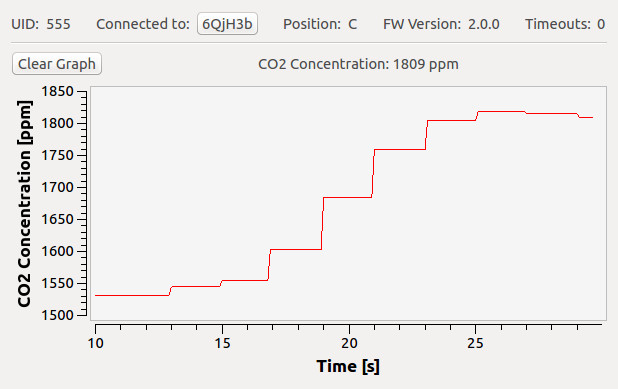

CO2 Bricklet in Brick Viewer

After this test you can go on with writing your own application. See the Programming Interface section for the API of the CO2 Bricklet and examples in different programming languages.

Programming Interface

See Programming Interface for a detailed description.

Language API Examples Installation
C/C++ API Examples Installation
C# API Examples Installation
Delphi/Lazarus API Examples Installation
Java API Examples Installation
JavaScript API Examples Installation
LabVIEW API Examples Installation
Mathematica API Examples Installation
MATLAB/Octave API Examples Installation
Perl API Examples Installation
PHP API Examples Installation
Python API Examples Installation
Ruby API Examples Installation
Shell API Examples Installation
Visual Basic .NET API Examples Installation
TCP/IP API
Modbus API
