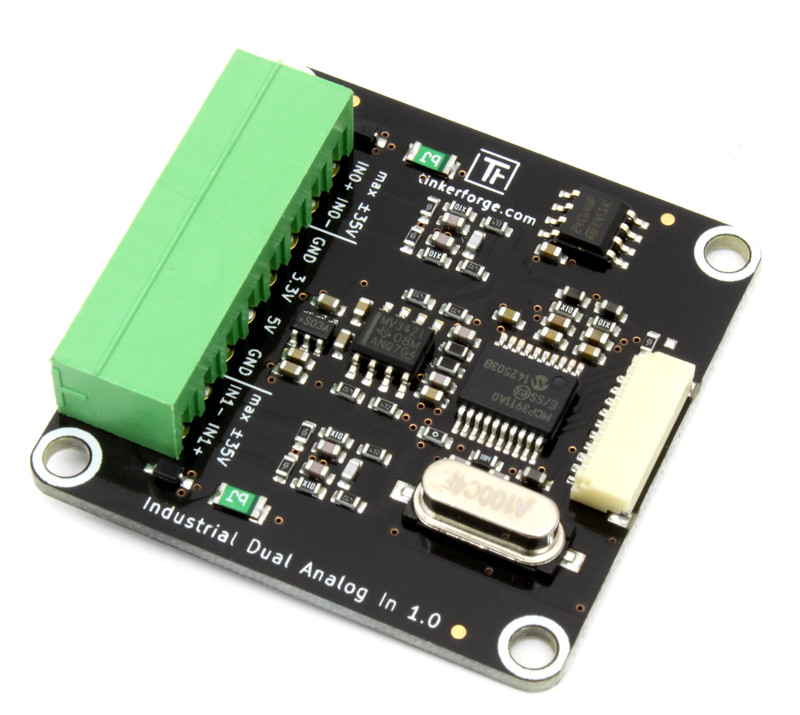

Industrial Dual Analog In Bricklet

Features

  • Independently measures two voltages between -35V and +35V (DC)
  • 24bit ADC for high resolution
  • Calibrated
  • Full-scale accuracy of 0.1% / ±4mV
  • Up to 976 samples per second

Description

The Industrial Dual Analog In Bricklet can be used to extend the features of Bricks by the capability to precisely measure voltages. Both channels of the Bricklet are calibrated. The voltage measurement can used with an extremely high level of confidence.

With configurable events it is possible to react on changing voltages without polling.

Technical Specifications

Property Value
ADC MCP3911
Current Consumption 15mW (3mA at 5V)

Channels 2
Measurement Range -35V to +35V (DC)
Resolution 24bit
Accuracy 0.1% / ±4mV full scale
Maximum Output Current 150mA (3.3V), 150mA (5V)

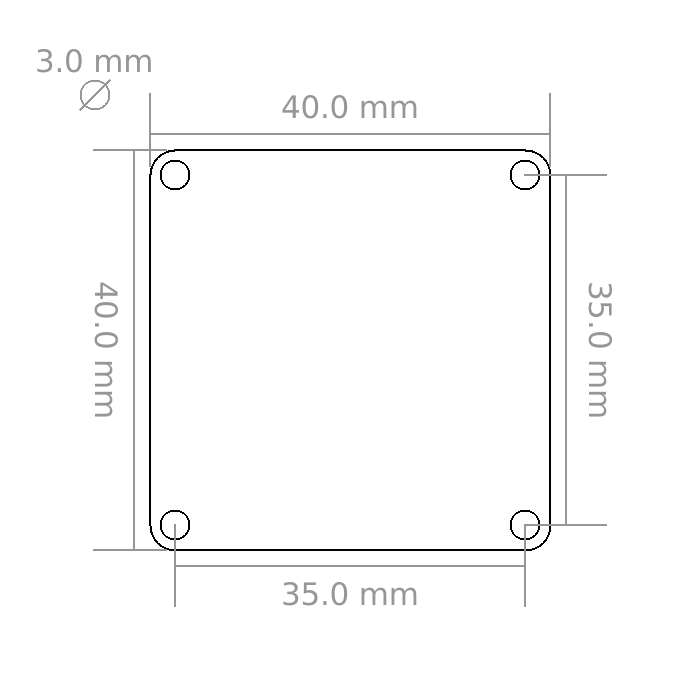

Dimensions (W x D x H) 40 x 40 x 11mm (1.57 x 1.57 x 0.43")
Weight 9g

Resources

Connectivity

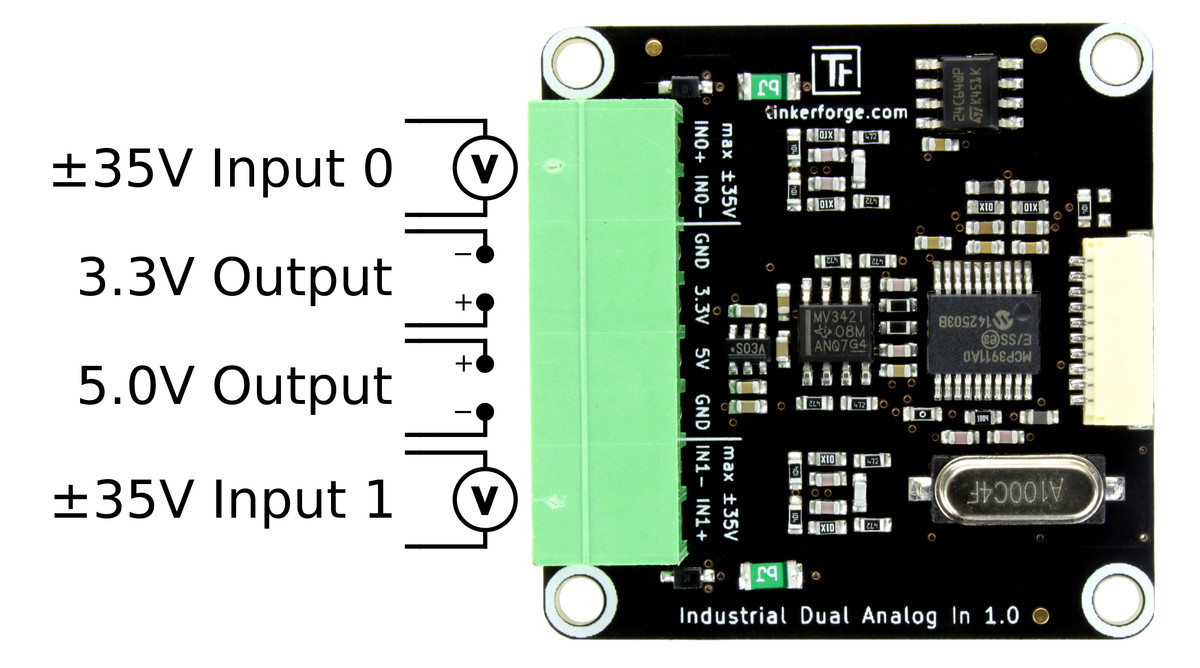

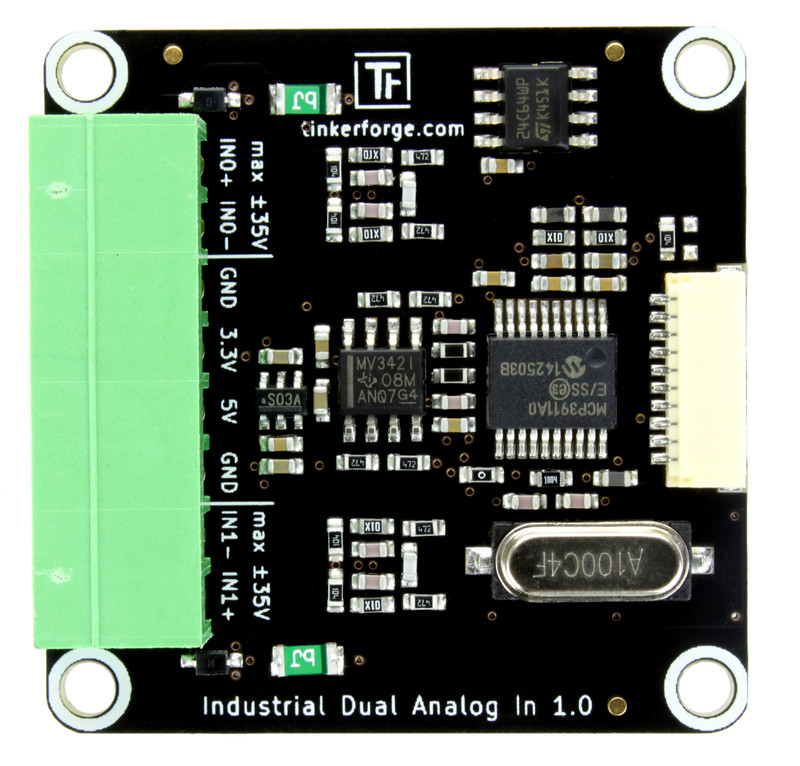

The Industrial Dual Analog In Bricklet has an 8 pole terminal. Please see the picture below for the pinout.

Industrial Dual Analog In Bricklet pinout

Test your Industrial Dual Analog In Bricklet

To test a Industrial Dual Analog In Bricklet you need to have Brick Daemon and Brick Viewer installed. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon. It helps to figure out basic information about the connected Bricks and Bricklets and allows to test them.

Connect the Industrial Dual Analog In Bricklet to a Brick with a Bricklet Cable. Additionally connect a DC voltage you want to measure to the Bricklet. For testing purposes connect the 3.3V output pin to the IN0- pin and connect the GND pin to the IN0+ pin.

If you connect the Brick to the PC over USB, you should see a new tab named "Industrial Dual Analog In Bricklet" in the Brick Viewer after a moment. Select this tab. If everything went as expected you can now see the voltage in Volt and a graph that shows the voltage over time.

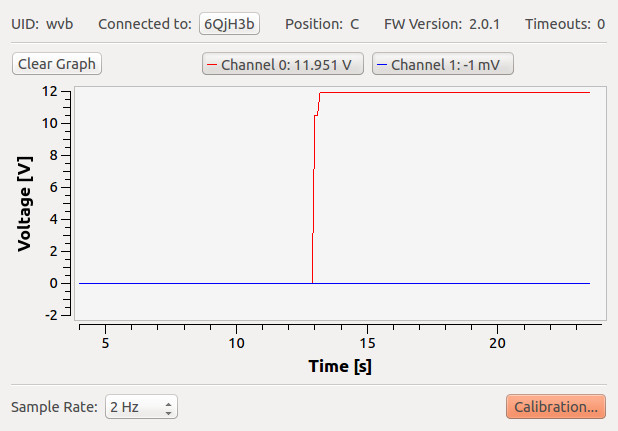

Industrial Dual Analog In Bricklet in Brick Viewer

After this test you can go on with writing your own application. See the Programming Interface section for the API of the Industrial Dual Analog In Bricklet and examples in different programming languages.

Case

A laser-cut case for the Industrial Dual Analog In Bricklet is available.

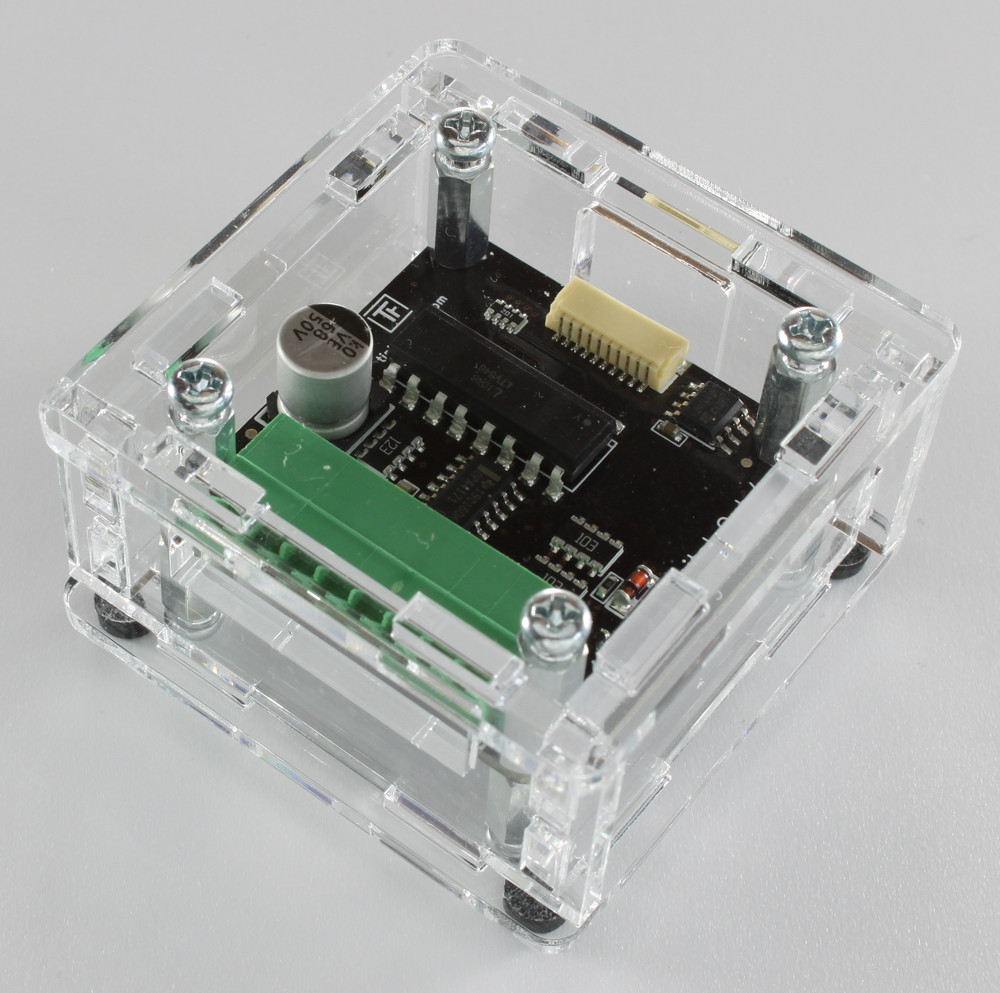

Case for Industrial Dual Analog In Bricklet

The assembly is easiest if you follow the following steps:

  • Screw spacers to the Bricklet,
  • screw bottom plate to bottom spacers,
  • build up side plates,
  • plug side plates into bottom plate and
  • screw top plate to top spacers.

Below you can see an exploded assembly drawing of the Industrial Dual Analog In Bricklet case:

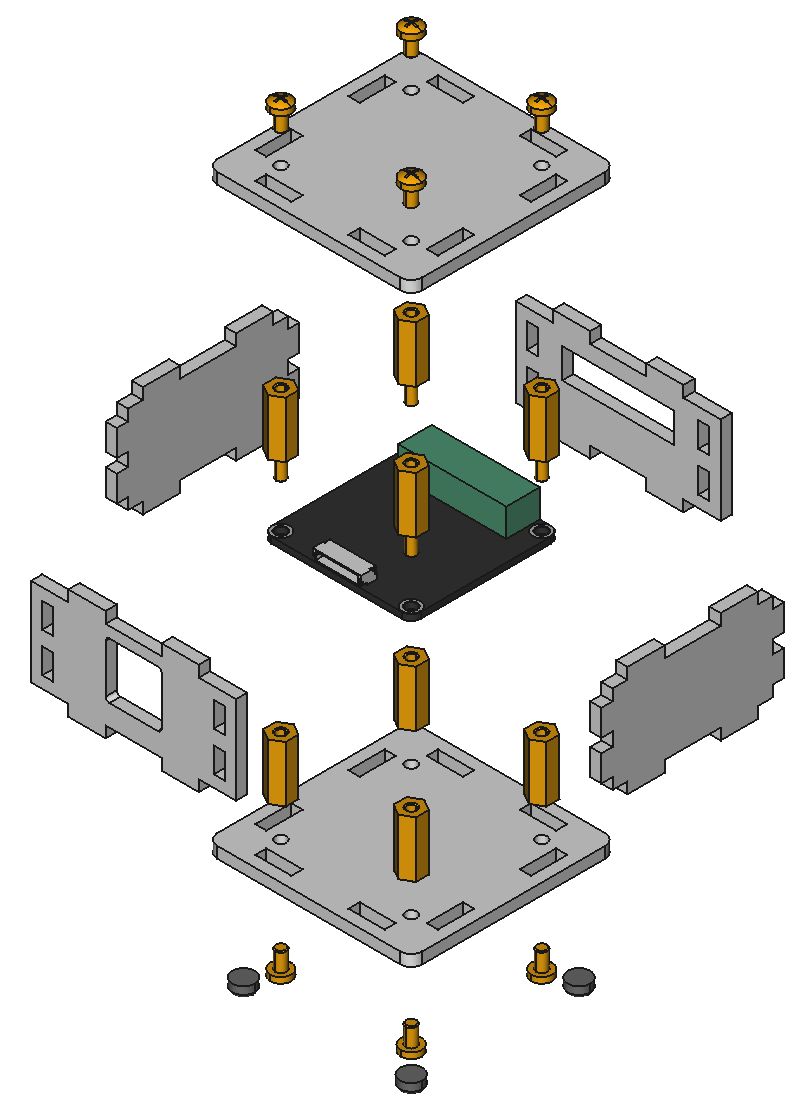

Exploded assembly drawing for Industrial Dual Analog In Bricklet

Hint: There is a protective film on both sides of the plates, you have to remove it before assembly.

Programming Interface

See Programming Interface for a detailed description.

Language API Examples Installation
C/C++ API Examples Installation
C# API Examples Installation
Delphi/Lazarus API Examples Installation
Java API Examples Installation
JavaScript API Examples Installation
LabVIEW API Examples Installation
Mathematica API Examples Installation
MATLAB/Octave API Examples Installation
Perl API Examples Installation
PHP API Examples Installation
Python API Examples Installation
Ruby API Examples Installation
Shell API Examples Installation
Visual Basic .NET API Examples Installation
TCP/IP API
Modbus API
