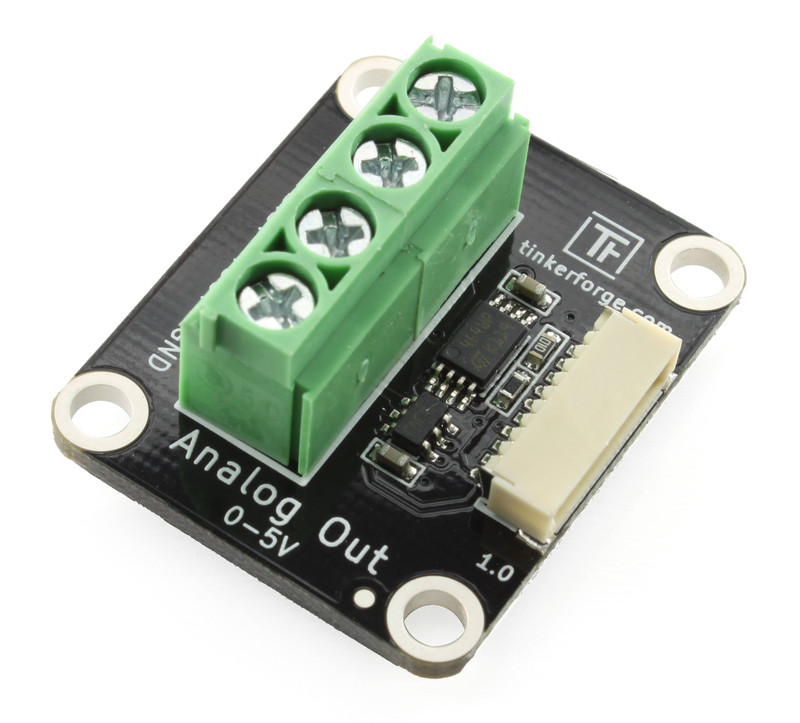

Analog Out Bricklet

Features

  • Generates configurable voltages up to 5V*
  • Specification in 1mV steps (12bit resolution)
  • Configurable with load resistor to ground

Description

The Analog Out Bricklet can be used to extend the features of Bricks by the capability to generate voltages between 0V and 5V*. The voltage can be configured directly in Volt without any conversion. The device is equipped with a 12-bit Digital-to-Analog Converter (DAC). Instead of generating a voltage it is also possible to choose between a 1kΩ, 100kΩ or 500kΩ load resistor to ground (pull-down).

Technical Specifications

Property Value
DAC MCP4725
Current Consumption 1mA

Voltage 0V - 5V* in 1mV steps, 12bit resolution
Maximum Output Current 24mA

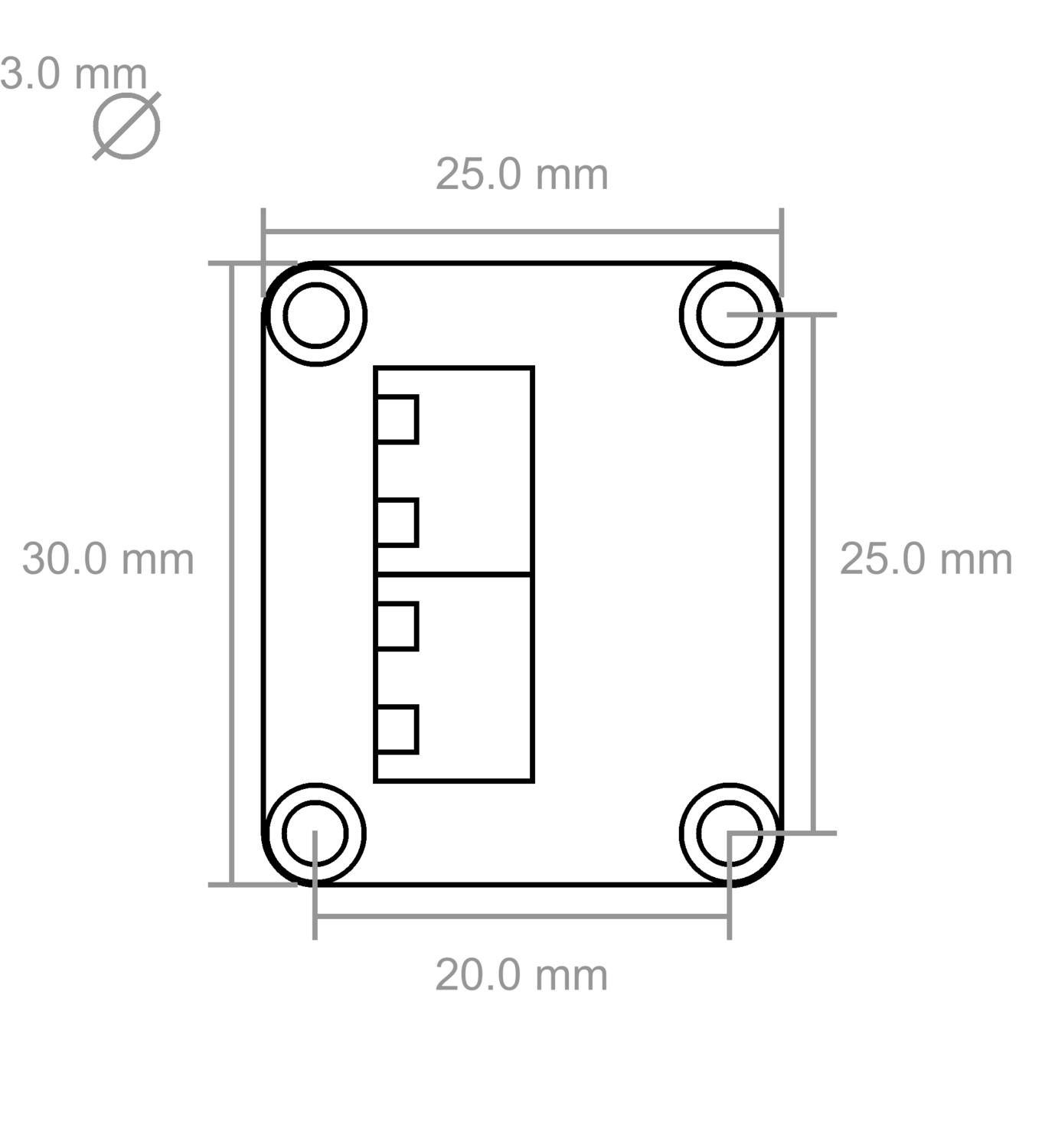

Dimensions (W x D x H) 30 x 25 x 14mm (1.18 x 0.98 x 0.55")
Weight 6g

* The maximum output voltage depends on the supply voltage. If the connected Brick is powered over USB, 5V may not be reached. The reason for this is a voltage drop about 0.5V caused by protection diodes on our products. If you need to reach 5V, you have to use a stack supply, e.g. the Step-Down Power Supply.

Resources

Connectivity

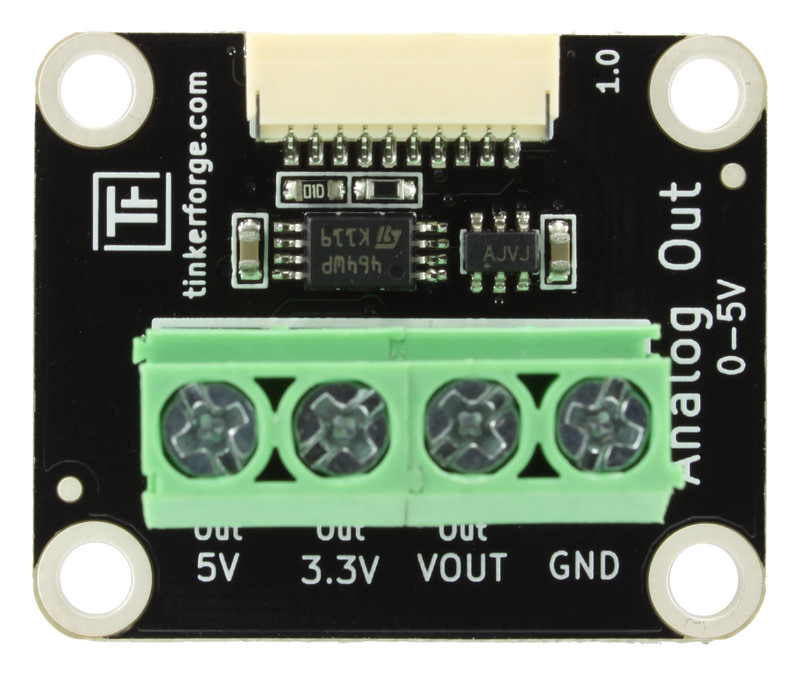

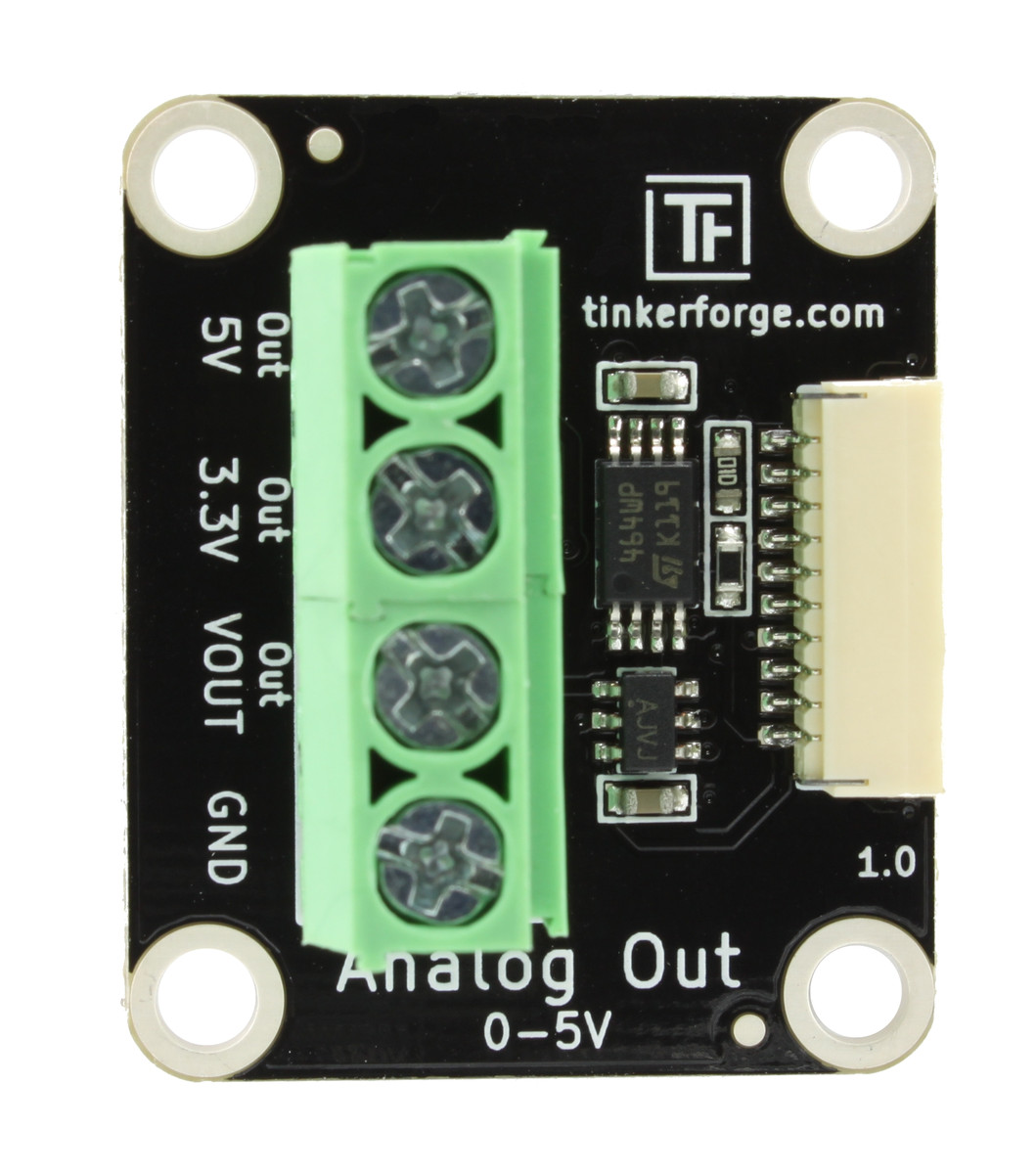

The Analog Out Bricklet has four terminals. All terminals are outputs. Between VOUT and GND the output voltage is applied. 3.3V and 5V are additional outputs with fixed voltages you can use to power things.

Analog Out Bricklet Terminals

Test your Analog Out Bricklet

To test a Analog Out Bricklet you need to have Brick Daemon and Brick Viewer installed. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon. It helps to figure out basic information about the connected Bricks and Bricklets and allows to test them.

Connect the Analog Out Bricklet to a Brick with a Bricklet Cable (see picture below).

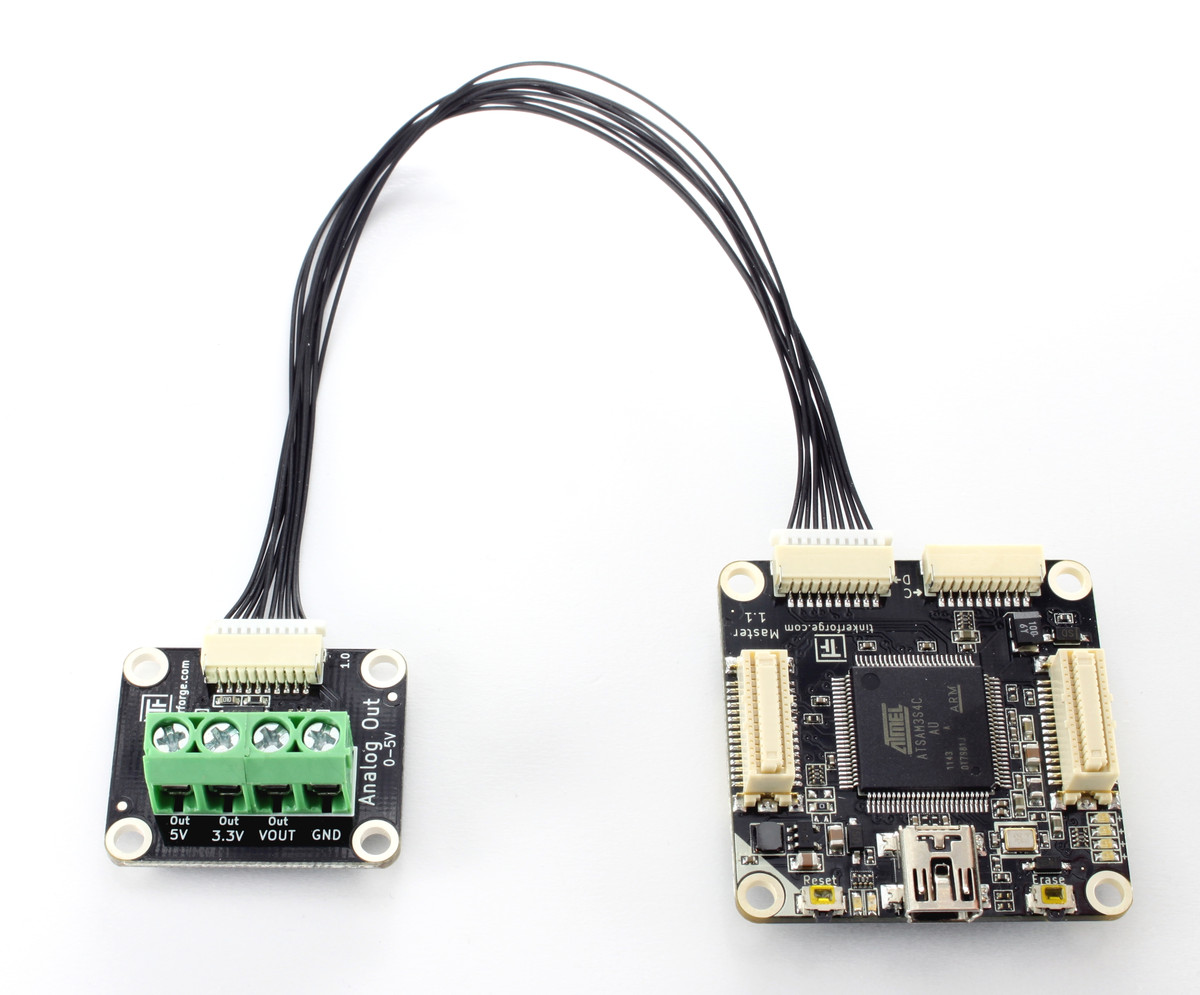

Analog Out Bricklet connected to Master Brick

If you connect the Brick to the PC over USB, you should see a new tab named "Analog Out Bricklet" in the Brick Viewer after a moment. Select this tab. In this tab you can configure the voltage on the output terminal. For test purposes, you can measure this voltage with a voltmeter. If everything went as expected the voltage on the voltmeter and the voltage you have configured should be identical.

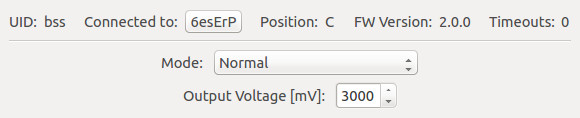

Analog Out Bricklet in Brick Viewer

After this test you can go on with writing your own application. See the Programming Interface section for the API of the Analog Out Bricklet and examples in different programming languages.

Case

A laser-cut case for the Analog Out Bricklet was available, but is not sold any longer.

Case for Analog Out Bricklet

The assembly is easiest if you follow the following steps:

  • Screw spacers to the Bricklet,
  • screw bottom plate to bottom spacers,
  • build up side plates,
  • plug side plates into bottom plate and
  • screw top plate to top spacers.

Below you can see an exploded assembly drawing of the Analog Out Bricklet case:

Exploded assembly drawing for Analog Out Bricklet

Hint: There is a protective film on both sides of the plates, you have to remove it before assembly.

Programming Interface

See Programming Interface for a detailed description.

Language API Examples Installation
C/C++ API Examples Installation
C# API Examples Installation
Delphi/Lazarus API Examples Installation
Java API Examples Installation
JavaScript API Examples Installation
LabVIEW API Examples Installation
Mathematica API Examples Installation
MATLAB/Octave API Examples Installation
Perl API Examples Installation
PHP API Examples Installation
Python API Examples Installation
Ruby API Examples Installation
Shell API Examples Installation
Visual Basic .NET API Examples Installation
TCP/IP API
Modbus API
