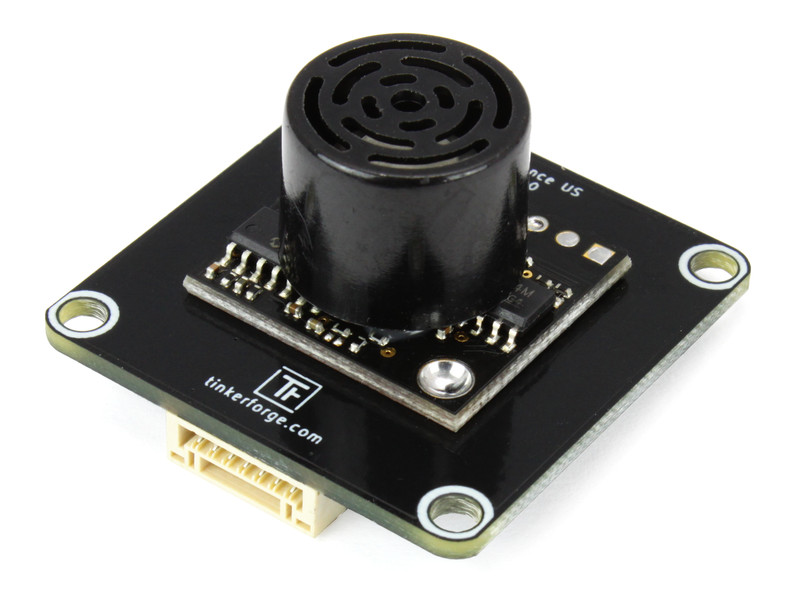

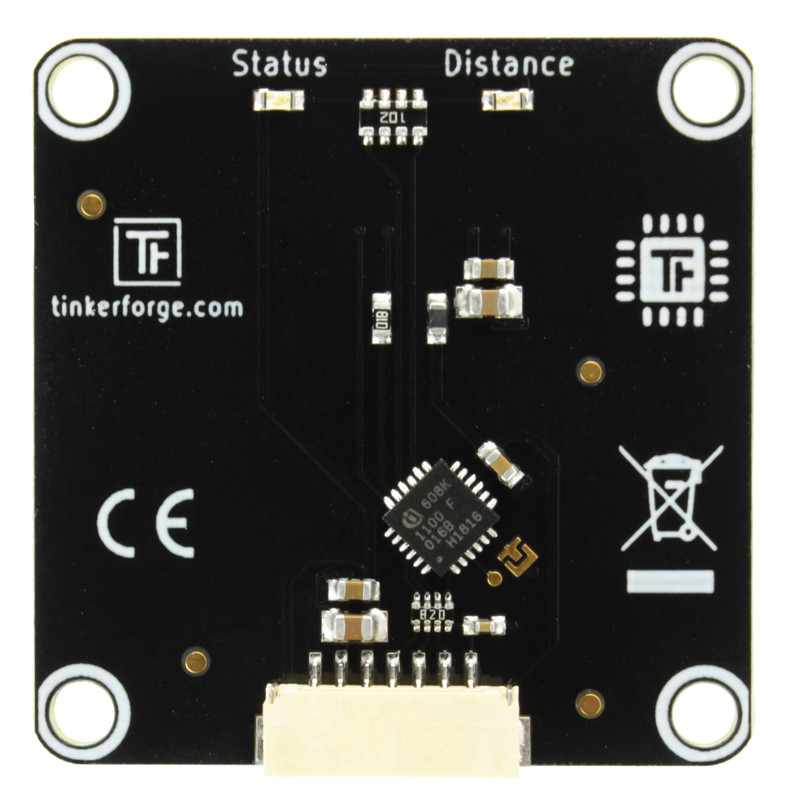

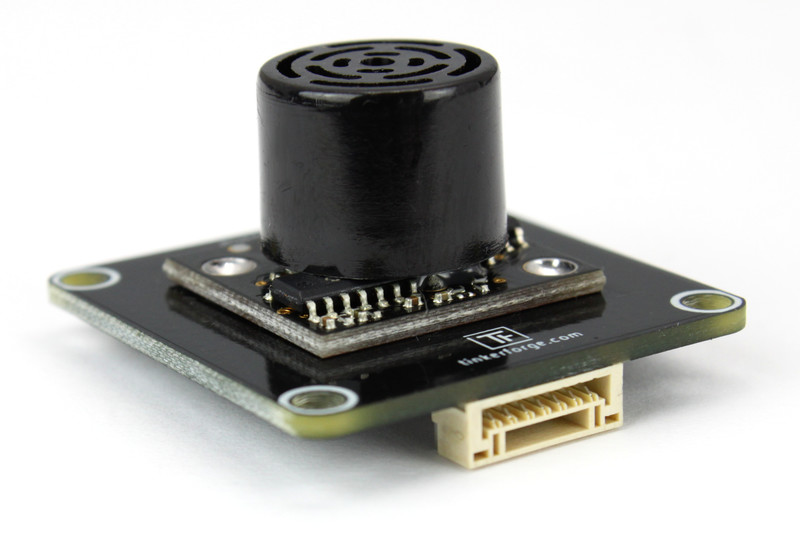

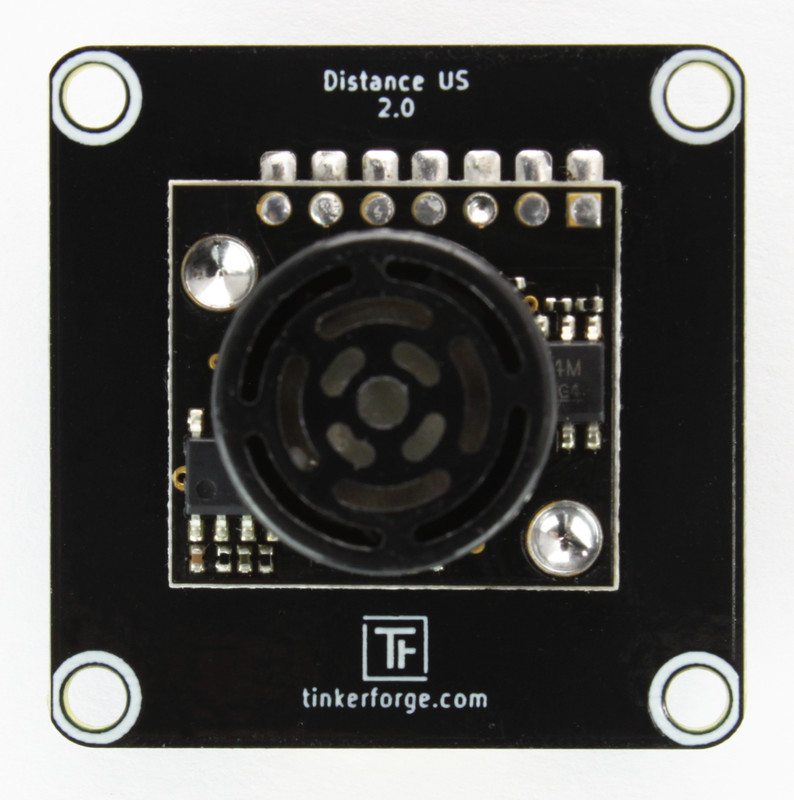

Distance US Bricklet 2.0

Features

  • Measures distances from 30cm to 500cm with ultrasound
  • Resolution of 1mm

Description

The Distance US Bricklet 2.0 is equipped with an ultrasonic distance sensor and extends Bricks by the possibility to measure distances from 30cm to 500cm.

With configurable events it is possible to react on changing distances without polling. Typical applications can be found in robotics, usage as light barrier alternative and so on.

The Distance US Bricklet 2.0 has a 7 pole Bricklet connector and is connected to a Brick with a 7p-10p Bricklet cable.

Technical Specifications

Property Value
Sensor MaxSonar HRLV MB1013
Current Consumption 50mW (10mA at 5V)

Distance 30cm - 500cm
Resolution 1mm
Update Rate 2Hz / 10Hz (configurable)

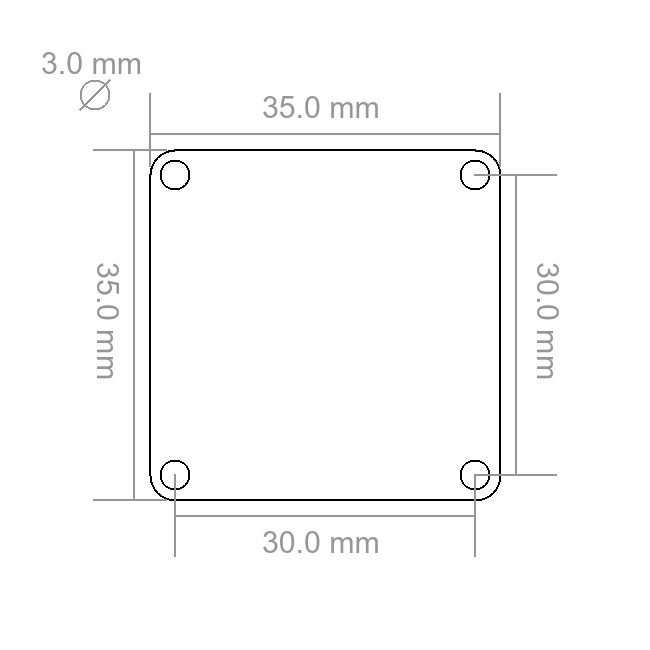

Dimensions (W x D x H) 35 x 35 x 20mm (1.38 x 1.38 x 0.78")
Weight 9g

Resources

Test your Distance US Bricklet 2.0

To test a Distance US Bricklet 2.0 you need to have Brick Daemon and Brick Viewer installed. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon. It helps to figure out basic information about the connected Bricks and Bricklets and allows to test them.

Connect the Distance US Bricklet 2.0 to a Brick with a Bricklet Cable.

If you connect the Brick to the PC over USB, you should see a new tab named "Distance US Bricklet 2.0" in the Brick Viewer after a moment. Select this tab. If everything went as expected you can now see the measured distance.

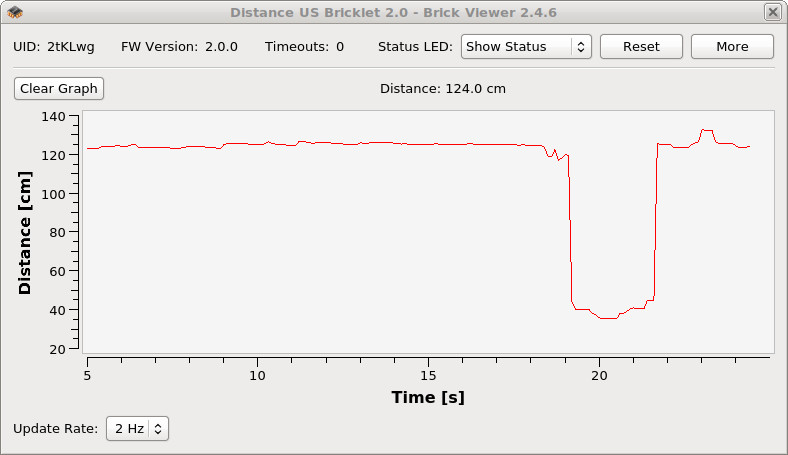

Distance US Bricklet 2.0 in Brick Viewer

After this test you can go on with writing your own application. See the Programming Interface section for the API of the Distance US Bricklet 2.0 and examples in different programming languages.

Beam Pattern

The Distance US Bricklet 2.0 uses the MB1013 sensor from MaxBotix.

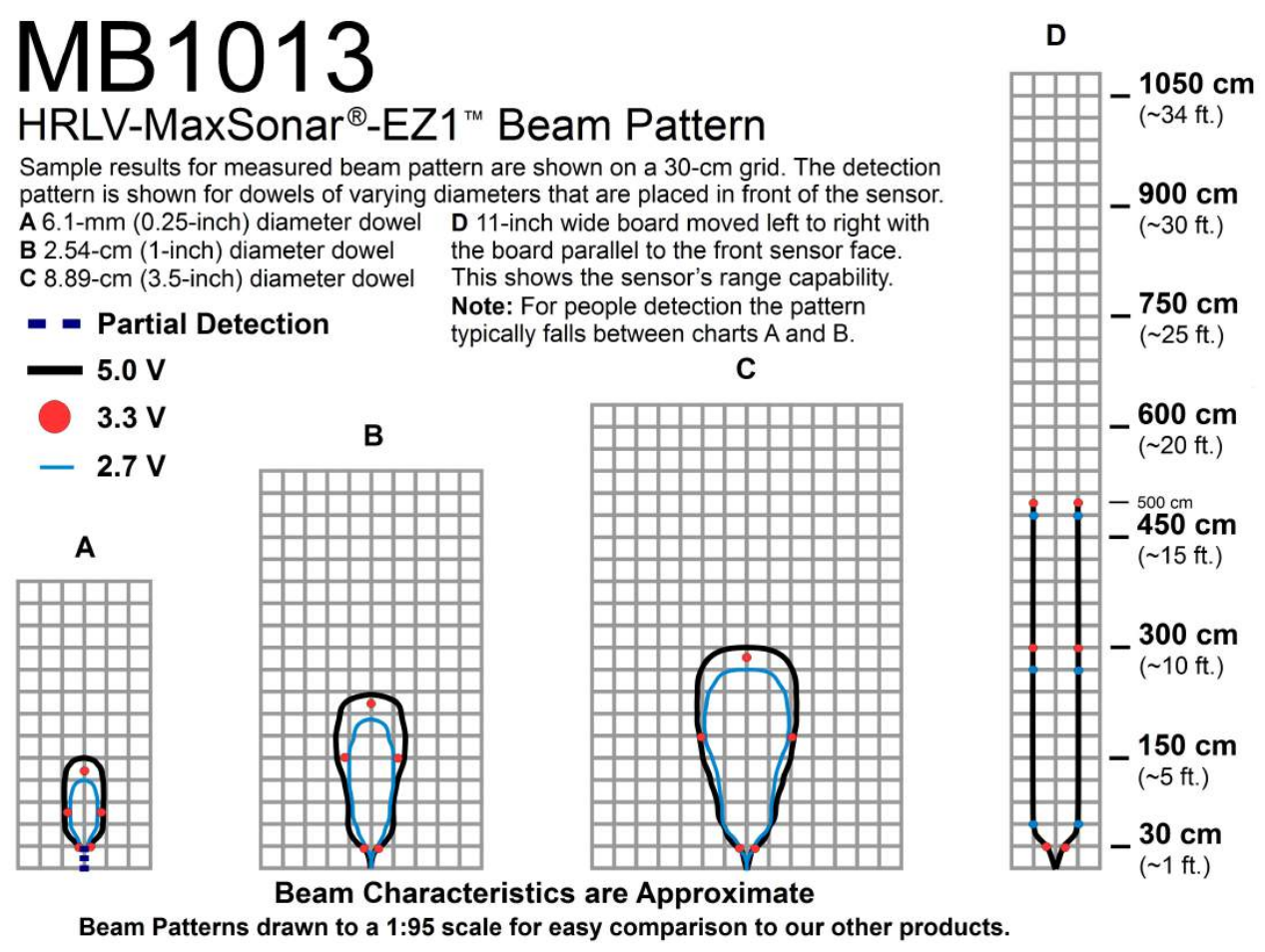

You can find the beam pattern (2d-representation of measured distances with different angles) below:

Distance US Bricklet 2.0 beam pattern

Case

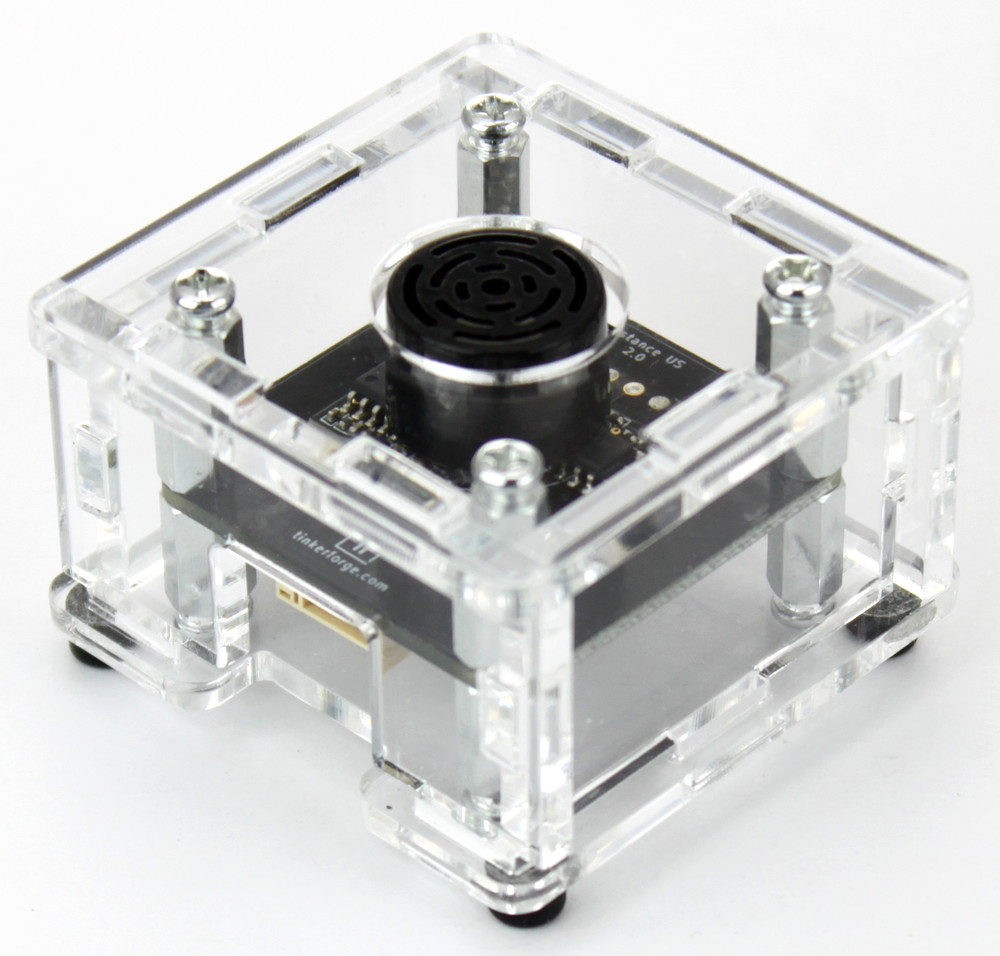

A laser-cut case for the Distance US Bricklet 2.0 is available.

Case for Distance US Bricklet 2.0

The assembly is easiest if you follow the following steps:

  • Screw spacers to the Bricklet,
  • screw bottom plate to bottom spacers,
  • build up side plates,
  • plug side plates into bottom plate and
  • screw top plate to top spacers.

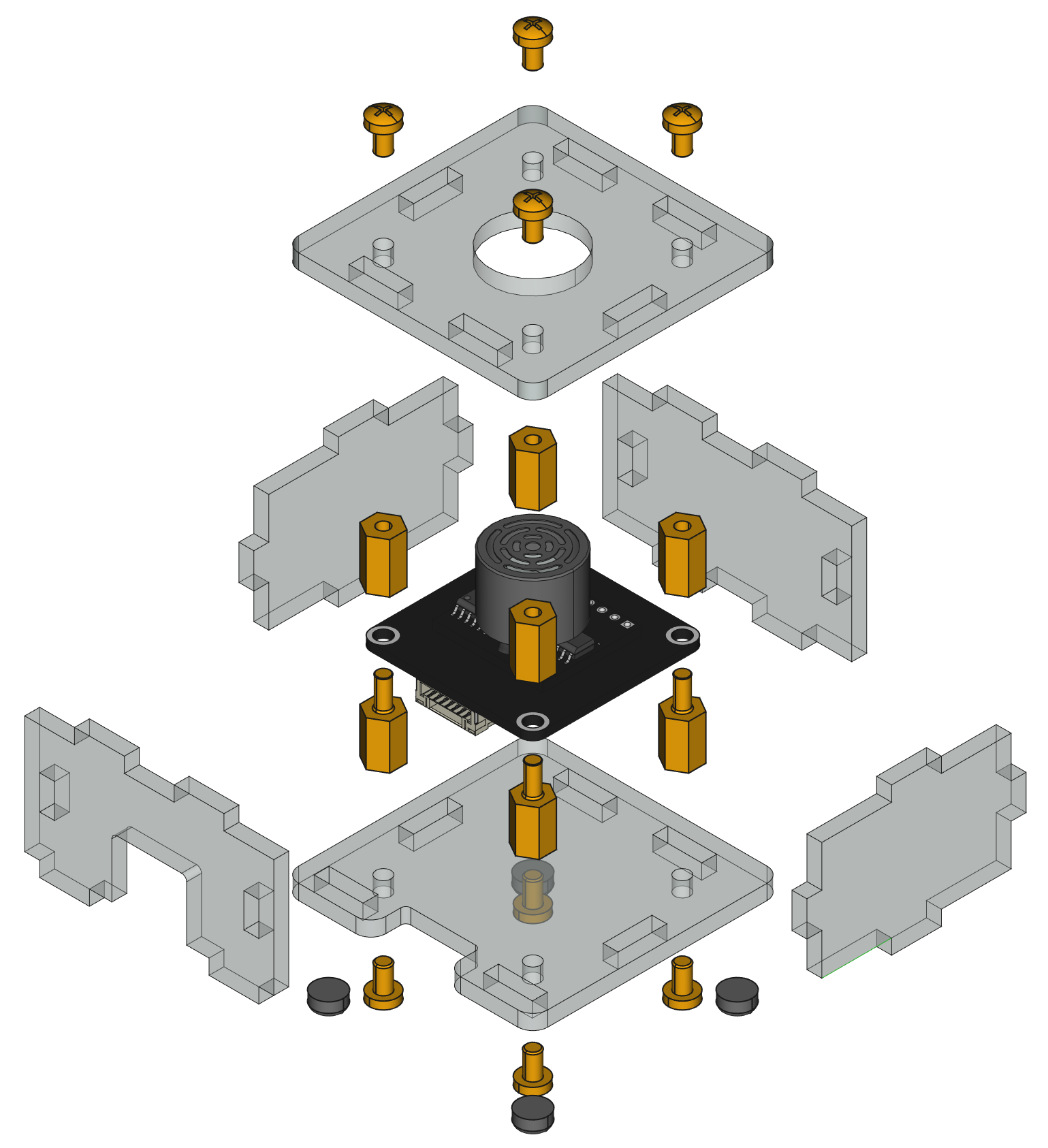

Below you can see an exploded assembly drawing of the Distance US Bricklet 2.0 case:

Exploded assembly drawing for Distance US Bricklet 2.0

Hint: There is a protective film on both sides of the plates, you have to remove it before assembly.

Programming Interface

See Programming Interface for a detailed description.

Language API Examples Installation
C/C++ API Examples Installation
C# API Examples Installation
Delphi/Lazarus API Examples Installation
Go API Examples Installation
Java API Examples Installation
JavaScript API Examples Installation
LabVIEW API Examples Installation
Mathematica API Examples Installation
MATLAB/Octave API Examples Installation
MQTT API Examples Installation
Perl API Examples Installation
PHP API Examples Installation
Python API Examples Installation
Ruby API Examples Installation
Rust API Examples Installation
Shell API Examples Installation
Visual Basic .NET API Examples Installation
TCP/IP API
Modbus API
