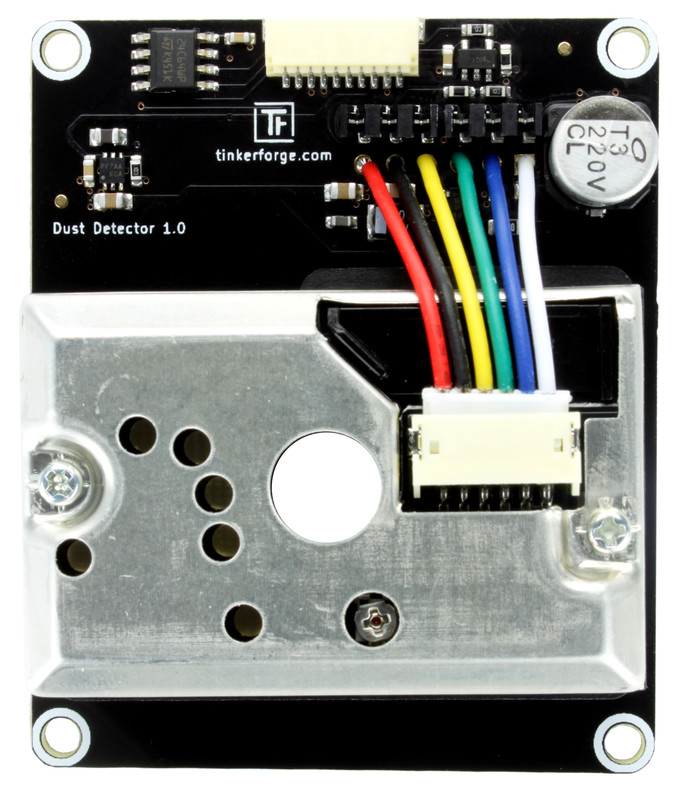

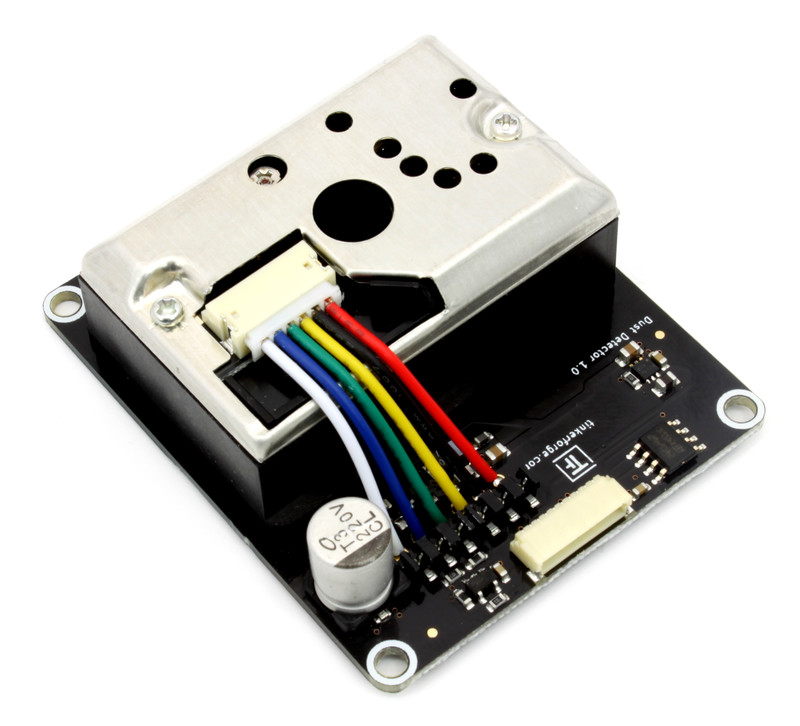

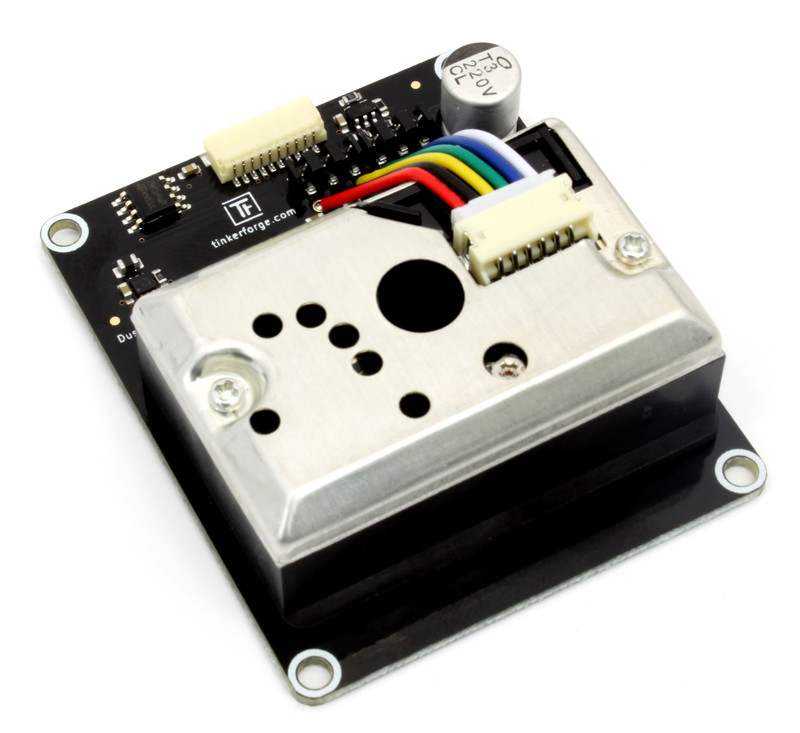

Dust Detector Bricklet

Features

  • Measures dust density between 0 and 500µg/m³

Description

The Dust Detector Bricklet can be used to extend the features of Bricks with the capability to measure dust density. The measured dust density can be read out in µg/m³. With configurable events it is possible to react on changing dust density without polling.

Typical applications are measurements of cigarette smoke, smog, house dust, pollen, etc.

Technical Specifications

Property Value
Sensor GP2Y1010AU
Current Consumption 120mW (24mA at 5V)

Resolution 1µg/m³
Measurement Range 0-500µg/m³

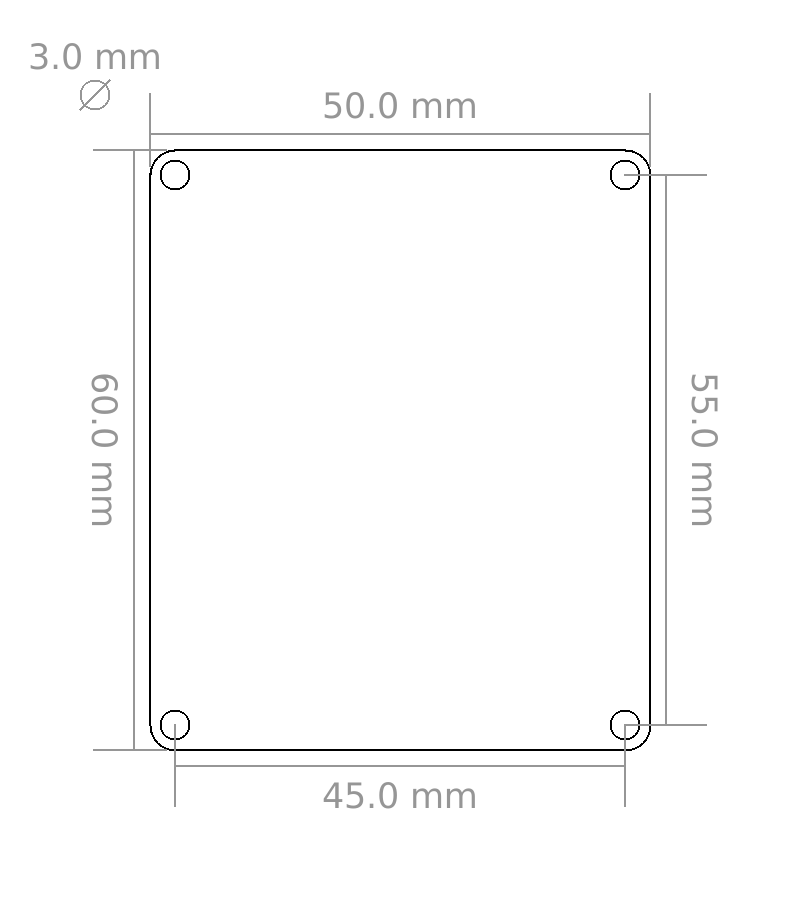

Dimensions (W x D x H) 60 x 50 x 20mm (2.36 x 1.97 x 0.79")
Weight 26g

Resources

Test your Dust Detector Bricklet

To test a Dust Detector Bricklet you need to have Brick Daemon and Brick Viewer installed. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon. It helps to figure out basic information about the connected Bricks and Bricklets and allows to test them.

Connect the Dust Detector Bricklet to a Brick with a Bricklet Cable.

If you connect the Brick to the PC over USB, you should see a new tab named "Dust Detector Bricklet" in the Brick Viewer after a moment. Select this tab. If everything went as expected you can now see the dust density in µg/m³ and a graph that shows the dust density over time.

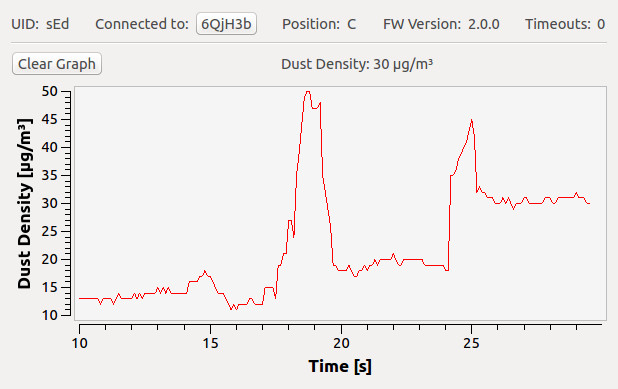

Dust Detector in Brick Viewer

After this test you can go on with writing your own application. See the Programming Interface section for the API of the Dust Detector Bricklet and examples in different programming languages.

Programming Interface

See Programming Interface for a detailed description.

Language API Examples Installation
C/C++ API Examples Installation
C# API Examples Installation
Delphi/Lazarus API Examples Installation
Java API Examples Installation
JavaScript API Examples Installation
LabVIEW API Examples Installation
Mathematica API Examples Installation
MATLAB/Octave API Examples Installation
Perl API Examples Installation
PHP API Examples Installation
Python API Examples Installation
Ruby API Examples Installation
Shell API Examples Installation
Visual Basic .NET API Examples Installation
TCP/IP API
Modbus API
