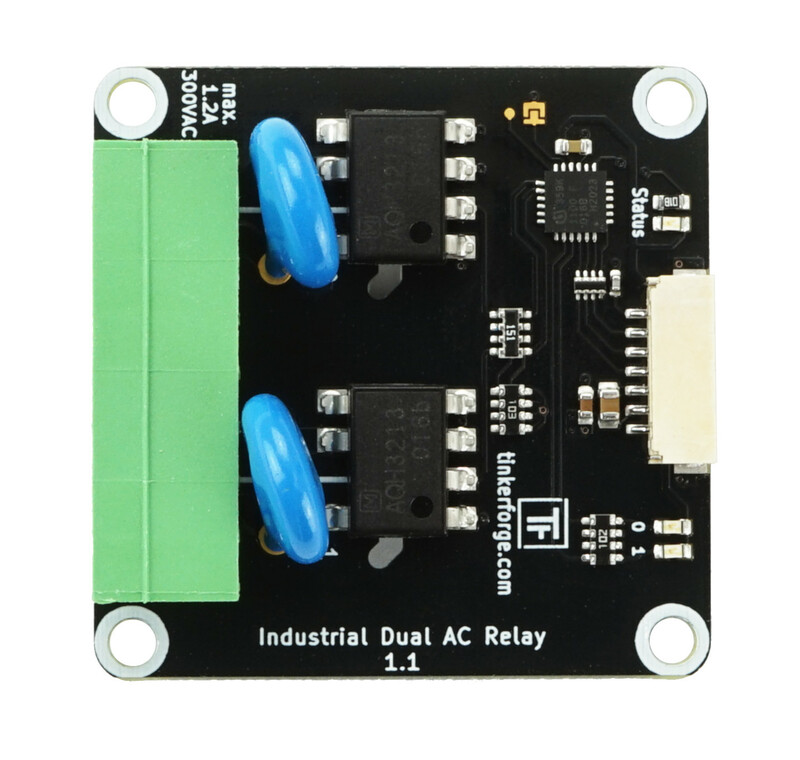

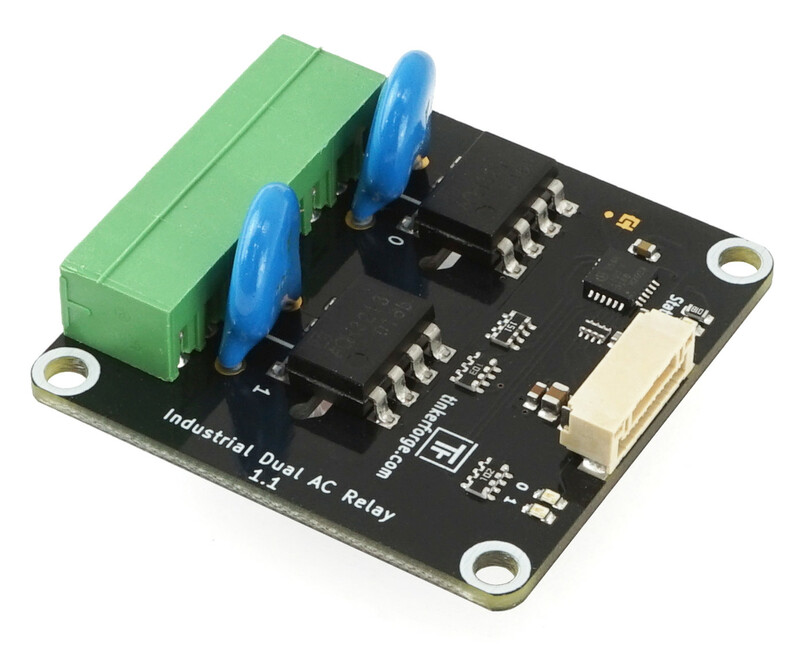

Industrial Dual AC Relay Bricklet

Features

  • Two solid state relays for switching AC devices
  • Switches up to 240VAC/1.2A (with max 12A surge current)
  • Switching done during zero-crossing

Description

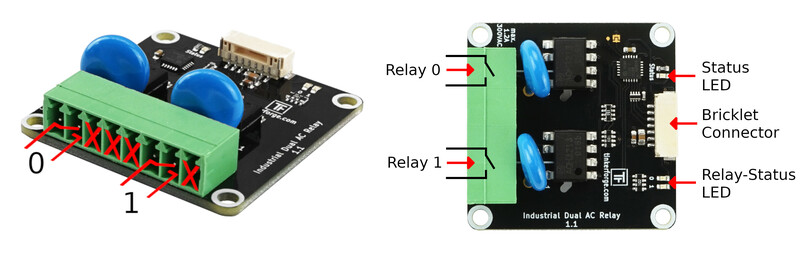

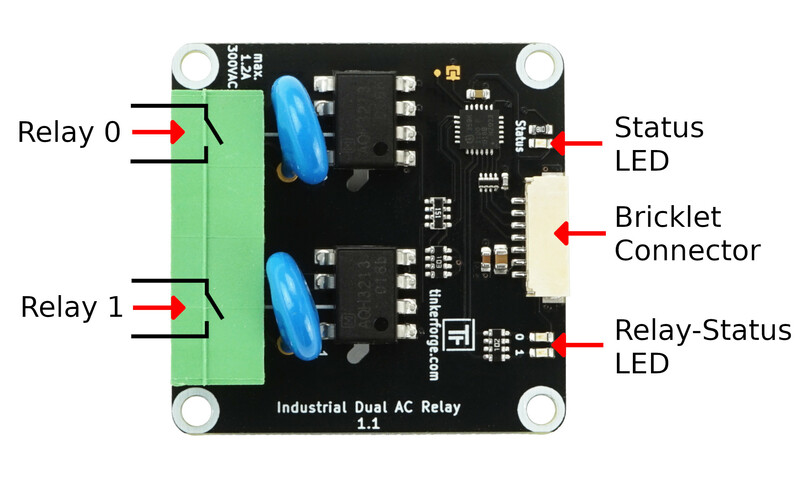

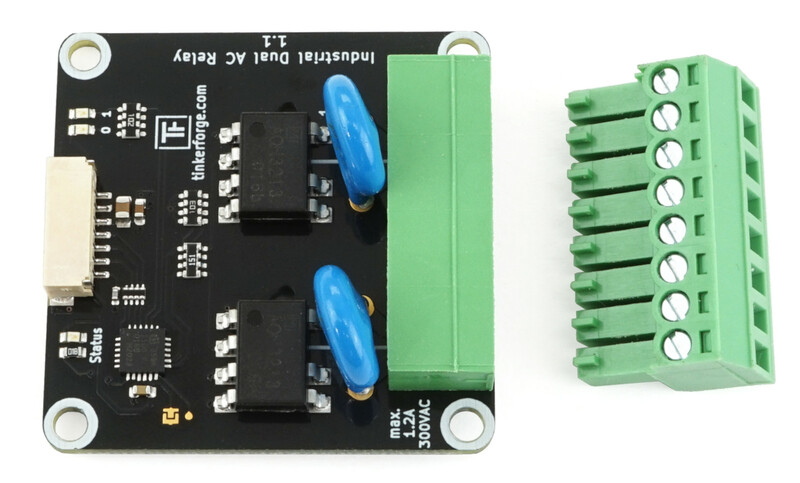

The Industrial Dual AC Relay Bricklet can be used to extend the features of Bricks by two solid state relays (SSR). Each relay has two terminals. The state is visualized by a LED.

You can use this Bricklet to switch power supplies, motors, lamps, etc. Consider the maximum voltage and current.

Warning

Terminals and contacts are not insulated. If you want to switch higher voltages, consider to put the Dual AC Relay Bricklet in a casing. Touching the contacts is potentially life-threatening!

Technical Specifications

Property Value
Solid State Relay Panasonic AQH3213A
Current Consumption
25mW (5mA at 5V)
+ 60mW (12mA at 5V) per activated relay

Maximum Voltage/Current AC 240V/1.2A (with max 12A surge current)

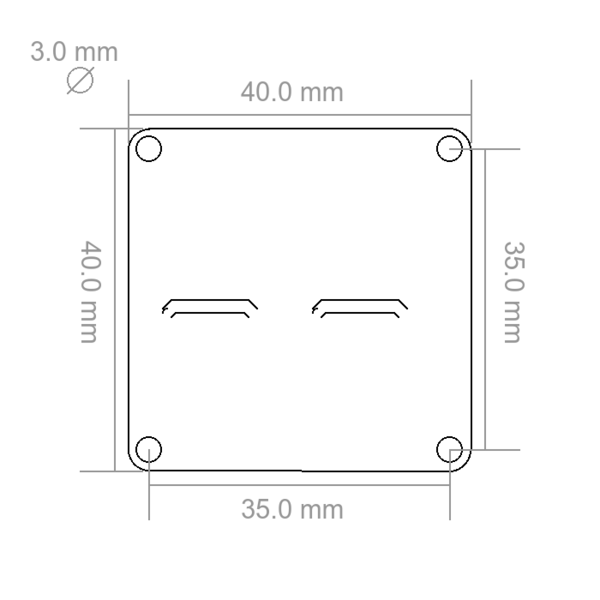

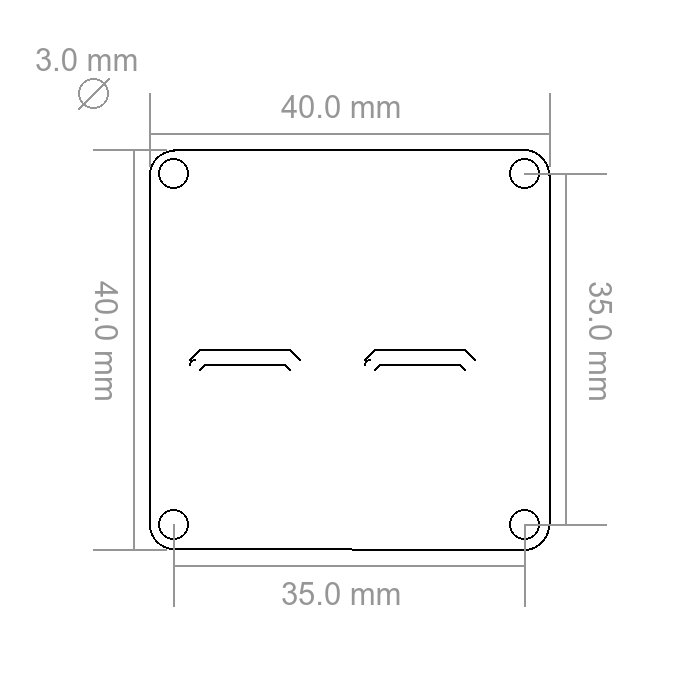

Dimensions (W x D x H) 40 x 40 x 16mm (1.57 x 1.57 x 0.63")
Weight 11g

Resources

Connectivity

The following picture shows the different connection possibilities of the Industrial Dual AC Relay Bricklet.

Industrial Dual AC Relay Bricklet connectivity

Test your Industrial Dual AC Relay Bricklet

To test a Industrial Dual AC Relay Bricklet you need to have Brick Daemon and Brick Viewer installed. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon. It helps to figure out basic information about the connected Bricks and Bricklets and allows to test them.

Connect the Industrial Dual AC Relay Bricklet to a Brick with a Bricklet Cable.

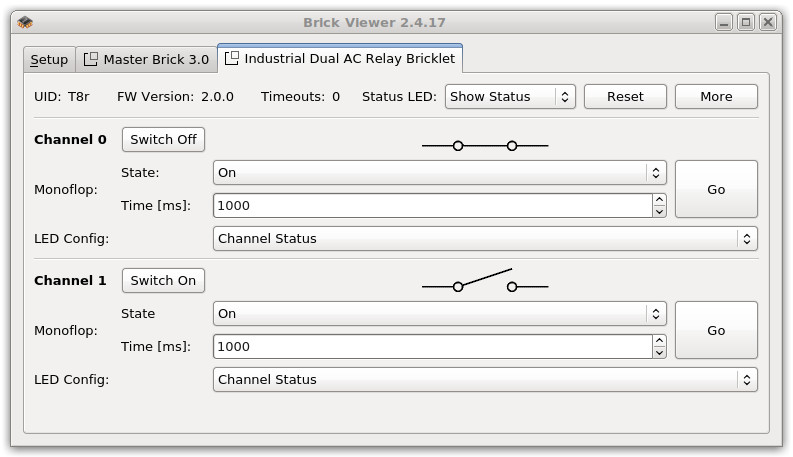

If you connect the Brick to the PC over USB, you should see a new tab named "Industrial Dual AC Relay Bricklet" in the Brick Viewer after a moment. Select this tab. If everything went as expected the Brick Viewer should look as depicted below.

Industrial Dual AC Relay Bricklet in Brick Viewer

After this test you can go on with writing your own application. See the Programming Interface section for the API of the Industrial Dual AC Relay Bricklet and examples in different programming languages.

Play around with the two relay buttons, an LED indicates the current state of each relay.

Case

A laser-cut case for the Industrial Dual Relay Bricklet and Industrial Dual AC Relay Bricklet is available (images show Industrial Dual Relay Bricklet).

Case for Industrial Dual AC Relay Bricklet

The case of the Industrial Dual AC Relay Bricklet is delivered including cable ties for a cable relief and WAGO connecting clamps to join wires. The case is big enough to accommodate the cable relief as well as the WAGO clamps.

The internal construction can look as follows (with one as well as two relays connected)

Case for Industrial Dual AC Relay Bricklet with one relay connected Case for Industrial Dual AC Relay Bricklet with two relays connected

The protective conductor (brown) is switched with the Industrial Dual AC Relay Bricklet. The external conductor (green-yellow) and the neutral conductor (blue) are coupled with the WAGO connecting clamps.

It is important that the external conductor is longer then the other cables. This way it is assured that the external conductor will be pulled of at last if the cable relief is overstrained or defect. We recommend the following length for the cables and the stripping:

Recommended lengths

The assembly is easiest if you follow the following steps:

  • screw spacers to Bricklet
  • screw Bricklet to bottom plate with spacers
  • build up side plates (including cable relief)
  • plug side plates into bottom plate
  • add cabling and WAGO clamps
  • tie cable ties to cables
  • screw top plate to top spacers

Warning

Never work inside the case when components are carrying voltage!

The exact position of each part can be seen in the following exploded assembly drawing of the Industrial Dual AC Relay Bricklet case:

Exploded assembly drawing for Industrial Dual AC Relay Bricklet

Hint: There is a protective film on both sides of the plates, you have to remove it before assembly.

Programming Interface

See Programming Interface for a detailed description.

Language API Examples Installation
C/C++ API Examples Installation
C# API Examples Installation
Delphi/Lazarus API Examples Installation
Go API Examples Installation
Java API Examples Installation
JavaScript API Examples Installation
LabVIEW API Examples Installation
Mathematica API Examples Installation
MATLAB/Octave API Examples Installation
MQTT API Examples Installation
openHAB API Examples Installation
Perl API Examples Installation
PHP API Examples Installation
Python API Examples Installation
Ruby API Examples Installation
Rust API Examples Installation
Shell API Examples Installation
Visual Basic .NET API Examples Installation
TCP/IP API
Modbus API
