GPS Bricklet 3.0

Features

  • Supports GPS, GLONASS and Galileo simultaneously
  • Receives movement-, position-, altitude, time data and PPS signal
  • Elevation, azimuth and SNR for each GPS/GLONASS/Galileo satellite accessible
  • 99 channels, 10Hz update rate
  • High sensitivity and accuracy, interference canceller

Description

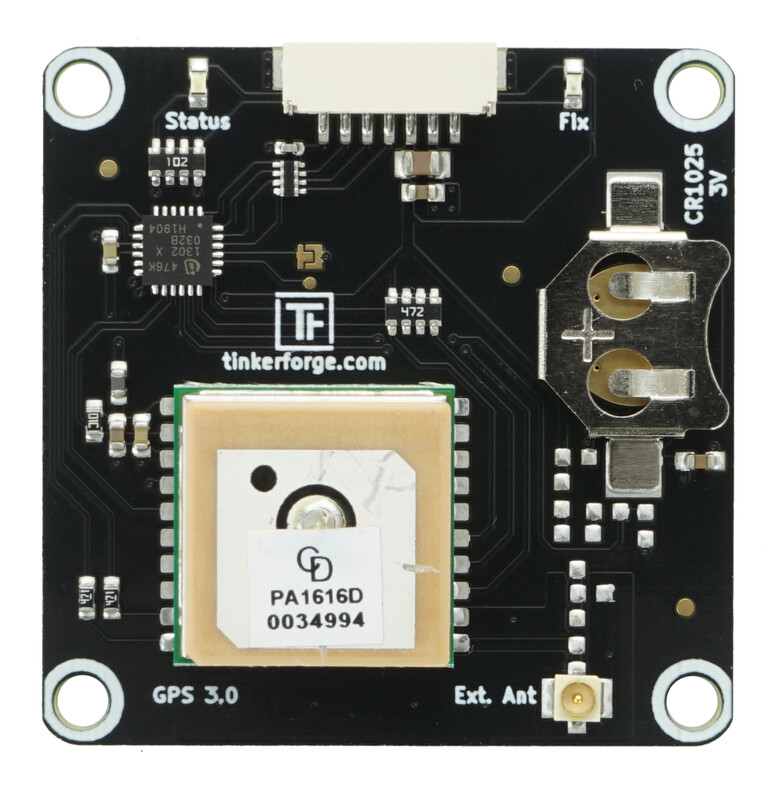

The GPS Bricklet 3.0 can be used to extend Bricks by the possibility to determine their position via GPS. Additionally it is possible to receive movement (direction and velocity), altitude (altitude and geodial separation), as well as high precise time/date information and PPS signal.

Current values for elevation, azimuth and SNR for each of the GPS, GLONASS and Galileo satellites can be read out.

The GPS module is optimized to get a fast fix, has a high input sensitivity (-165dBm) and a update rate of 10Hz suitable for drones or the like. Internal interference canceller rejects RF interference from other devices like Bluetooth or Wi-Fi.

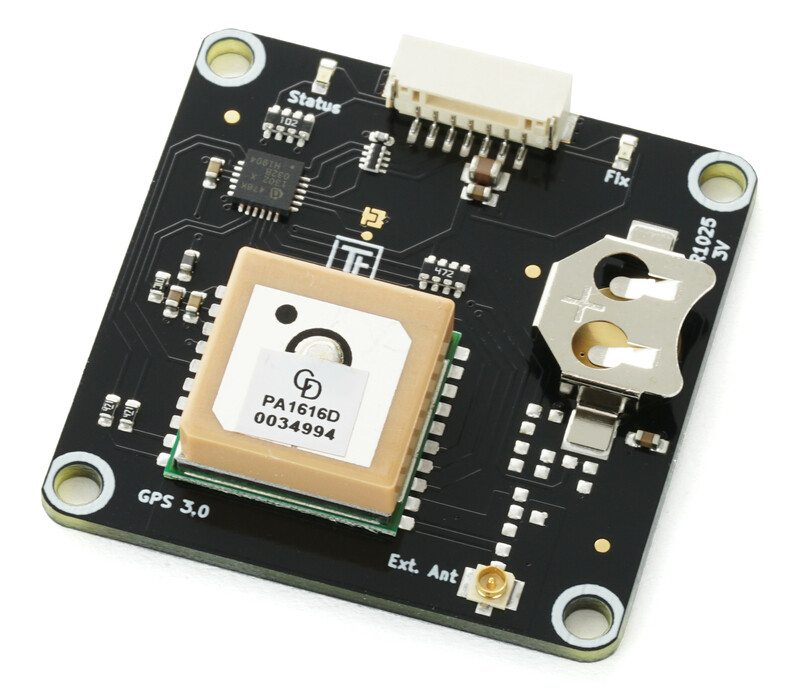

The Bricklet hast an internal antenna. Through a U.FL connector you can also connect an external antenna.

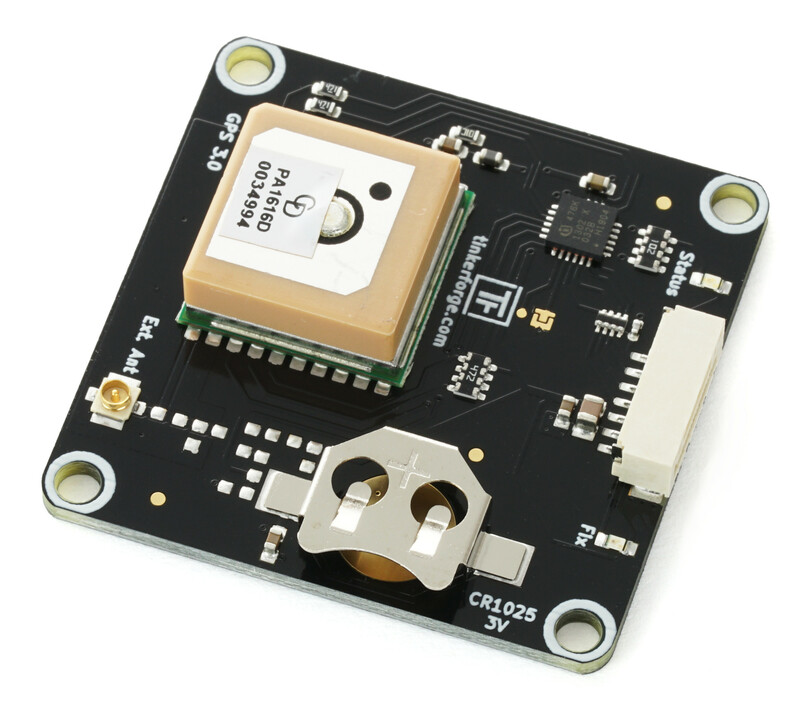

A CR1025 coin cell battery is also included. It is used as a battery backup for the last satellite position data. With this information a fix can be obtained faster if the power was lost.

Technical Specifications

Property Value
GPS Module Chipset CDTop PA1616D

Sensitivity -148dBm (acquisition), -165dBm (tracking)*
Position Accuracy 3.0m (50% CEP)*
Time to first Fix < 35s (without battery), < 1s (with battery)*
Update Rate 10Hz

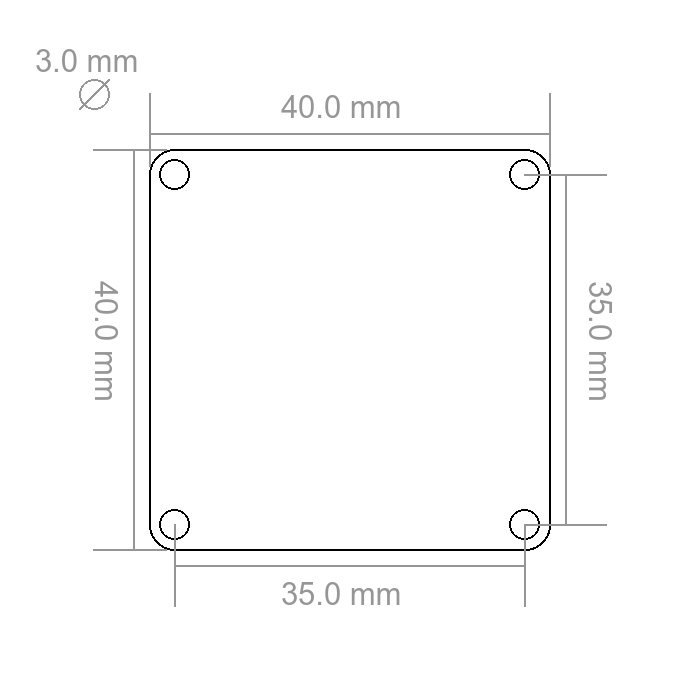

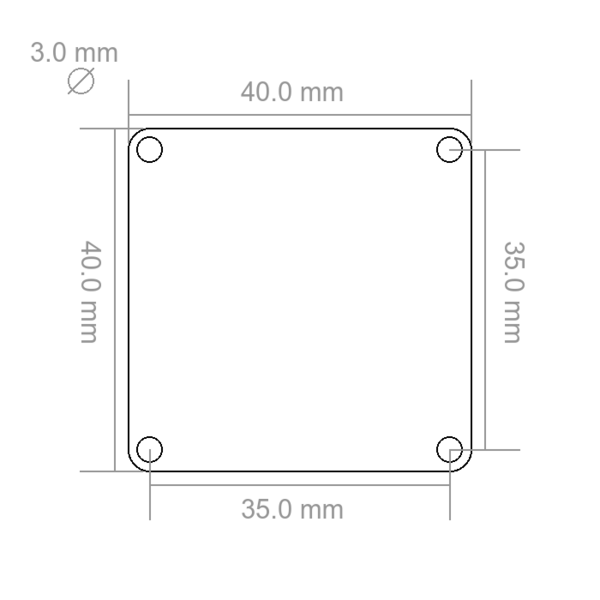

Dimensions (W x D x H) 40 x 40 x 12mm (1.57 x 1.57 x 0.47")
Weight 20g (with battery)
Current Consumption approx. 73mA

* datasheet values

Resources

External Antenna

The GPS Bricklet 3.0 has an internal antenna that is used by default. You can connect an external antenna to the U.FL connector. If an external antenna is connected the Bricklet will auomatically switch to the external antenna und the internal antenna is not used anymore. A compatible antenna with a long lead is available in the shop.

The antenna should always look upwards, so if you use the antenna that is attached to the bottom you need to mount the Bricklet accordingly.

Test your GPS Bricklet 3.0

To test a GPS Bricklet 3.0 you need to have Brick Daemon and Brick Viewer installed. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon. It helps to figure out basic information about the connected Bricks and Bricklets and allows to test them.

Connect the GPS Bricklet 3.0 to a Brick with a Bricklet Cable.

If you connect the Brick to the PC over USB, you should see a new tab named "GPS Bricklet 3.0" in the Brick Viewer after a moment. Select this tab. If everything went as expected the Brick Viewer should look as depicted below.

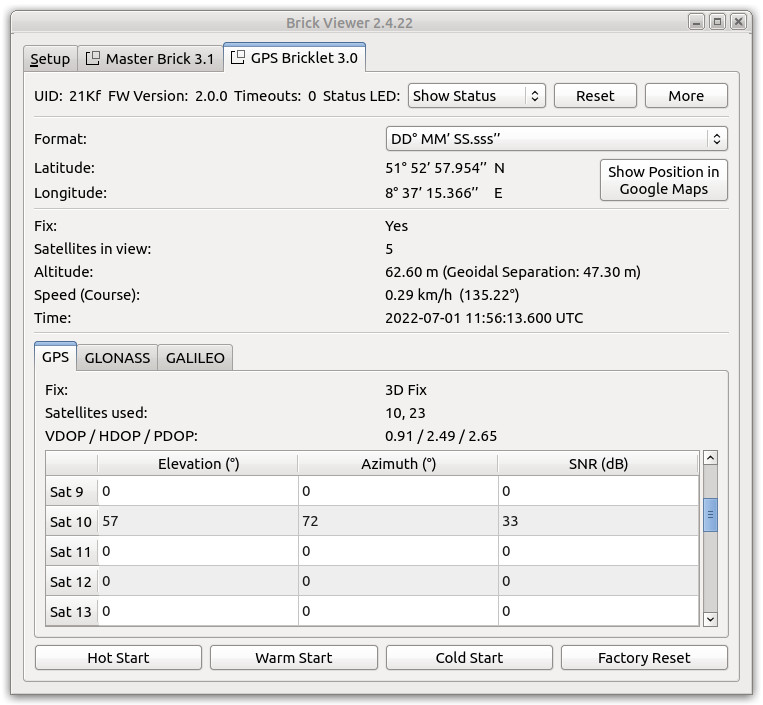

GPS Bricklet 3.0 in Brick Viewer

After this test you can go on with writing your own application. See the Programming Interface section for the API of the GPS Bricklet 3.0 and examples in different programming languages.

Fix LED

The green LED labeled "Fix" indicates the status of the position data. The LED blinks during fix acquisition and is turned on if a fix is achieved.

If the GPS module is battery powered the LED is turned off to save power.

Case

TBD

Programming Interface

See Programming Interface for a detailed description.

Language API Examples Installation
C/C++ API Examples Installation
C/C++ for Microcontrollers API Examples Installation
C# API Examples Installation
Delphi/Lazarus API Examples Installation
Go API Examples Installation
Java API Examples Installation
JavaScript API Examples Installation
LabVIEW API   Installation
Mathematica API Examples Installation
MATLAB/Octave API Examples Installation
MQTT API Examples Installation
openHAB API Examples Installation
Perl API Examples Installation
PHP API Examples Installation
Python API Examples Installation
Ruby API Examples Installation
Rust API Examples Installation
Shell API Examples Installation
Visual Basic .NET API Examples Installation
TCP/IP API
Modbus API
