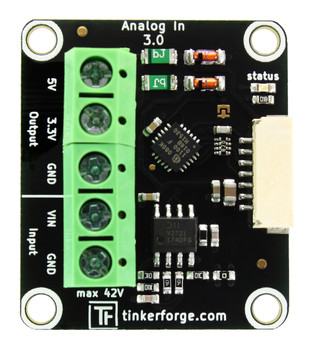

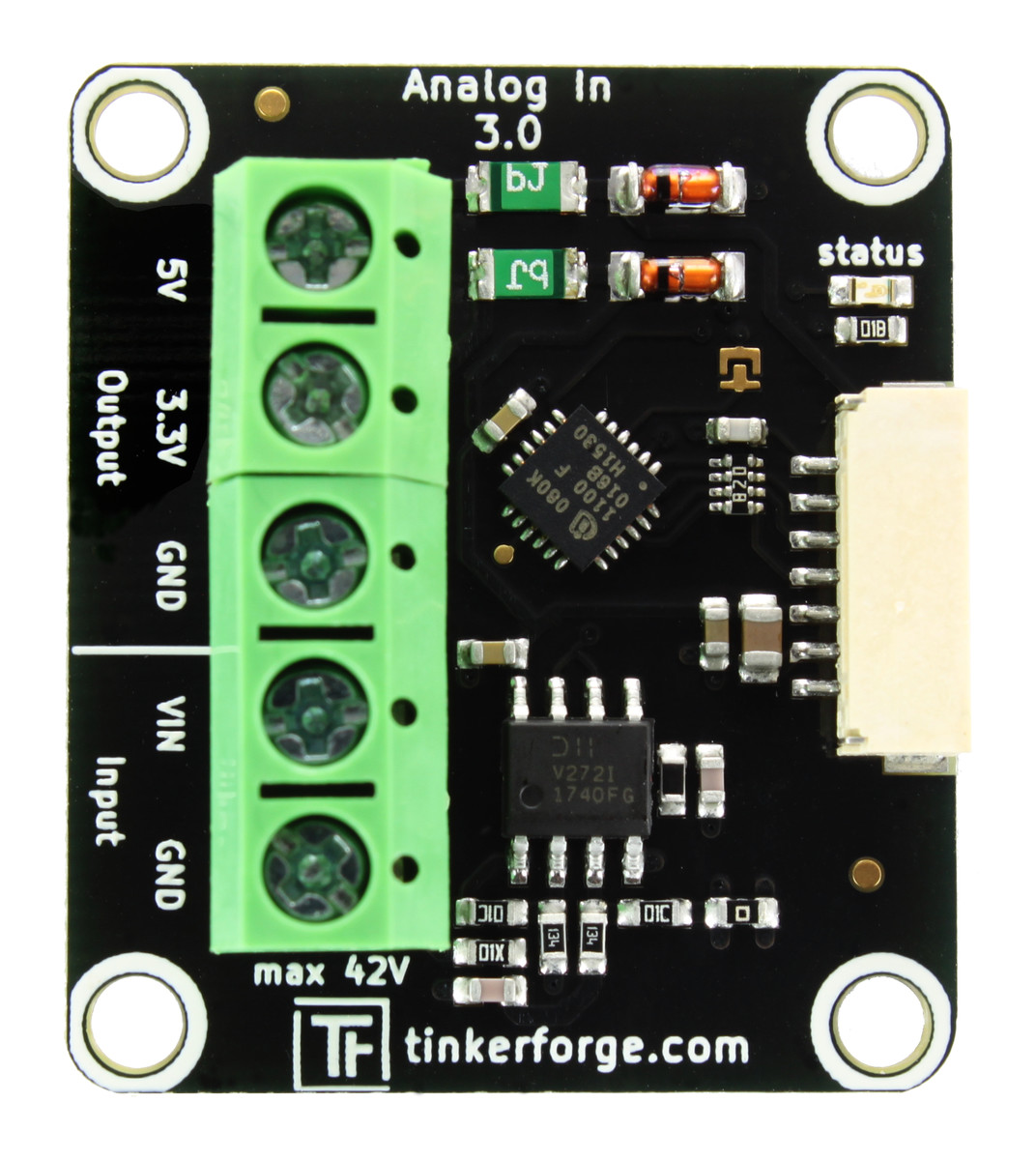

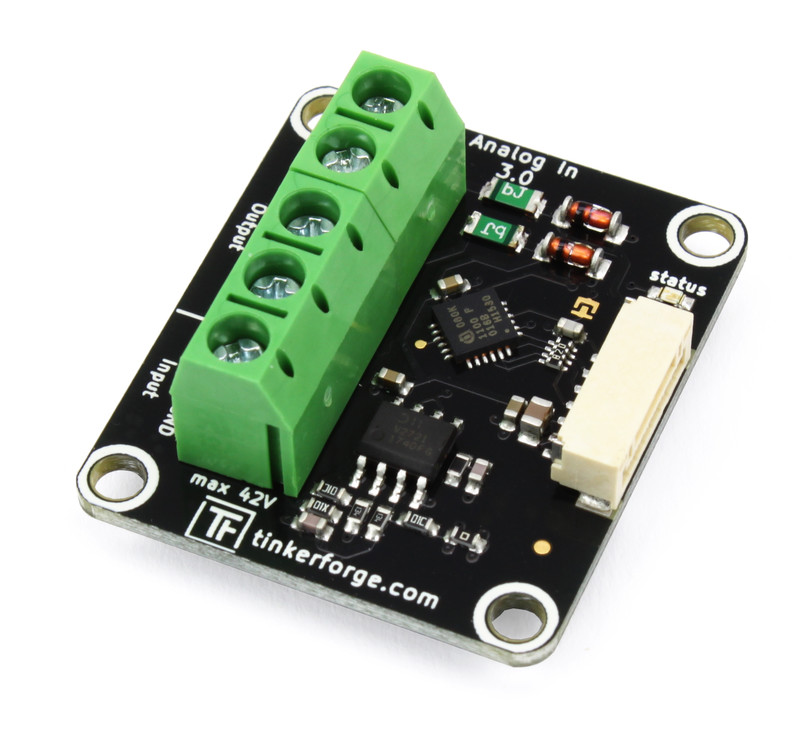

Analog In Bricklet 3.0

Features

  • Measures voltages up to 42V (DC)
  • Full-scale resolution of ~10mV

Description

The Analog In Bricklet 3.0 can be used to extend the features of Bricks by the capability to measure voltages. It is the successor of the Analog In Bricklet 2.0. The voltage can be read out in Volt directly without conversions necessary.

With configurable events it is possible to react on changing voltages without polling.

Technical Specifications

Property Value
Current Consumption 70mW (14mA at 5V)

Voltage 0V - 42V (DC) in 1mV steps, 12bit resolution (~10mV)
Maximum Output Current 150mA (3.3V), 150mA (5V)

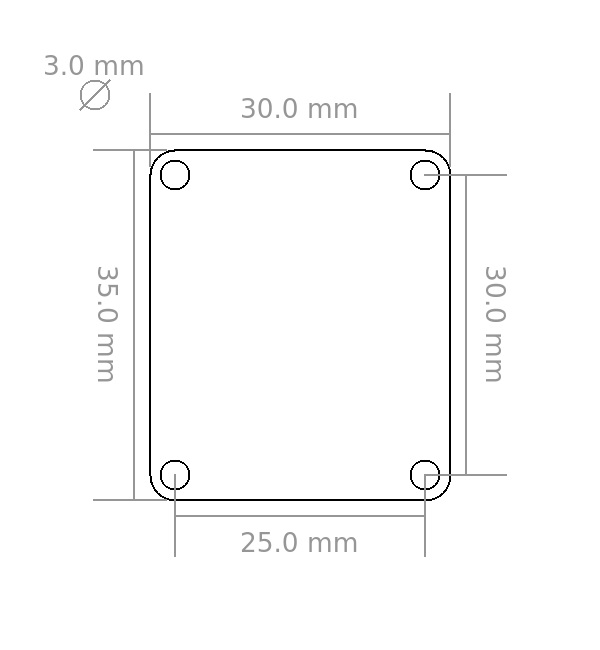

Dimensions (W x D x H) 35 x 30 x 14mm (1.38 x 1.18 x 0.55")
Weight 8g

Resources

Connectivity

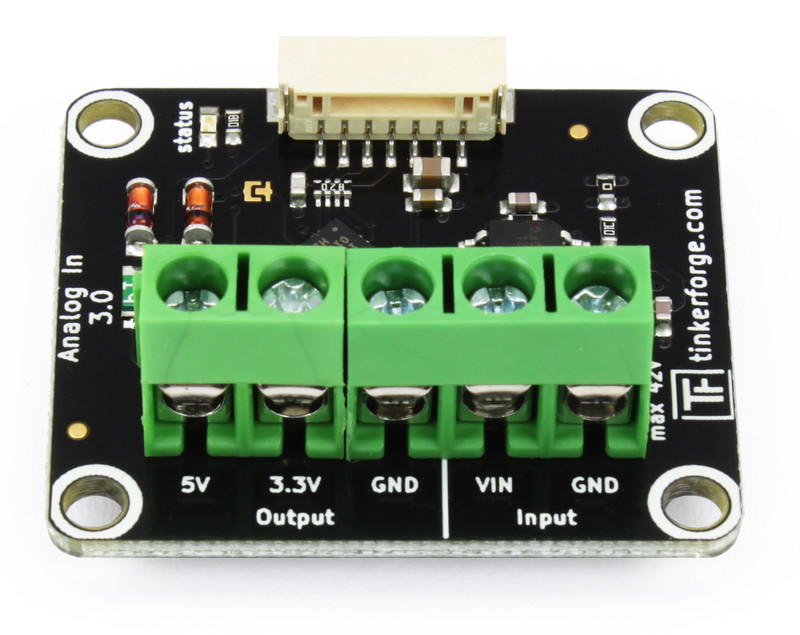

The Analog In Bricklet 3.0 has five terminals. With these terminals you can access the following output signals: 5V, 3.3V as well as GND. The voltage you want to measure can be applied between the VIN and the GND terminal.

Analog In Bricklet 3.0 Terminals

Test your Analog In Bricklet 3.0

To test a Analog In Bricklet 3.0 you need to have Brick Daemon and Brick Viewer installed. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon. It helps to figure out basic information about the connected Bricks and Bricklets and allows to test them.

Connect the Analog In Bricklet 3.0 to a Brick with a Bricklet Cable. Additionally connect a DC voltage you want to measure to the Bricklet. For testing purposes connect the 5V or 3.3V output terminal to the VIN terminal. The GND terminals are already connected internally.

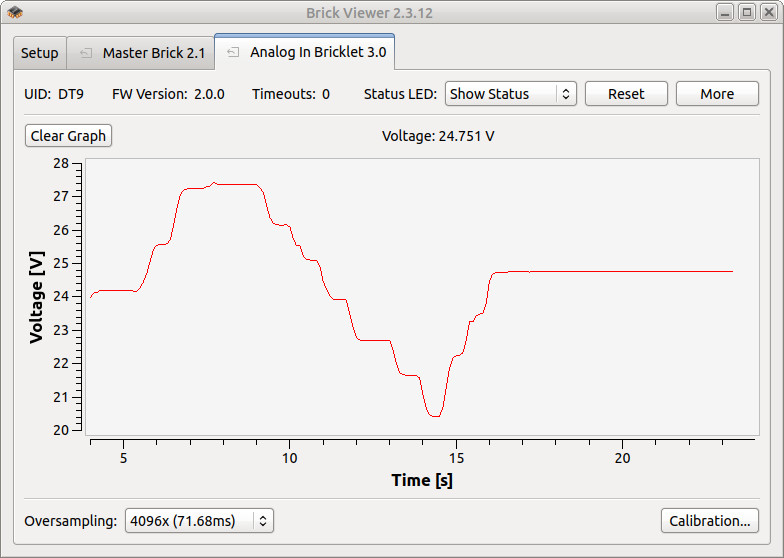

If you connect the Brick to the PC over USB, you should see a new tab named "Analog In Bricklet 3.0" in the Brick Viewer after a moment. Select this tab. If everything went as expected you can now see the voltage in Volt and a graph that shows the voltage over time.

Analog In Bricklet in Brick Viewer

After this test you can go on with writing your own application. See the Programming Interface section for the API of the Analog In Bricklet 3.0 and examples in different programming languages.

Case

A laser-cut case for the Analog In Bricklet 3.0 is available.

Case for Analog In Bricklet 3.0

The assembly is easiest if you follow the following steps:

  • Screw spacers to the Bricklet,
  • screw bottom plate to bottom spacers,
  • build up side plates,
  • plug side plates into bottom plate and
  • screw top plate to top spacers.

Below you can see an exploded assembly drawing of the Analog In Bricklet 3.0 case:

Exploded assembly drawing for Analog In Bricklet 3.0

Hint: There is a protective film on both sides of the plates, you have to remove it before assembly.

Programming Interface

See Programming Interface for a detailed description.

Language API Examples Installation
C/C++ API Examples Installation
C/C++ for Microcontrollers API Examples Installation
C# API Examples Installation
Delphi/Lazarus API Examples Installation
Go API Examples Installation
Java API Examples Installation
JavaScript API Examples Installation
LabVIEW API Examples Installation
Mathematica API Examples Installation
MATLAB/Octave API Examples Installation
MQTT API Examples Installation
openHAB API Examples Installation
Perl API Examples Installation
PHP API Examples Installation
Python API Examples Installation
Ruby API Examples Installation
Rust API Examples Installation
Shell API Examples Installation
Visual Basic .NET API Examples Installation
TCP/IP API
Modbus API
