Linear Poti Bricklet


The Linear Poti Bricklet is discontinued. We are selling our remaining stock. The Linear Poti Bricklet 2.0 is the recommended replacement.


  • 59mm linear potentiometer
  • Outputs position from 0% to 100% in 1% steps

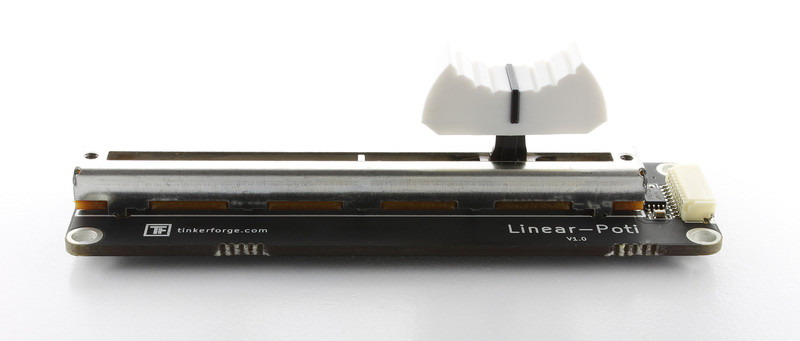

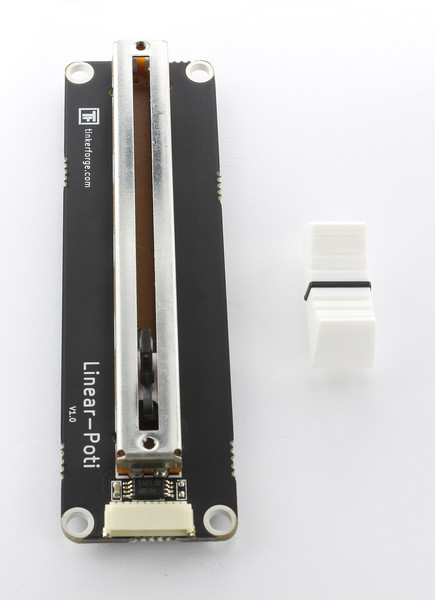

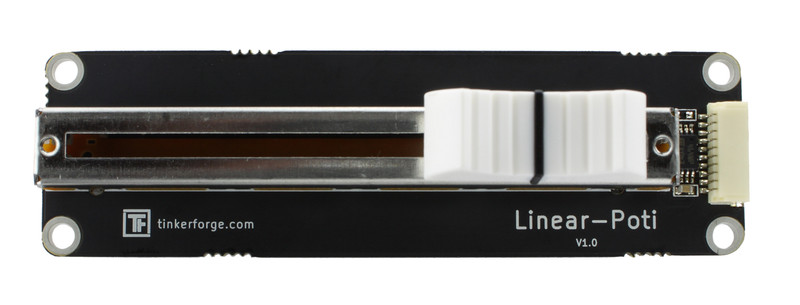

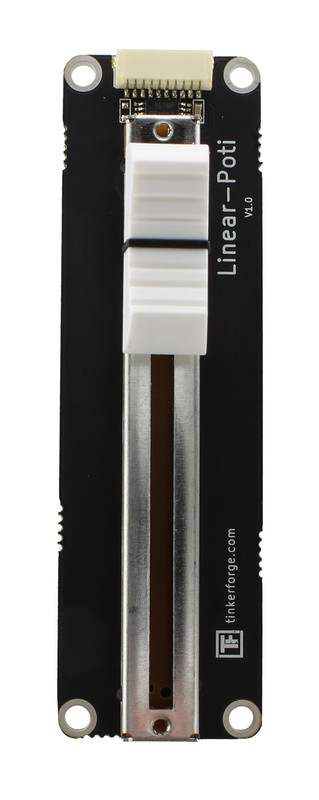

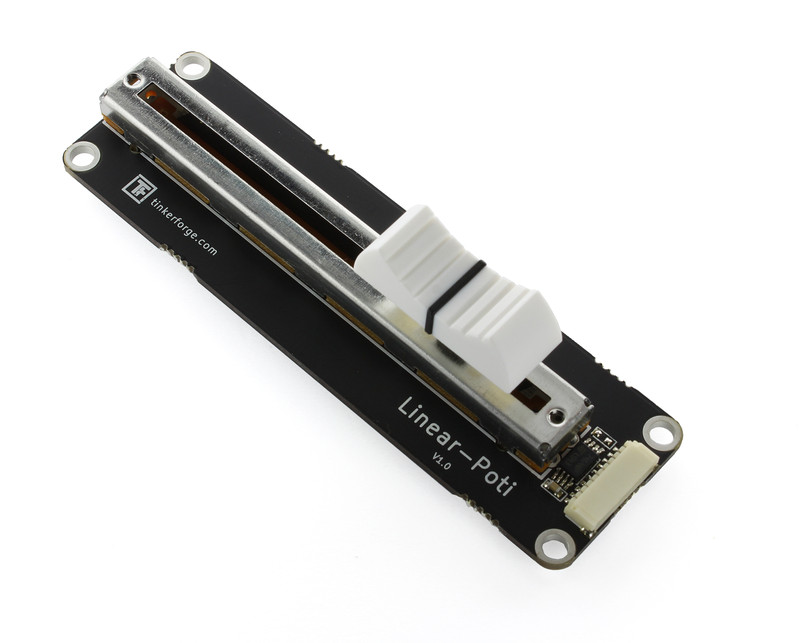

The Linear Poti Bricklet is equipped with a linear potentiometer ("fader", "slider"). It can be connected to a Brick, with which the position of the slider can be read out. With configurable events it is possible to react on changing positions without polling.

You can use this Bricklet for speed, volume control or similar purposes.

Technical Specifications

Property Value
Linear Potentiometer 59mm (2.32") adjustable length
Current Consumption 1mA
Position 0% - 100% (slider down - slider up) in 1% steps

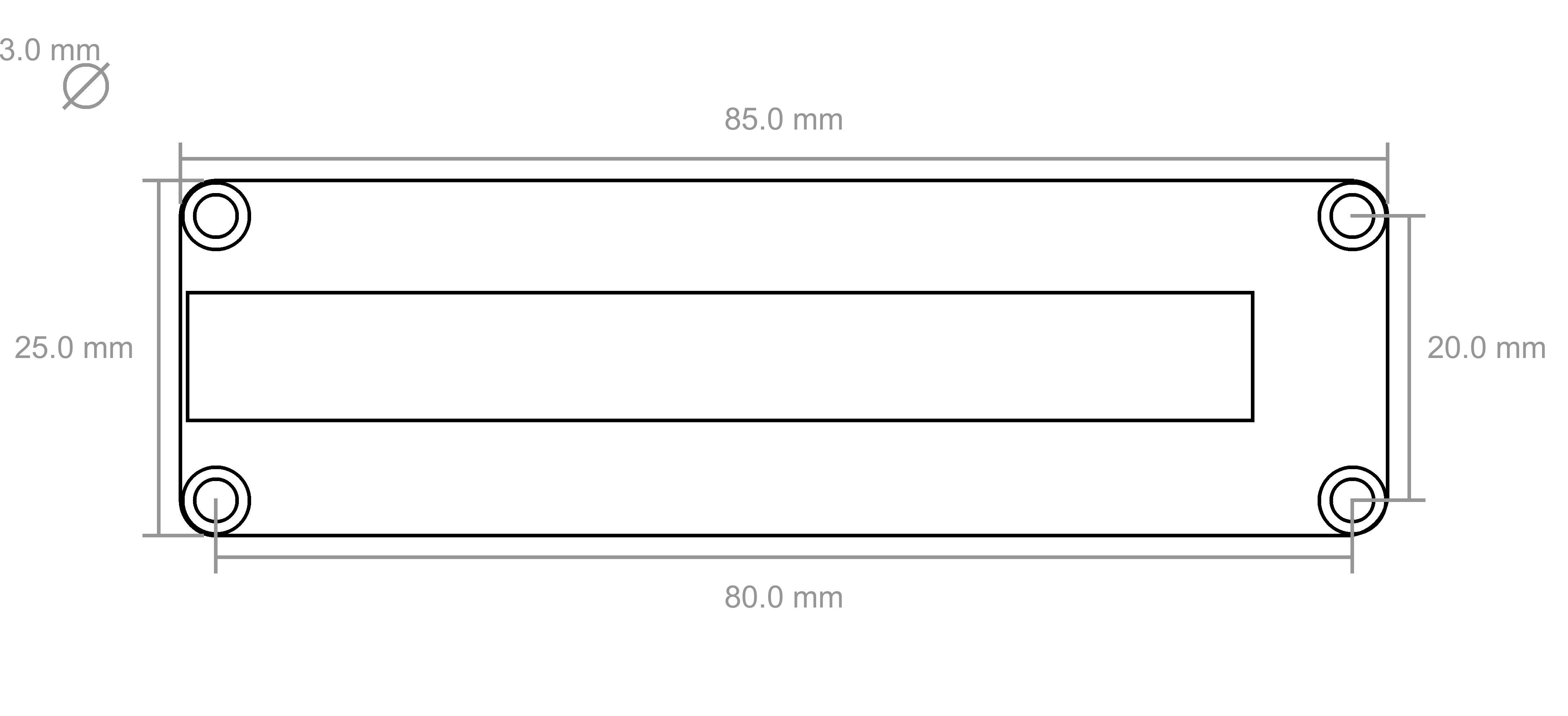

Dimensions (W x D x H) 25 x 85 x 20mm (0.98 x 3.35 x 0.78")*
Weight 14g*

* without knob


Test your Linear Poti Bricklet

To test a Linear Poti Bricklet you need to have Brick Daemon and Brick Viewer installed. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon. It helps to figure out basic information about the connected Bricks and Bricklets and allows to test them.

Connect the Linear Poti Bricklet to a Brick with a Bricklet Cable (see picture below).

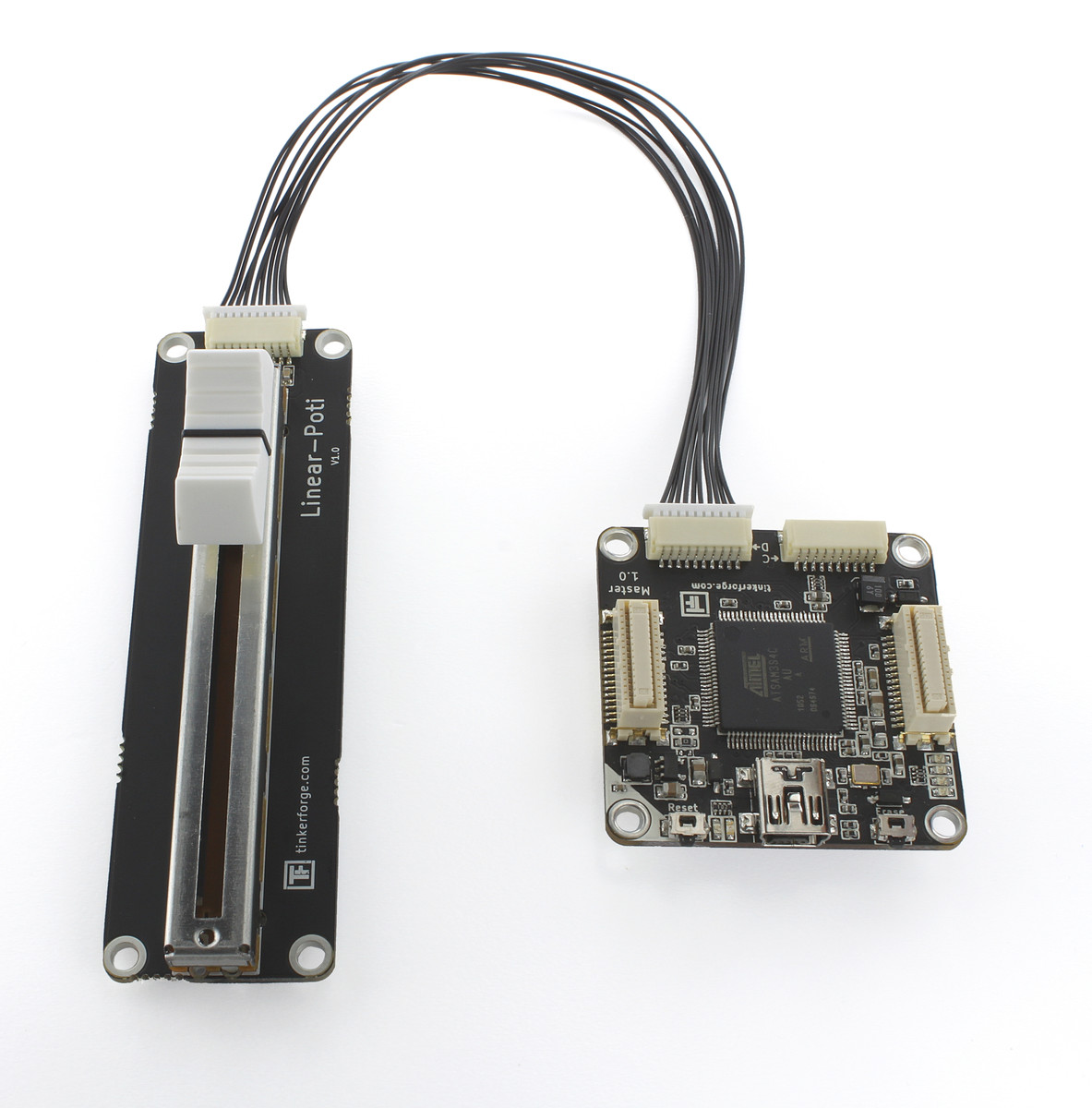

Linear Poti Bricklet connected to Master Brick

If you connect the Brick to the PC over USB, you should see a new tab named "Linear Poti Bricklet" in the Brick Viewer after a moment. Select this tab. If everything went as expected the Brick Viewer should look as depicted below.

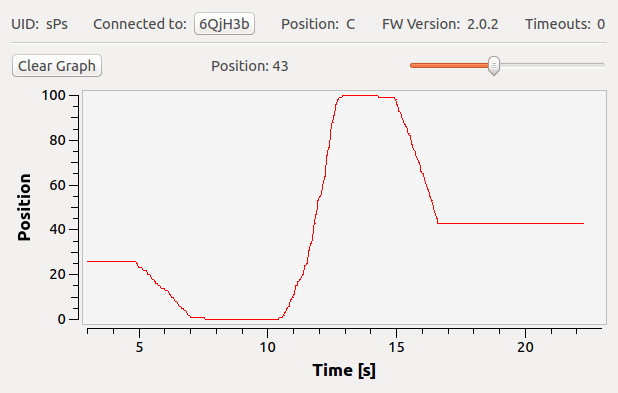

Linear Poti Bricklet in Brick Viewer

Move the potentiometer. You should be able to create a similar graph by moving the potentiometer from bottom to top and back to bottom.

After this test you can go on with writing your own application. See the Programming Interface section for the API of the Linear Poti Bricklet and examples in different programming languages.


A laser-cut case for the Linear Poti Bricklet is available.

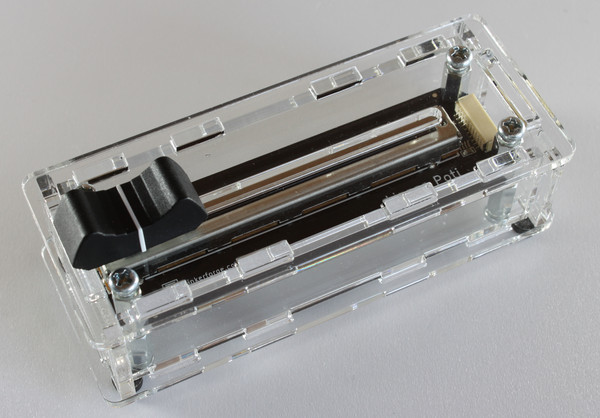

Case for Linear Poti Bricklet

The assembly is easiest if you follow the following steps:

  • Screw spacers to the Bricklet,
  • screw bottom plate to bottom spacers,
  • build up side plates,
  • plug side plates into bottom plate and
  • screw top plate to top spacers.

Below you can see an exploded assembly drawing of the Linear Poti Bricklet case:

Exploded assembly drawing for Linear Poti Bricklet

Hint: There is a protective film on both sides of the plates, you have to remove it before assembly.

Programming Interface

See Programming Interface for a detailed description.

Language API Examples Installation
C/C++ API Examples Installation
C# API Examples Installation
Delphi/Lazarus API Examples Installation
Go API Examples Installation
Java API Examples Installation
JavaScript API Examples Installation
LabVIEW API Examples Installation
Mathematica API Examples Installation
MATLAB/Octave API Examples Installation
MQTT API Examples Installation
openHAB API Examples Installation
Perl API Examples Installation
PHP API Examples Installation
Python API Examples Installation
Ruby API Examples Installation
Rust API Examples Installation
Shell API Examples Installation
Visual Basic .NET API Examples Installation
Modbus API
