Segment Display 4x7 Bricklet

Note

The Segment Display 4x7 Bricklet is discontinued. We are selling our remaining stock. The Segment Display 4x7 Bricklet 2.0 is the recommended replacement.

Features

  • Four 7-segment displays with switchable colon
  • Brightness of segments configurable
  • Configurable counter functionality

Description

The Segment Display 4x7 Bricklet can be used to control four 7-segment displays and a colon by a Brick. Each of the 29 segments can be controlled independently. It is also possible to configure the brightness of the segments. Besides the possibility of controlling each segment independently, the API offers a user configurable counter.

Technical Specifications

Property Value
Current Consumption
1mA (all segments off)
6mA (all segments on at minimum brightness)
62mA (all segments on at maximum brightness)

Segment Width 6mm
Segment Height 10mm
Brightness of Segments Configurable, up to 70mcd

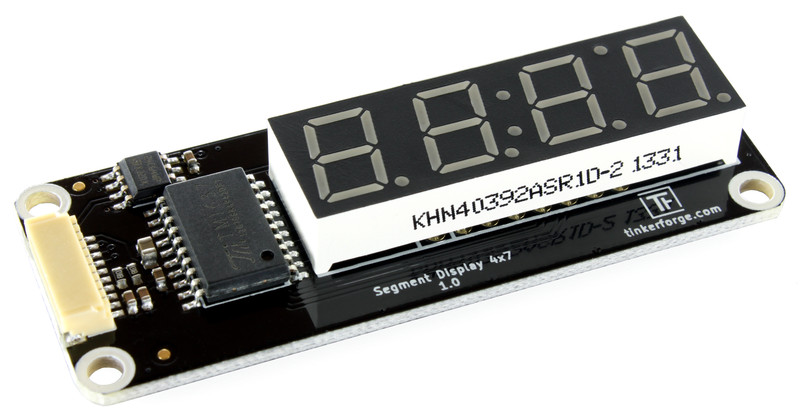

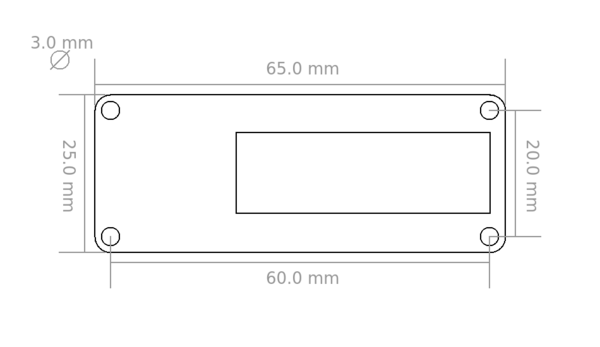

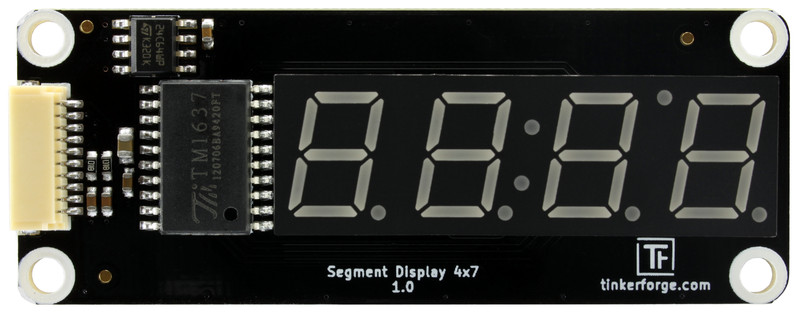

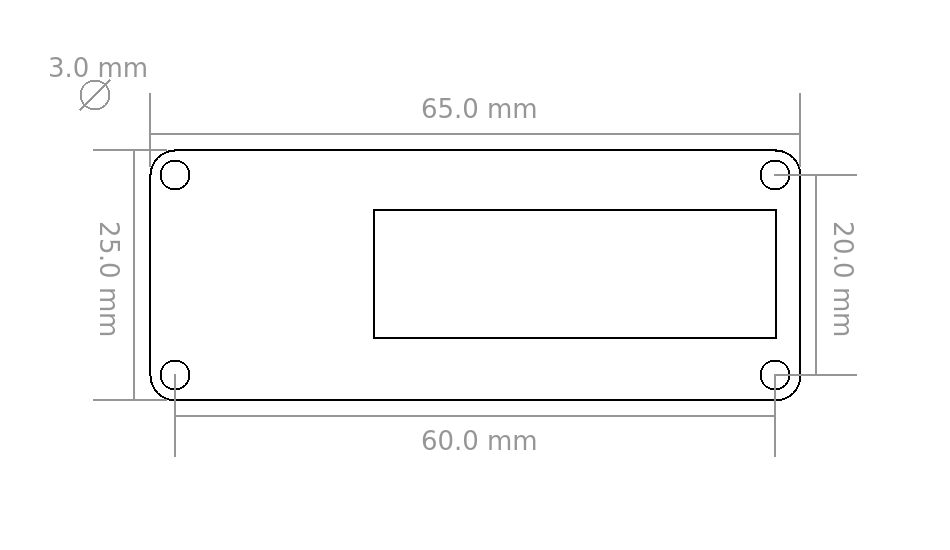

Dimensions (W x D x H) 25 x 65 x 9mm (0.98 x 2.56 x 0.35")
Weight 11g

Resources

Test your Segment Display 4x7 Bricklet

To test a Segment Display 4x7 Bricklet you need to have Brick Daemon and Brick Viewer installed. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon. It helps to figure out basic information about the connected Bricks and Bricklets and allows to test them.

Connect the Segment Display 4x7 Bricklet to a Brick with a Bricklet Cable.

If you connect the Brick to the PC over USB, you should see a new tab named "Segment Display 4x7 Bricklet" in the Brick Viewer after a moment. Select this tab. If everything went as expected you can now activate/deactivate the individual segments.

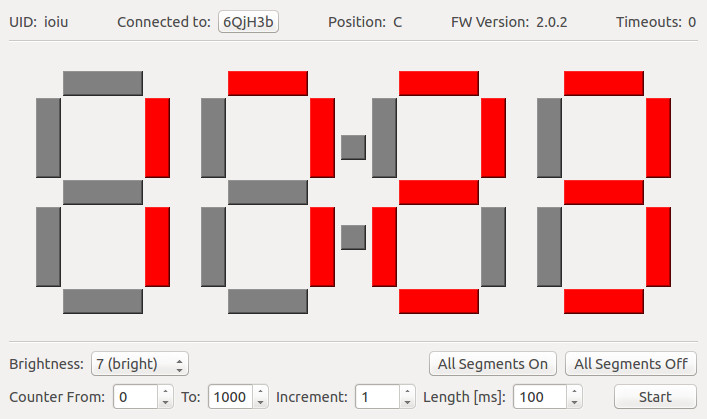

Segment Display 4x7 Bricklet in Brick Viewer

After this test you can go on with writing your own application. See the Programming Interface section for the API of the Segment Display 4x7 Bricklet and examples in different programming languages.

Case

A laser-cut case for the Segment Display 4x7 Bricklet is available.

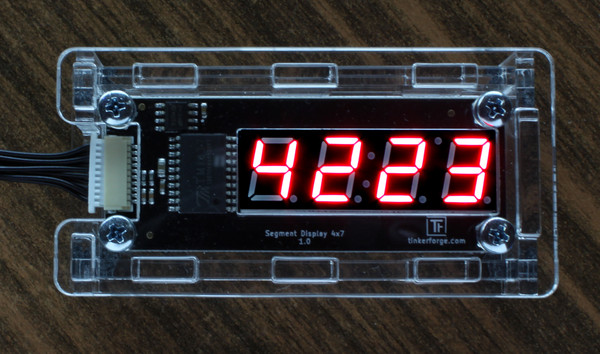

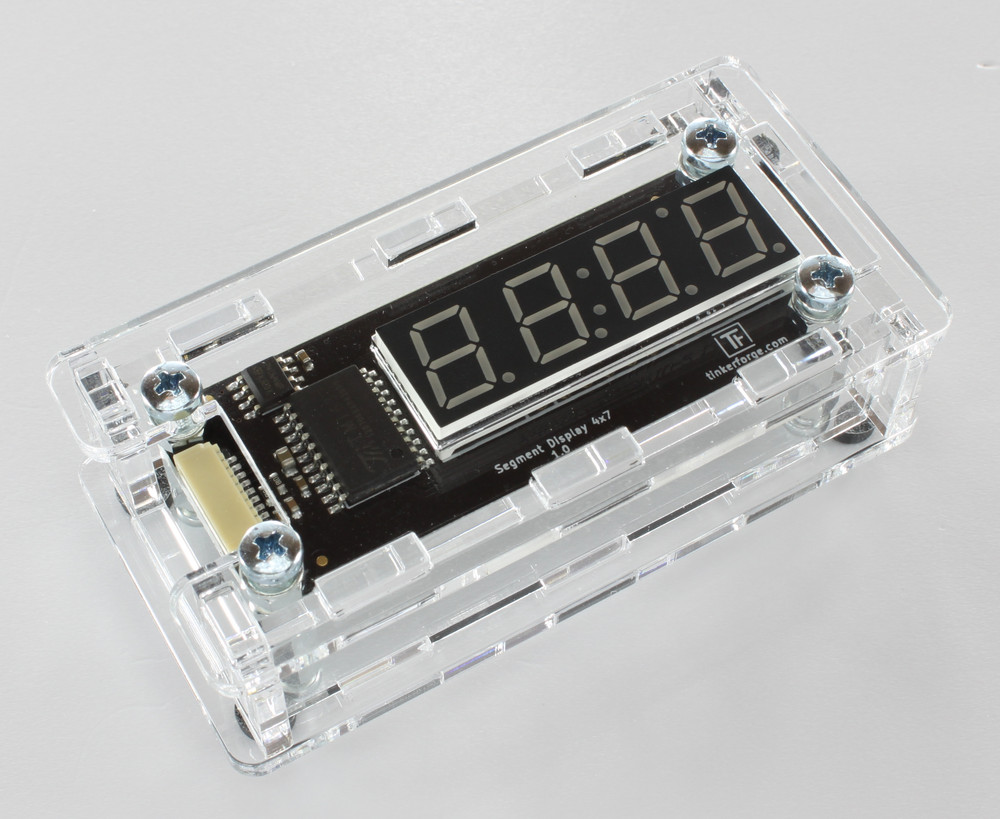

Case for Segment Display 4x7 Bricklet

The assembly is easiest if you follow the following steps:

  • Screw Bricklet to top plate with spacers at the bottom and long screws from the top,
  • build up side plates,
  • plug side plates into top plate and
  • screw bottom plate to bottom spacers.

Below you can see an exploded assembly drawing of the Segment Display 4x7 Bricklet case:

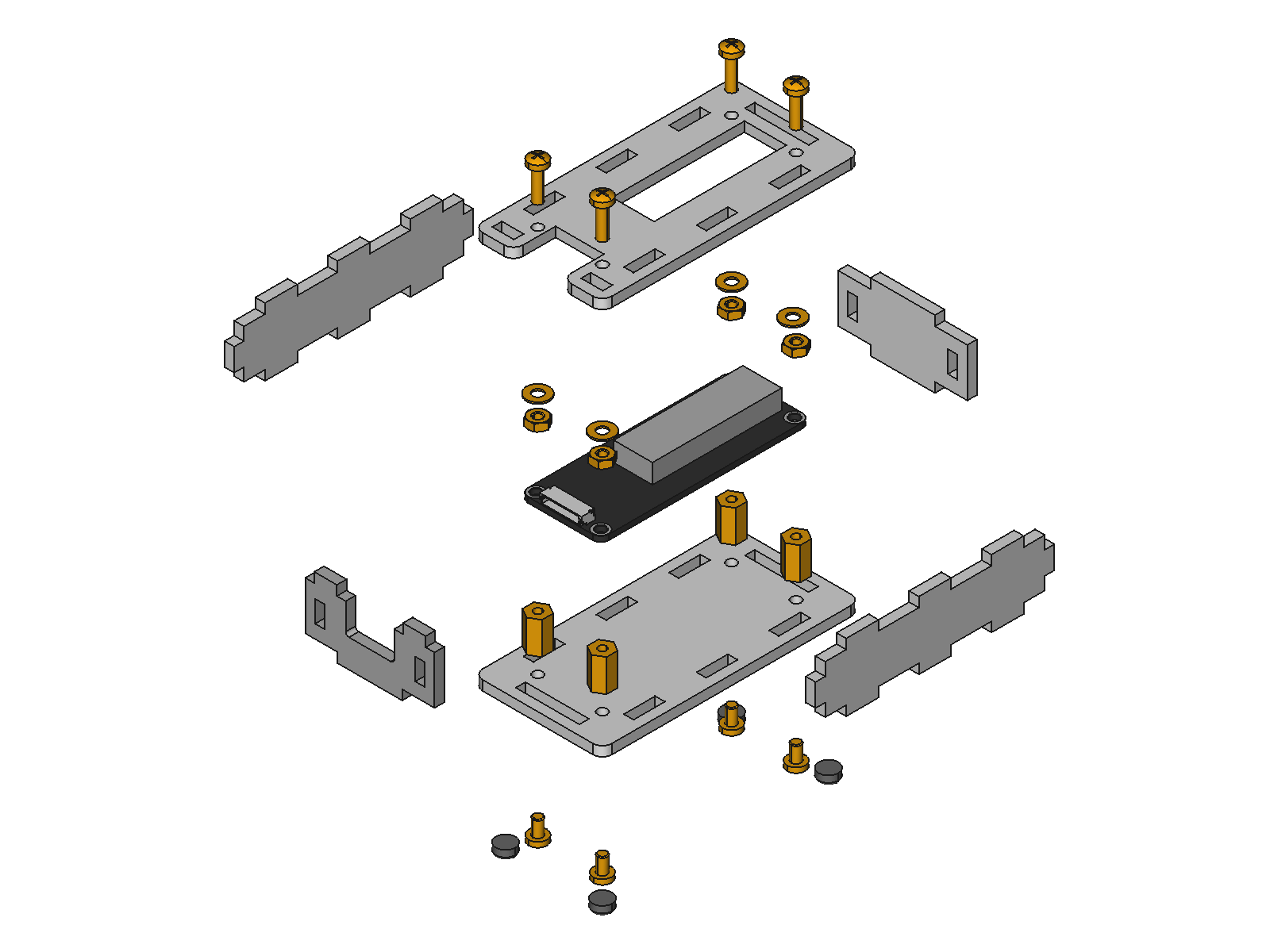

Exploded assembly drawing for Segment Display 4x7 Bricklet

Hint: There is a protective film on both sides of the plates, you have to remove it before assembly.

Programming Interface

See Programming Interface for a detailed description.

Language API Examples Installation
C/C++ API Examples Installation
C# API Examples Installation
Delphi/Lazarus API Examples Installation
Go API Examples Installation
Java API Examples Installation
JavaScript API Examples Installation
LabVIEW API Examples Installation
Mathematica API Examples Installation
MATLAB/Octave API Examples Installation
MQTT API Examples Installation
openHAB API Examples Installation
Perl API Examples Installation
PHP API Examples Installation
Python API Examples Installation
Ruby API Examples Installation
Rust API Examples Installation
Shell API Examples Installation
Visual Basic .NET API Examples Installation
TCP/IP API
Modbus API

Known Bugs

When connecting the Segment Display 4x7 Bricklet (version 1.0) to a Master Brick, try to connect it to port A or B (not C or D). The reason for that is, that the Segment Display 4x7 Bricklet might interfere with the Analog-to-digital converter of the microcontroller due to a voltage feedback.

This will be fixed in the next product version.
