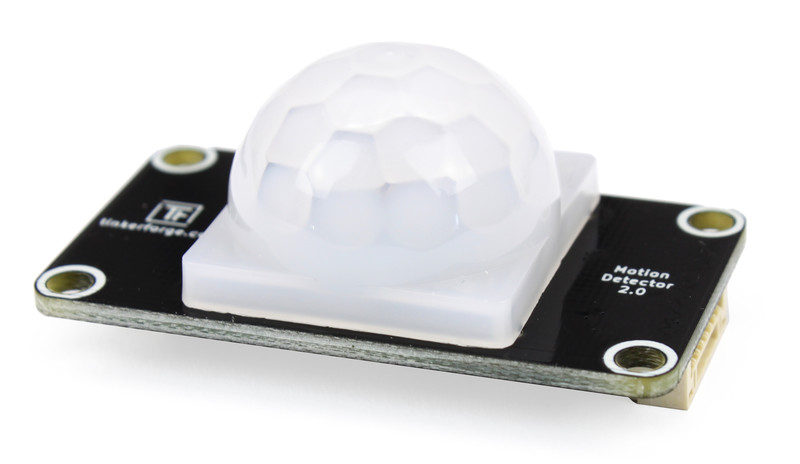

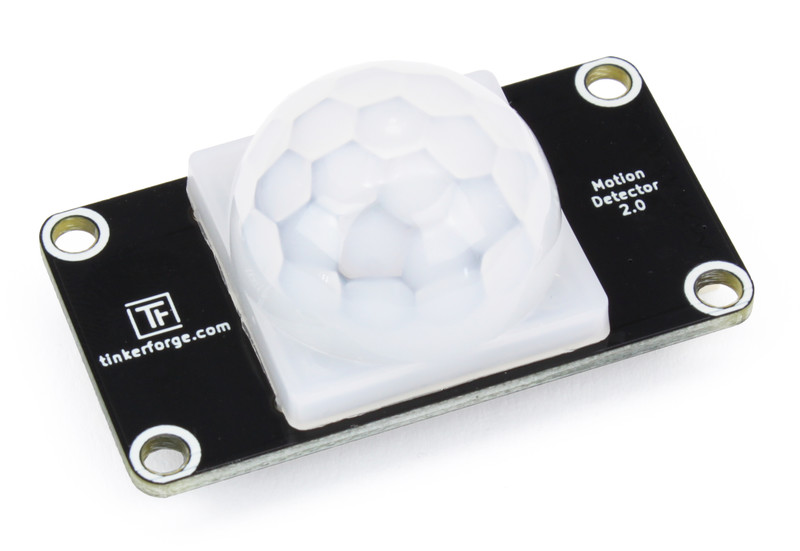

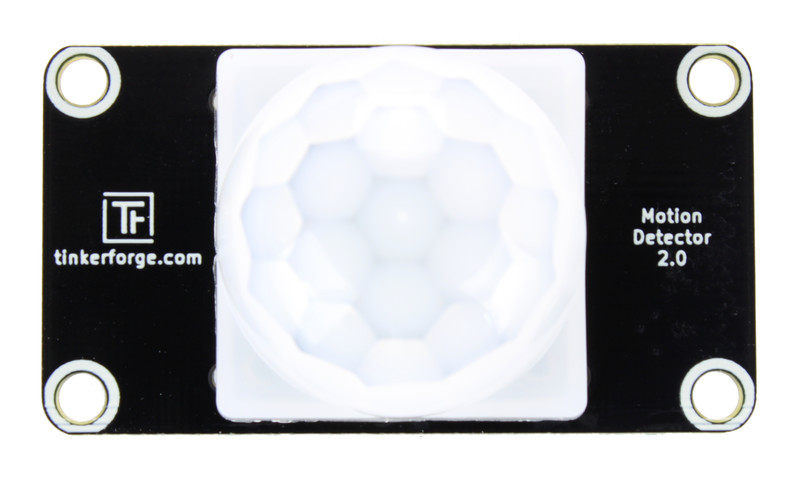

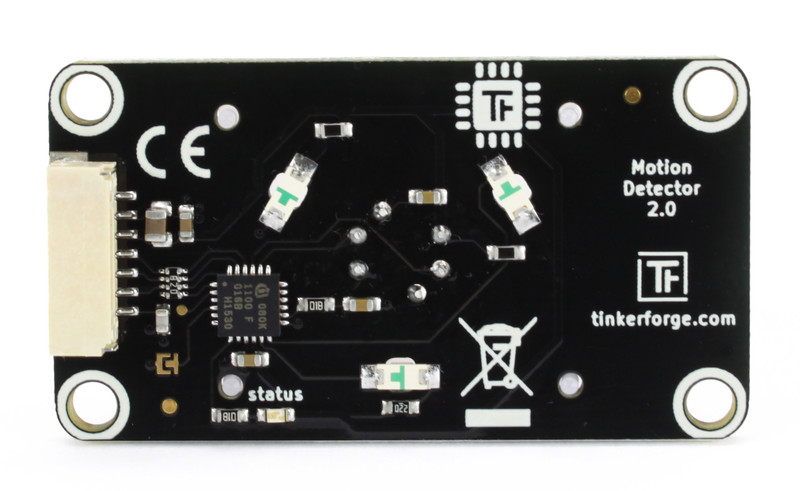

Motion Detector Bricklet 2.0

Features

  • Passive Infrared Motion Sensor
  • Detects motion in distances of up to 12m (sensitivity configurable)
  • High sensing angle (120°)
  • Fresnel lens has controllable backlight

Description

The Motion Detector Bricklet is equipped with a passive infrared (PIR) sensor. It can be used to extend Bricks to sense movement of people and animals. It has a configurable detection range of up to 12m with a sensing angle of 120°.

By using configurable events it is possible to react on detected motion without polling.

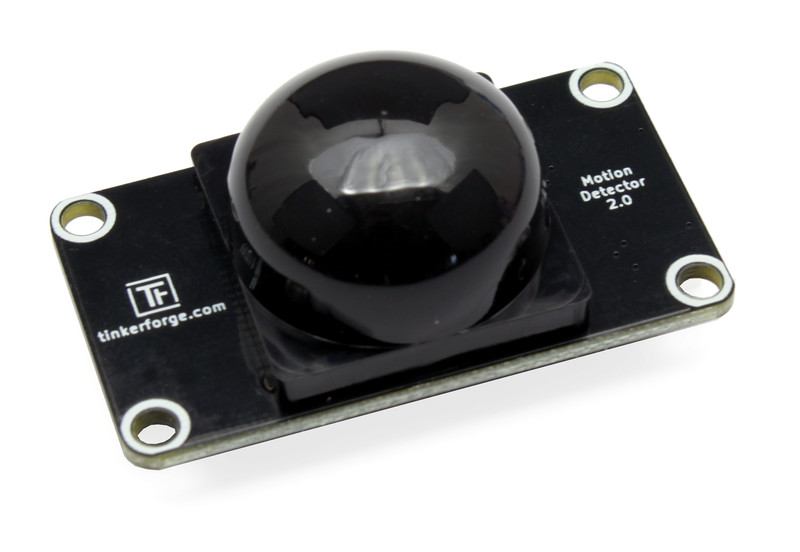

The fresnel lens has a blue backlight with controllable intensity. The backlight can be used as an indicator for detected motion or as a general purpose indication light.

Backlight in action:

Technical Specifications

Property Value
Current Consumption (LEDs off) 37mW

Sensing Range up to 12m
Sensing Angle 120°

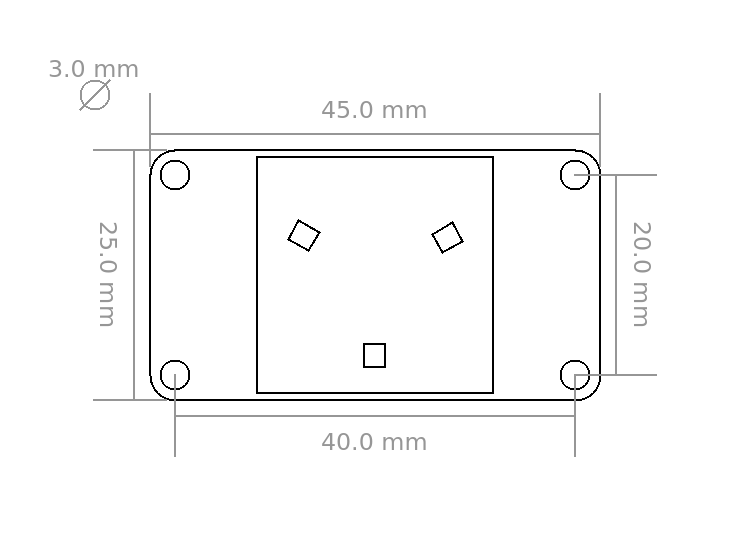

Dimensions (W x D x H) 25 x 45 x 30mm (0.98 x 1.78 x 1.18")
Weight 6g

Resources

Test your Motion Detector Bricklet 2.0

To test a Motion Detector Bricklet 2.0 you need to have Brick Daemon and Brick Viewer installed. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon. It helps to figure out basic information about the connected Bricks and Bricklets and allows to test them.

Connect the Motion Detector Bricklet 2.0 to a Brick with a Bricklet Cable.

If you connect the Brick to the PC over USB, you should see a new tab named "Motion Detector Bricklet 2.0" in the Brick Viewer after a moment. Select this tab. If everything went as expected you can now see when a motion is detected.

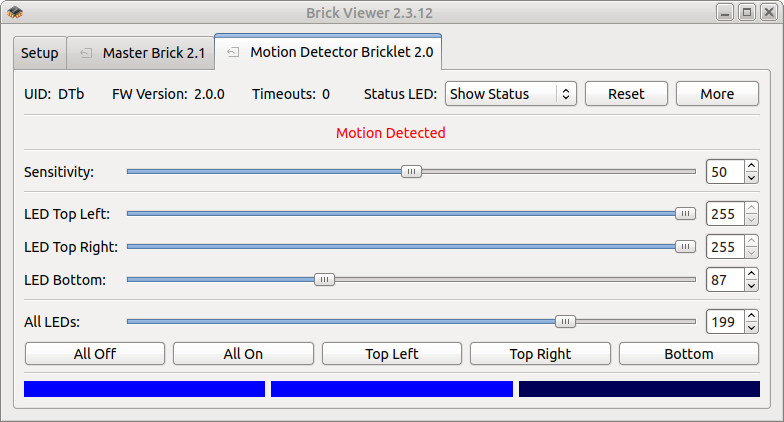

Motion Detector Bricklet 2.0 in Brick Viewer

After this test you can go on with writing your own application. See the Programming Interface section for the API of the Motion Detector Bricklet 2.0 and examples in different programming languages.

Case

A laser-cut case for the Motion Detector Bricklet 2.0 is available.

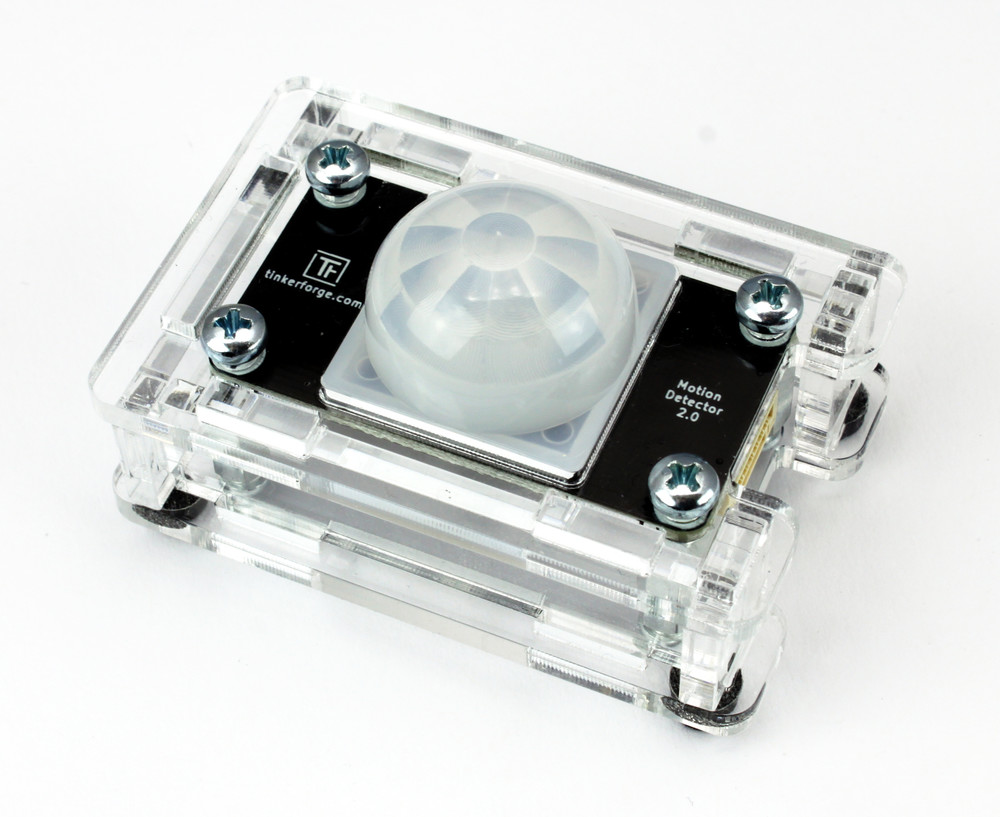

Case for Motion Detector Bricklet 2.0

The assembly is easiest if you follow the following steps:

  • Screw spacers to the Bricklet,
  • screw bottom plate to bottom spacers,
  • build up side plates,
  • plug side plates into bottom plate and
  • screw top plate to top spacers.

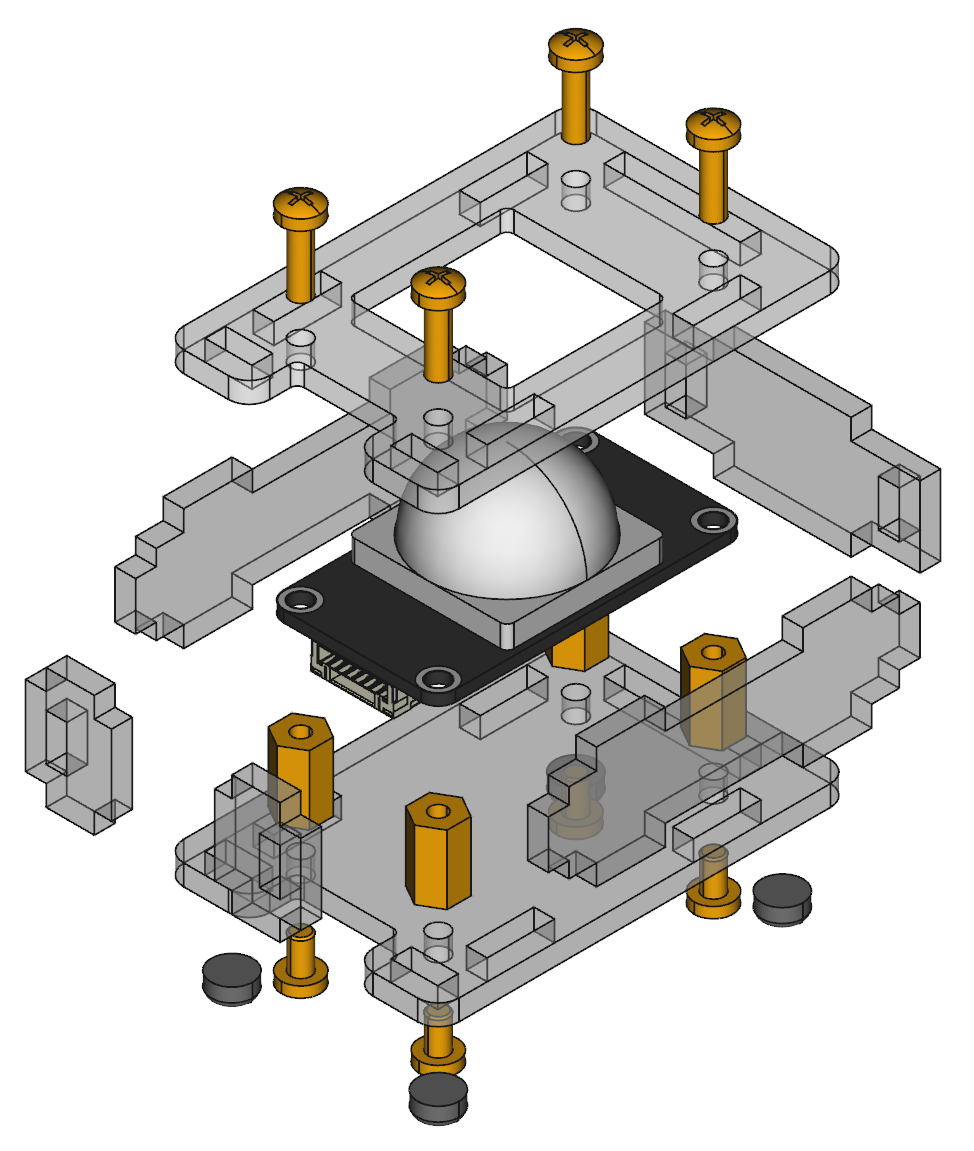

Below you can see an exploded assembly drawing of the Motion Detector Bricklet 2.0 case:

Exploded assembly drawing for Motion Detector Bricklet 2.0

Hint: There is a protective film on both sides of the plates, you have to remove it before assembly.

Programming Interface

See Programming Interface for a detailed description.

Language API Examples Installation
C/C++ API Examples Installation
C/C++ for Microcontrollers API Examples Installation
C# API Examples Installation
Delphi/Lazarus API Examples Installation
Go API Examples Installation
Java API Examples Installation
JavaScript API Examples Installation
LabVIEW API Examples Installation
Mathematica API Examples Installation
MATLAB/Octave API Examples Installation
MQTT API Examples Installation
openHAB API Examples Installation
Perl API Examples Installation
PHP API Examples Installation
Python API Examples Installation
Ruby API Examples Installation
Rust API Examples Installation
Shell API Examples Installation
Visual Basic .NET API Examples Installation
TCP/IP API
Modbus API
