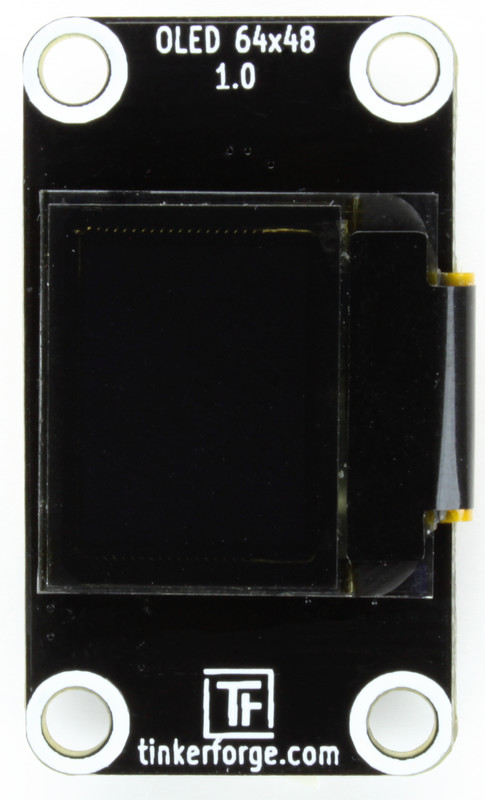

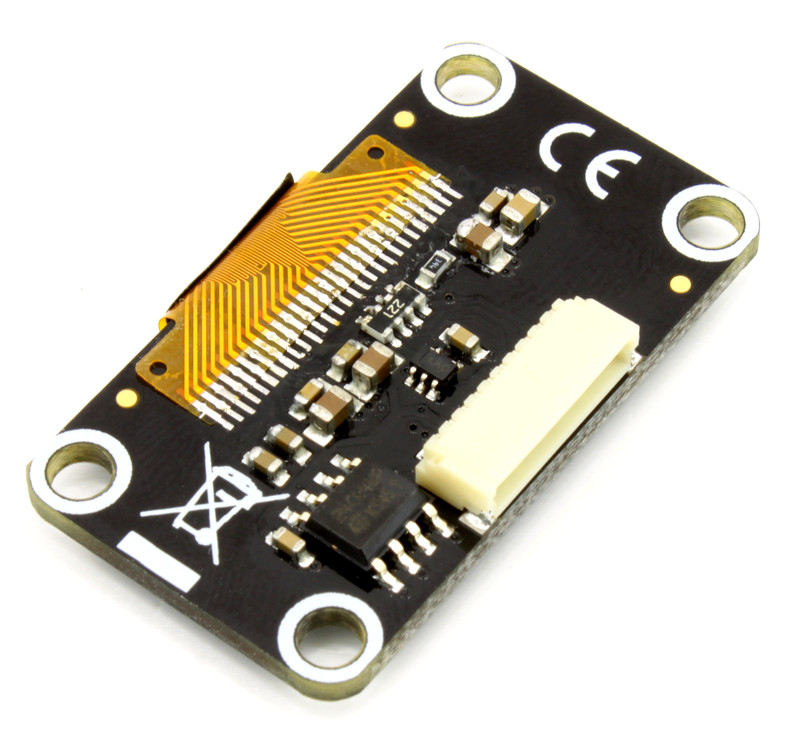

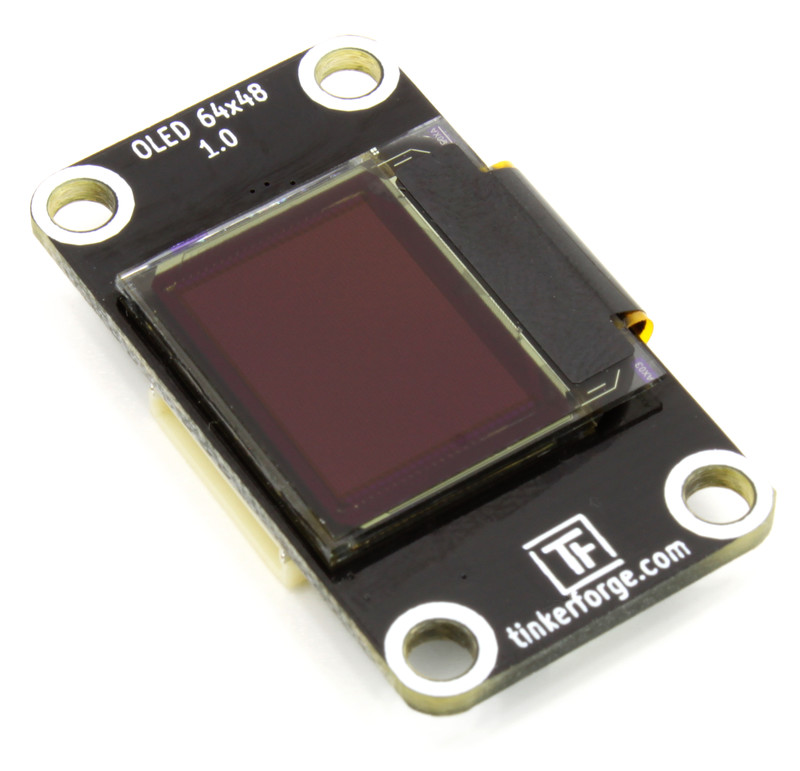

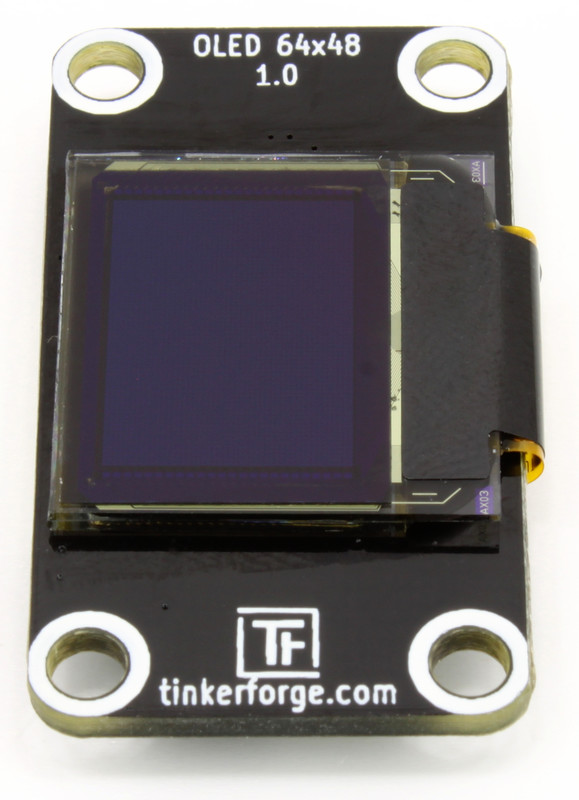

OLED 64x48 Bricklet

Note

The OLED 64x48 Bricklet is discontinued. We are selling our remaining stock. The OLED 128x64 Bricklet 2.0 is the recommended replacement.

Features

  • Black/white OLED
  • Size of 1.68cm (0.66") with a resolution of 64x48

Description

The OLED 64x48 Bricklet can be used to extend the features of Bricks with the capability to display information on a small 64x48 OLED display.

Because each pixel can be set individually, the display can do graphics. This allows for more versatile and detailed drawings on the display, compared to the LCD 20x4 Bricklet with its fixed character display.

Additionally, text can easily be drawn onto the display with the embedded font of the Bricklet.

High update rates of up to 100Hz are possible.

A demo with the 128x64 pixel version, a Servo Brick and a Rotary Poti Bricklet is available on Youtube:

Technical Specifications

Property Value
Current Consumption
10mW (2mA at 5V, all pixels black)
110mW (22mA at 5V, all pixels white)

Resolution 64x48 pixel, 13x6 characters
Size 1.68cm (0.66")
Colors Black/White

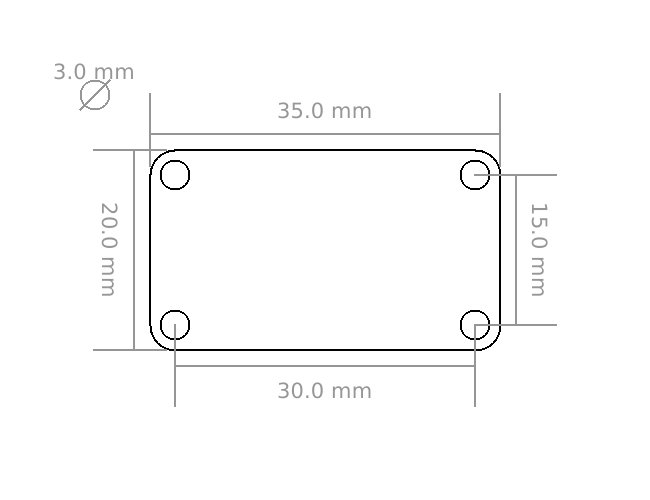

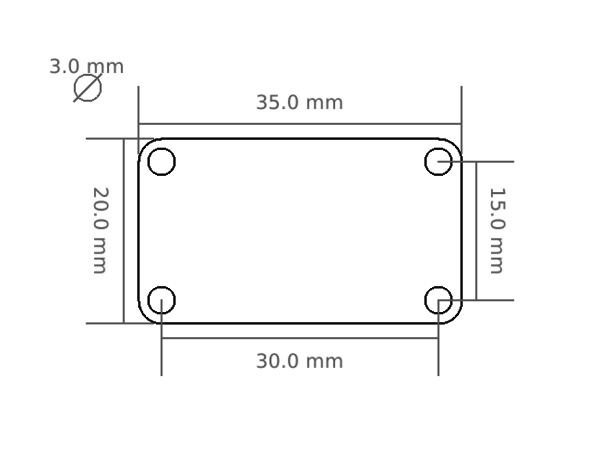

Dimensions (W x D x H) 35 x 20 x 7mm (1.38 x 0.79 x 0.28")
Weight 4g

Resources

Test your OLED 64x48 Bricklet

To test a OLED 64x48 Bricklet you need to have Brick Daemon and Brick Viewer installed. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon. It helps to figure out basic information about the connected Bricks and Bricklets and allows to test them.

Connect the OLED 64x48 Bricklet to a Brick with a Bricklet Cable.

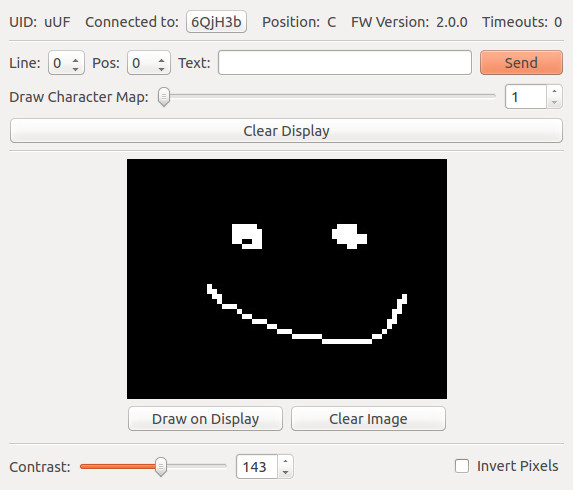

If you connect the Brick to the PC over USB, you should see a new tab named "OLED 64x48 Bricklet" in the Brick Viewer after a moment. Select this tab. If everything went as expected the Brick Viewer should look as depicted below.

You can draw and write text to the display. With the slider it is also possible to show the available character set on the OLED.

OLED 64x48 Bricklet in Brick Viewer

After this test you can go on with writing your own application. See the Programming Interface section for the API of the OLED 64x48 Bricklet and examples in different programming languages.

Usage

Unfortunately Bricklets only have a very limited amount of RAM (256 Byte) and flash (4096 Byte) available. This is not enough to for example cache a whole 64x48 b/w image. Therefore we can not offer convenient APIs like draw_line(x1, y1, x2, y2).

To draw to the display we recommend that you use an image library that is native to your programming language (for example PIL for Python). This way you can use all of the available drawing primitives and fonts of the library and then copy the image buffer to the Bricklet.

We provide examples for

Font

The Bricklet has an embedded font (code page 437, ASCII subset in green) that allows fast and easy text rendering (up to 13x6 characters):

OLED 64x48 Bricklet font
